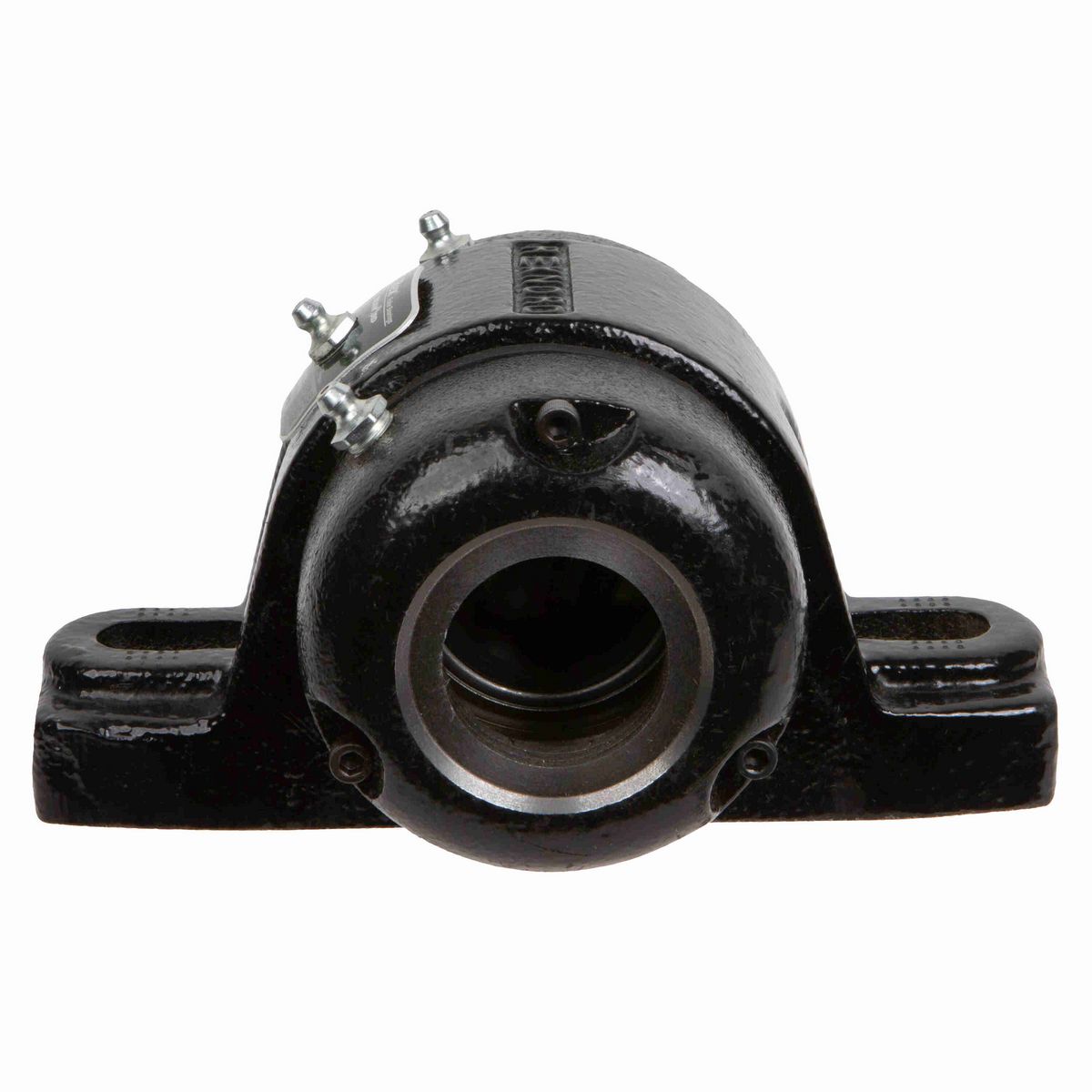

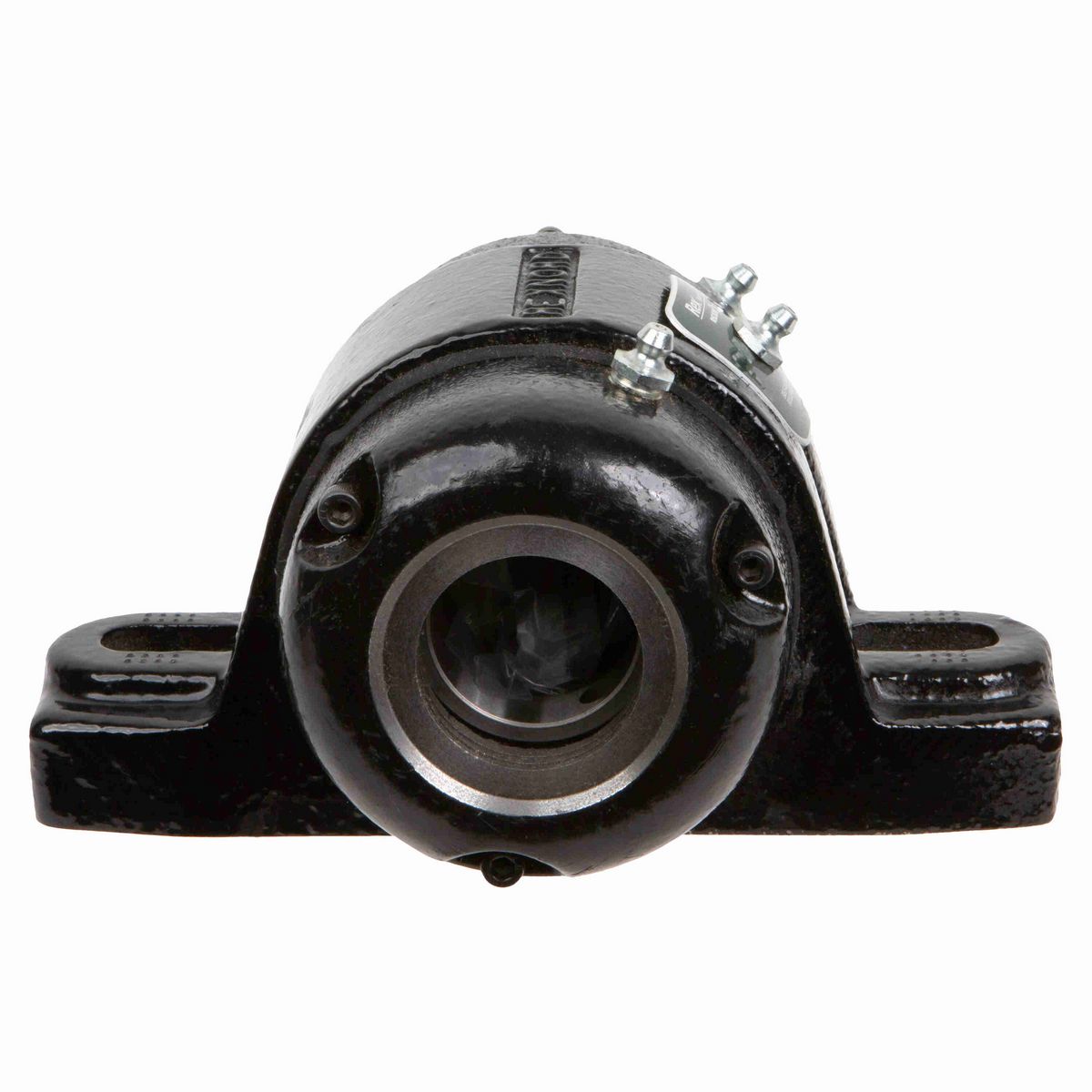

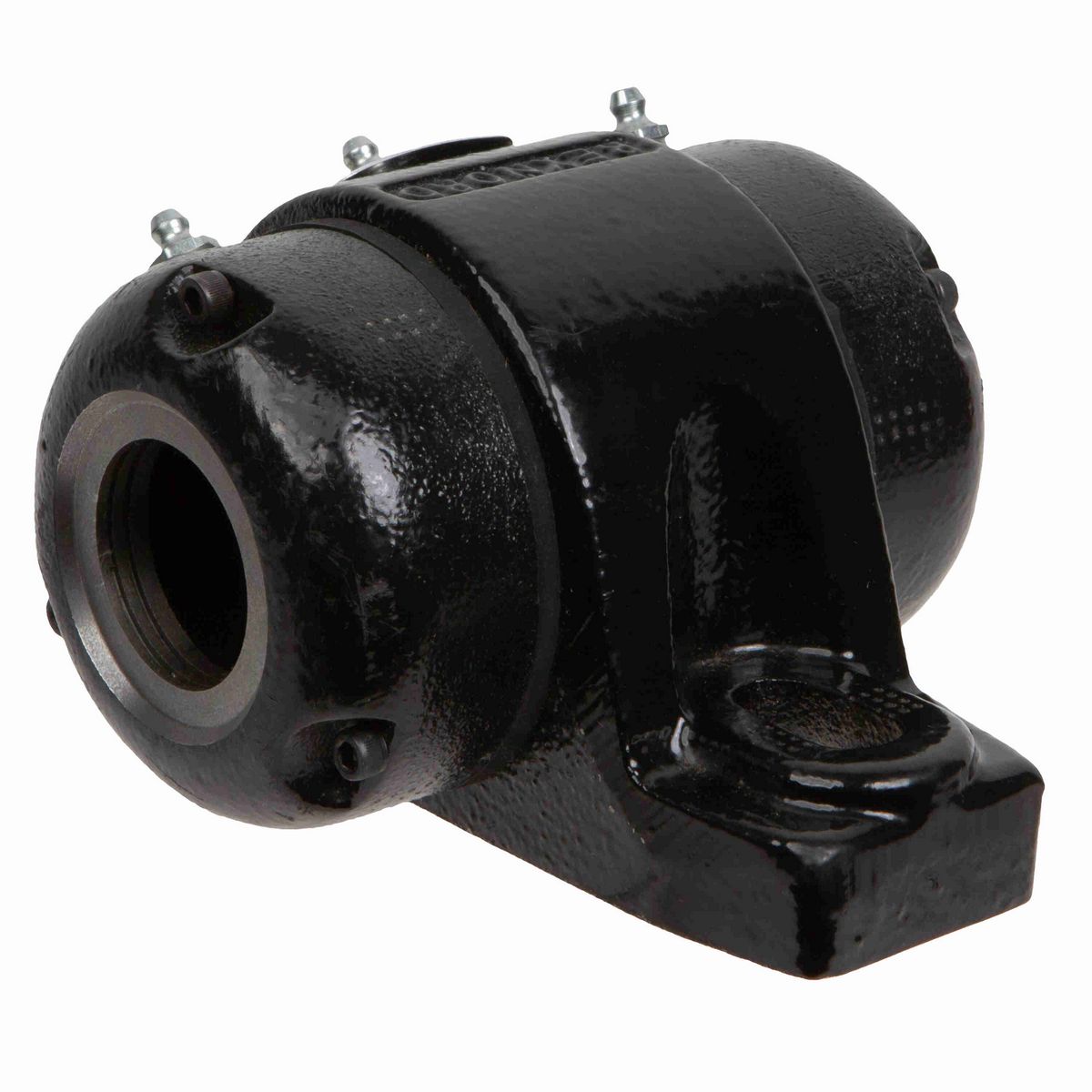

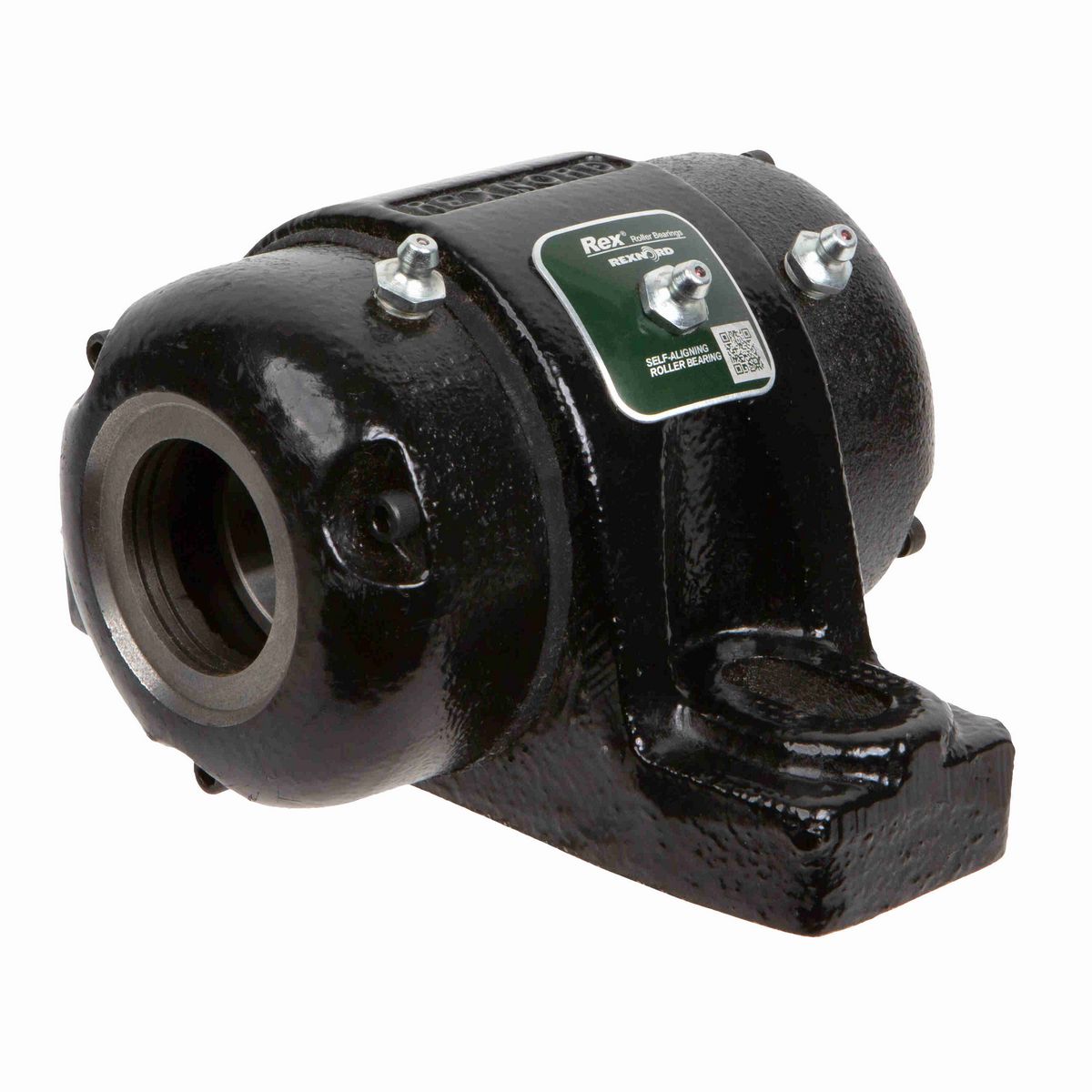

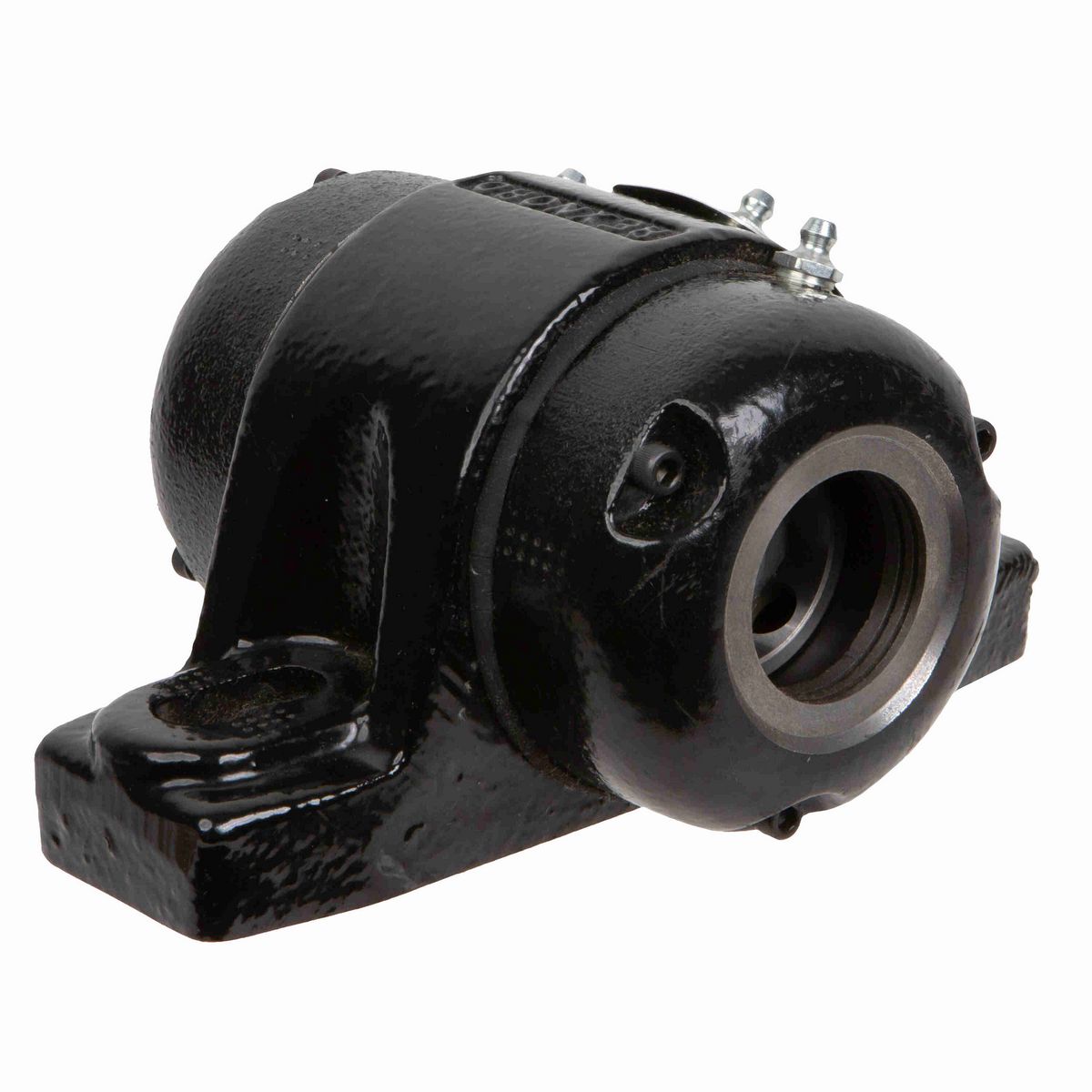

• 1 7/16" Mounted Spherical Roller Bearing, Fixed Cast Iron 2-Bolt Type E Pillow Block, Single Setscrew Locking Collar, Clearance Seal, Two Open Auxiliary Caps

Dimensions

Overall Length (in)	7.38 in
Overall Width (in)	5.31 in
Base to Center Height (in)	1.875 in
Base Width (in)	2.25 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.4375 in
Foot Height (in)	1.13 in
Overall Height (in)	3.88 in
Locking Collar Outside Diameter (in)	2.3 in
Centerline to Cap Face (in)	2.69 in
Base Length (in)	7.38 in
Bolt Spacing Max (in)	6 in
Housing Cast Face to Outermost Bearing Face (in)	0.69 in
Bolt Spacing Min (in)	4.75 in
Inner Ring Outside Diameter (in)	1.745 in
Length Through Bore (in)	5.31 in

Technical Specifications

Series	Solid-housed Pillow Blocks
Radial Dynamic Load Capacity (lb)	19,860 lb
Housing Material	Cast Iron
Housing Color	Black
Rolling Element	Spherical Roller
Static Load Rating (lb)	20,900 lb
Housing Construction	Solid
Seal Type	Clearance Seal
Housing Style	Pillow Block
Product	ZEP2000
Cage Material	Engineered Polymer
Shaft Locking Type	Single Set Collar
Misalignment Type	Dynamic
Radial Clearance	C3 STANDARD
Fixed/Expansion	Fixed
Housing Type	Pillow Block, Two Bolt, Type E
Microlock Kit	ML2
Setscrew Torque (in-lbs)	325 in/lbs
Seal Kit	ZS4
Auxiliary Cap Kit	A4107 (qty 2)
Ability to Relubricate	Yes
Available Seal Type	K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip
Maximum Speed (RPM)	5250 rpm
Grease Fitting Thread Size	1/8 NPT
Size Code	4
Housing Coating	POWDER COATED
Primary Seal	STEEL CLEARANCE SEAL
Vibration Frequency Outer Ring Defect	0.1055 cps
Lubricant	EXXON RONEX MP STD
Vibration Frequency Roller Spin	0.0499 cps
Insert	2107U
Auxiliary Seals	2 OPEN CAPS CAST IRON
Vibration Frequency Fundamental Train	0.007 cps
Max Operating Temperature (C)	107 °C
Vibration Frequency Inner Ring Defect	0.1445 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Locking Device Kit	SC4
Max Operating Temperature (F)	225 °F

General Specifications

UPC	698210002961
Weight	10.50 LB
Packaged Length	6.88 IN
Packaged Width	4.94 IN
Packaged Height	9.75 IN
HTC	8483208080
Country of Origin	Mexico
