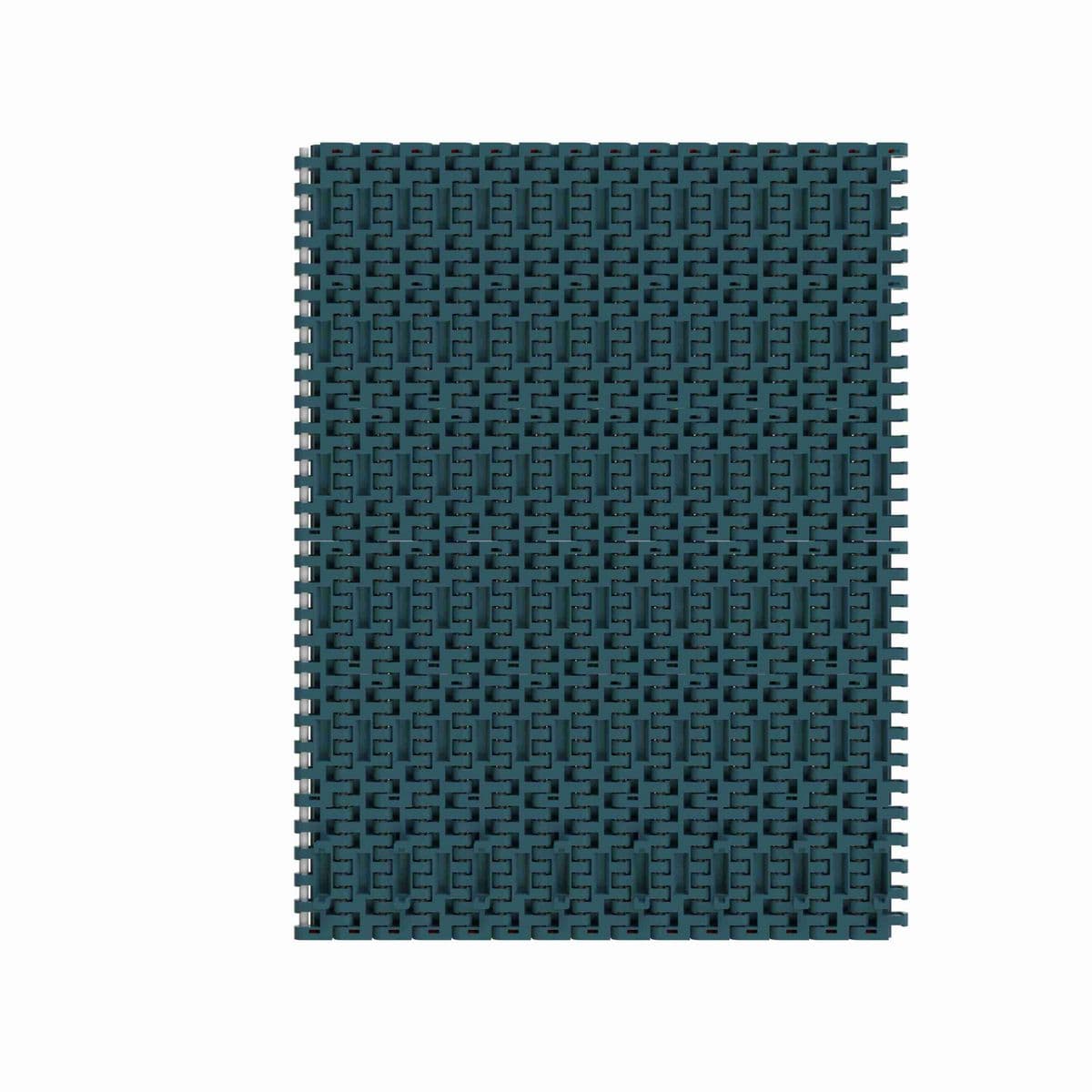

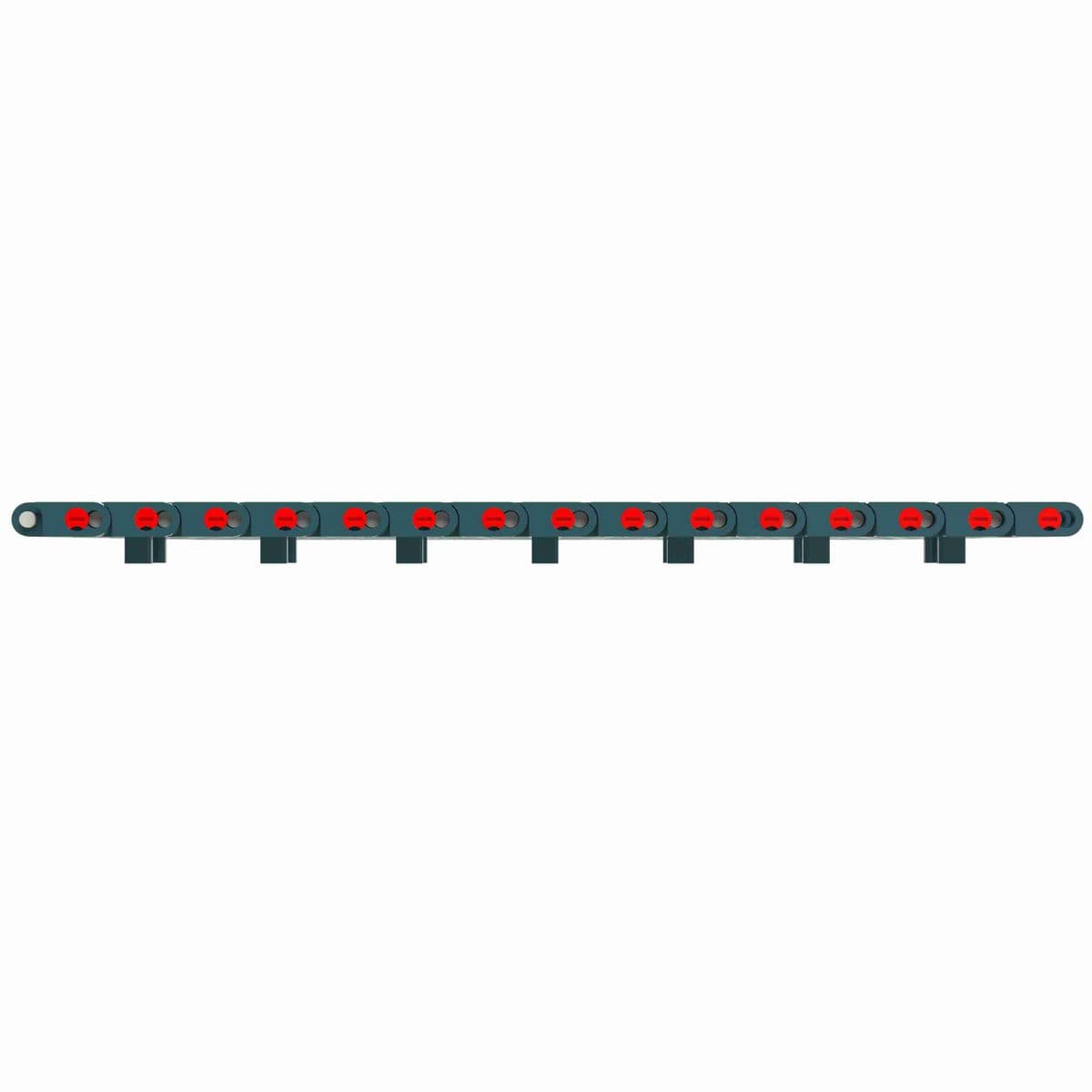

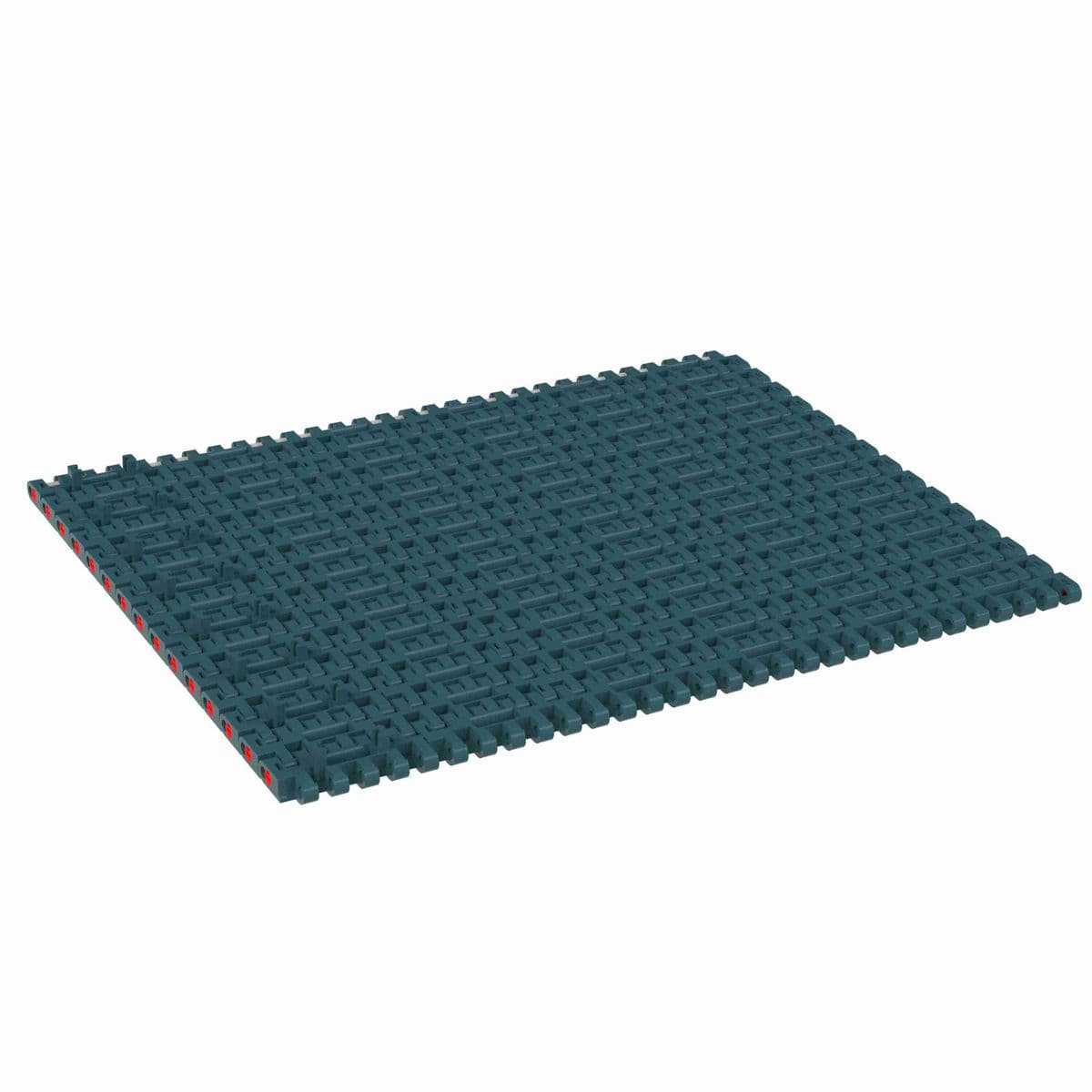

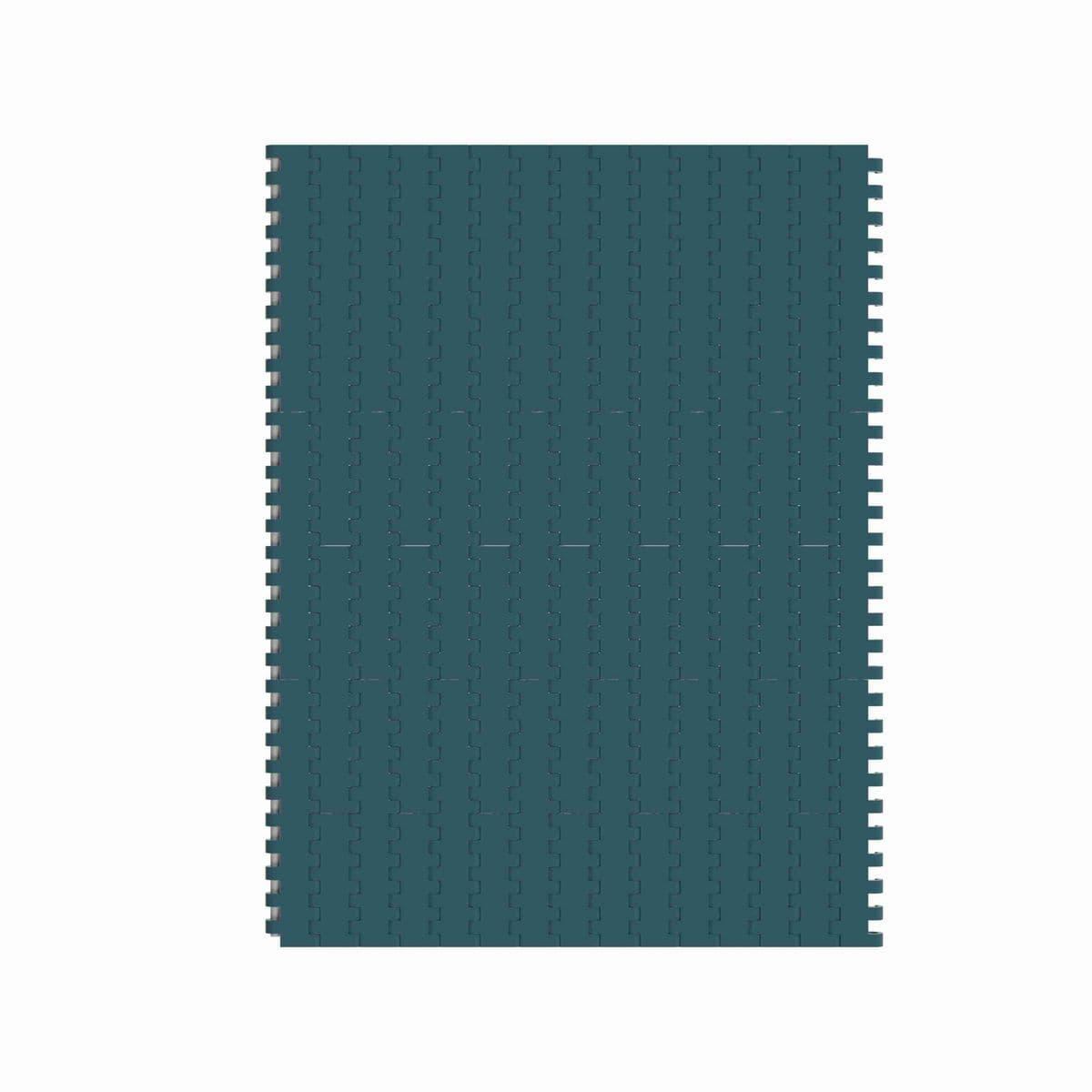

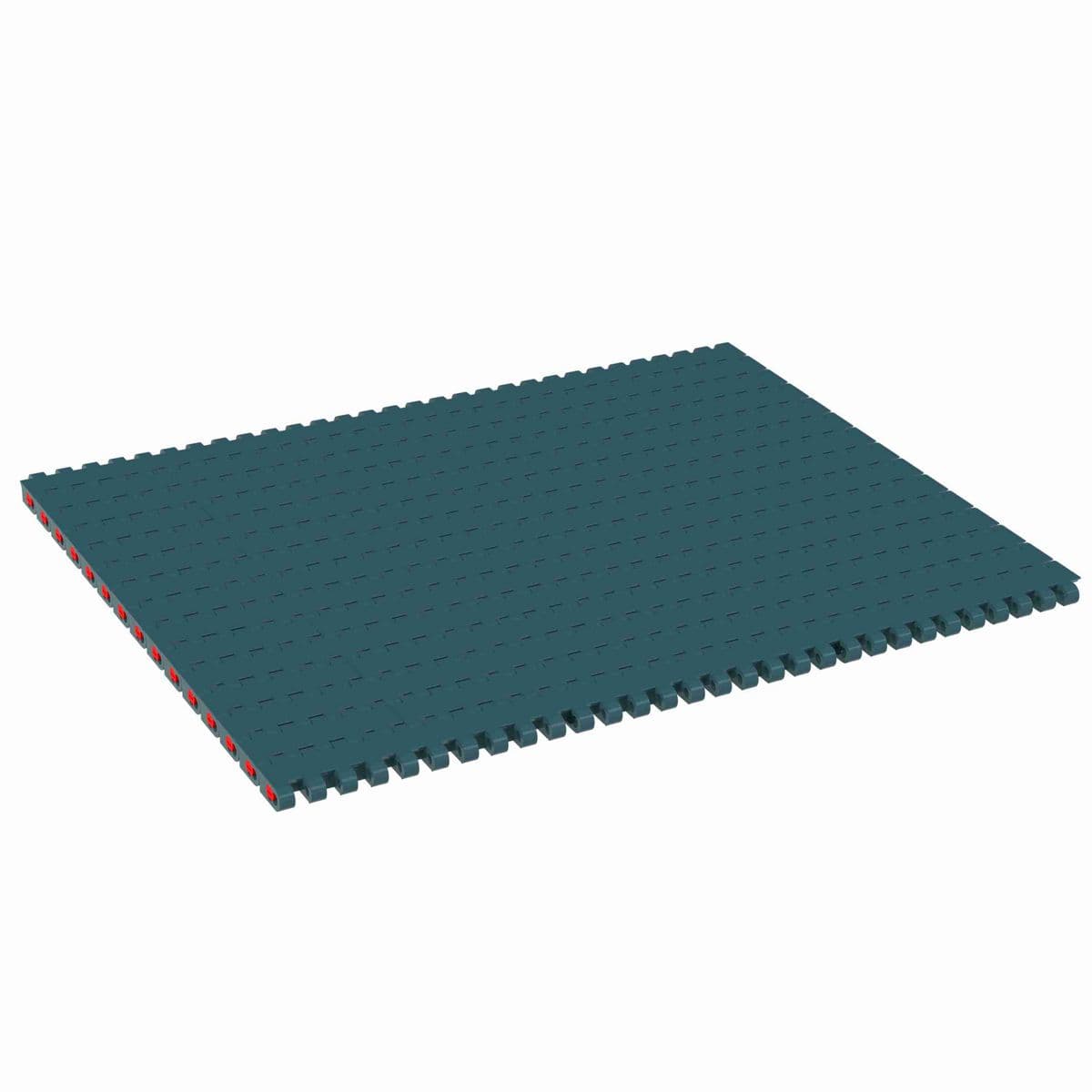

• XLG1005 1020mm Wide Flat Top MatTop Chain With PosiTrack With Polyester Pins Molded In Green Internally Lubricated Acetal Material

Technical Specifications

Chain Strength (N/m)	35,000 N·m
Positrack	True
Chain Material	XLG
Chain Material Description	Green Low Friction Acetal
Positrack Location	Either
Surface Type	Solid Top
Chain Pitch (mm)	25.4 mm
Open Area (%)	0 %
Chain Strength (lb/ft)	2,399 lb/ft
Product Type	Straight Running
Series	MatTop 1005 Series Chain
Chain Width (in)	40.16 in
Product Line	Plastic Modular Chain and Belt
Product Group	Modular Plastic Belts
Number of Positrack	2
Chain Number	1005FT
Straight or Side-Flex	Straight Running
Chain Pitch (in)	1 in
Rod/Pin Material	Polyester
Belt Thickness (mm)	12.7 mm
Chain Width (mm)	1,020 mm
Belt Thickness (in)	0.5 in
Chain Width Measurement System	Metric

General Specifications

Weight	0.35 KG
HTC	3926906090
Country of Origin	Mexico
