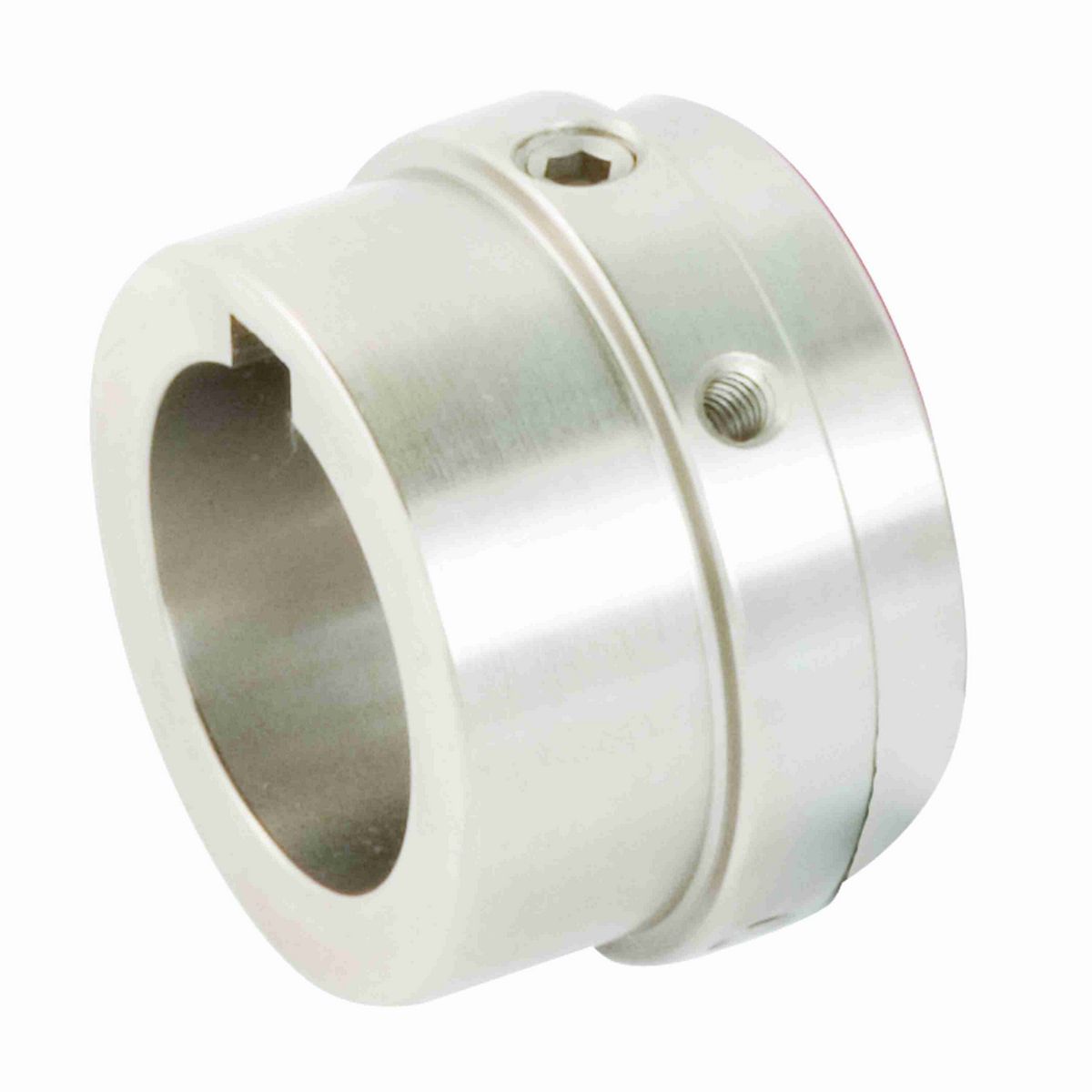

• Rexnord E_ES_ES-R Series Straight Bore Style-Stock Bore (HSB) Hubs size(s) 10 with a 3.30-inch outside barrel diameter for elastomeric couplings.

Technical Specifications

Hub Straight Bore Diameter [Nom] (in)	1.5 in
Keyway Width (in)	0.375 in
Hub Barrel Outside Diameter (in)	3.3 in
Product	Omega Hubs
Number of Set Screws	1
Hub Straight Bore Diameter [Max] (in)	1.501 in
Hub Bore Fit	Clearance
Hub Straight Bore Diameter [Min] (in)	1.5 in
Hub Shoulder Diameter (in)	3.65 in
Hub Style	Standard Bore (HSB)
Coupling Size	10
Hub Material	Steel
Series	Hubs
Keyway Depth (in)	0.1875 in
Number of Keyways	1
Hub Length (in)	1.88 in
Coupling Type	Elastomeric

General Specifications

UPC	698210003586
Weight	3.40 LB
Packaged Length	9.00 IN
Packaged Width	6.00 IN
Packaged Height	9.00 IN
Country of Origin	China
