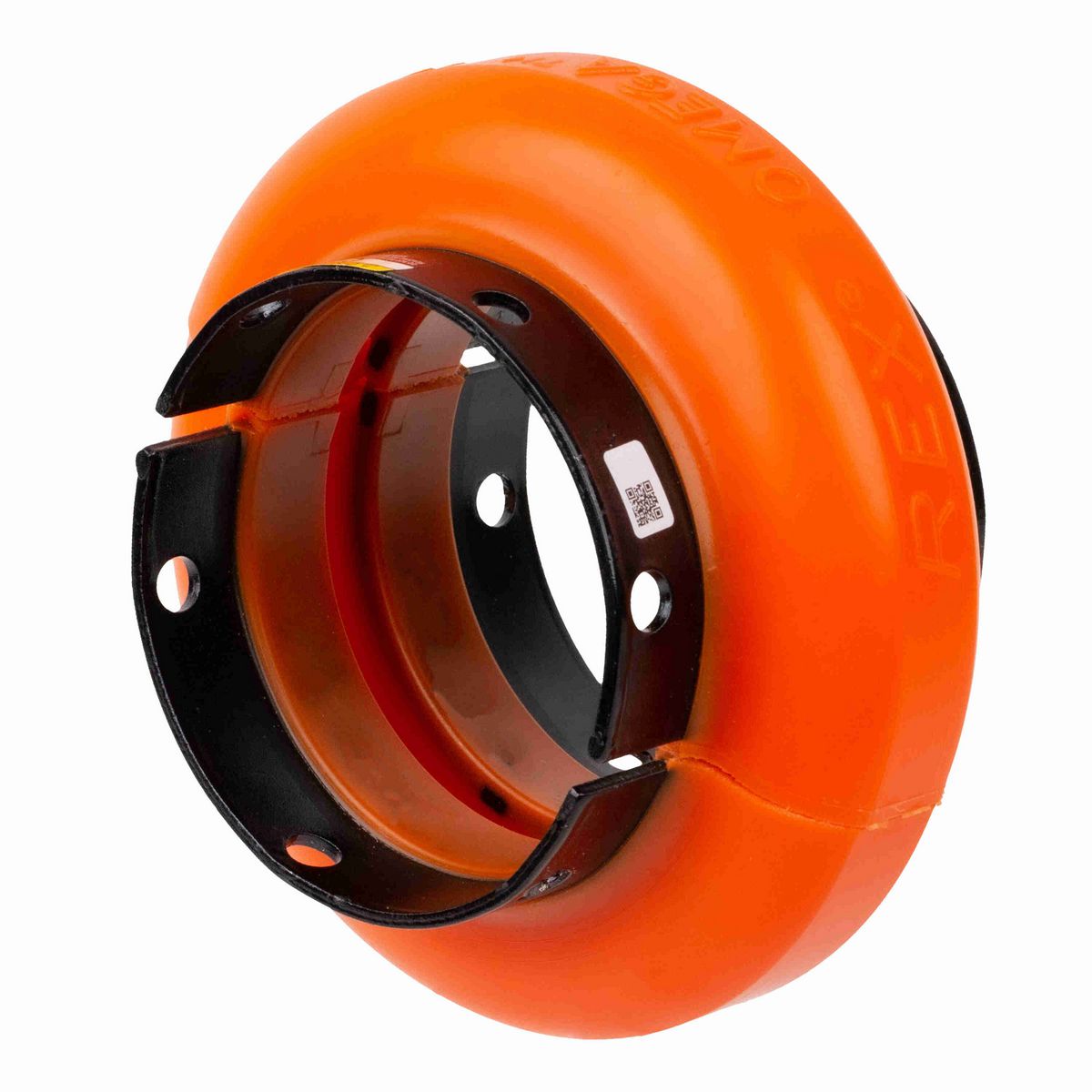

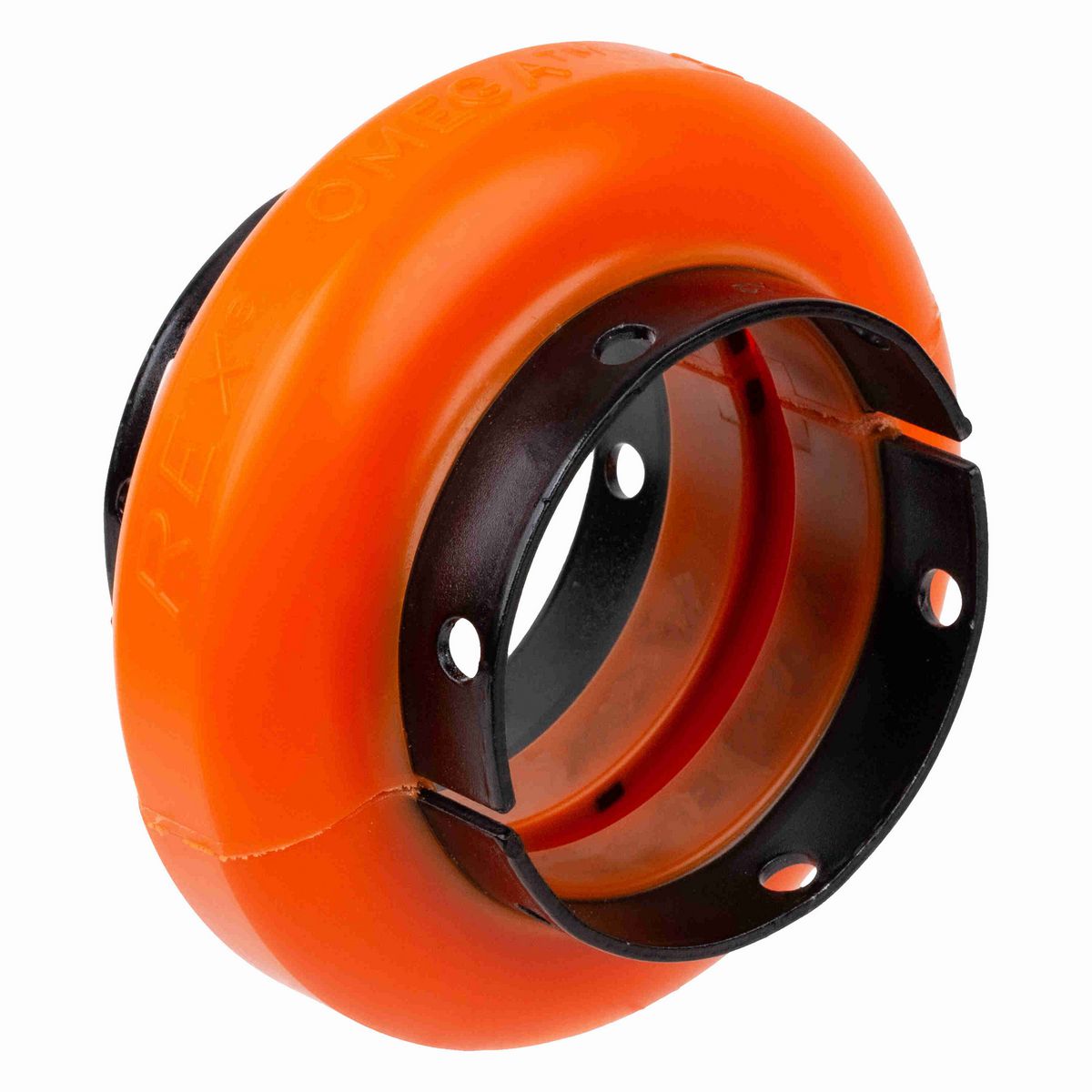

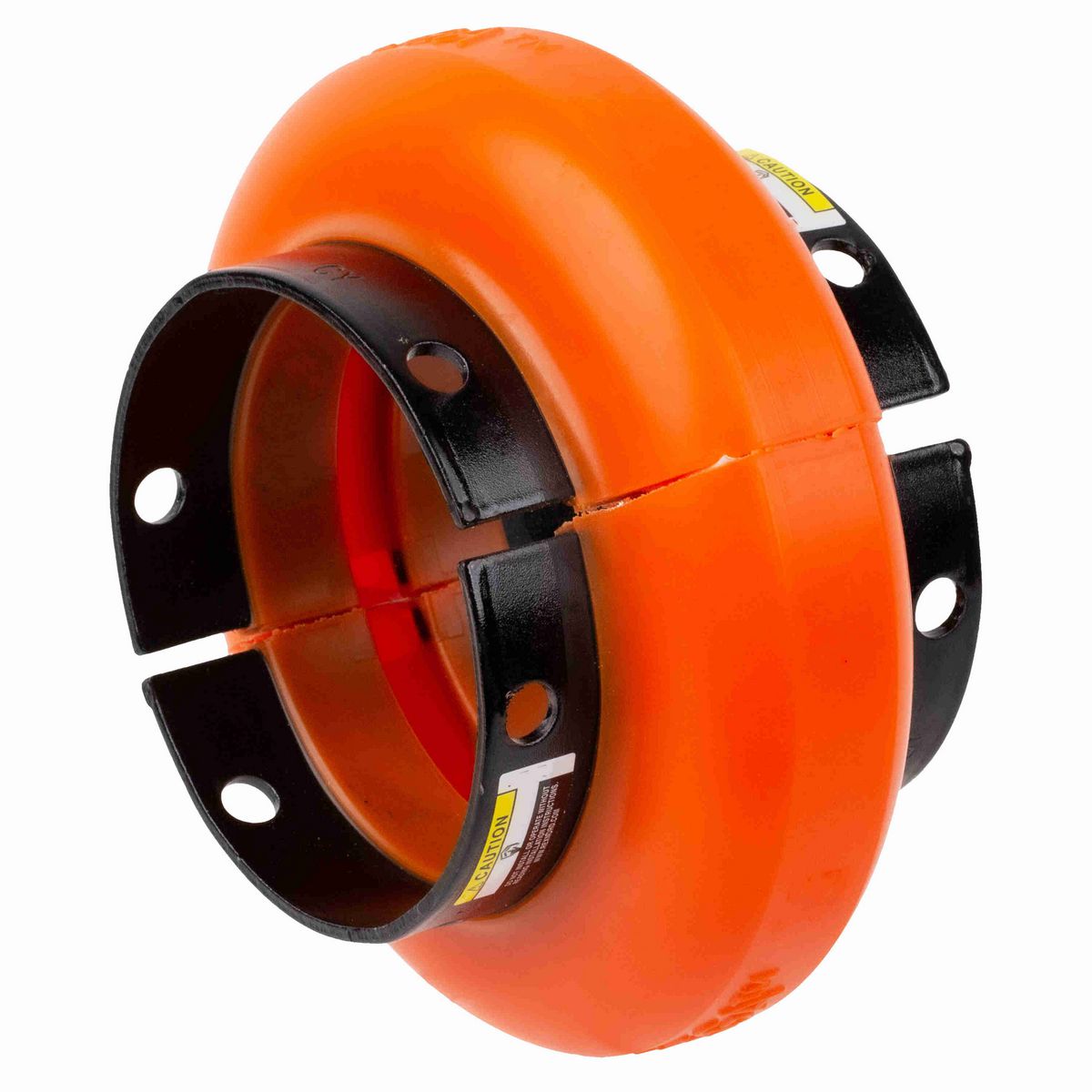

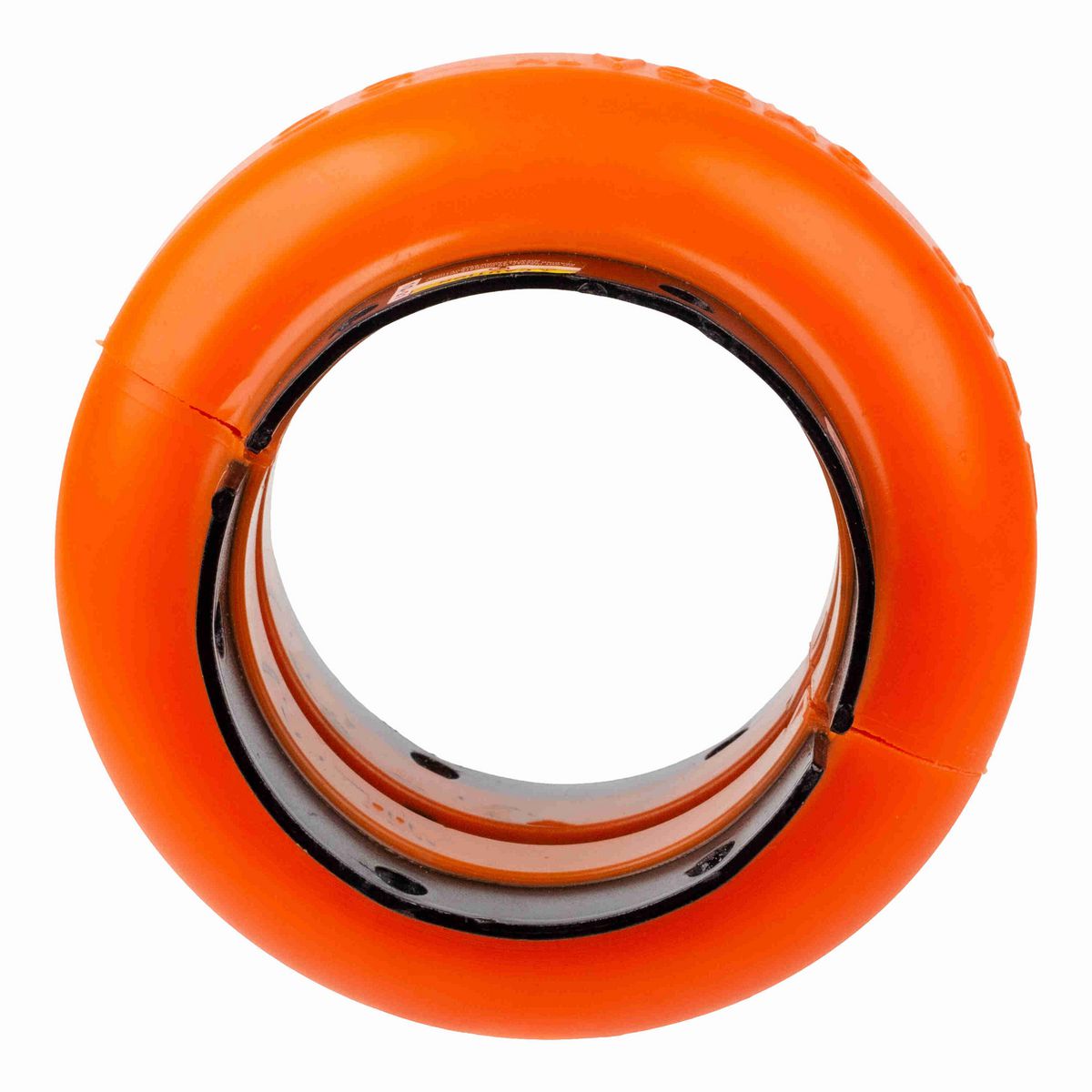

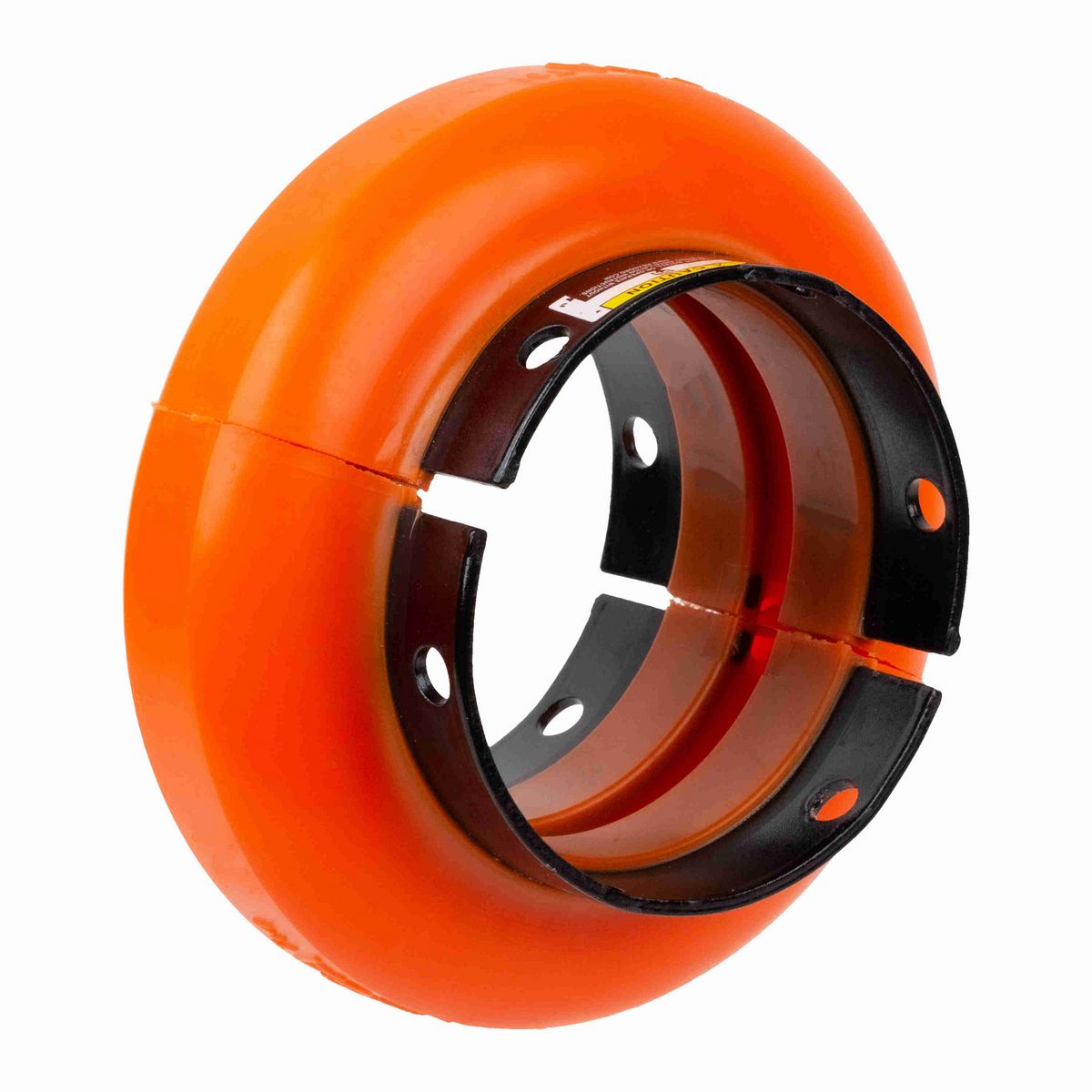

• Rexnord E Series Flexible Elements size(s) E120M close coupled style with metric capscrews and standard shoe coating in Urethane (Orange) material for elastomeric couplings.

Technical Specifications

Major Diameter of Coupling (mm)	635 mm
Product	Omega Close-Coupled Elastomeric Elements
Major Diameter of Coupling (in)	25 in
Cap Screws	Metric Capscrews
Element Style	High Misalignment
Maximum Speed Rating (rpm)	1,800 rpm
Coupling Style	Close Coupled
Continuous Torque Rating (in-lb)	170,100 in/lbs
Coupling Type	Elastomeric
Element Material	Urethane (Orange)
Continuous Torque Rating (Nm)	19,220 N·m
Series	Elements-Flexible
Shoe Coating	Standard Coating
Coupling Size	E120M

General Specifications

UPC	698210854744
Weight	44.60 KG
Packaged Length	48.00 IN
Packaged Width	48.00 IN
Packaged Height	48.00 IN
HTC	8483908010
Country of Origin	United States of America
