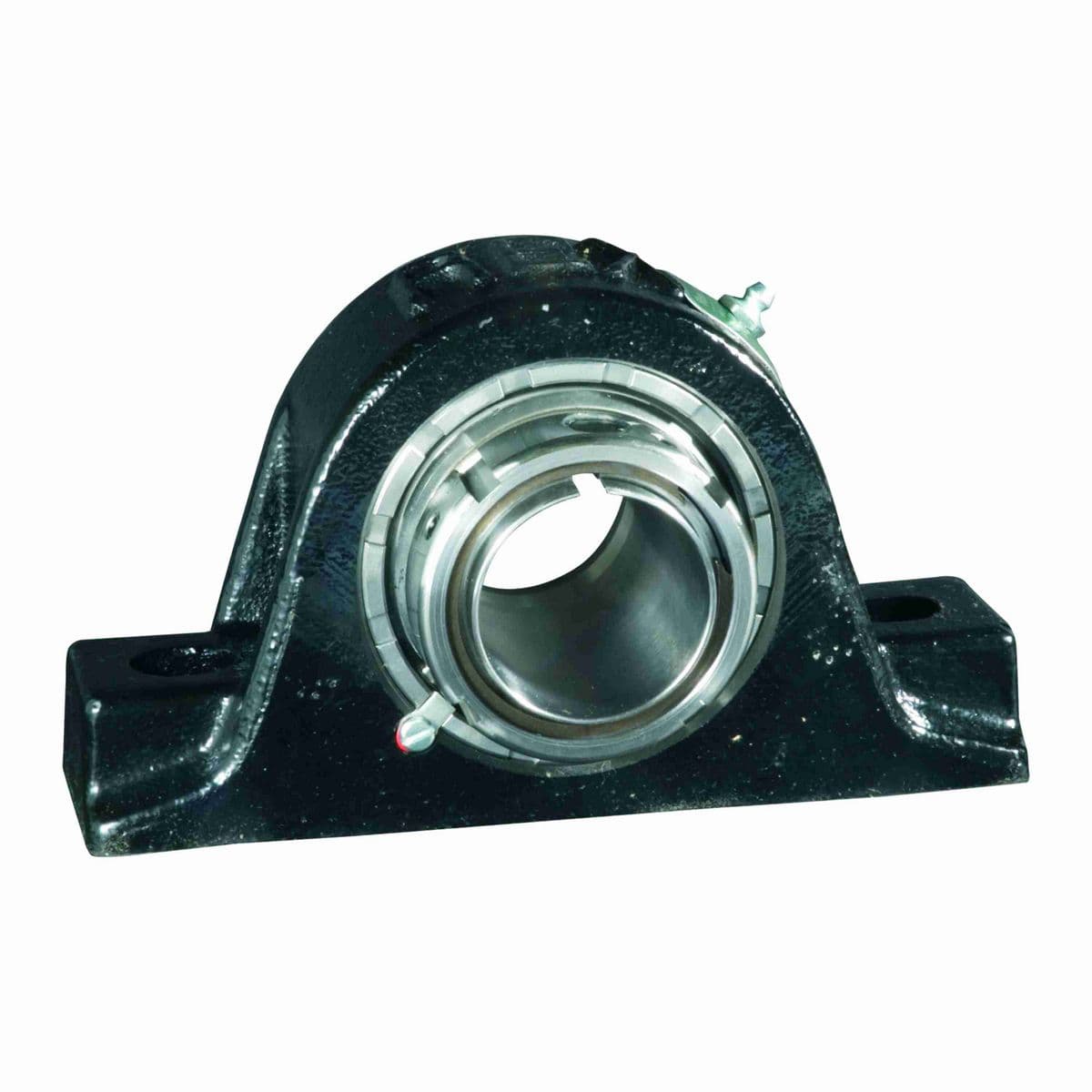

• 2 7/16" Mounted Spherical Roller Bearing, Cast Iron Fixed 2-Bolt Pillow Block, Shurlok Adapter Mounted, Clearance Seal, G Lock Threaded Cover, Press Fit Outer Rings, C4 Internal Clearance, Steel Retainers

Dimensions

Overall Length (in)	9.13 in
Base Width (in)	2.69 in
Bore Diameter (in)	2.4375 in
Bolt Size (in)	5/8 in
Base to Center Height (in)	2.75 in
Overall Width (in)	4.06 in
Foot Height (in)	1.63 in
Overall Height (in)	5.5 in
Slot Length (in)	0.94 in
Locking Collar Outside Diameter (in)	3.59 in
Length Through Bore (in)	4.06 in
Housing Cast Face to Outermost Bearing Face (in)	1.42 in
Inner Ring Outside Diameter (in)	2.901 in
Bolt Spacing (in)	7.13 in
Base Length (in)	9.13 in

Technical Specifications

Rolling Element	Spherical Roller
Housing Material	Cast Iron
Housing Style	Pillow Block
Seal Type	Clearance Seal
Radial Clearance	C4 INCREASED
Housing Color	Black
Housing Type	Pillow Block, Two Bolt
Series	Solid-housed Pillow Blocks
Product	ZA6000
Static Load Rating (lb)	53,500 lb
Fixed/Expansion	Fixed
Misalignment Type	Dynamic
Radial Dynamic Load Capacity (lb)	43,240 lb
Shaft Locking Type	Adapter Mount
Cage Material	Steel
Housing Construction	Solid
Ability to Relubricate	Yes
Microlock Kit	ML3
Available Seal Type	K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip
Setscrew Torque (in-lbs)	87-92 in/lbs
Maximum Speed (RPM)	3300 rpm
Wrench Style Shurlok Install Tool	105-90420-31
Seal Kit	ZS8
Max Operating Temperature (F)	225 °F
Primary Seal	STEEL CLEARANCE SEAL
Impact Style Shurlok Install Tool	105-90425-31
Grease Fitting Thread Size	1/8 NPT
Lubricant	EXXON RONEX MP STD
Vibration Frequency Inner Ring Defect	0.1791 cps
Housing Coating	POWDER COATED
Vibration Frequency Fundamental Train	0.0072 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Insert	6207UR78
Locking Device Kit	AK86207
Shaft Locking Collar Kit/Adapter Assembly	AK86207
Size Code	8
Max Operating Temperature (C)	107 °C
Vibration Frequency Outer Ring Defect	0.1376 cps
Vibration Frequency Roller Spin	0.0607 cps

General Specifications

UPC	782934952036
Weight	15.70 LB
