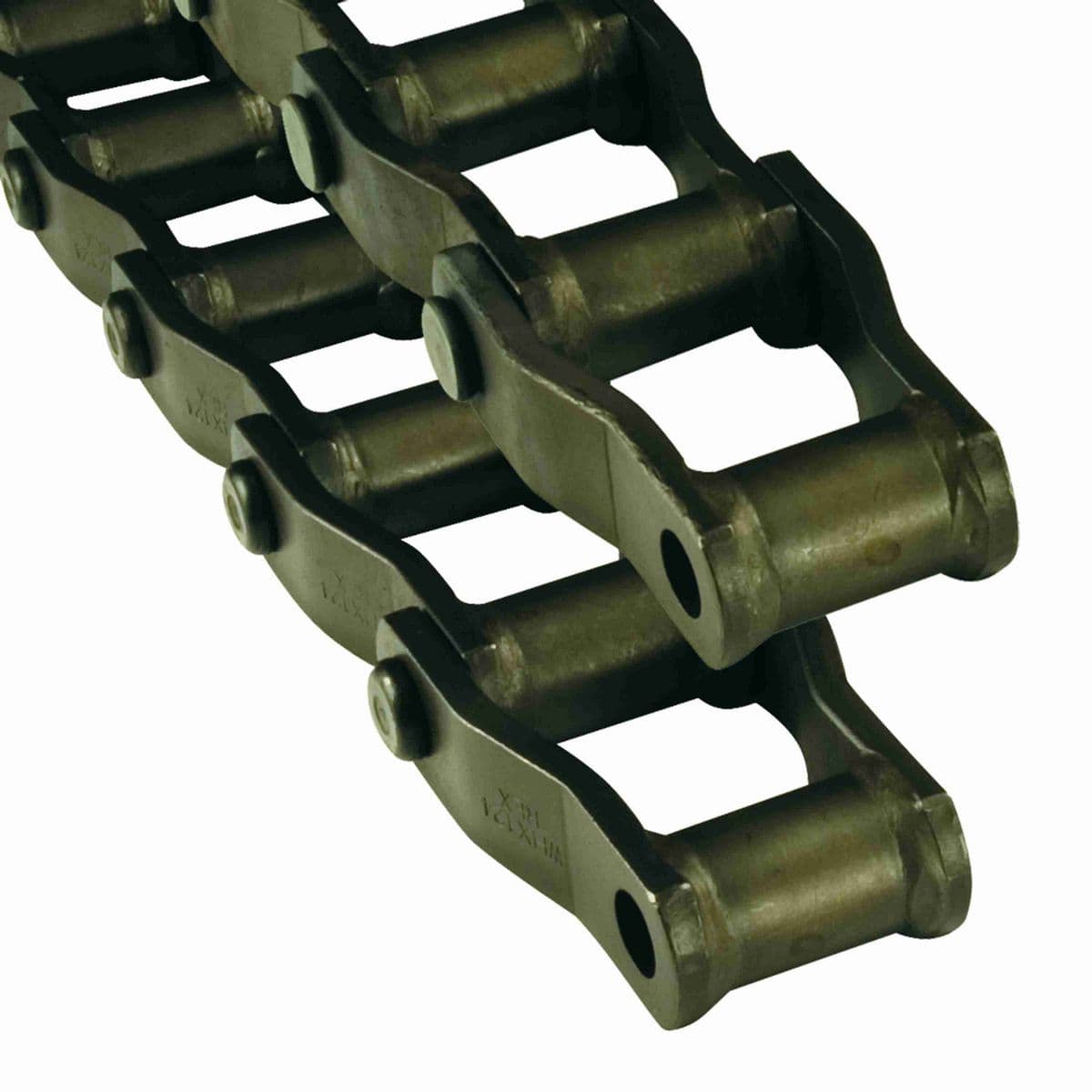

• WHX132 Welded Steel Chain 6.050 Pitch - 20 Links/strand Pin and Cotter Construction

Technical Specifications

Product Type	WHX
Barrel Diameter (in)	1.75 in
Series	Welded Chains
Minimum Tensile Strength (lbs)	85,000 lb
Overall Width/Pin Length (in)	6.31 in
Material	Steel
Pin Diameter (in)	1 in
Plate Thickness (in)	0.5 in
Plate Depth (in)	2 in
Barrel Length (in)	4.38 in
Base Catalog No	WHX132
Chain Pitch (in)	6.05 in
Product	Narrow Mill
Rated Working Load (lb/ft)	15,000 lb/ft
Chain Sub-Category	Narrow Mill
Sprocket Unit	132
Width Between Outer Plates (in)	3 in
Chain Category	Welded Steel

General Specifications

UPC	698210893187
Weight	13.50 LB
Packaged Length	48.00 IN
Packaged Width	42.00 IN
Packaged Height	6.00 IN
HTC	7315120040
Country of Origin	China
