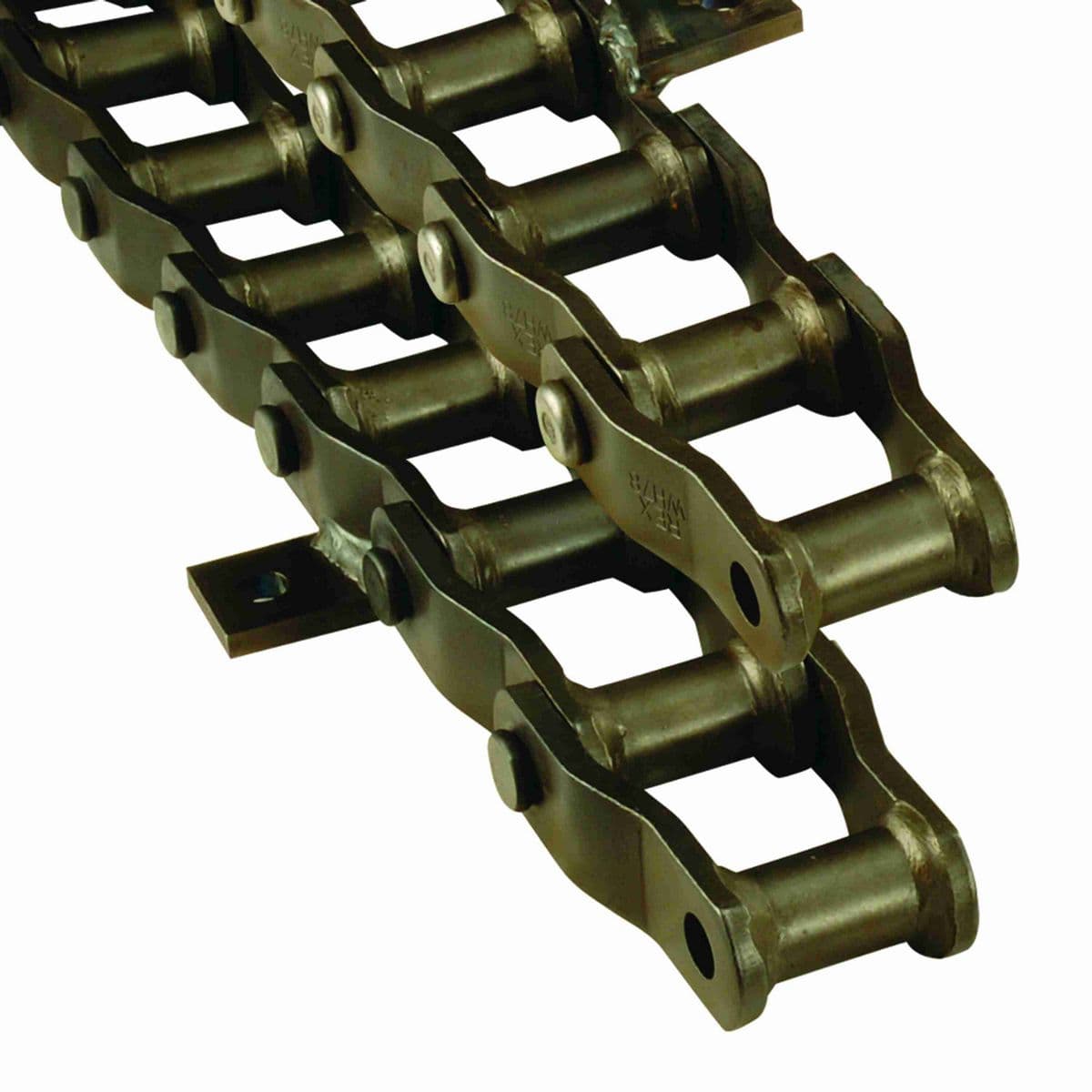

• WHR78 Welded Steel Chain 2.609 Pitch - 46 Links/strand Pin and Cotter Construction

Technical Specifications

Plate Depth (in)	1.13 in
Series	Welded Chains
Barrel Diameter (in)	0.88 in
Product	Narrow Mill
Chain Pitch (in)	2.609 in
Base Catalog No	WH78
Width Between Outer Plates (in)	1.12 in
Rated Working Load (lb/ft)	3,500 lb/ft
Plate Thickness (in)	0.25 in
Sprocket Unit	78
Product Type	WH
Chain Sub-Category	Narrow Mill
Barrel Length (in)	2 in
Overall Width/Pin Length (in)	2.98 in
Pin Diameter (in)	0.5 in
Material	Steel
Minimum Tensile Strength (lbs)	25,500 lb
Chain Category	Welded Steel

General Specifications

UPC	698210893170
Weight	4.20 LB
Packaged Length	48.00 IN
Packaged Width	42.00 IN
Packaged Height	6.00 IN
HTC	7315120040
Country of Origin	China
