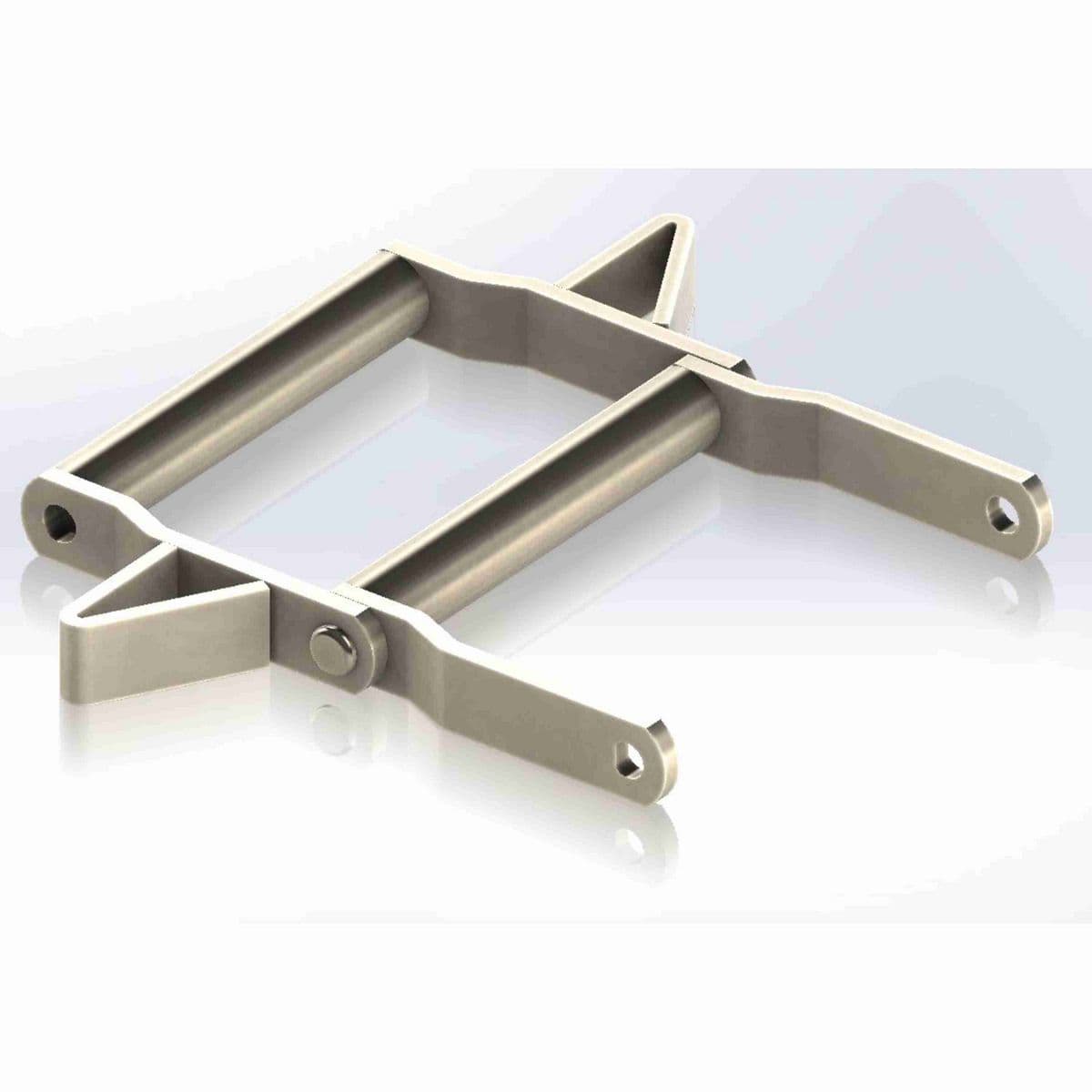

Technical Specifications

Sprocket Unit	H480
Series	Welded Chains
Plate Depth (in)	2 in
Chain Sub-Category	Wide Mill Drag
Base Catalog No	WDH480
Barrel Length (in)	12.75 in
Overall Width/Pin Length (in)	14.6 in
Minimum Tensile Strength (lbs)	79,000 lb
Pin Diameter (in)	0.88 in
Chain Pitch (in)	8 in
Rated Working Load (lb/ft)	15,000 lb/ft
Width Between Outer Plates (in)	12.83 in
Chain Category	Welded Steel
Attachment Number	W28
Product	Wide Mill Drag
Plate Thickness (in)	0.5 in
Attachment Spacing	2

General Specifications

UPC	782935445766
Weight	21.61 LB
Country of Origin	Mexico
