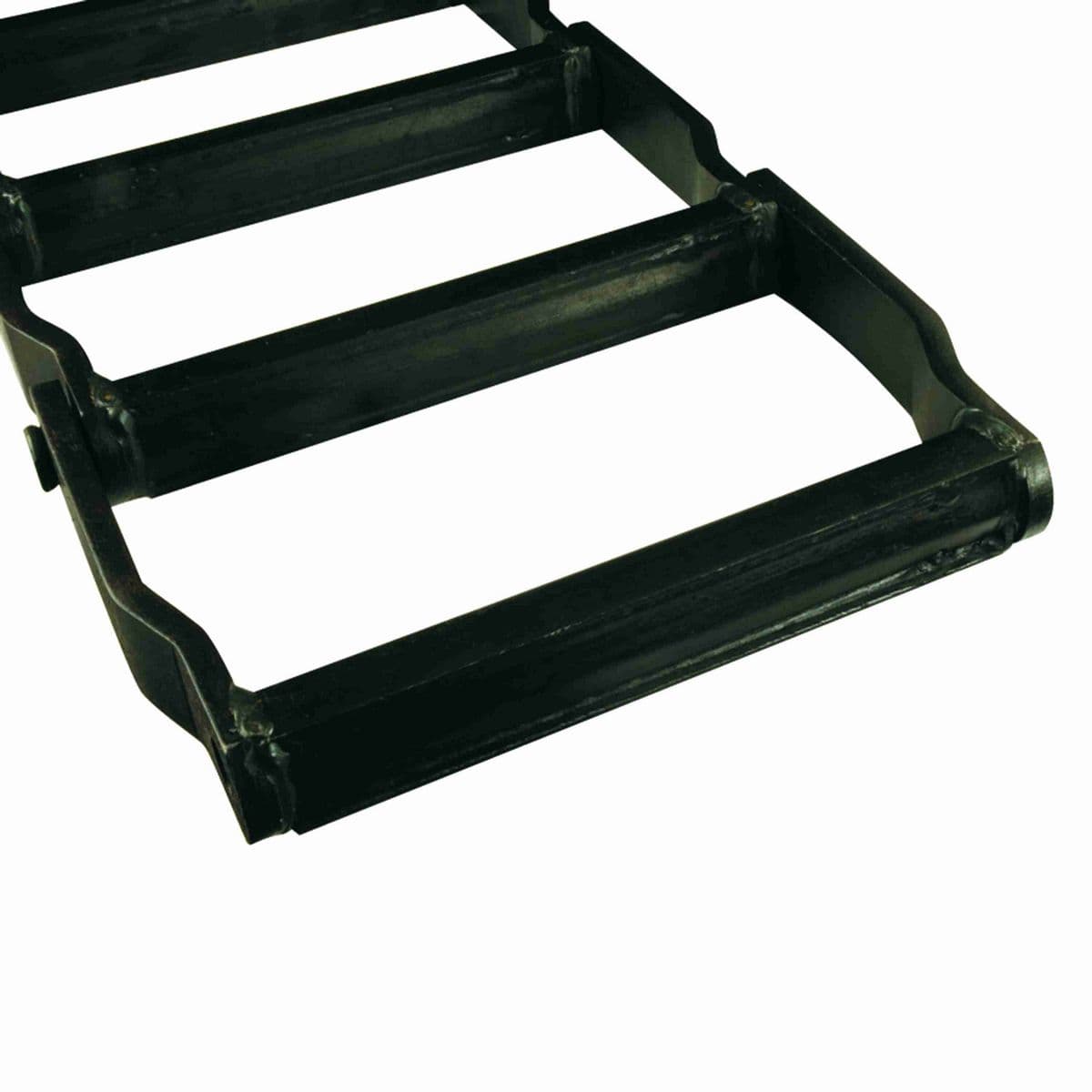

• WDH2380 REV Brl Welded Ch 8.000 Pitch - 15 Links/strand Riveted Chain w/End Riveted

Technical Specifications

Overall Width/Pin Length (in)	14.6 in
Base Catalog No	WDH2380
Chain Pitch (in)	8.161 in
Width Between Outer Plates (in)	11.25 in
Series	Welded Chains
Minimum Tensile Strength (lbs)	79,000 lb
Plate Depth (in)	2 in
Barrel Length (in)	12.75 in
Product Type	WDH
Material	Steel
Chain Category	Welded Steel
Plate Thickness (in)	0.5 in
Product	Wide Mill Drag
Sprocket Unit	H480
Chain Sub-Category	Wide Mill Drag
Wing Span (in)	Recategorize as Wide mill in
Pin Diameter (in)	0.88 in
Rated Working Load (lb/ft)	15,000 lb/ft

General Specifications

UPC	662327150884
Weight	20.00 LB
HTC	7315120040
Country of Origin	China
