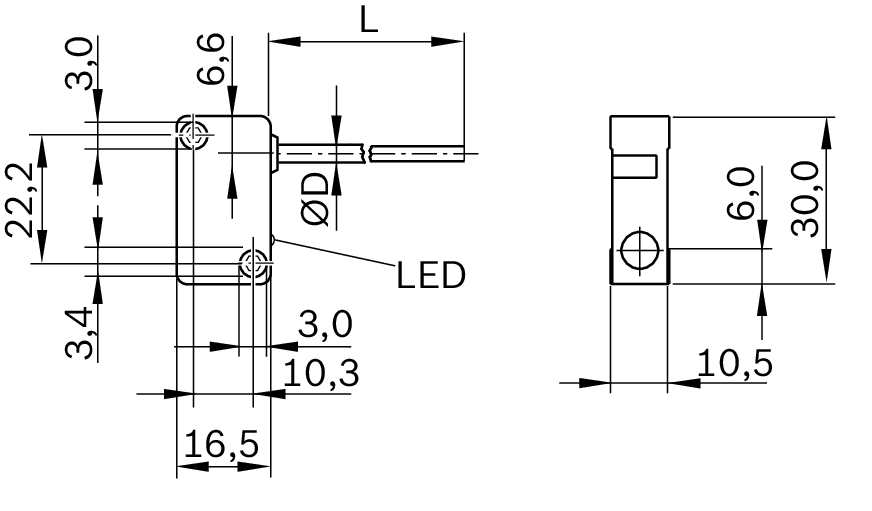

Датчик приближения Bosch Rexroth BES517-351-NO-C-03 [R345304001]

Electrical accessories for linear axes

Inductive sensors

Use

Limit switch

Connection type

Line 3 m, 3-pin, free line end

Switching function version

PNP/NC

Cable cross-section

3 x 0.14 mm²

Permissible ambient temperature (min. ... max.)

-40 °C ... +70 °C

Operating voltage (min. … max.)

10 V DC ... 30 V DC

Bending radius for fixed installation [mm]

12

Bending radius for flexible installation [mm]

12

Bending cycles

‒

Weight [kg]

0.06

Function indicator

yes

Functional principle

inductive

Bending radius for flexible installation footnote

Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

Footnote bending radius, static

Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.

Bending cycles footnote

Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

Footnote cable diameter d with tolerance

Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.

Footnote cable cross-section

Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

Suitable for drag chains footnote

Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

Weld spark-resistant footnote

Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

Torsion-resistant footnote

Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

Cable diameter D [mm]

3.5

Cable diameter D tolerance [mm]

±0.15

Compatible

CKK, CKR, MKK, MKR, MLR, OBB, SGK, SOK, TKK

Short-circuit protection

✓

Load current [A]

≤200

Maximum permissible starting speed [m/s]

스위치 탭에 따라 다름

Mean time to dangerous failure (MTTFd) [Years]

830

Option number

11/61

Switching frequency

2.5

Suitable for drag chains

no

Protection class

IP65

Weld spark-resistant

‒

Torsion-resistant

‒

Reverse polarity protection

✓
