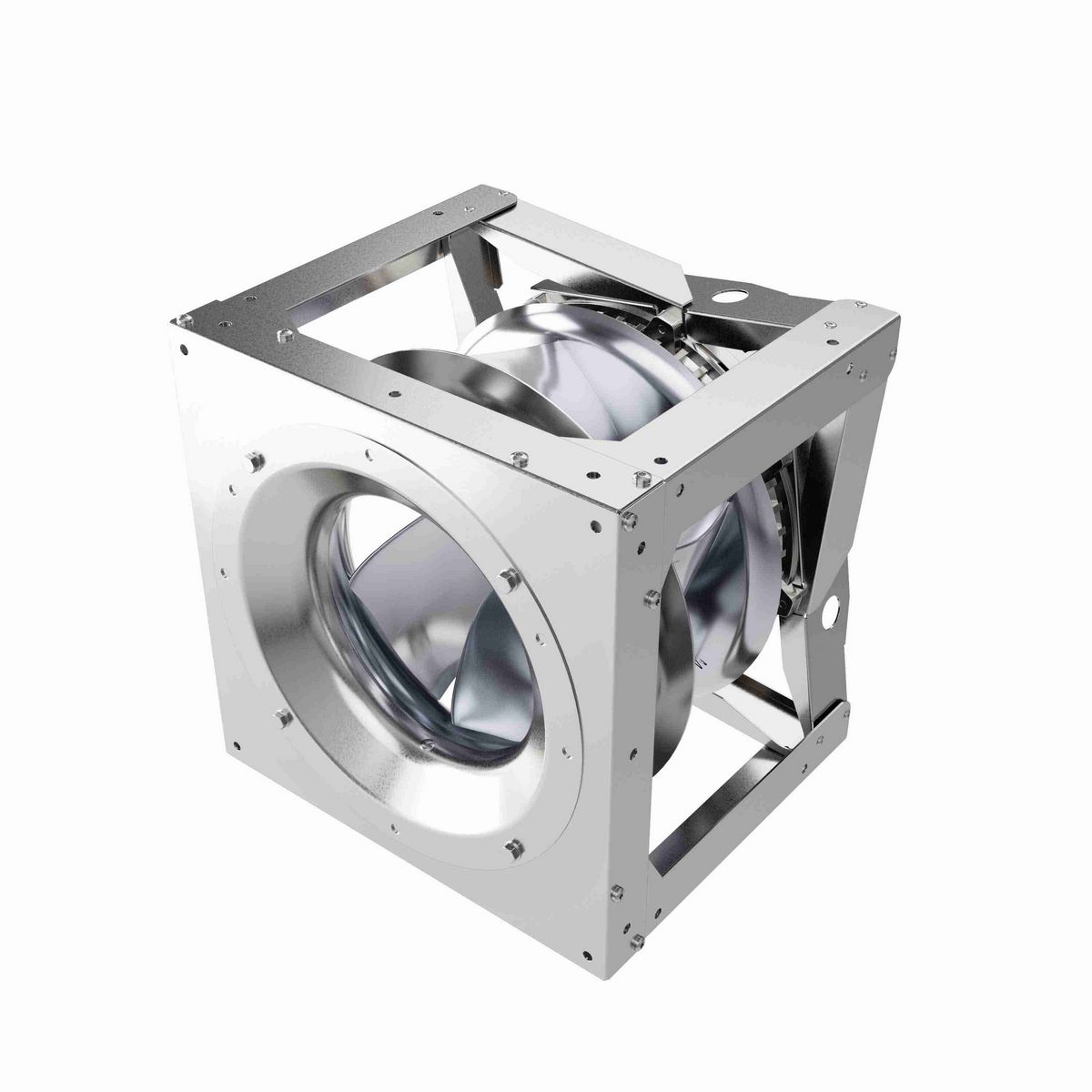

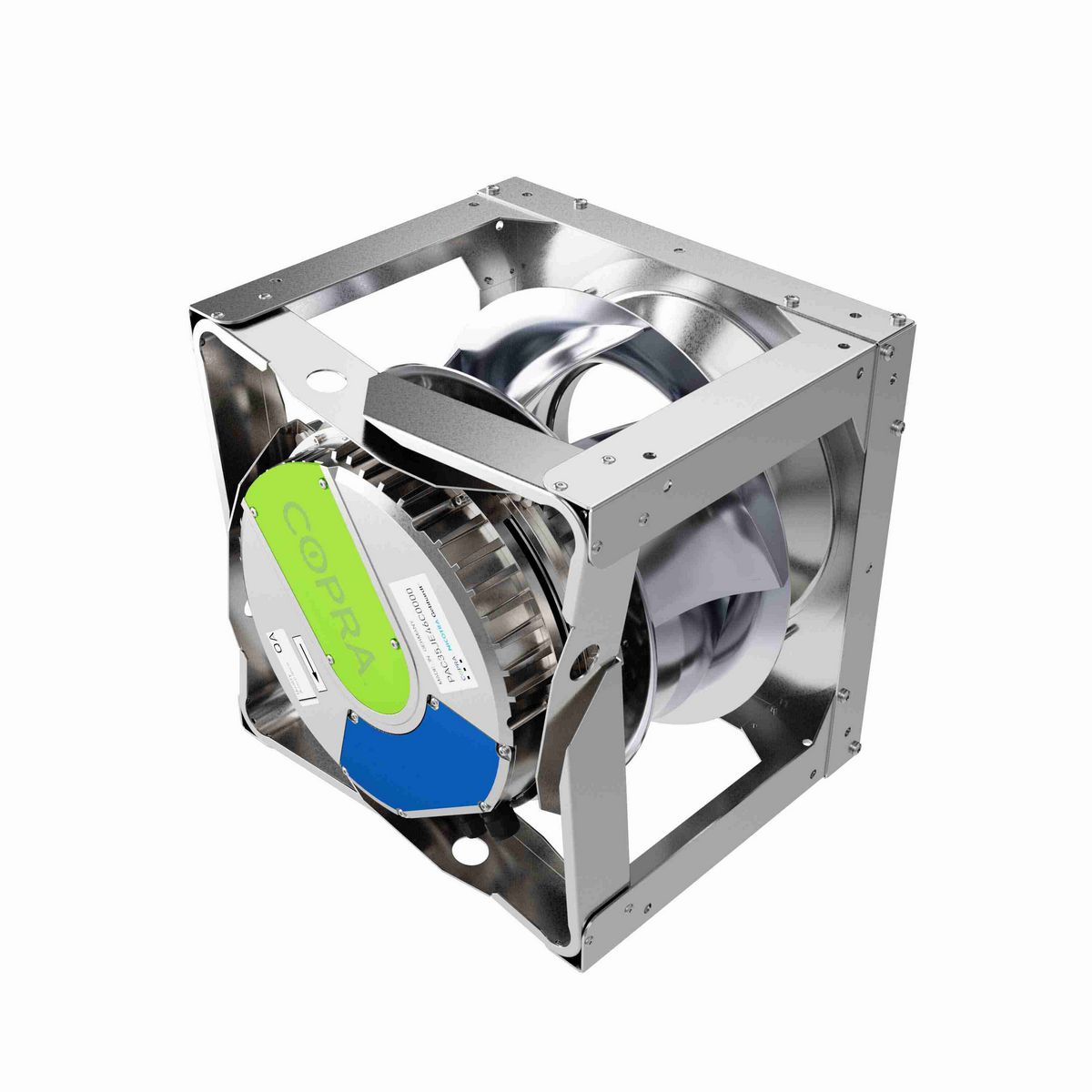

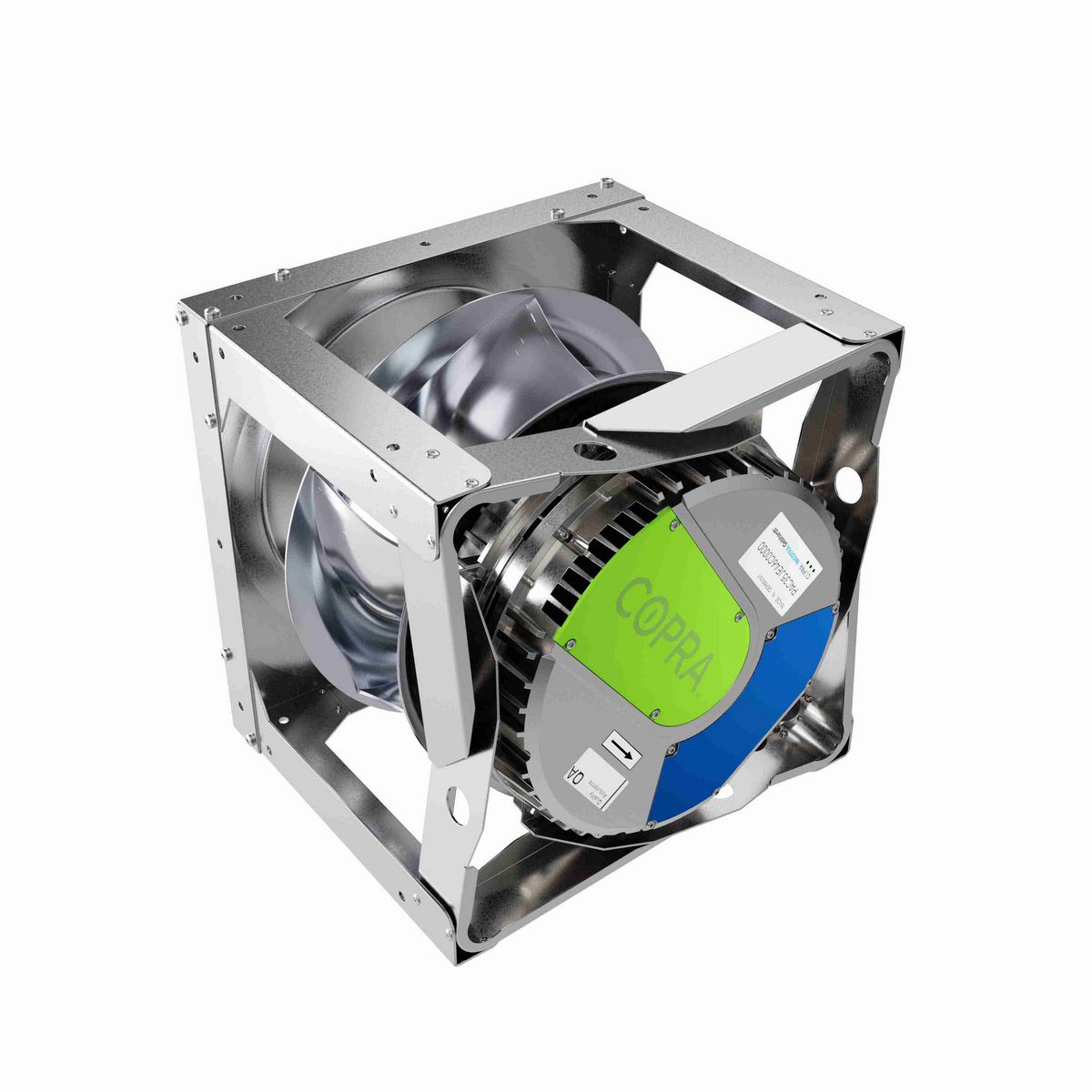

• Up to IE6 efficiency thanks to an internal-rotor ecm motor with integrated control.
• Improved airflow from radial tip, backward-curved airfoil blades and conical backplates.
• Aerodynamic harmony with driver and impeller combination to deliver the maximum volume and efficiency in a compact space.
• Simplified install with COPRA™ PLUG.
• Modbus capable 0-10V, 4-20mA, or PWM; configurable relay; onboard +10V and +20V outputs; (3) digital inputs; multiple ground terminations; SELV compliant
• Static and dynamic balance in accordance with DIN ISO 21940-11 for G6.3.
• UL CERTIFIED, UL FILE NUMBER: XDNW2.E306123

Technical Specifications

Design Variant	Plug
Nominal Impeller Diameter	355 mm
Air Flow	3593 cfm
Pressure Rise	7.08 in wg
System Power Rating	4.4 kW
Max Fan Speed	3600 rpm
Nominal Voltage	230 V
Nominal Current	11.98 (230V) A
Voltage Range	200-240 V
Current Range	13.7 - 11.4 A
Phase	3
Frequency	50/60 Hz
Impeller Type​	Centrifugal Radial Tip
Overall Efficiency	68.9 %
Number of Fan Blades	5
Motor Power Input	5.82 Hp
Impeller Material​	Aluminum
Installation Orientation​	Vertical or Horizontal
Rotation Direction	CCW
Installation Category	A
Motor & Control Material	Cast Aluminum
Efficiency Category	Static
Ambient Operating Temp Range	-20 to +40 °C
Achieved Efficiency Grade (N ist)	72.7
Electrical Type	ECM
Required Efficiency Grade in 2013/2015 (N)	58/62
Type of Protection	Self Protected Control
ODE Bearing Type	Deep Groove
Insulation Class	F
IP Code	54
DE Bearing Type	Deep Groove
UL	Yes
Specific Ratio	1.018
CE	Yes

General Specifications

Weight	90.00 LB
Packaged Length	16.00 IN
Packaged Width	16.00 IN
Packaged Height	32.00 IN
