• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

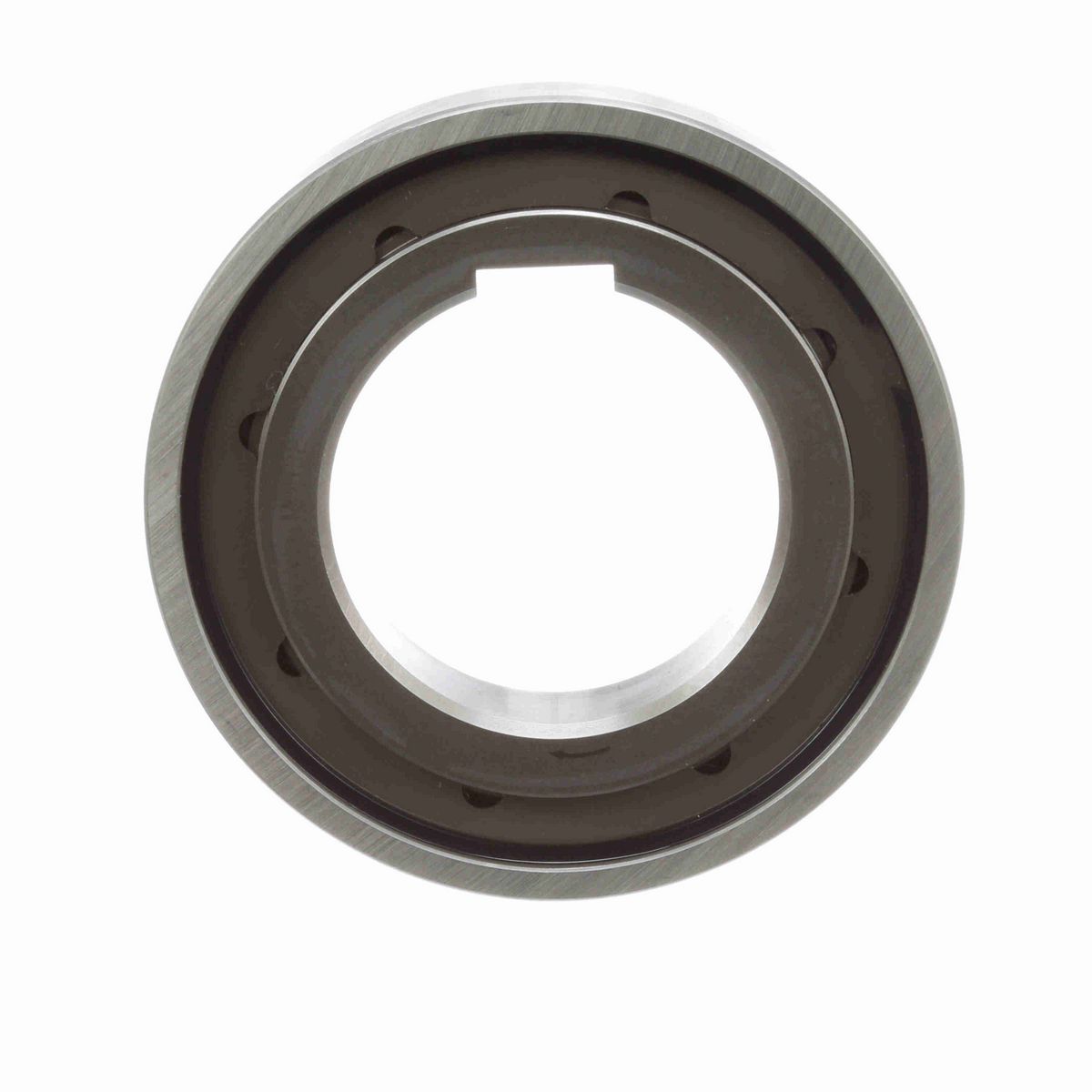

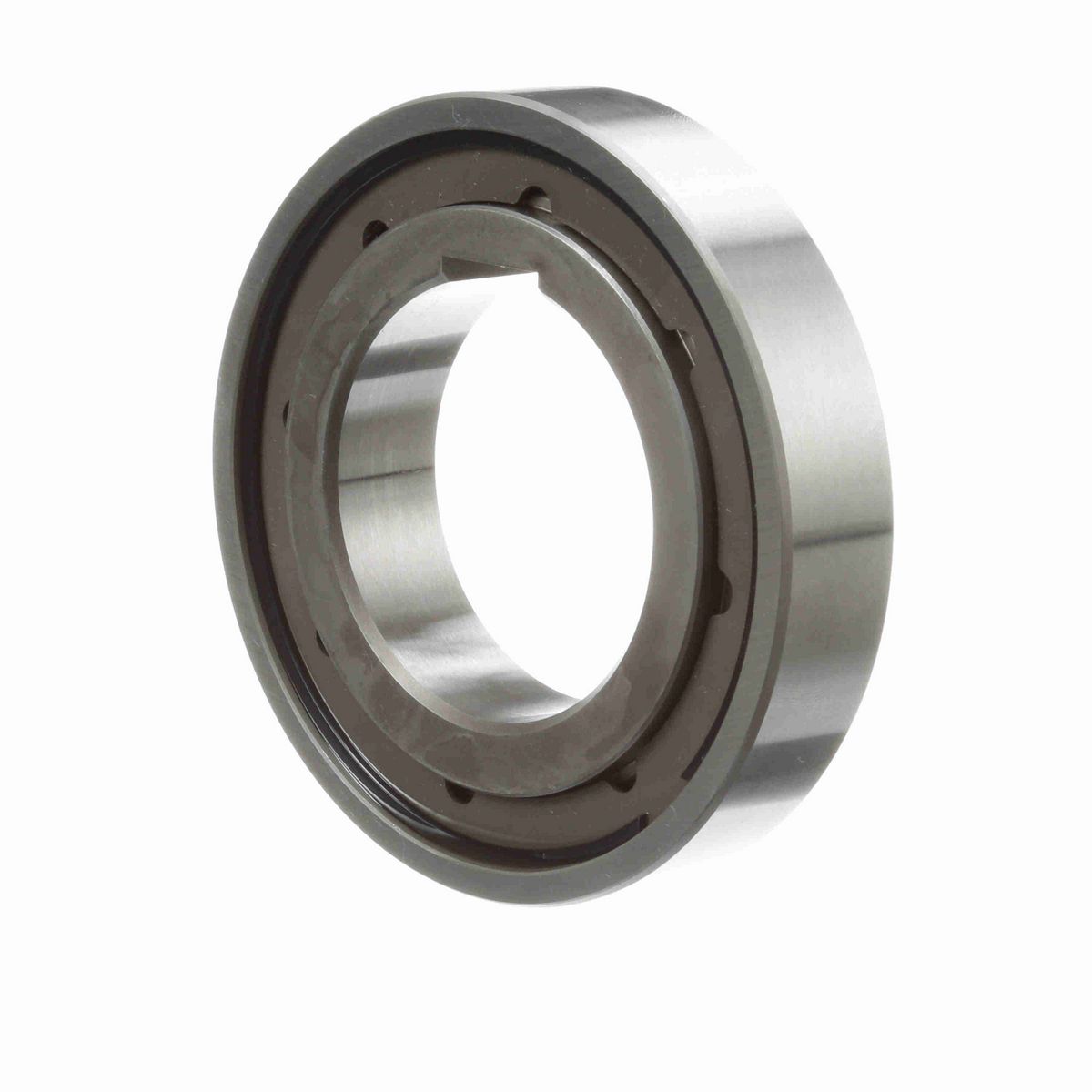

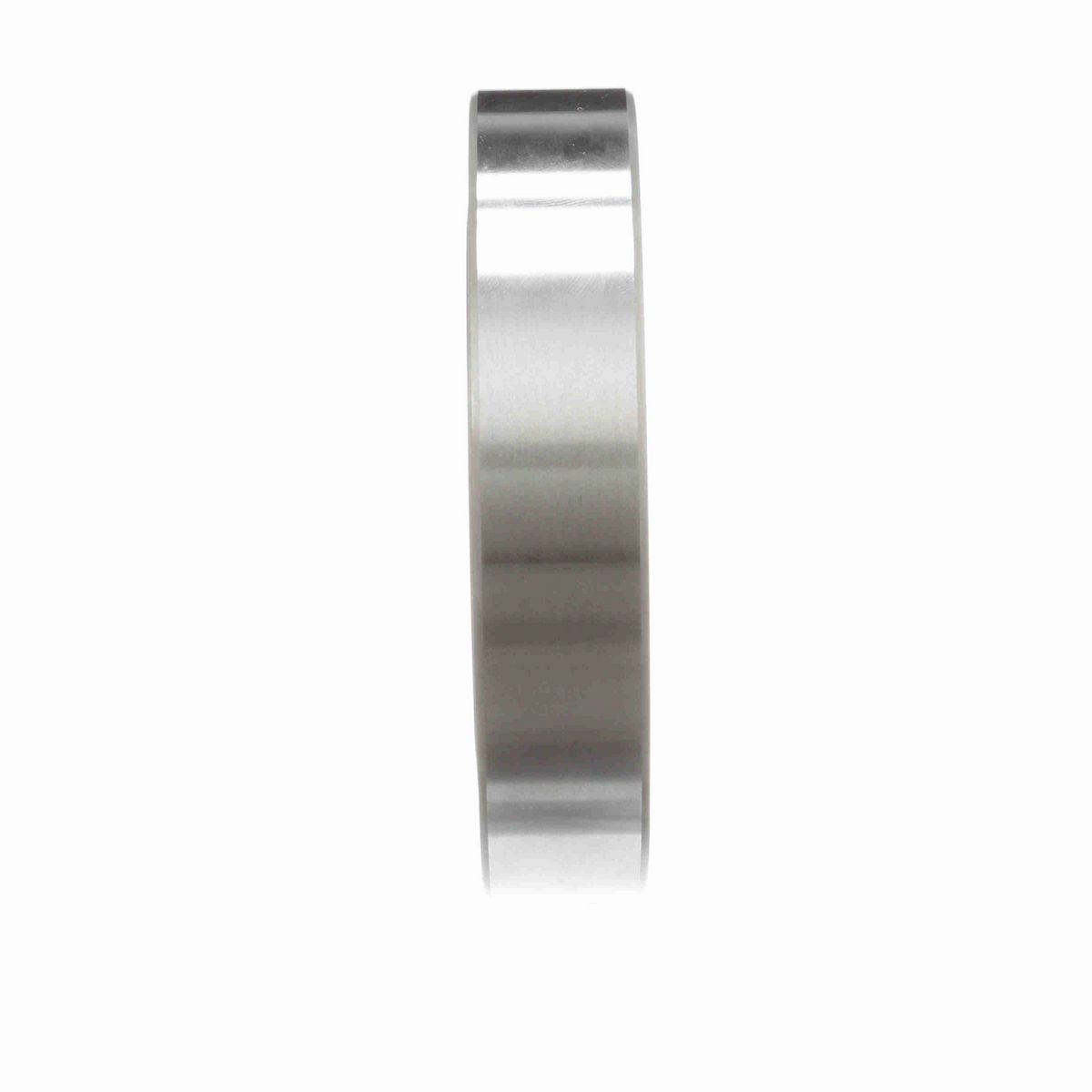

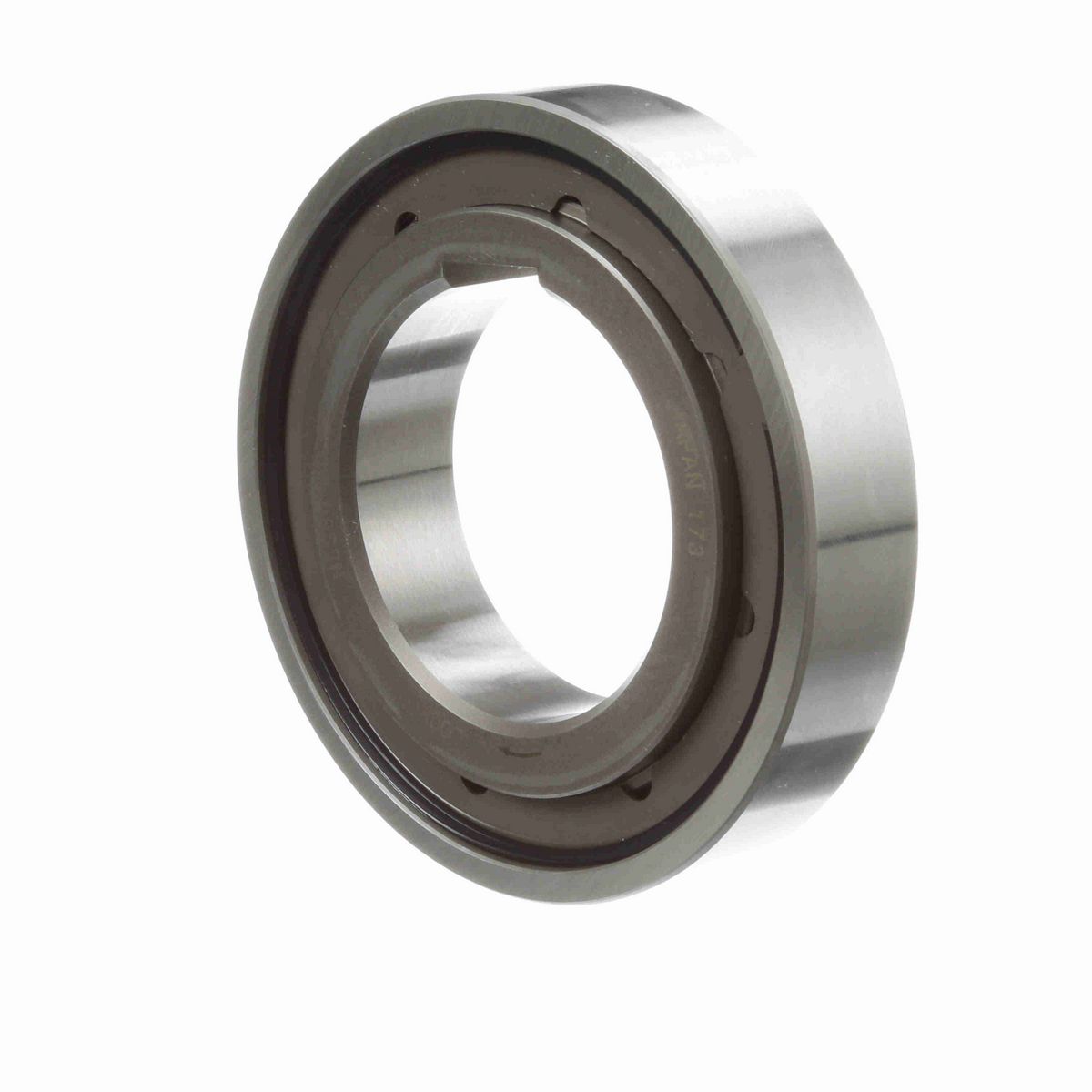

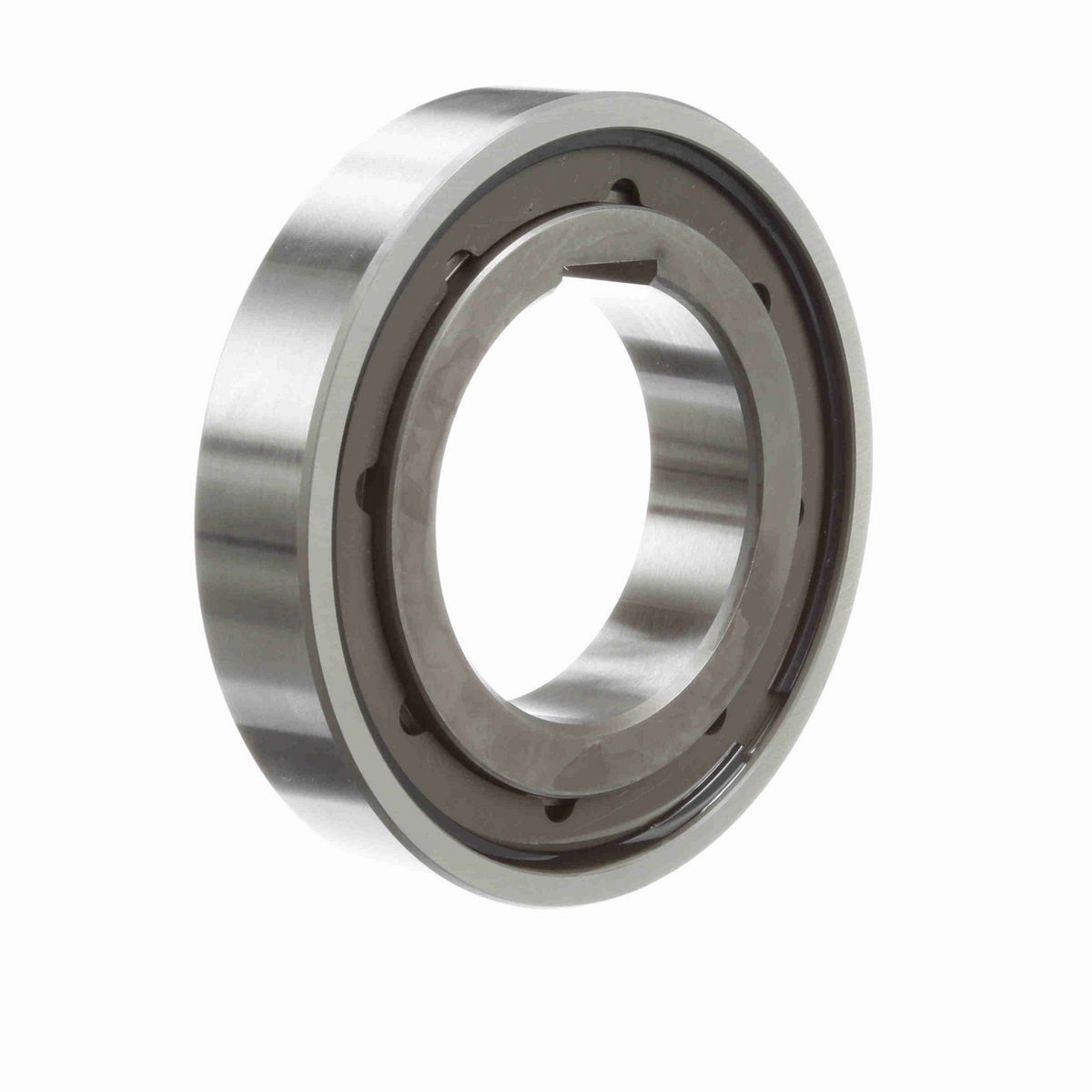

• The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
• Manufactured with an inner race containing a key seat and out race containing key slots

Technical Specifications

Drag Torque (N-m)	.33
Maximum Overrunning Speed - Outer Race (rpm)	460
Keyway (mm)	18 x 2.3 mm
Rated Torque Capacity (ft.-lbs.)	478.7
Lubrication Type	The clutches are supplied with a protective coating of oil and must be lubricated before putting into service.
Type	CAM Clutches
Drag Torque (lb-in)	2.9208
Rated Torque Capacity (N-m)	649
Maximum Overrunning Speed - Inner Race (rpm)	910
Keyway (in)	0.71 x 0.09 in
Model	NSS 60
Add'l Bearing Support Requirement	Yes
Indexing Clutch	Yes
Product Type	NSS Series
Bore Size (in)	2.362198 in
Backstopping Clutch	No
Overrunning Clutch	Yes
Bore Size (mm)	60 mm

General Specifications

UPC	662460387741
Weight	2.55 LB
Packaged Length	5.40 IN
Packaged Width	5.20 IN
Packaged Height	1.50 IN
HTC	8483.60.4040
Country of Origin	Japan
