• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

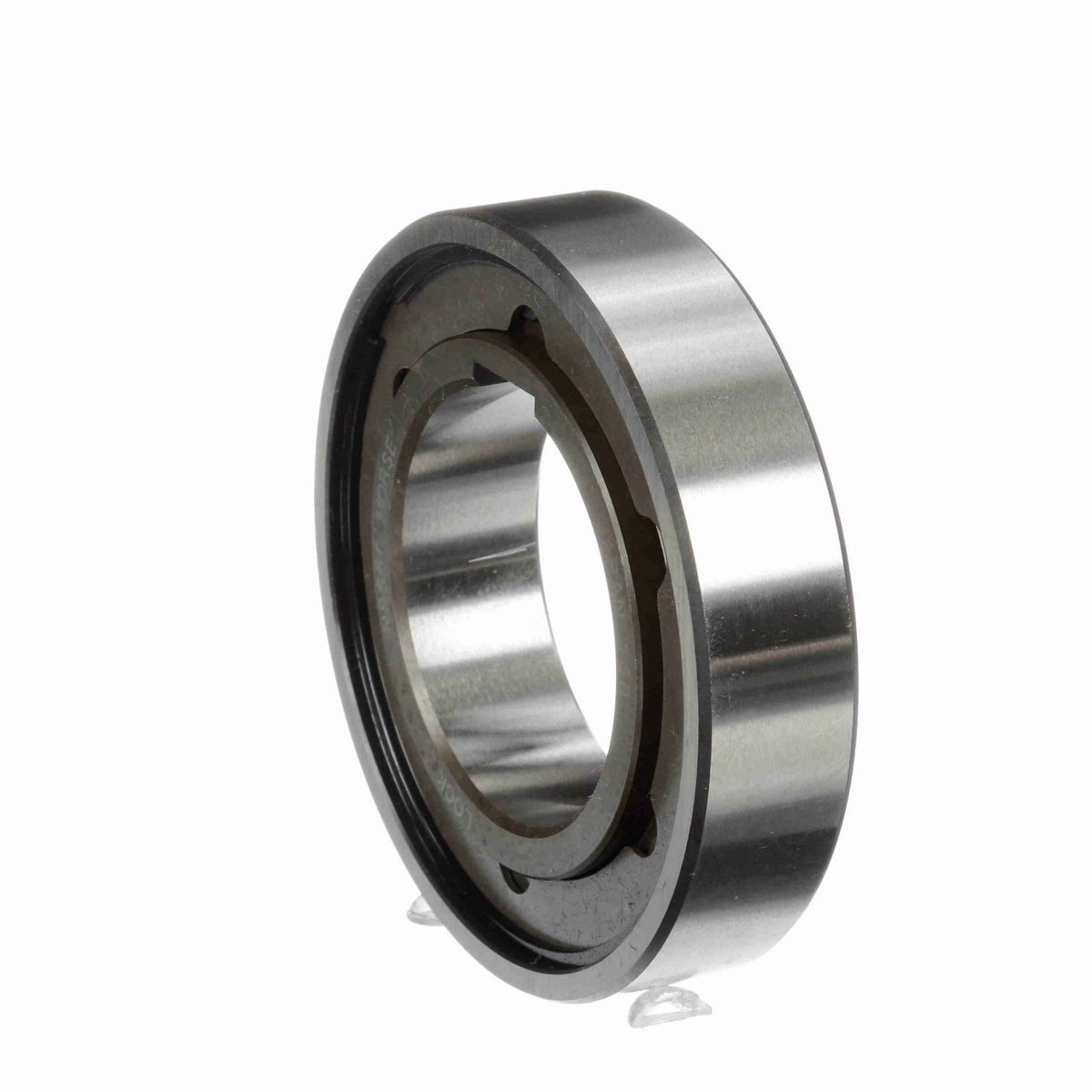

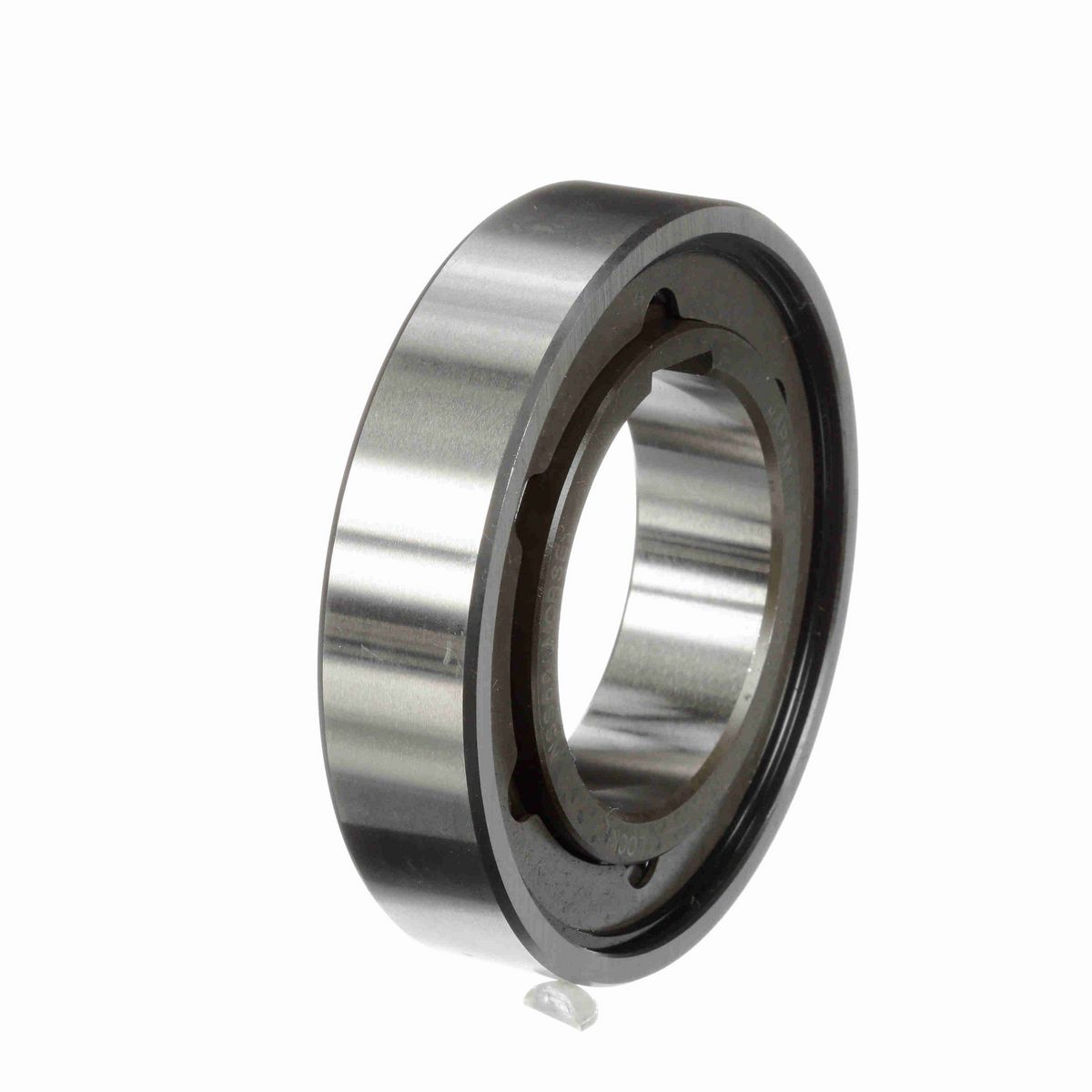

• The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
• Manufactured with an inner race containing a key seat and out race containing key slots

Technical Specifications

Drag Torque (N-m)	.22
Keyway (mm)	14 x 2.1 mm
Rated Torque Capacity (ft.-lbs.)	297.2
Lubrication Type	The clutches are supplied with a protective coating of oil and must be lubricated before putting into service.
Maximum Overrunning Speed - Inner Race (rpm)	1,200
Type	CAM Clutches
Model	NSS 50
Keyway (in)	0.55 x 0.08 in
Drag Torque (lb-in)	1.9476
Maximum Overrunning Speed - Outer Race (rpm)	600
Rated Torque Capacity (N-m)	403
Add'l Bearing Support Requirement	Yes
Bore Size (mm)	50 mm
Indexing Clutch	Yes
Backstopping Clutch	No
Bore Size (in)	1.968498 in
Product Type	NSS Series
Overrunning Clutch	Yes

General Specifications

UPC	662460387734
Weight	1.22 LB
Packaged Length	3.80 IN
Packaged Width	3.60 IN
Packaged Height	1.60 IN
HTC	8483.60.4040
Country of Origin	Japan
