• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

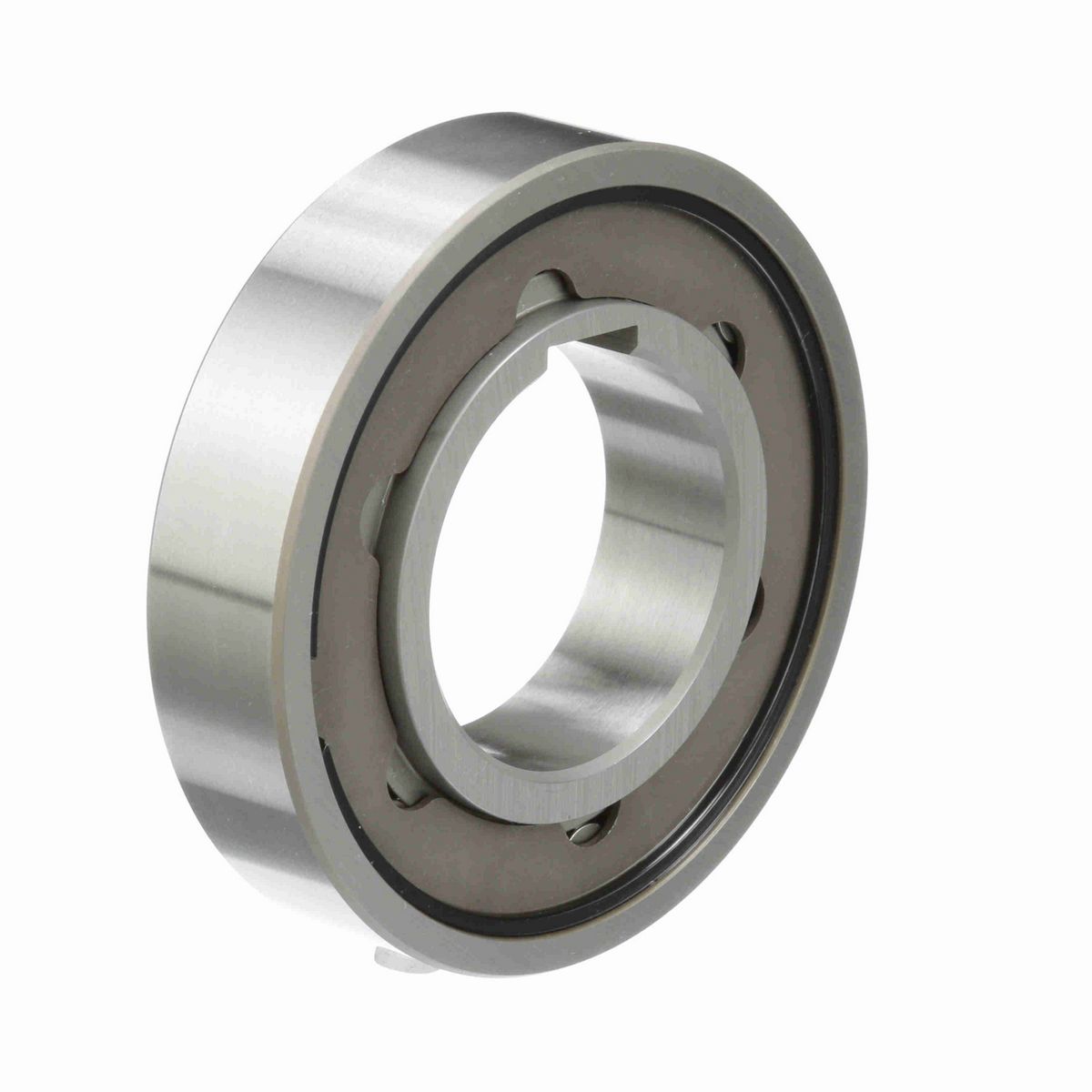

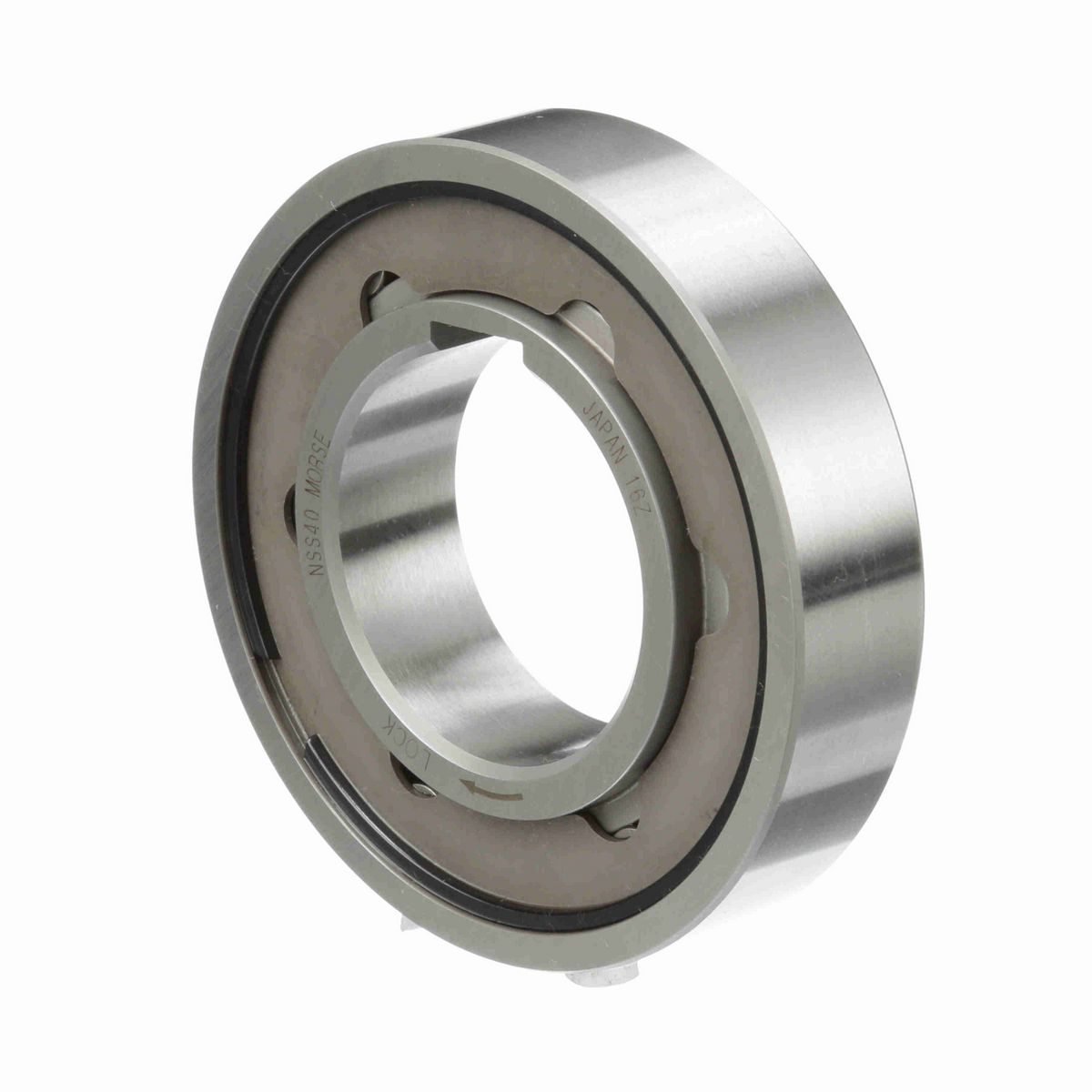

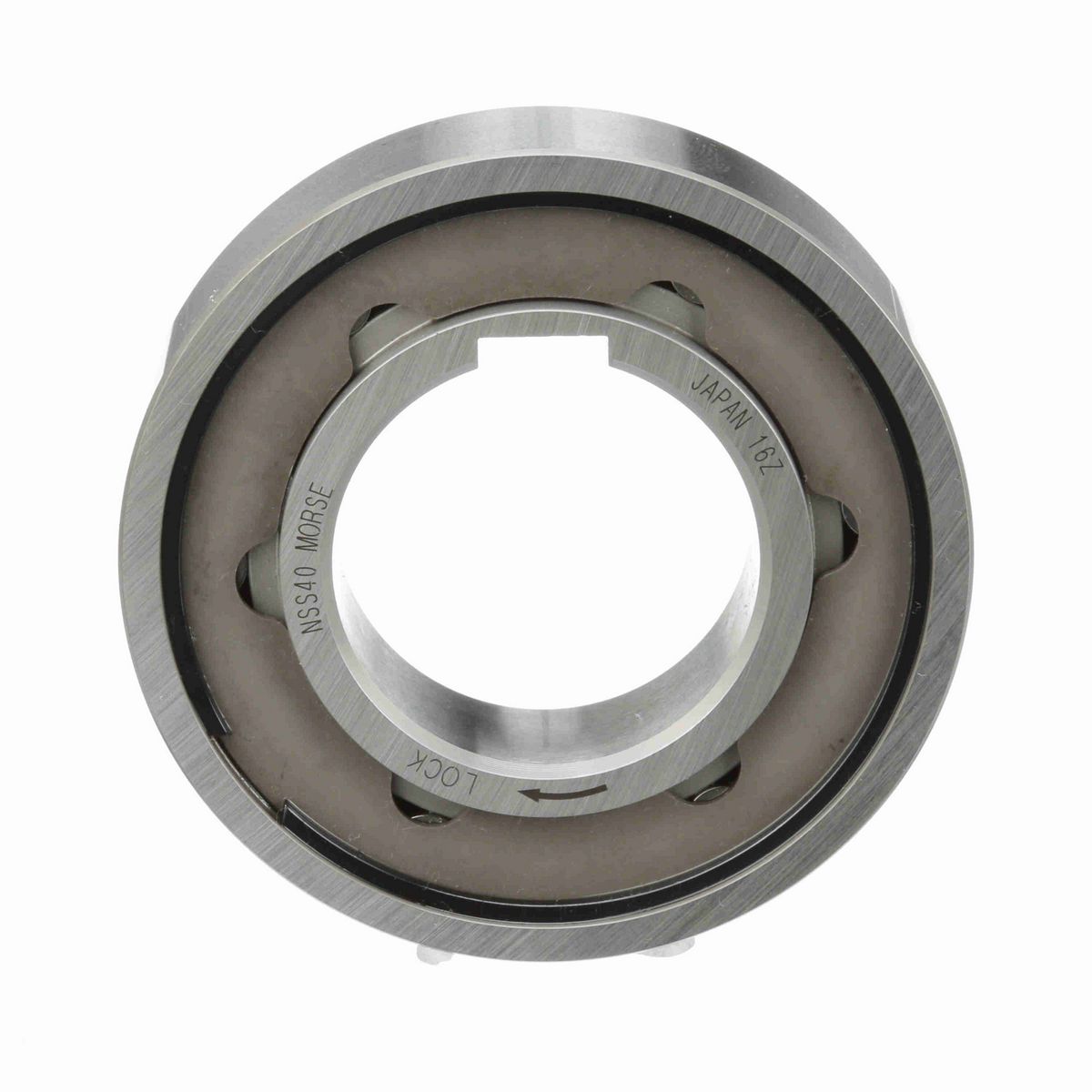

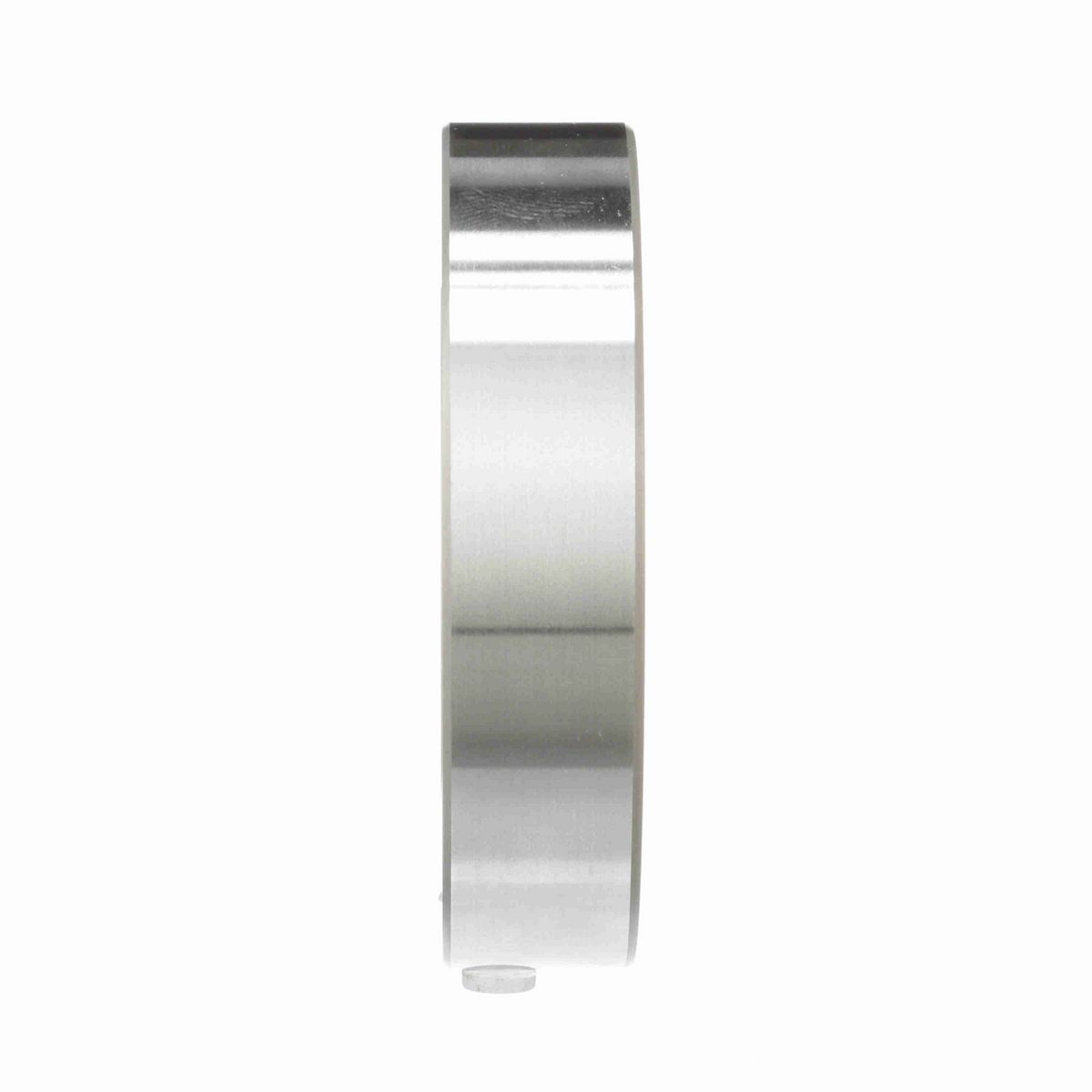

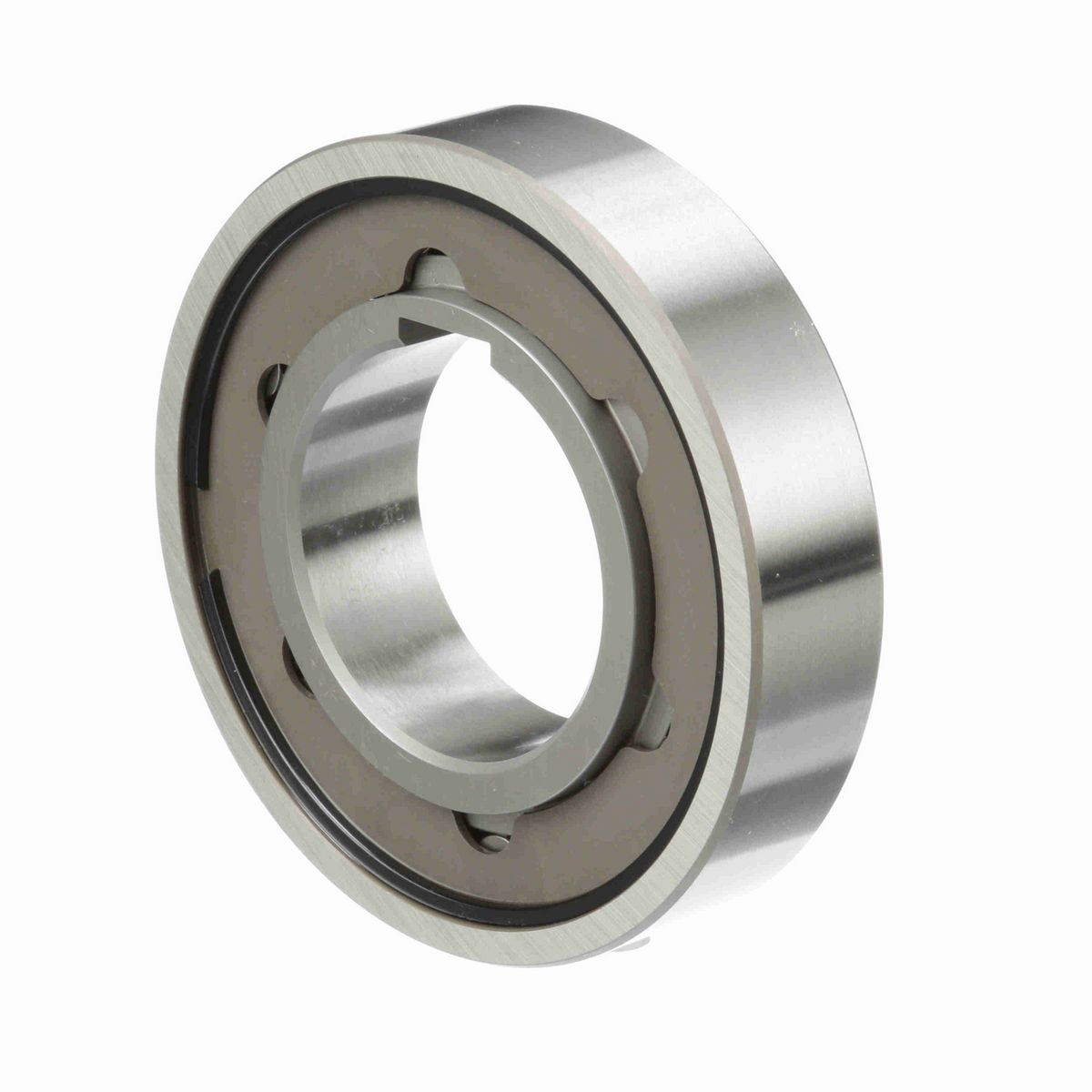

• The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
• Manufactured with an inner race containing a key seat and out race containing key slots

Technical Specifications

Maximum Overrunning Speed - Outer Race (rpm)	700
Rated Torque Capacity (ft.-lbs.)	218.3
Drag Torque (lb-in)	1.5936
Drag Torque (N-m)	.18
Lubrication Type	The clutches are supplied with a protective coating of oil and must be lubricated before putting into service.
Keyway (mm)	12 x 2.2 mm
Rated Torque Capacity (N-m)	296
Model	NSS 40
Type	CAM Clutches
Keyway (in)	0.47 x 0.09 in
Maximum Overrunning Speed - Inner Race (rpm)	1,400
Add'l Bearing Support Requirement	Yes
Bore Size (mm)	40 mm
Overrunning Clutch	Yes
Product Type	NSS Series
Indexing Clutch	Yes
Backstopping Clutch	No
Bore Size (in)	1.574798 in

General Specifications

UPC	662460387710
Weight	0.95 LB
Packaged Length	3.50 IN
Packaged Width	3.50 IN
Packaged Height	1.00 IN
HTC	8483.60.4040
Country of Origin	Japan
