• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
• The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
• Manufactured with an inner race containing a key seat and out race containing key slots

Technical Specifications

Maximum Overrunning Speed - Inner Race (rpm)	3,500
Drag Torque (N-m)	.01
Keyway (in)	0.20 x 0.05 in
Drag Torque (lb-in)	.0888
Rated Torque Capacity (N-m)	22
Lubrication Type	The clutches are supplied with a protective coating of oil and must be lubricated before putting into service.

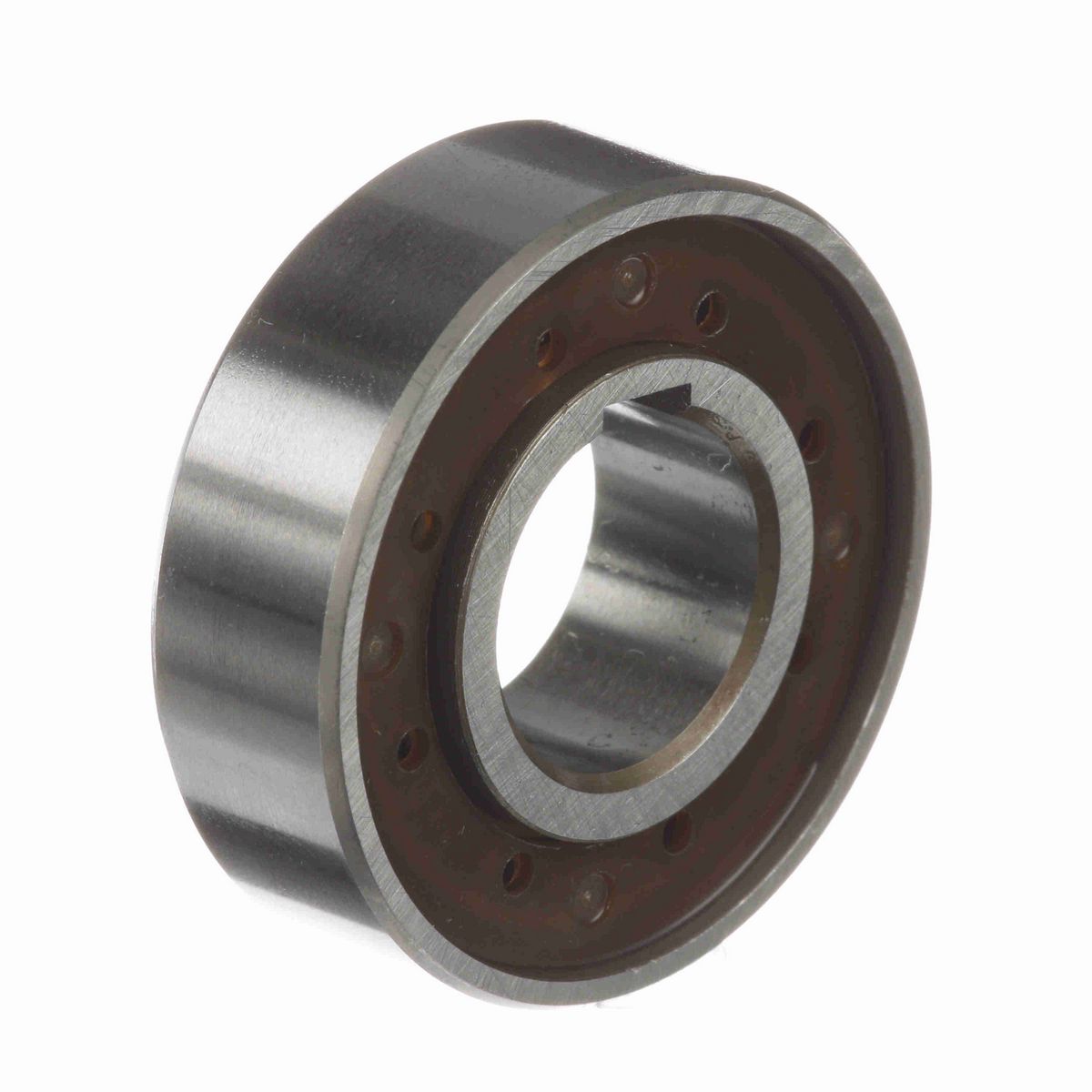

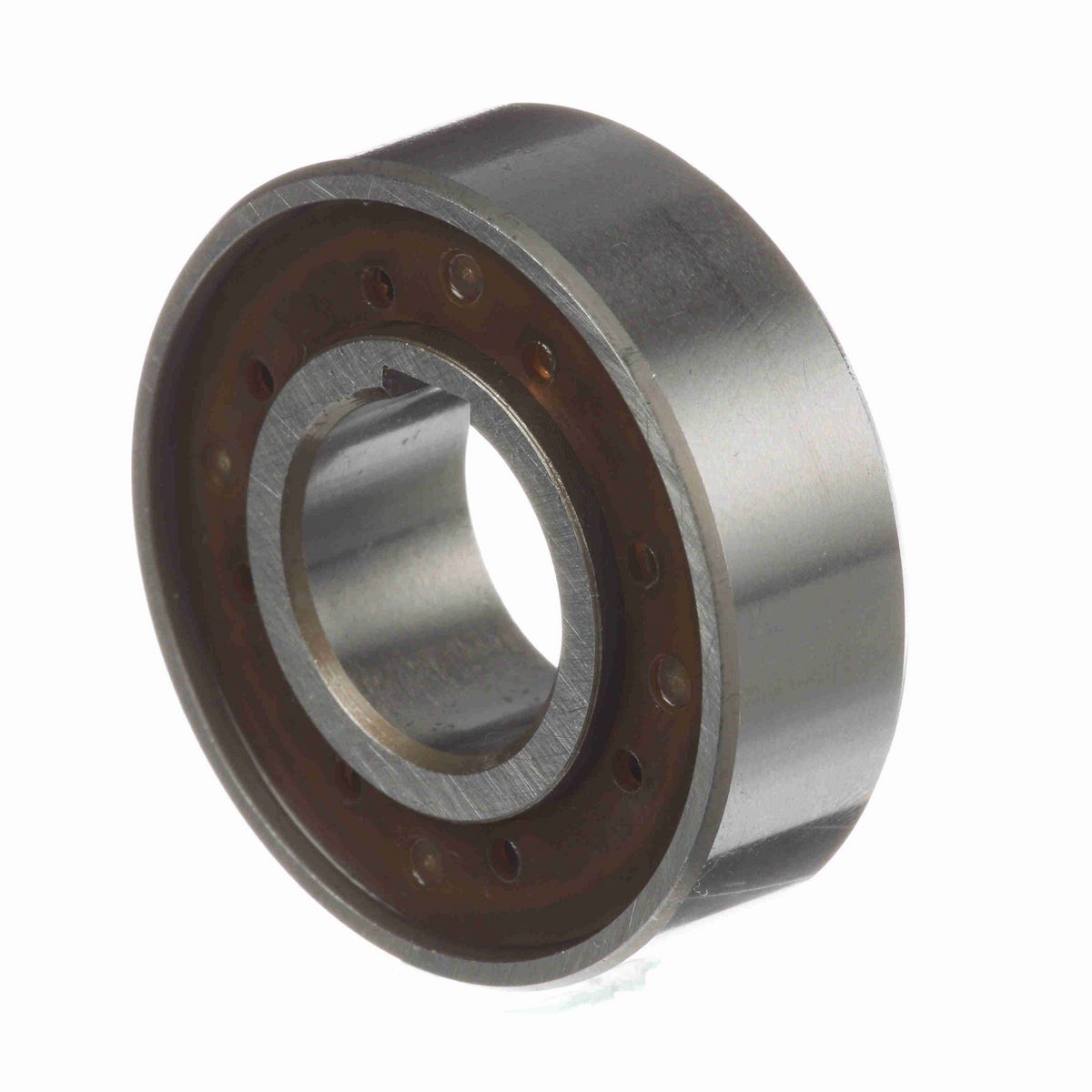

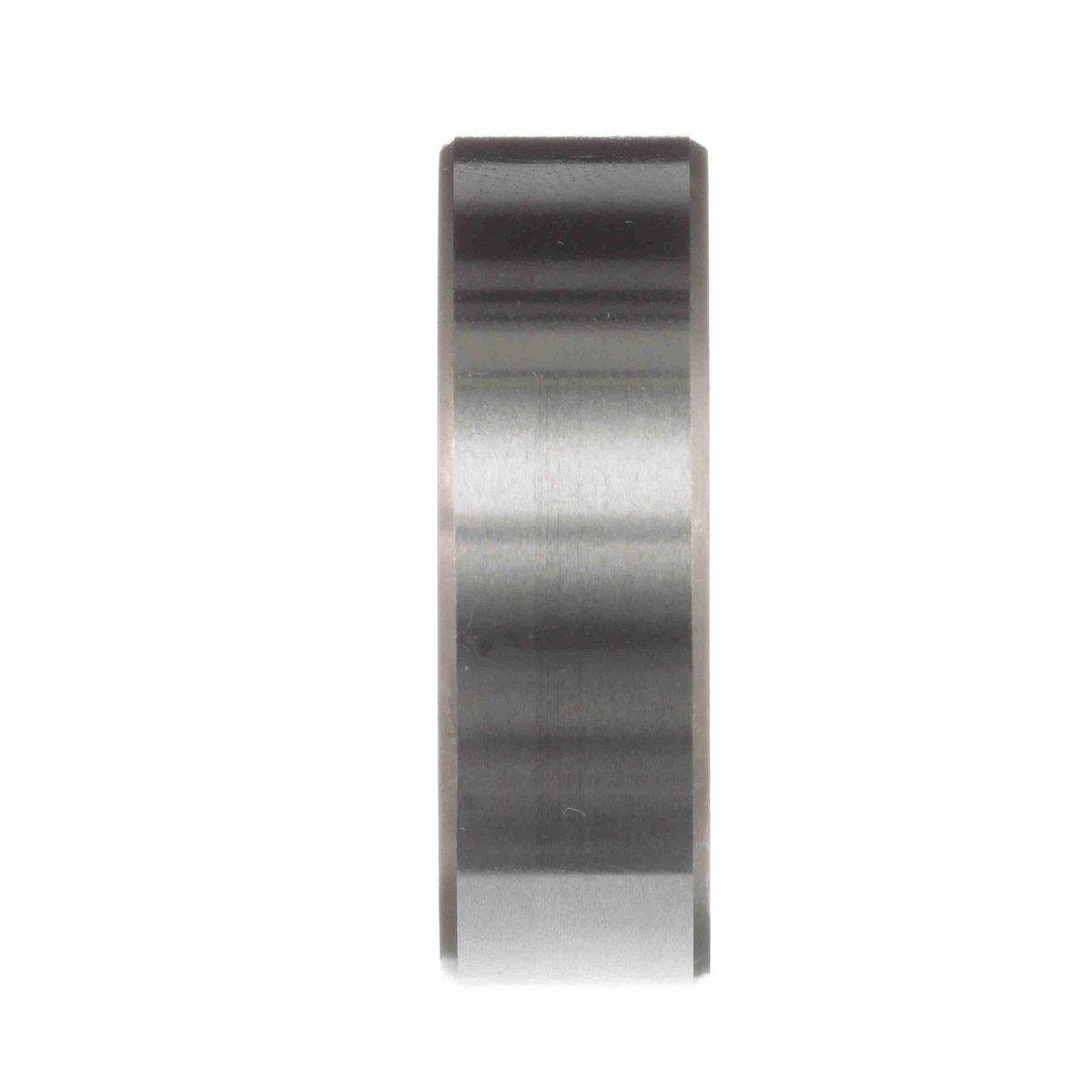

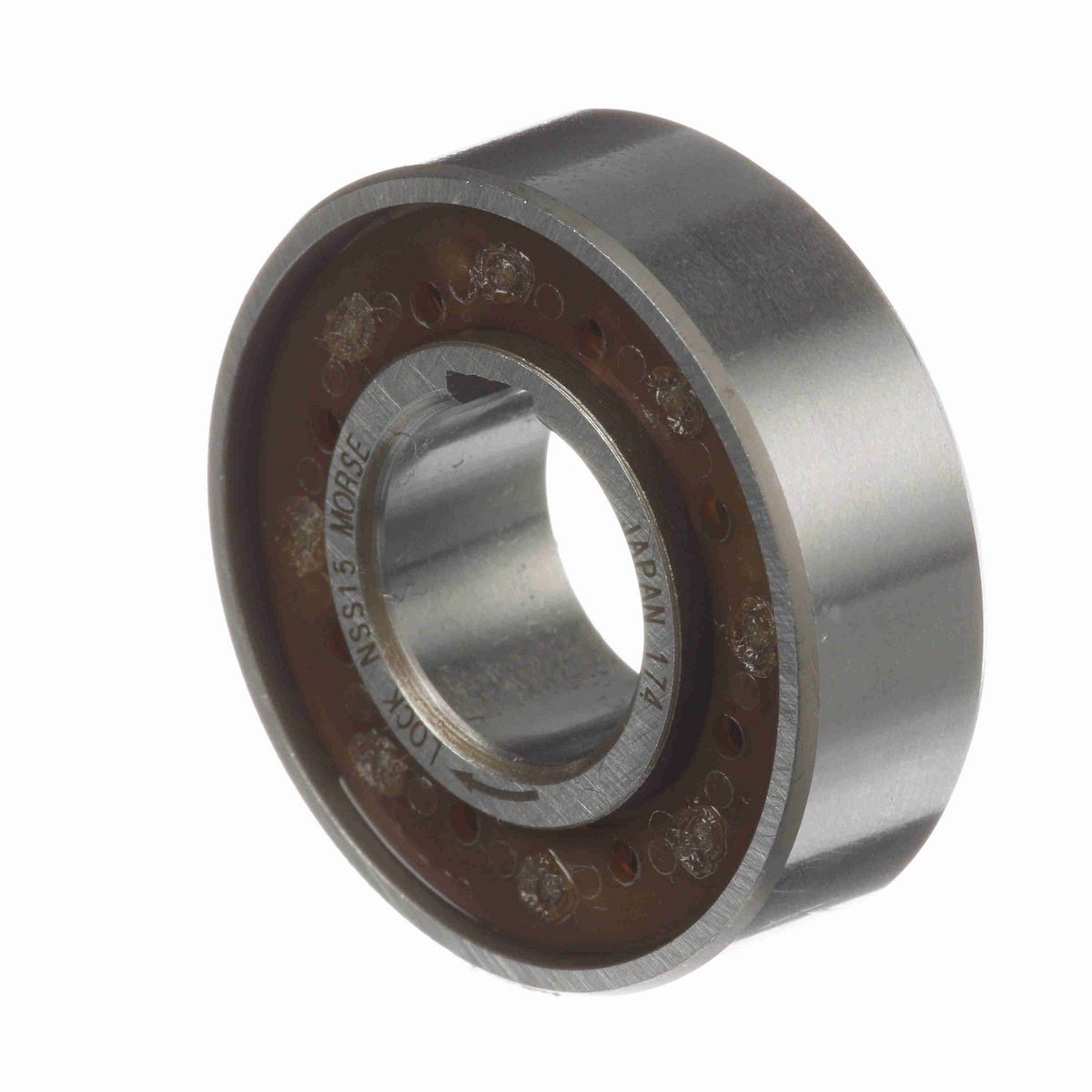

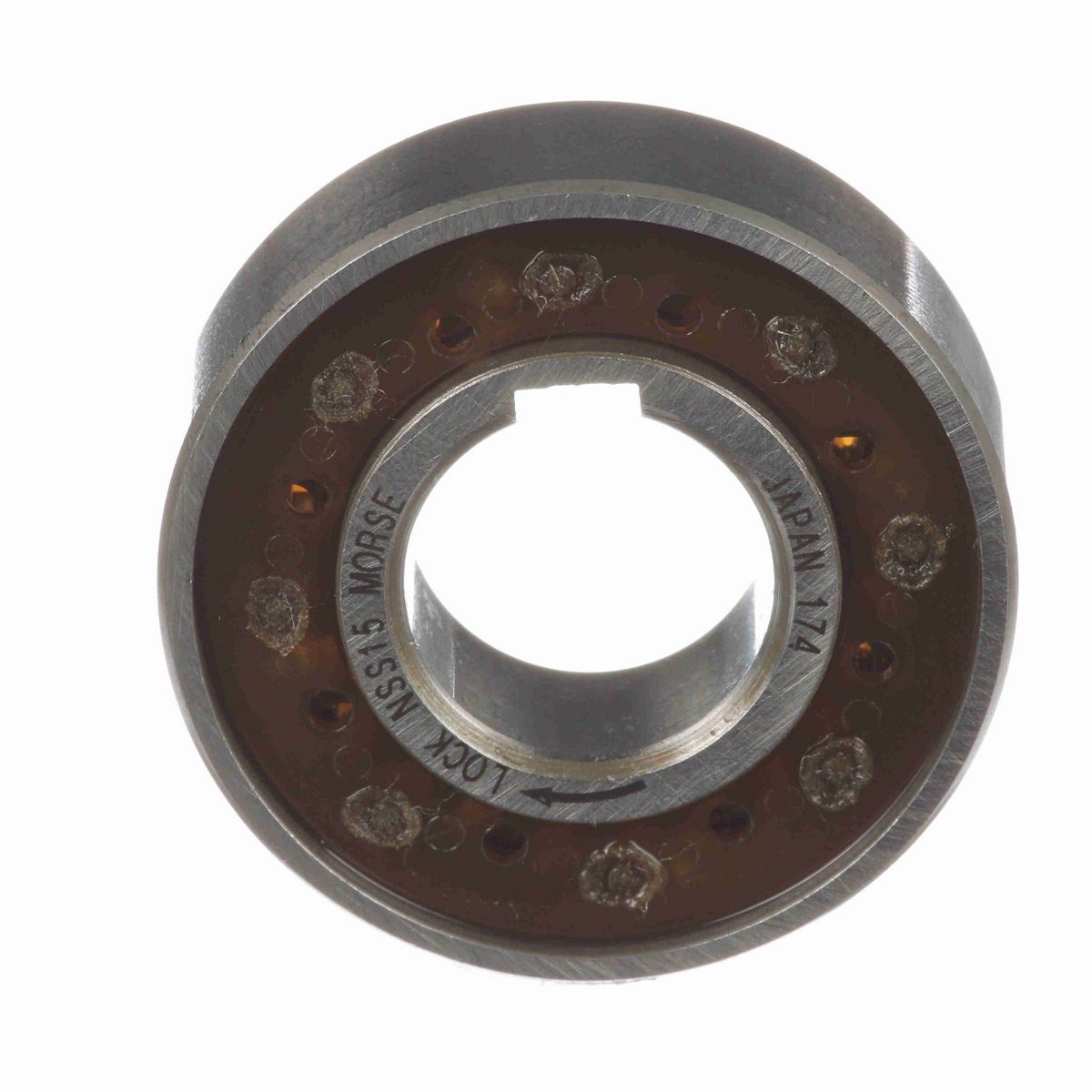

Model	NSS 15
Type	CAM Clutches
Rated Torque Capacity (ft.-lbs.)	16.2
Keyway (mm)	5 x 1.2 mm
Maximum Overrunning Speed - Outer Race (rpm)	1,800
Add'l Bearing Support Requirement	Yes
Overrunning Clutch	Yes
Product Type	NSS Series
Backstopping Clutch	No
Bore Size (mm)	15 mm
Bore Size (in)	0.590549 in
Indexing Clutch	Yes

General Specifications

UPC	662460387666
Weight	0.55 LB
Packaged Length	2.60 IN
Packaged Width	2.50 IN
Packaged Height	1.20 IN
HTC	8483.60.4040
Country of Origin	Japan
