• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

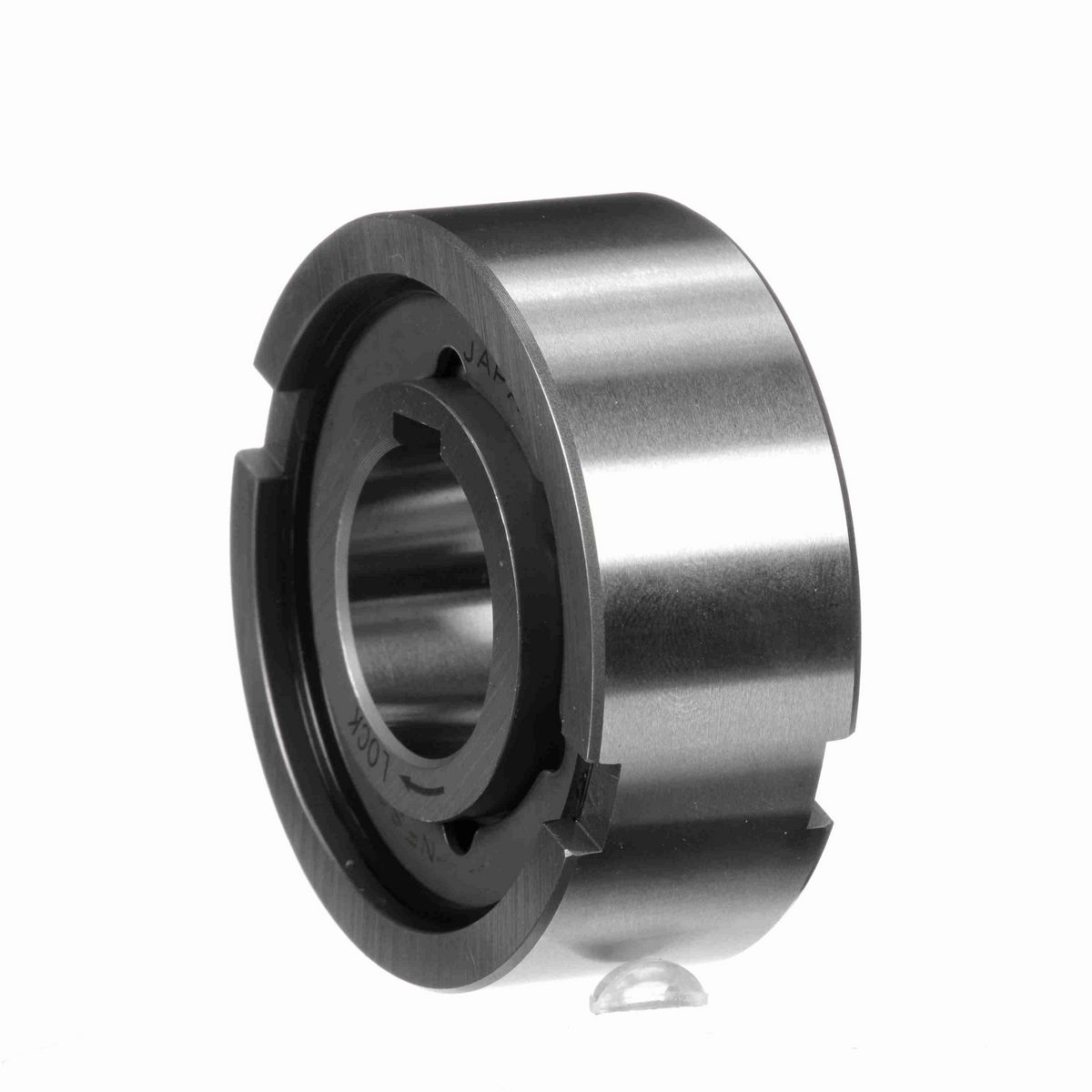

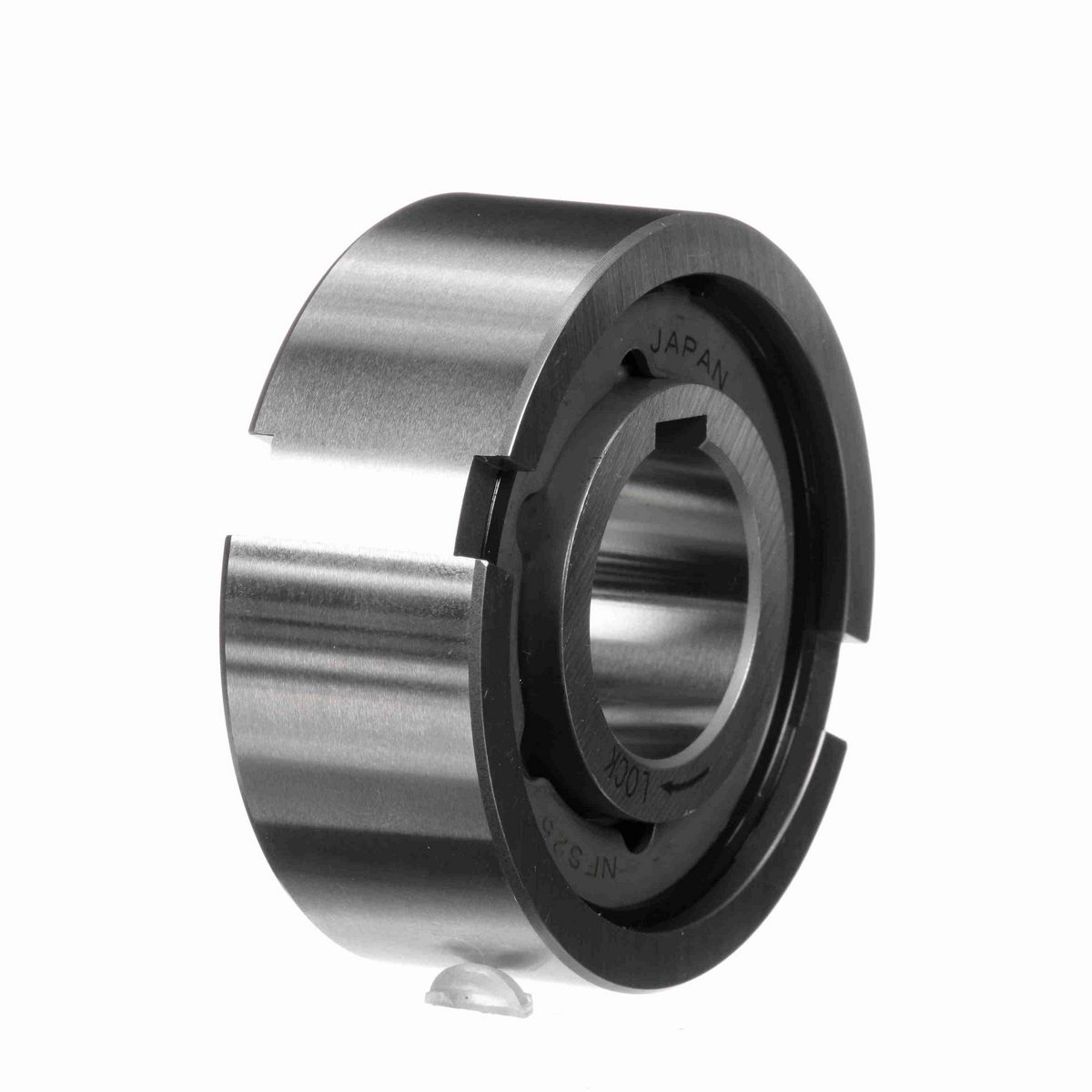

• The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
• Manufactured with an inner race containing a key seat and out race containing key slots

Technical Specifications

Type	CAM Clutches
Drag Torque (N-m)	.19
Keyway (mm)	8 x 2.0 mm
Rated Torque Capacity (N-m)	128
Maximum Overrunning Speed - Inner Race (rpm)	2,000
Drag Torque (lb-in)	.14
Rated Torque Capacity (ft.-lbs.)	94
Lubrication Type	The clutches are supplied with a protective coating of oil and must be lubricated before putting into service.
Maximum Overrunning Speed - Outer Race (rpm)	1,000
Model	NFS 25
Keyway (in)	0.32 x 0.08 in
Add'l Bearing Support Requirement	Yes
Indexing Clutch	Yes
Bore Size (in)	0.984249 in
Overrunning Clutch	Yes
Backstopping Clutch	No
Product Type	NFS Series
Bore Size (mm)	25 mm

General Specifications

UPC	662460387567
Weight	0.83 LB
Packaged Length	2.60 IN
Packaged Width	2.50 IN
Packaged Height	1.10 IN
HTC	8483.60.4040
Country of Origin	Japan
