• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
• MZEU series has a dual metric ball bearing supported design with metric bores. It is suitable for overrunnng and middle speed backstopping.

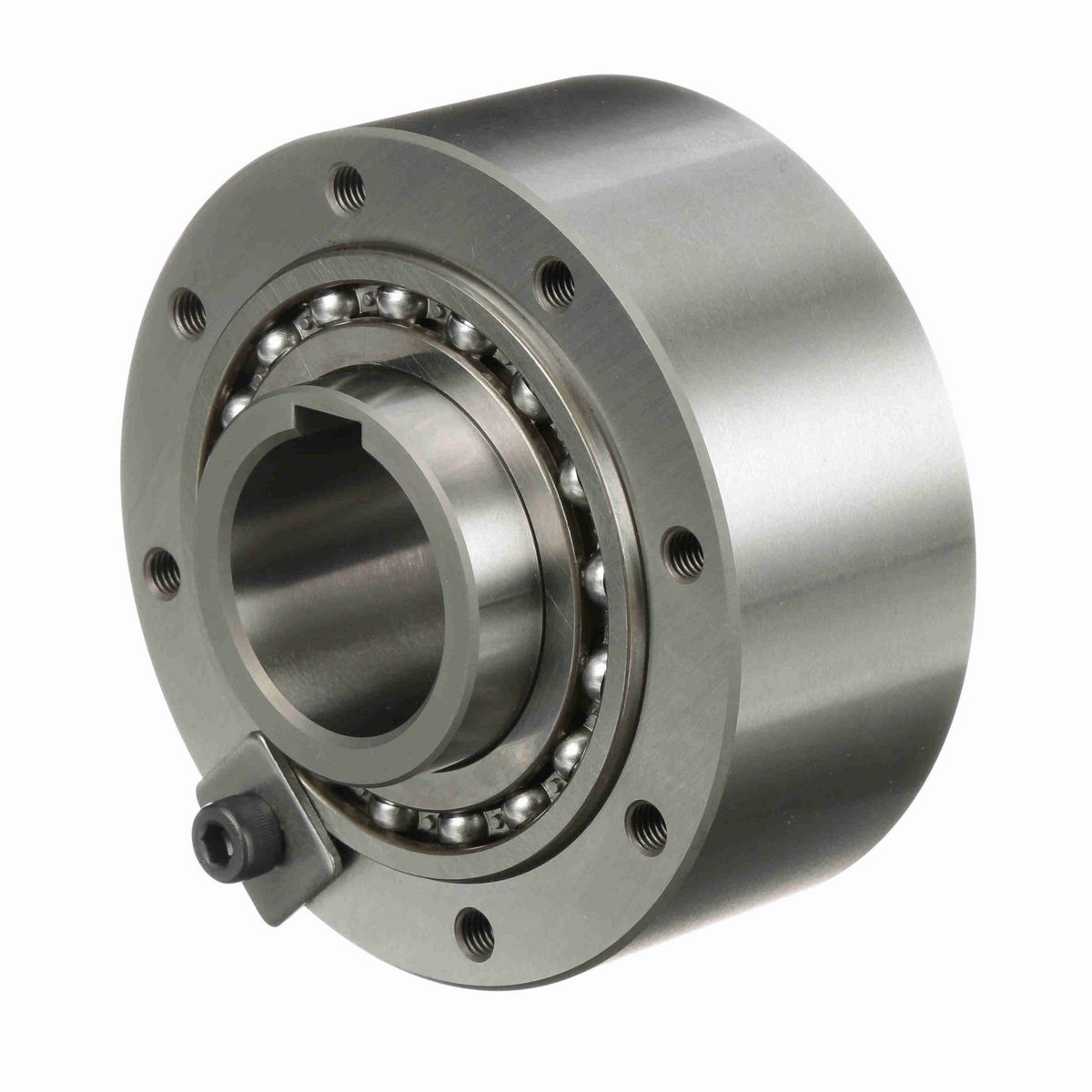

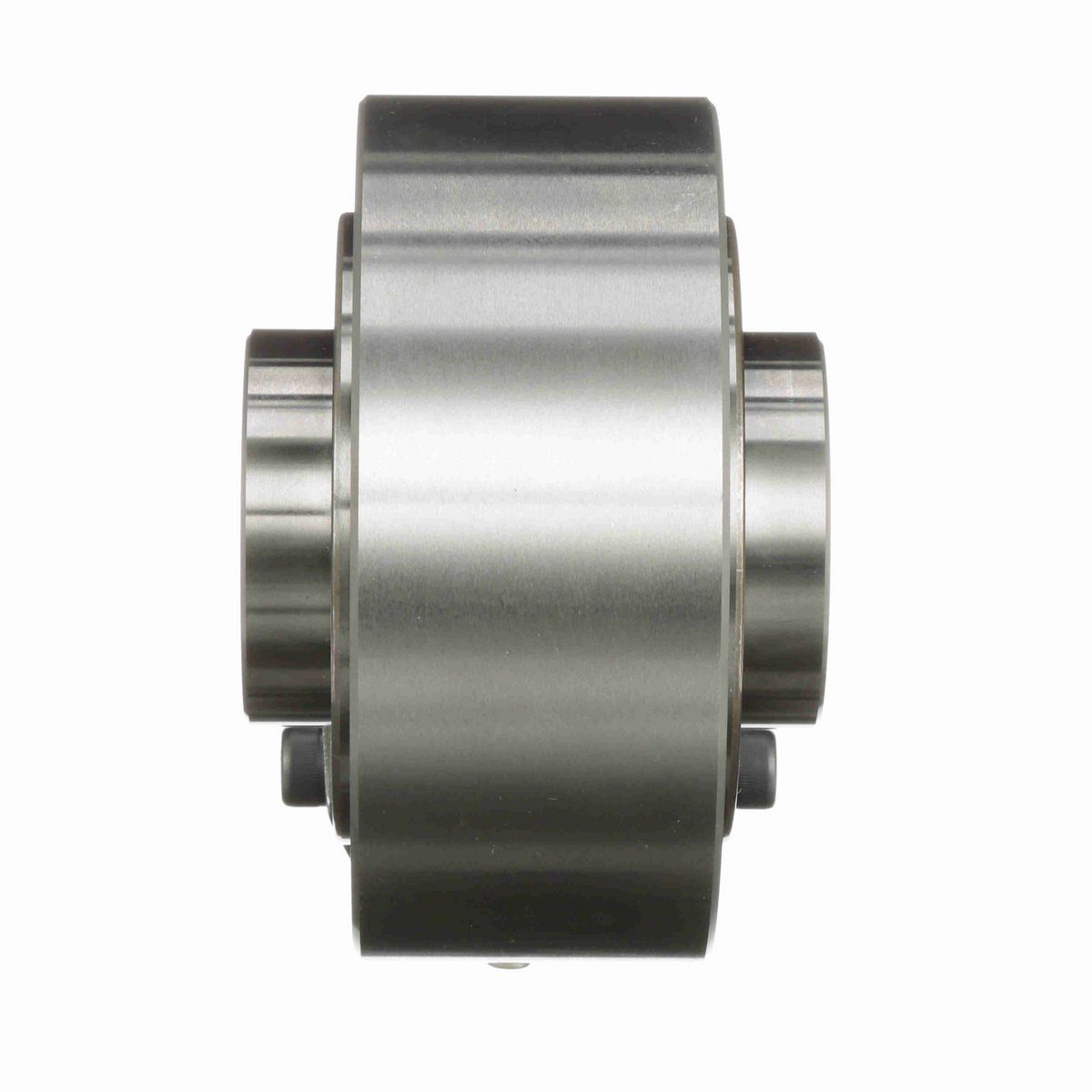

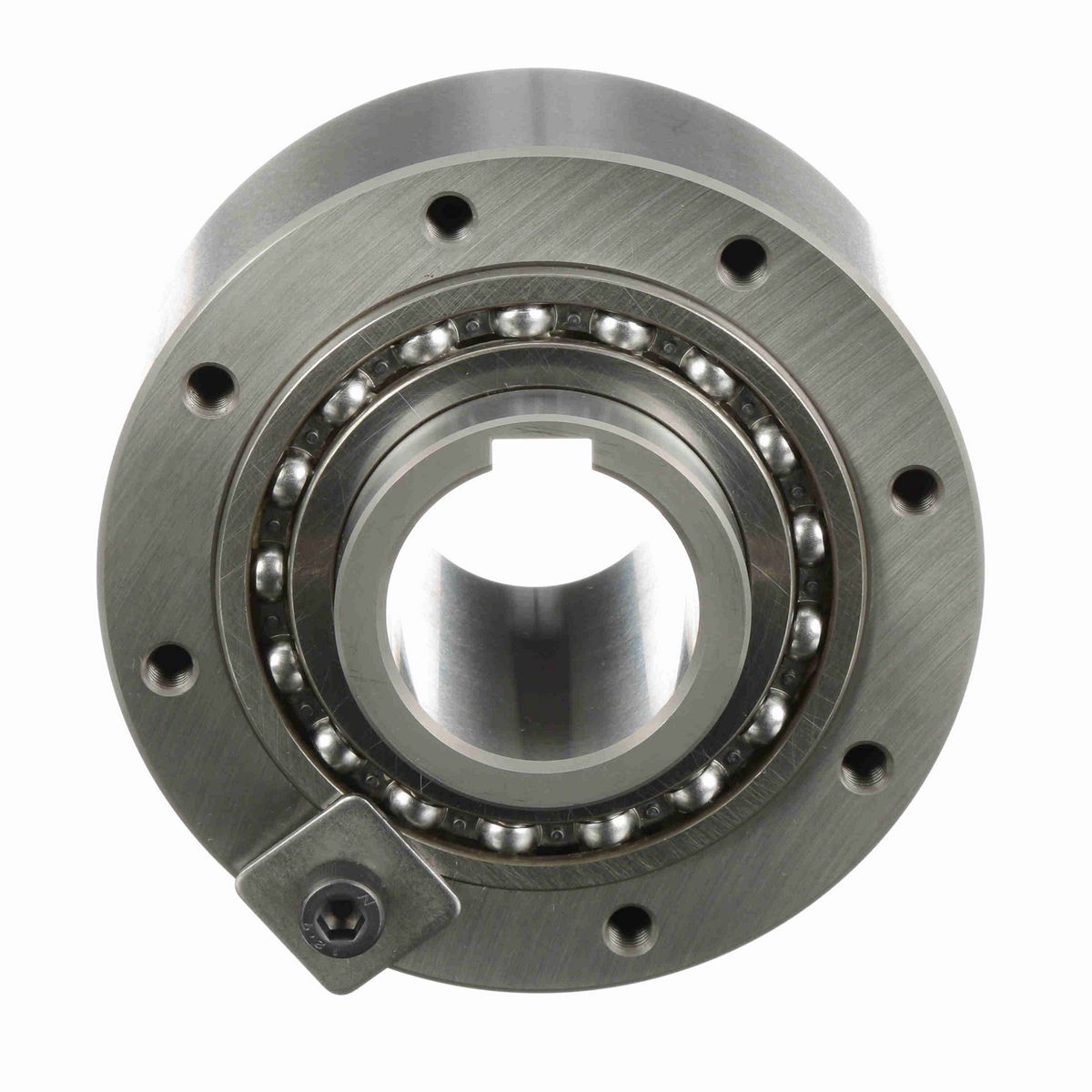

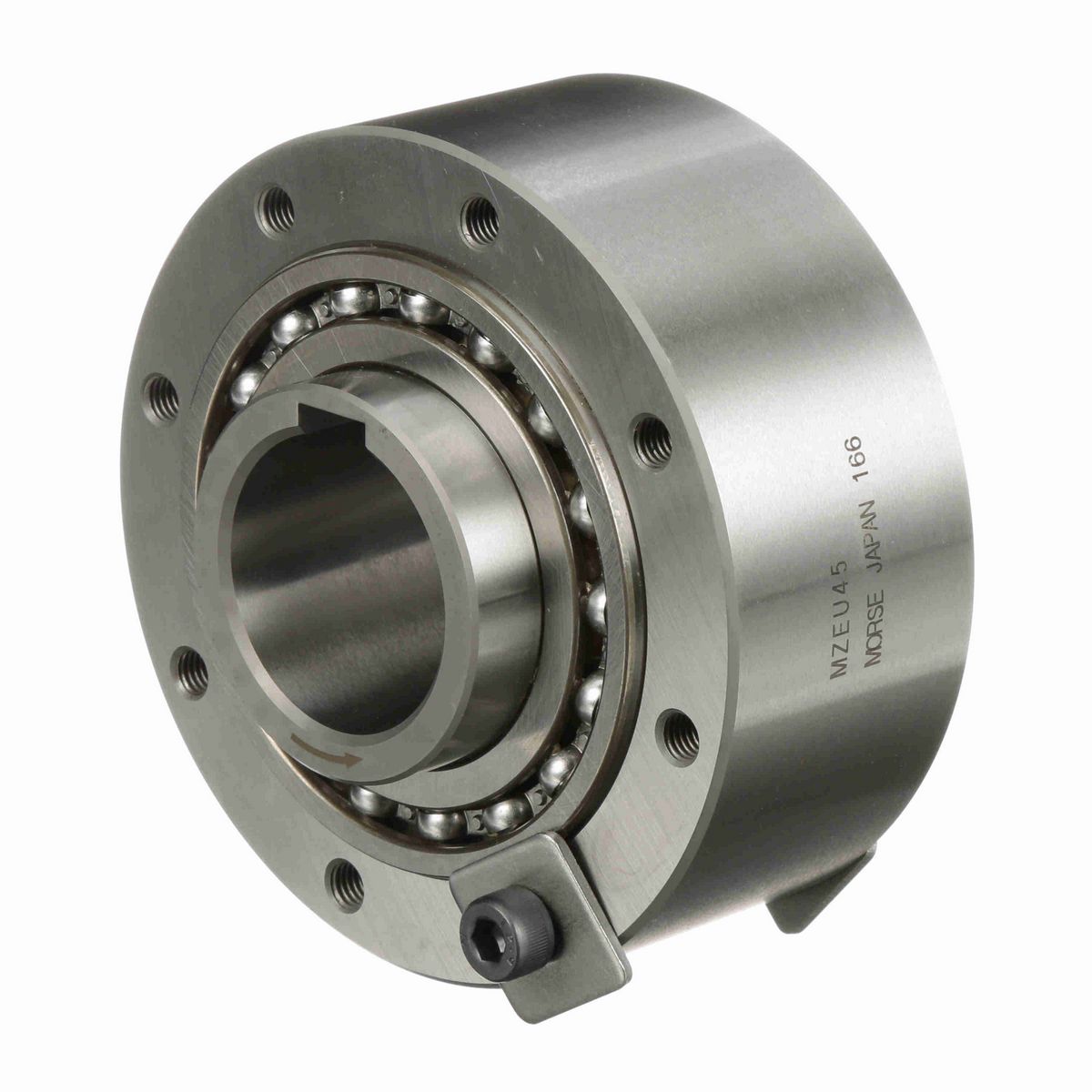

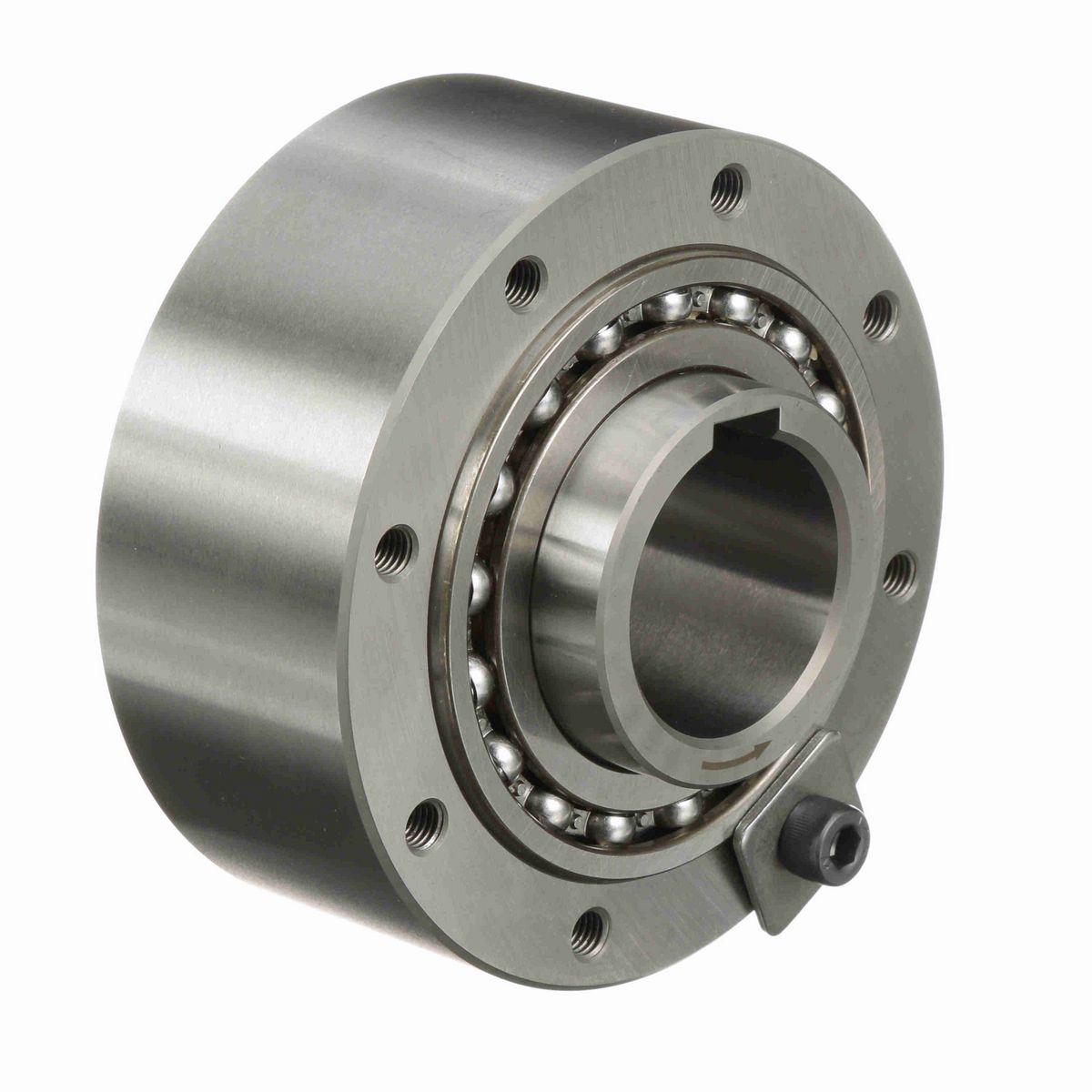

• This one way sprag clutch has tapped holes to mount accessories

Technical Specifications

Drag Torque (lb-ft)	0.508917
Rated Torque Capacity (ft.-lbs.)	1,194.849
Rated Torque Capacity (N-m)	1620
Bore Size Tolerances (in)	+0.0010/-0.0000 in
Type	CAM Clutches
Keyway	14 X 3.8
Model	MZEU 45
Drag Torque (N-m)	0.69
Bore Size Tolerances (mm)	+0.025/-0.000 mm
Add'l Bearing Support Requirement	No
Maximum Overrunning Speed - Outer Race (rpm)	300
Bore Size (in)	1.771648 in
Maximum Overrunning Speed - Inner Race (rpm)	1,400
Indexing Clutch	No
Backstopping Clutch	Yes
Bore Size (mm)	45 mm
Overrunning Clutch	Yes
Product Type	MZEU Series

General Specifications

UPC	662288930136
Weight	11.49 LB
Packaged Length	6.10 IN
Packaged Width	5.80 IN
Packaged Height	4.80 IN
HTC	8483.60.4040
Country of Origin	Japan
