• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

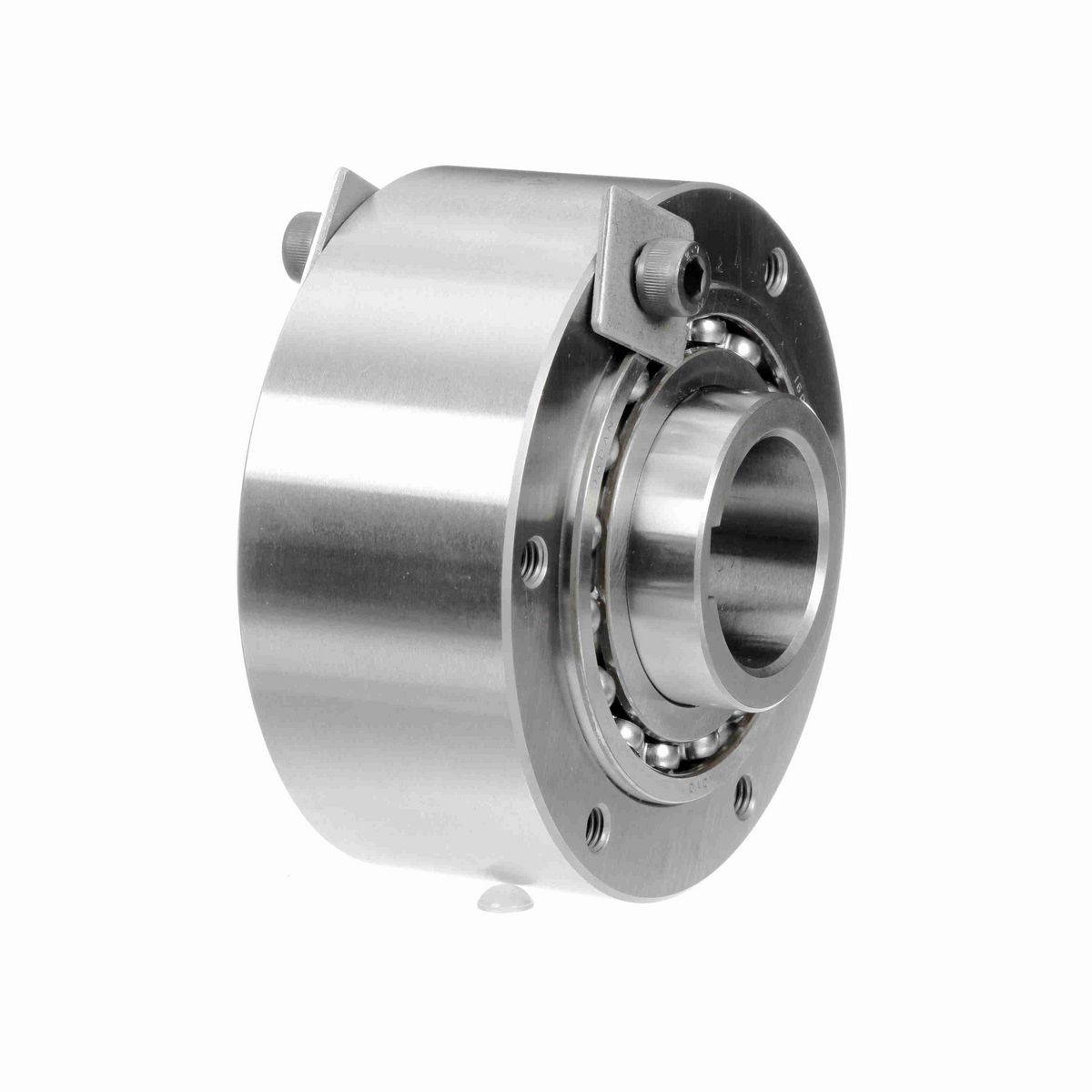

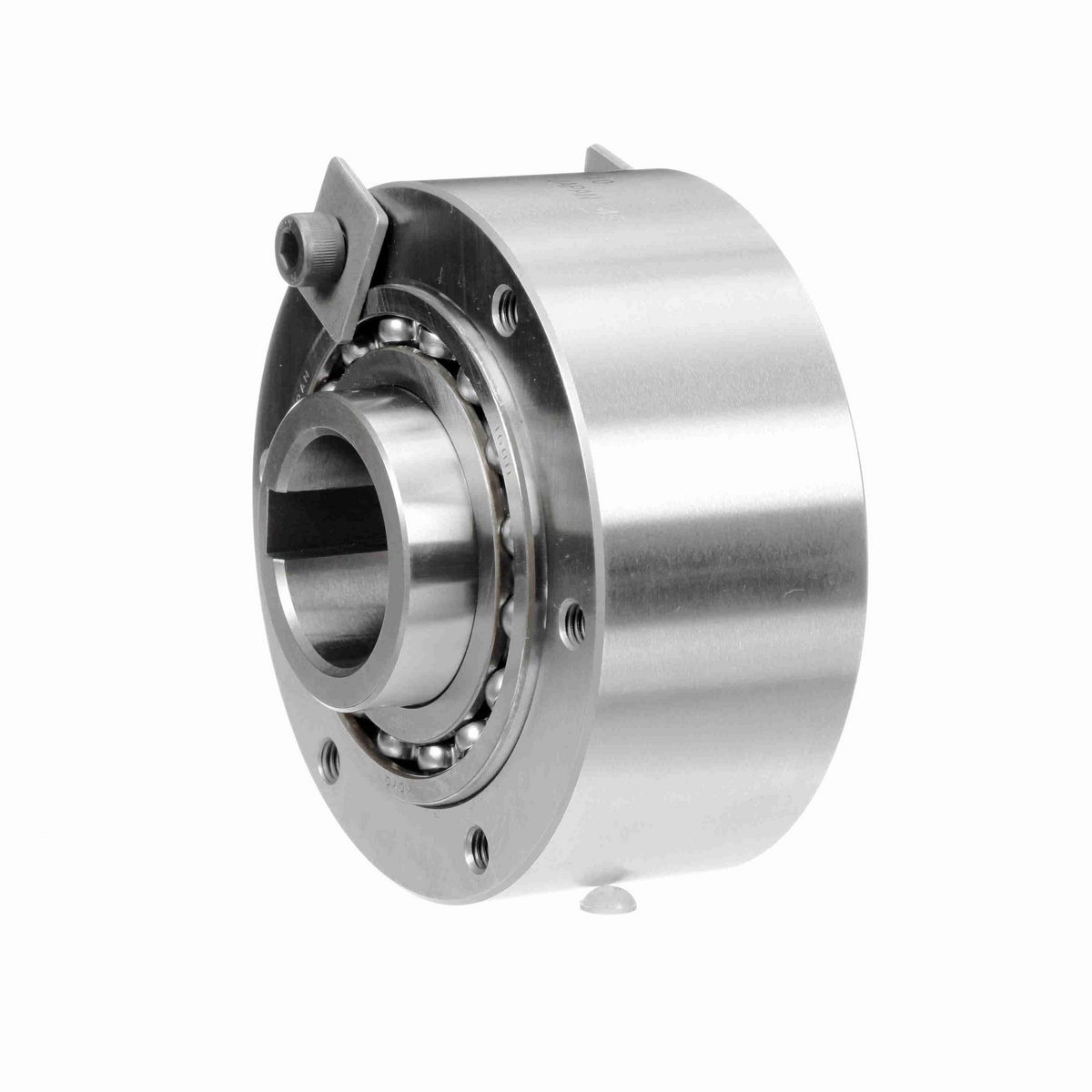

• MZEU series has a dual metric ball bearing supported design with metric bores. It is suitable for overrunnng and middle speed backstopping.
• This one way sprag clutch has tapped holes to mount accessories

Technical Specifications

Type	CAM Clutches
Keyway	12 X 3.3
Drag Torque (lb-ft)	0.435161
Bore Size Tolerances (mm)	+0.025/-0.000 mm
Rated Torque Capacity (ft.-lbs.)	995.7074
Rated Torque Capacity (N-m)	1350
Bore Size Tolerances (in)	+0.0010/-0.0000 in
Model	MZEU 40
Drag Torque (N-m)	0.59
Add'l Bearing Support Requirement	No
Product Type	MZEU Series
Maximum Overrunning Speed - Inner Race (rpm)	1,400
Backstopping Clutch	Yes
Indexing Clutch	No
Maximum Overrunning Speed - Outer Race (rpm)	300
Overrunning Clutch	Yes
Bore Size (in)	1.574798 in
Bore Size (mm)	40 mm
Outer Width (in)	2.1 in
RPM Max. -inner Race	1,400
Nominal Overrunning Drag (ft-lb)	0.435
Overall Diameter (in)	4.9 in
Lubrication Type	Grease
Inner Race Width (in)	3.4 in

General Specifications

UPC	662288930129
Weight	10.50 LB
Packaged Length	5.90 IN
Packaged Width	5.70 IN
Packaged Height	5.00 IN
HTC	8483.60.4040
Country of Origin	Japan
