• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
• MZEU series has a dual metric ball bearing supported design with metric bores. It is suitable for overrunnng and middle speed backstopping.

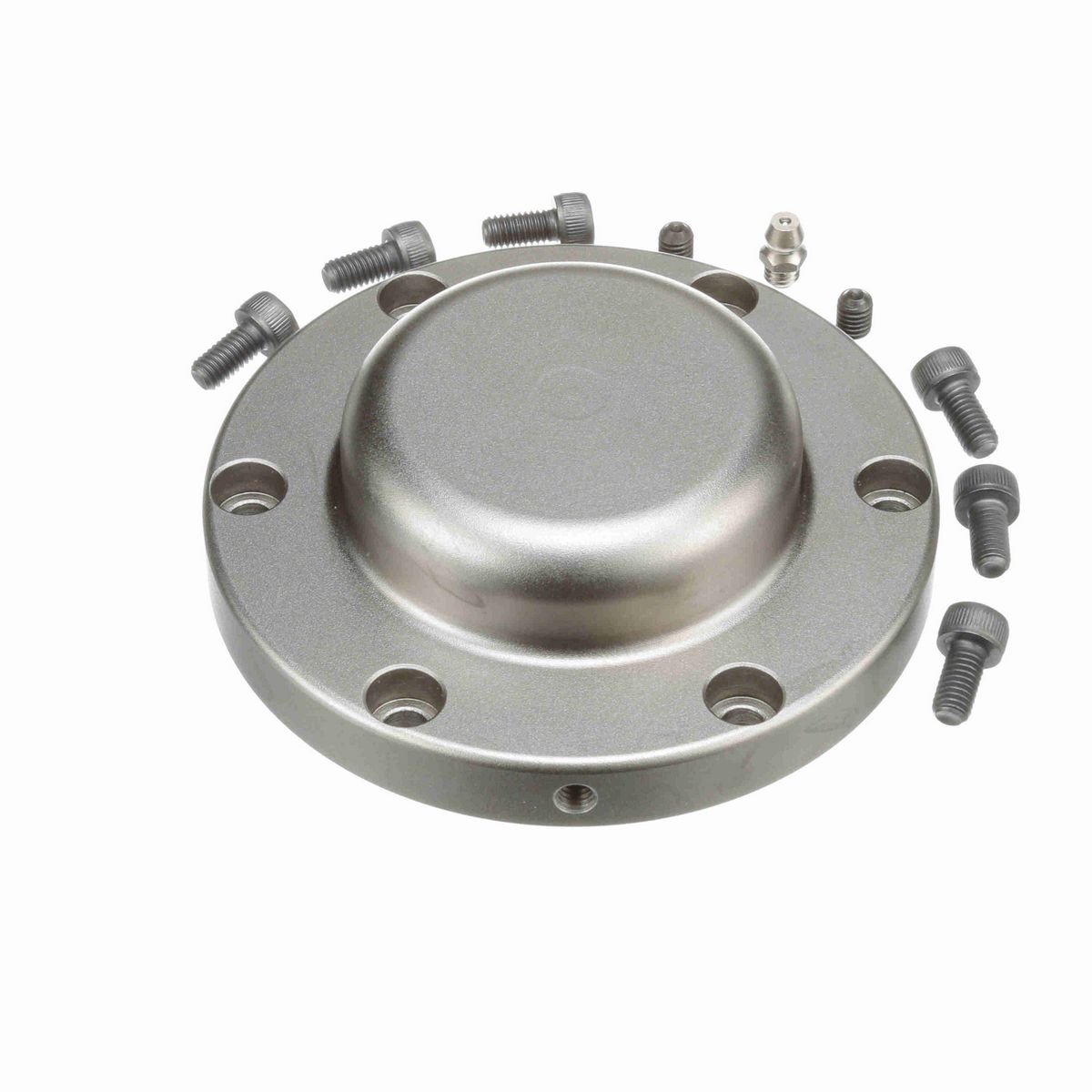

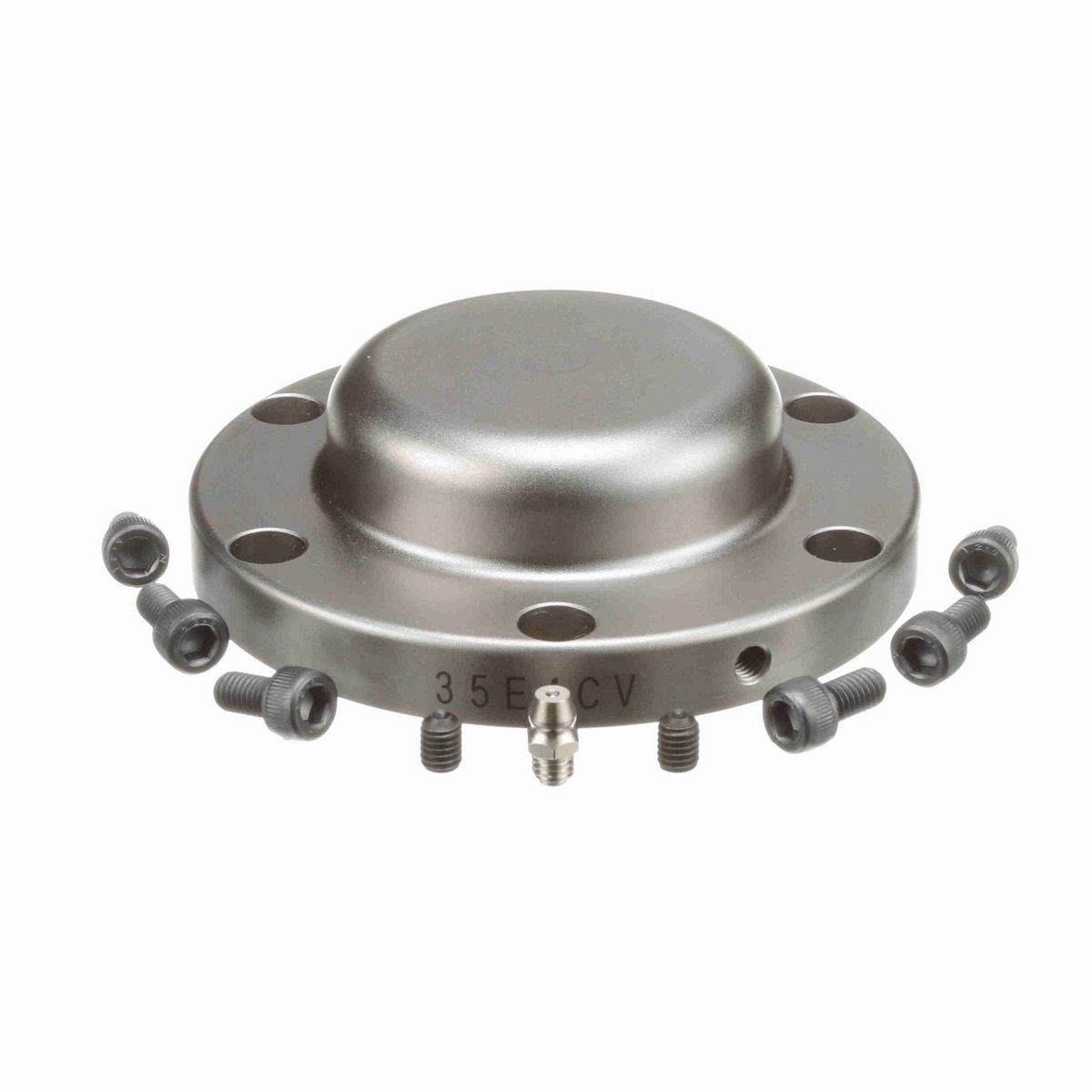

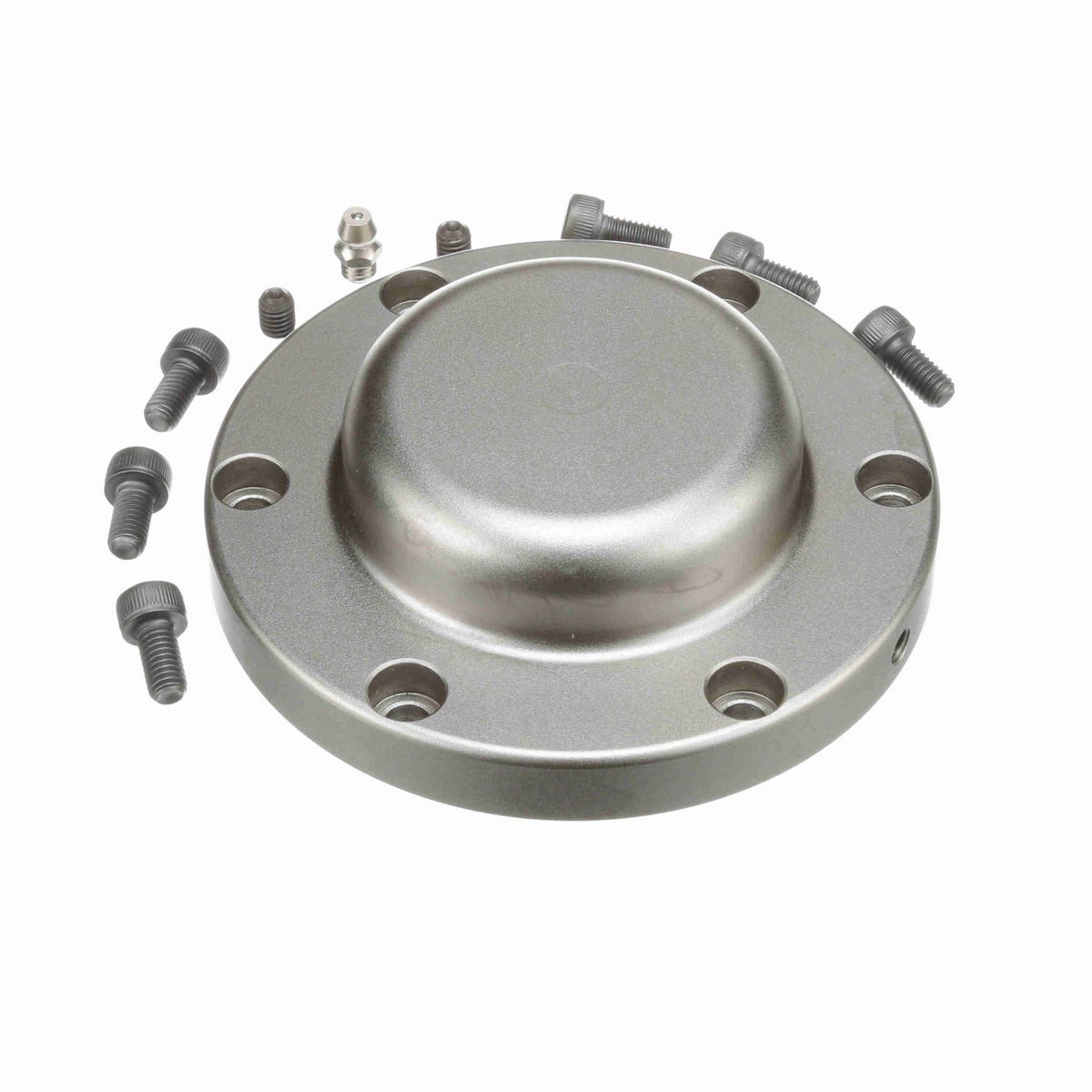

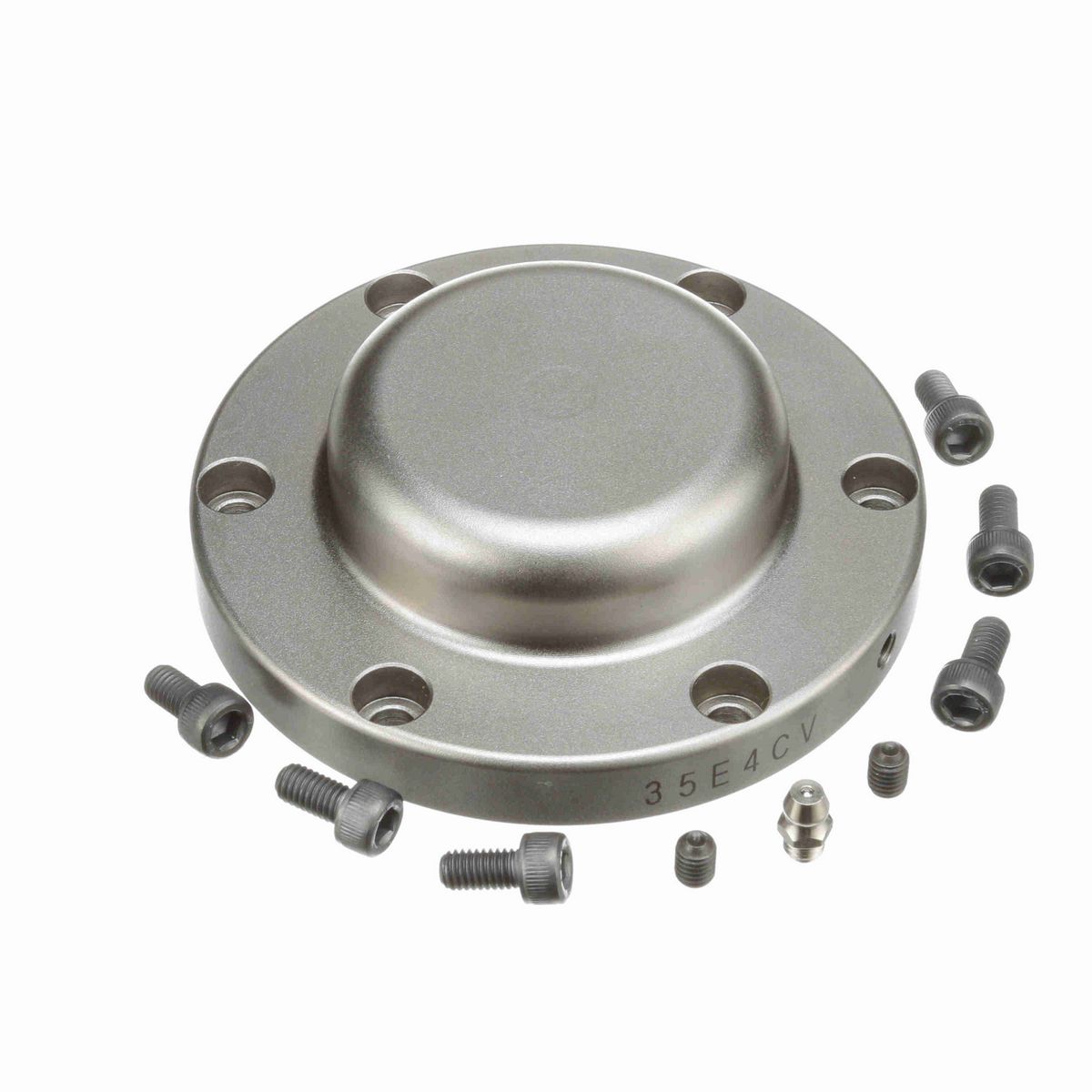

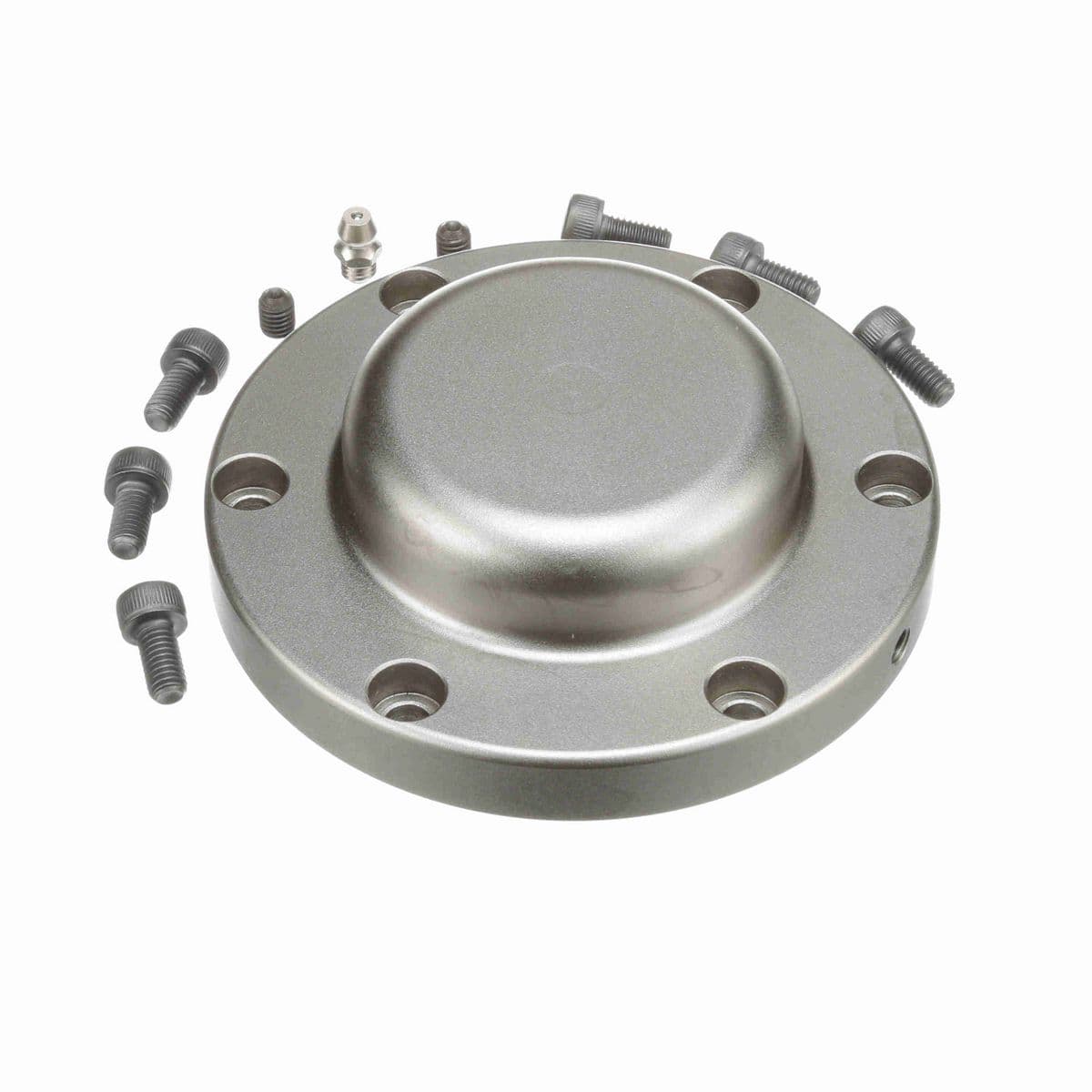

• This one way sprag clutch has tapped holes to mount accessories

Technical Specifications

Bore Size Tolerances (in)	+0.0010/-0.0000 in
Drag Torque (N-m)	0.49
Type	End Covers
Drag Torque (lb-ft)	0.361405439
Rated Torque Capacity (N-m)	1015
Rated Torque Capacity (ft.-lbs.)	748.6
Keyway	10 X 3.3
Bore Size Tolerances (mm)	+0.025/-0.000 mm
Add'l Bearing Support Requirement	No
Maximum Overrunning Speed - Inner Race (rpm)	1,400
Overrunning Clutch	Yes
Bore Size (in)	1.378 in
Backstopping Clutch	Yes
Maximum Overrunning Speed - Outer Race (rpm)	300
Indexing Clutch	No
Product Type	MZEU Series
Bore Size (mm)	35 mm

General Specifications

UPC	662288930464
Weight	2.00 LB
Packaged Length	5.50 IN
Packaged Width	14.55 IN
Packaged Height	2.15 IN
HTC	8483.90.5090
Country of Origin	Japan
