• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

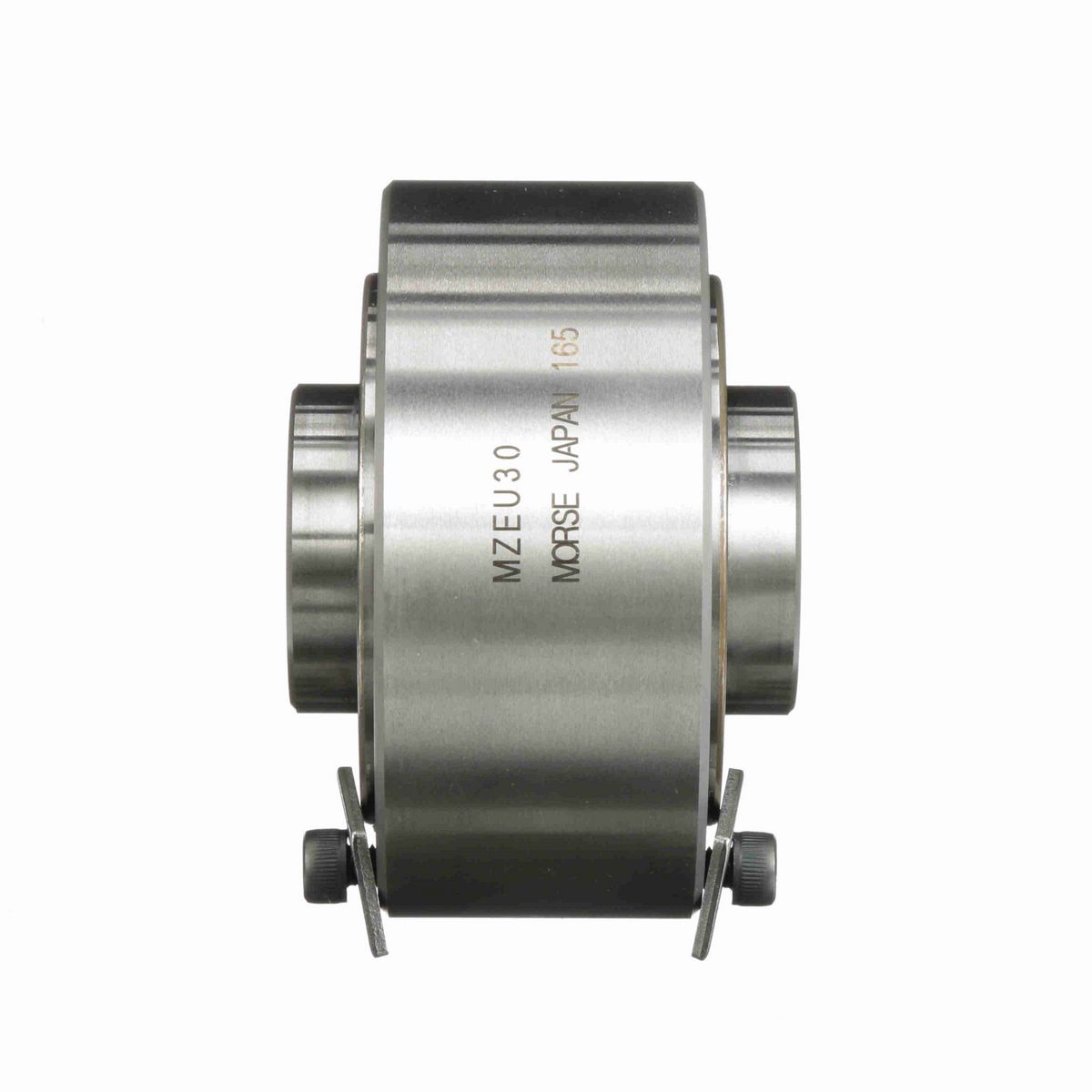

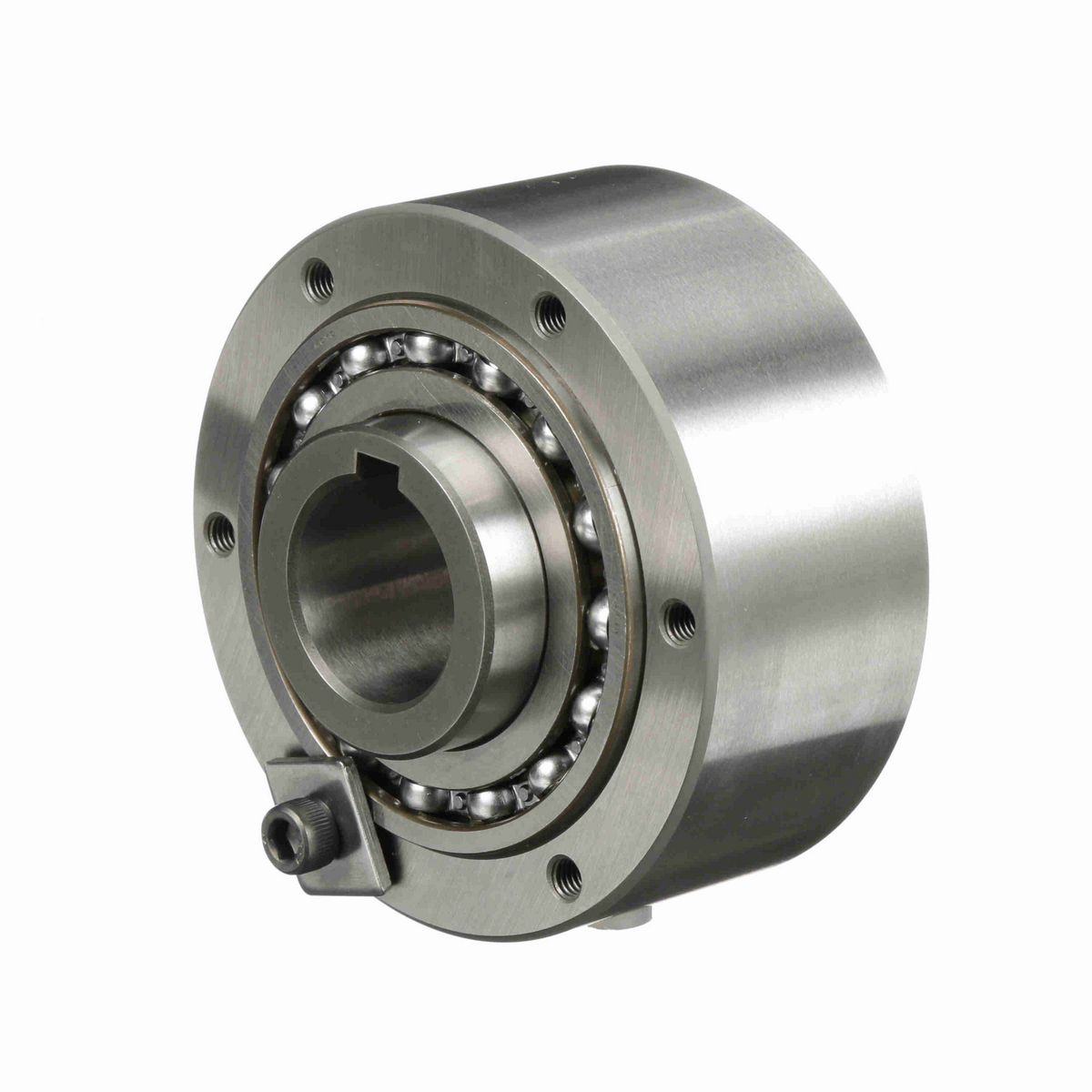

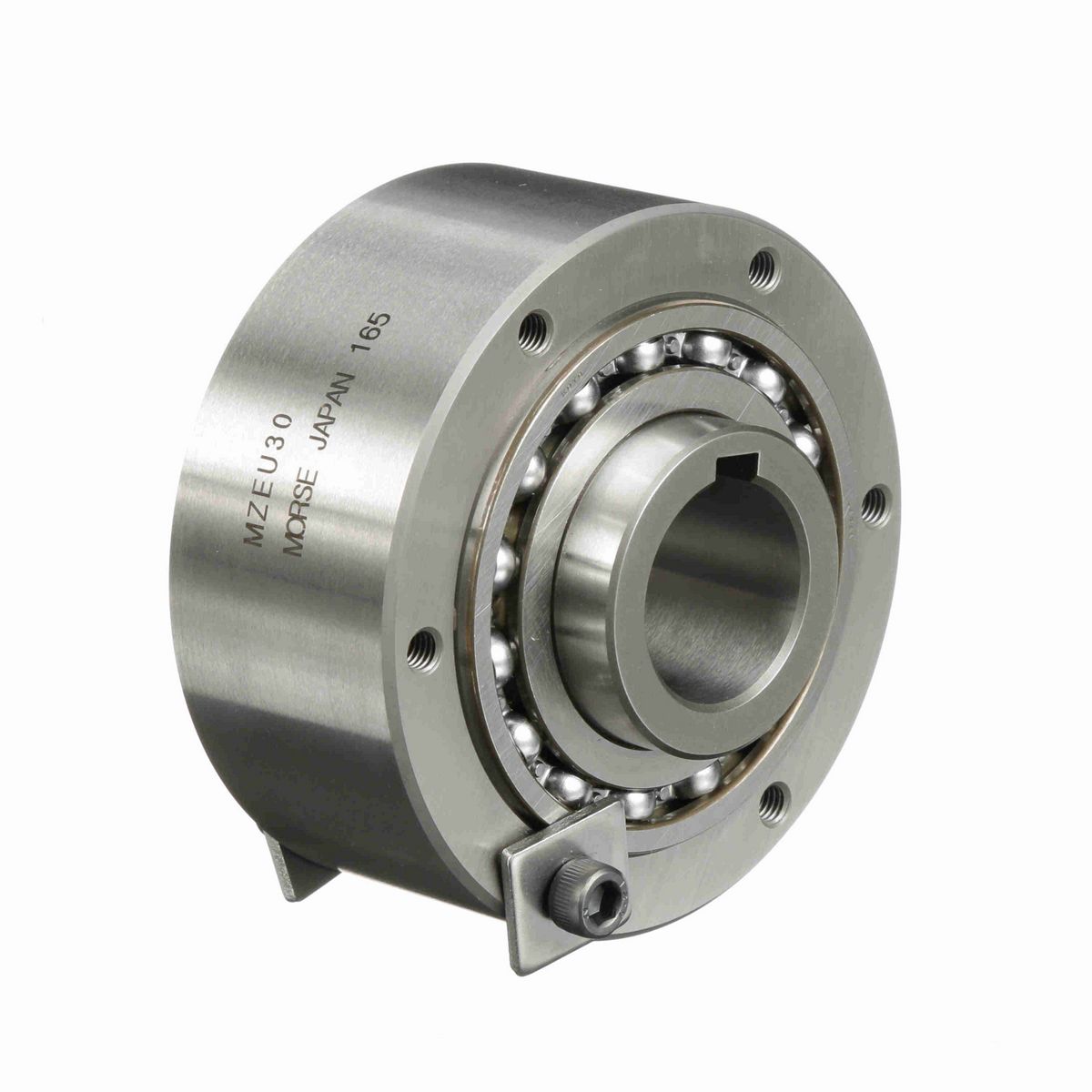

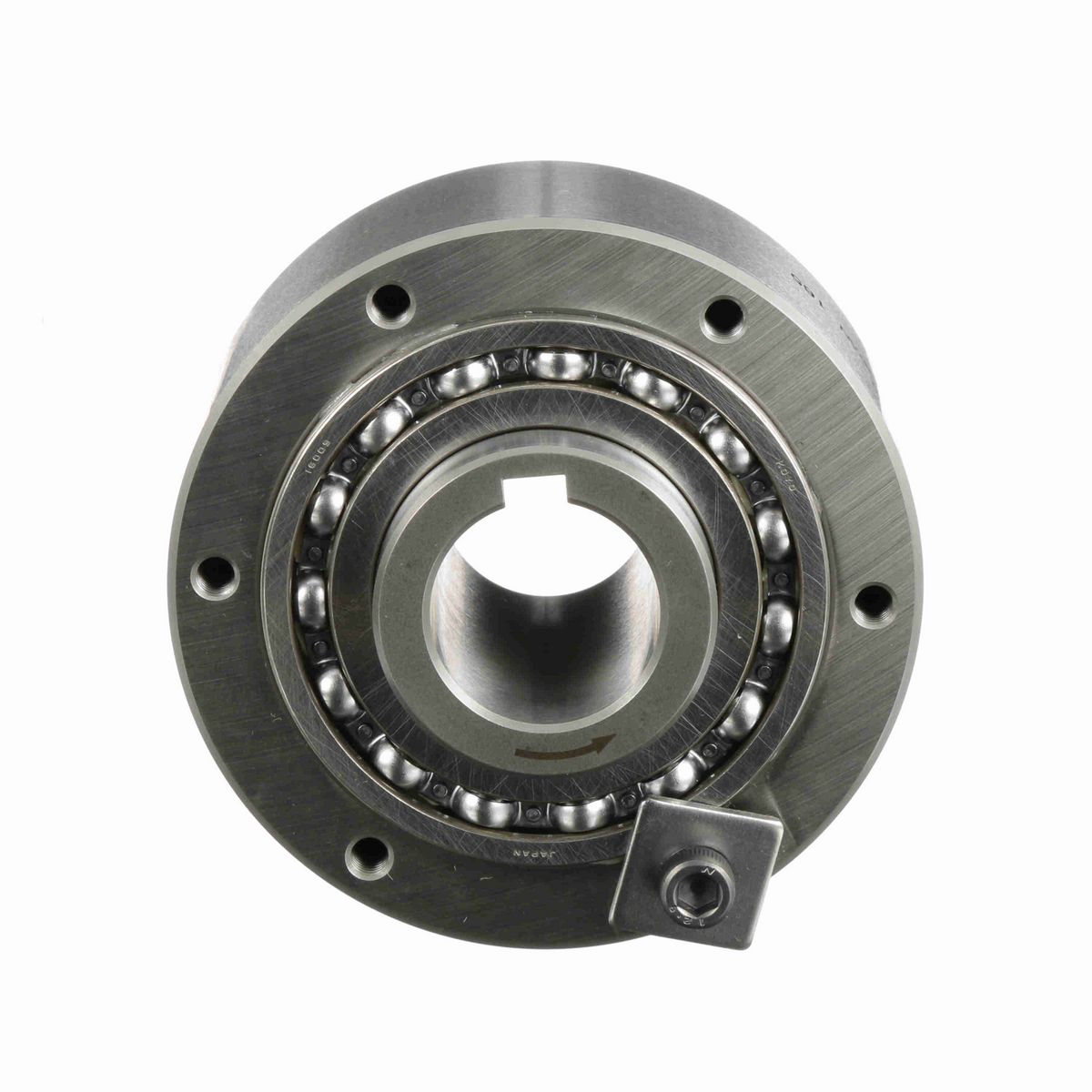

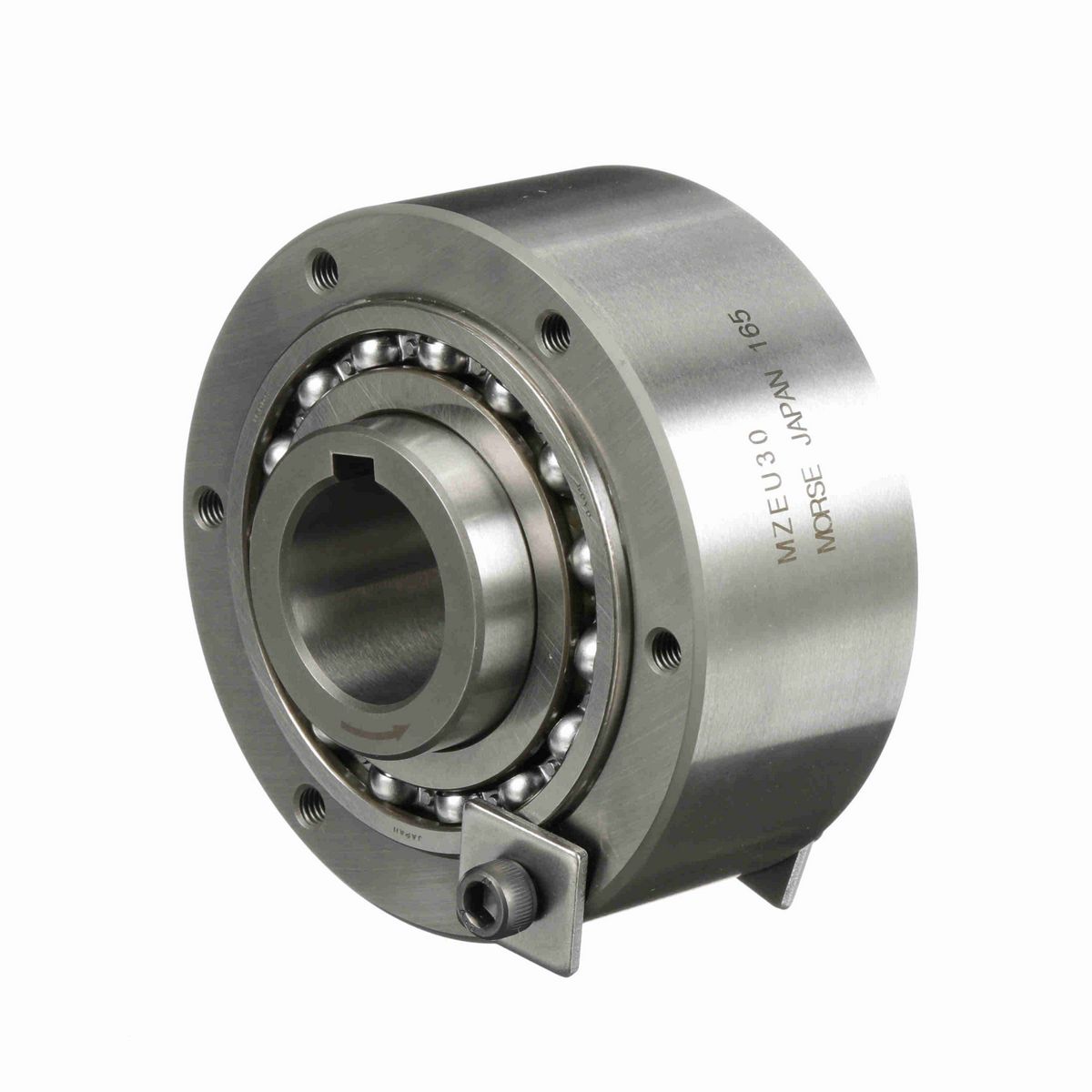

• MZEU series has a dual metric ball bearing supported design with metric bores. It is suitable for overrunnng and middle speed backstopping.
• This one way sprag clutch has tapped holes to mount accessories

Technical Specifications

Drag Torque (lb-ft)	0.287649
Model	MZEU 30
Bore Size Tolerances (mm)	+0.021/-0.000 mm
Keyway	8 X 3.3
Type	CAM Clutches
Drag Torque (N-m)	0.39
Rated Torque Capacity (N-m)	735
Bore Size Tolerances (in)	+0.0008/-0.0000 in
Rated Torque Capacity (ft.-lbs.)	542.1074
Add'l Bearing Support Requirement	No
Backstopping Clutch	Yes
Bore Size (mm)	30 mm
Overrunning Clutch	Yes
Indexing Clutch	No
Maximum Overrunning Speed - Outer Race (rpm)	500
Bore Size (in)	1.181099 in
Product Type	MZEU Series
Maximum Overrunning Speed - Inner Race (rpm)	1,500

General Specifications

UPC	662288930105
Weight	5.55 LB
Packaged Length	4.30 IN
Packaged Width	3.90 IN
Packaged Height	4.00 IN
HTC	8483.60.4040
Country of Origin	Japan
