• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

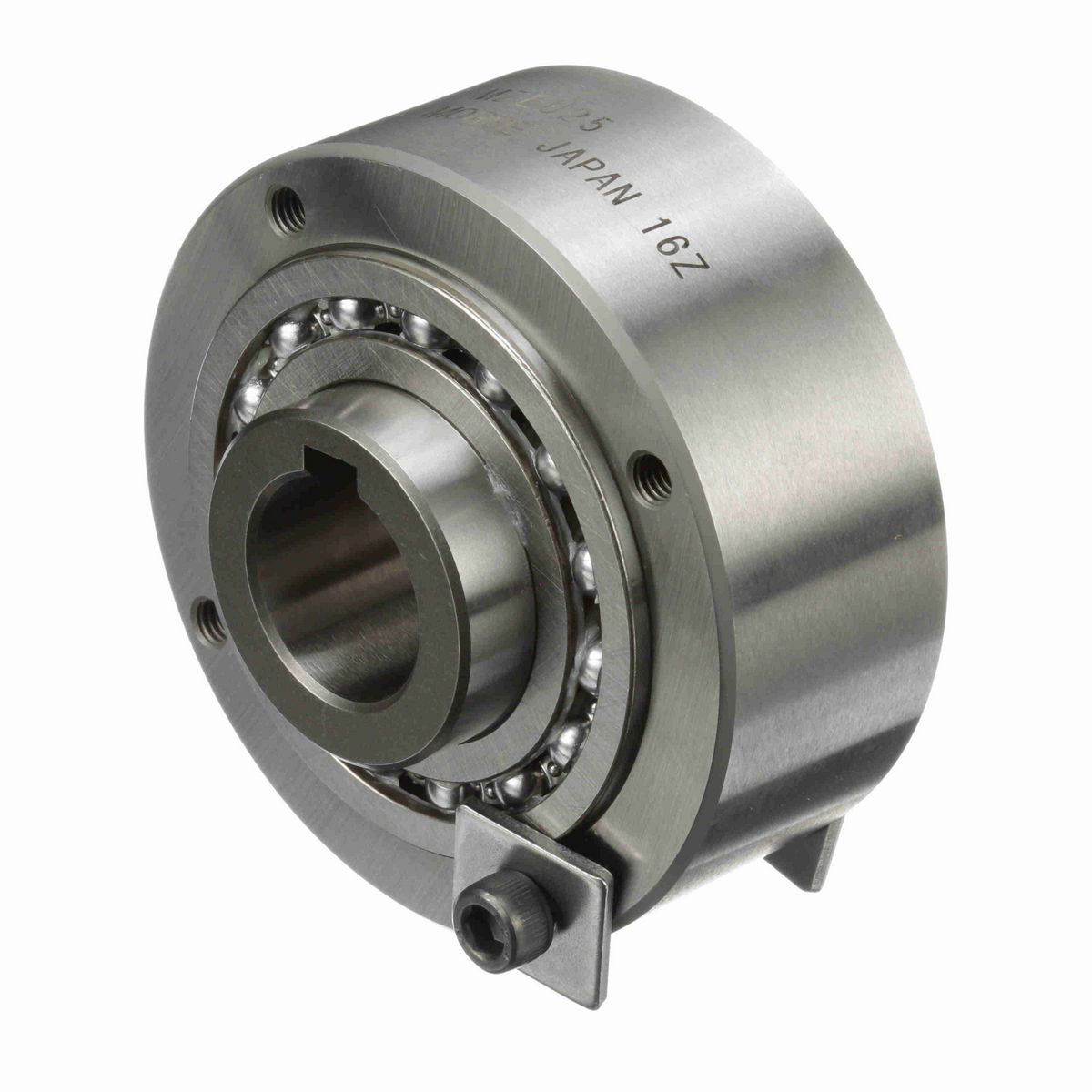

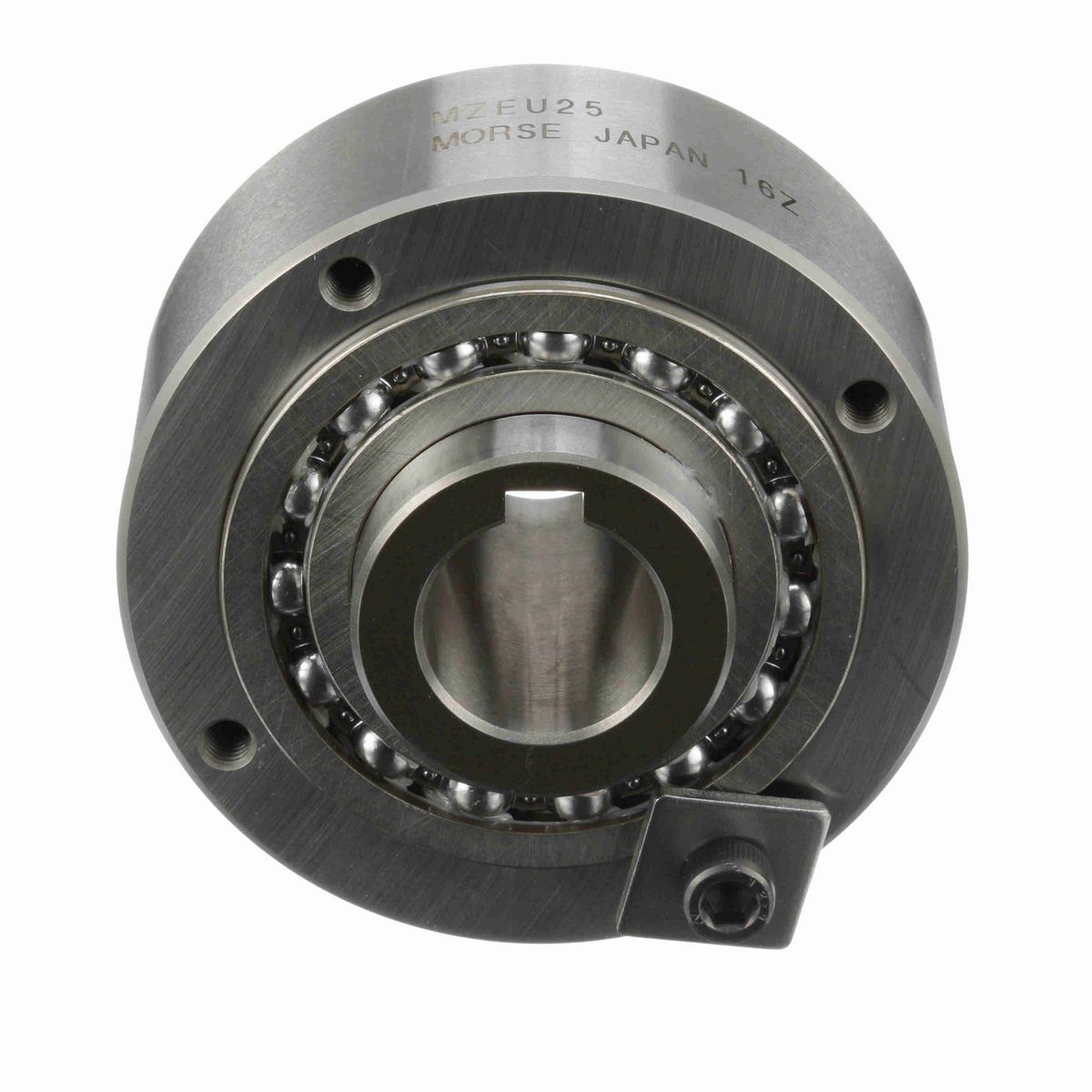

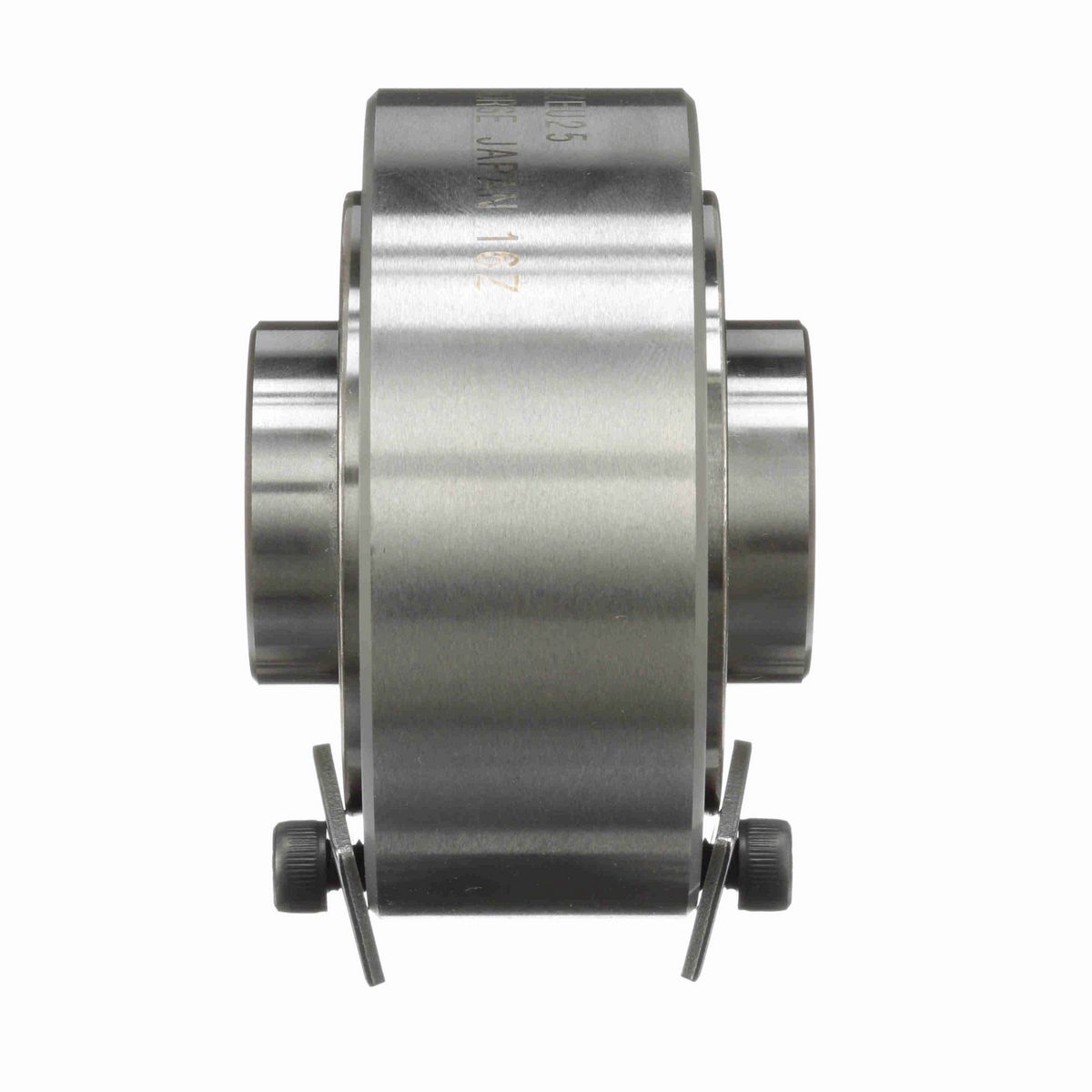

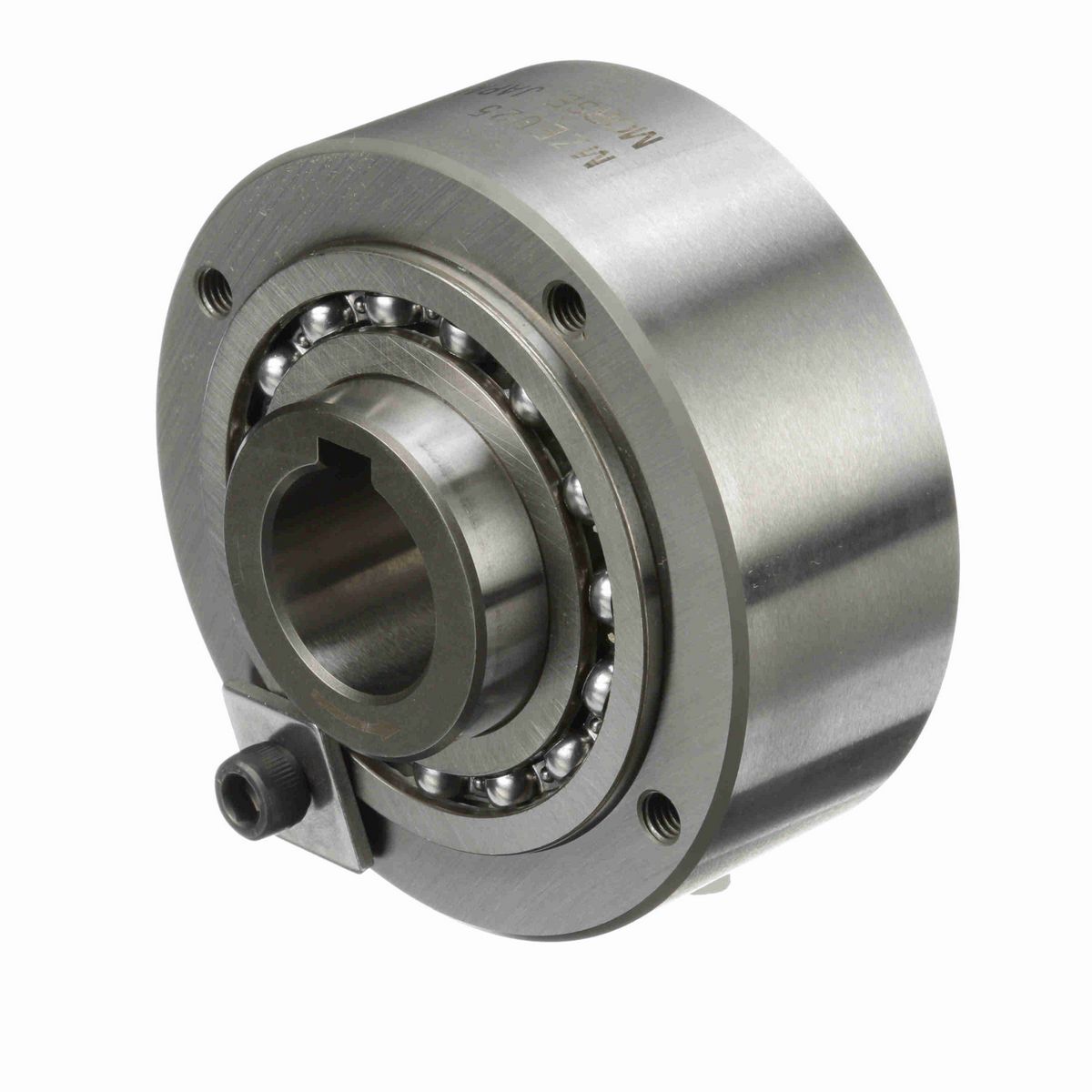

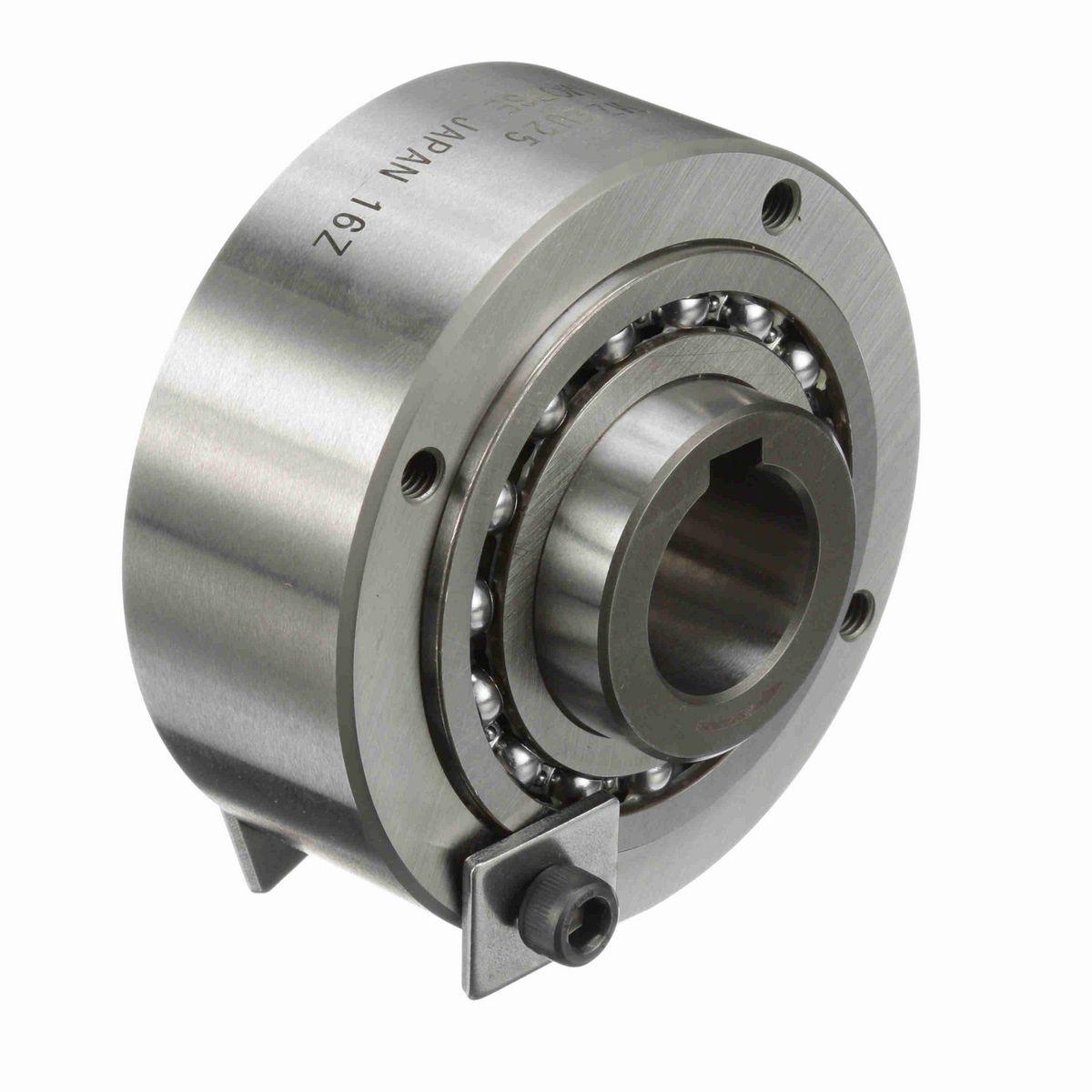

• MZEU series has a dual metric ball bearing supported design with metric bores. It is suitable for overrunnng and middle speed backstopping.
• This one way sprag clutch has tapped holes to mount accessories

Technical Specifications

Rated Torque Capacity (ft.-lbs.)	313.4634
Rated Torque Capacity (N-m)	425
Bore Size Tolerances (in)	+0.0008/-0.0000 in
Type	CAM Clutches
Bore Size Tolerances (mm)	+0.021/-0.000 mm
Drag Torque (N-m)	0.33
Keyway	8 X 3.3
Drag Torque (lb-ft)	0.243395
Model	MZEU 25
Add'l Bearing Support Requirement	No
Backstopping Clutch	Yes
Product Type	MZEU Series
Maximum Overrunning Speed - Inner Race (rpm)	1,600
Indexing Clutch	No
Bore Size (in)	0.984249 in
Bore Size (mm)	25 mm
Maximum Overrunning Speed - Outer Race (rpm)	600
Overrunning Clutch	Yes

General Specifications

UPC	662288930099
Weight	4.30 LB
Packaged Length	4.20 IN
Packaged Width	4.20 IN
Packaged Height	4.00 IN
HTC	8483.60.4040
Country of Origin	Japan
