• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

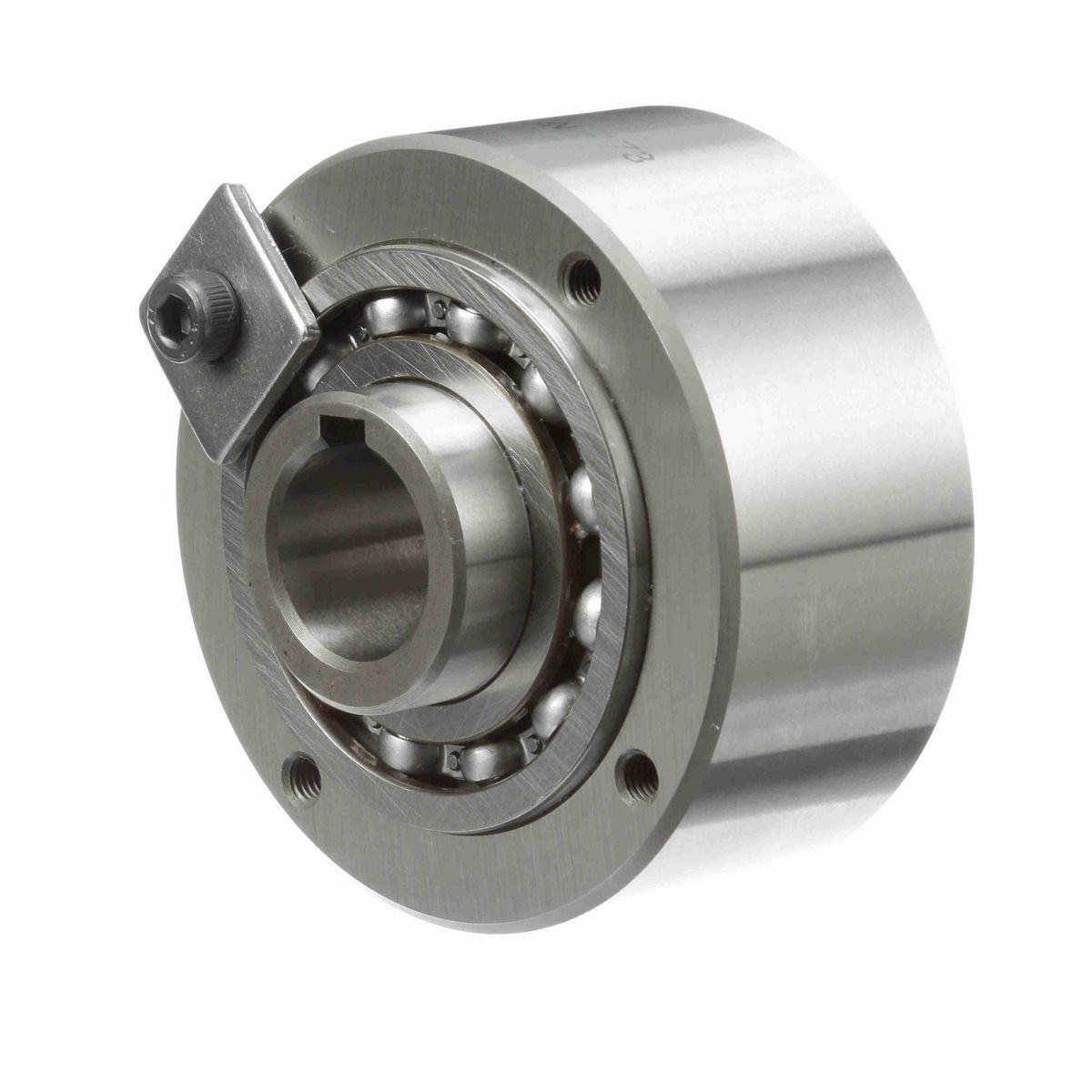

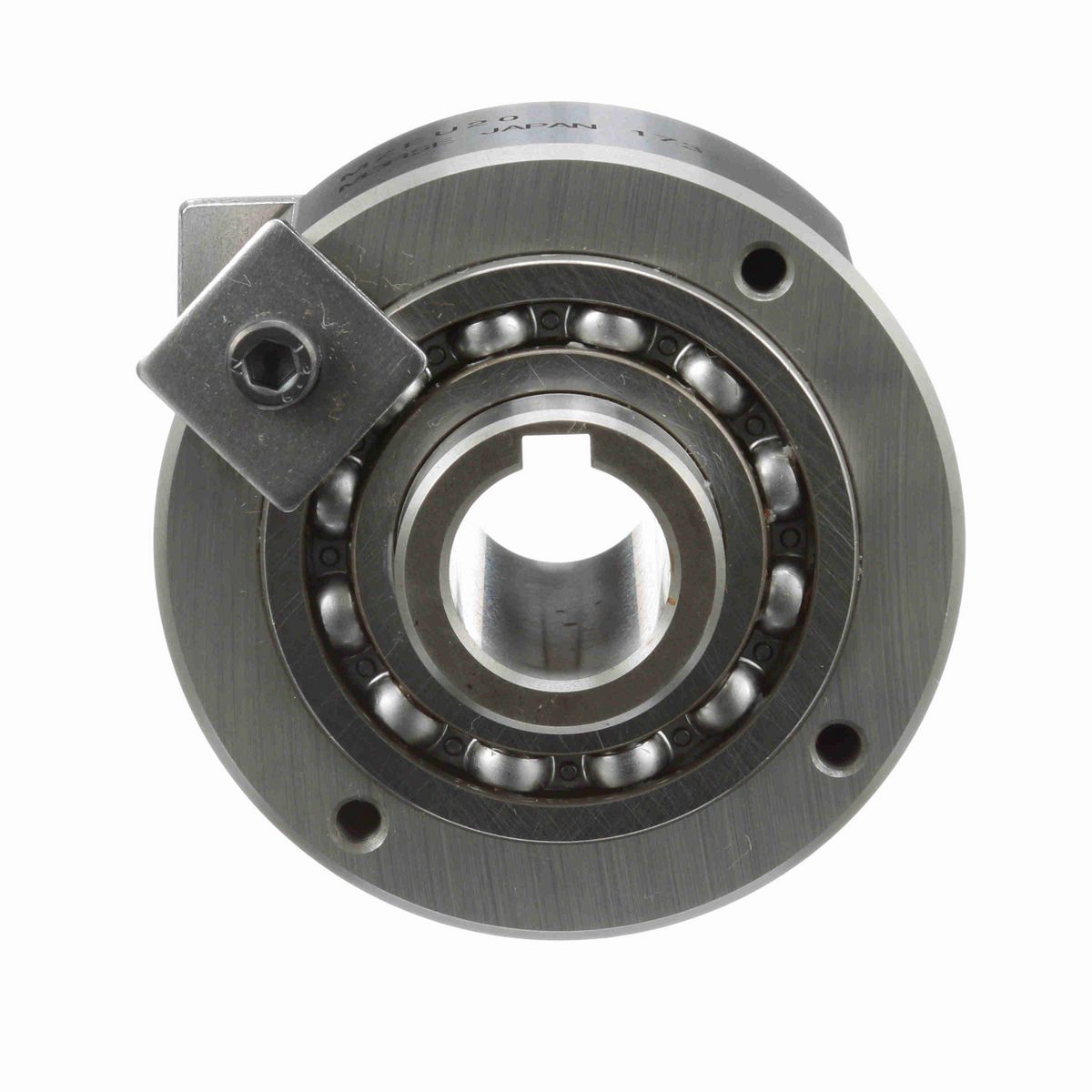

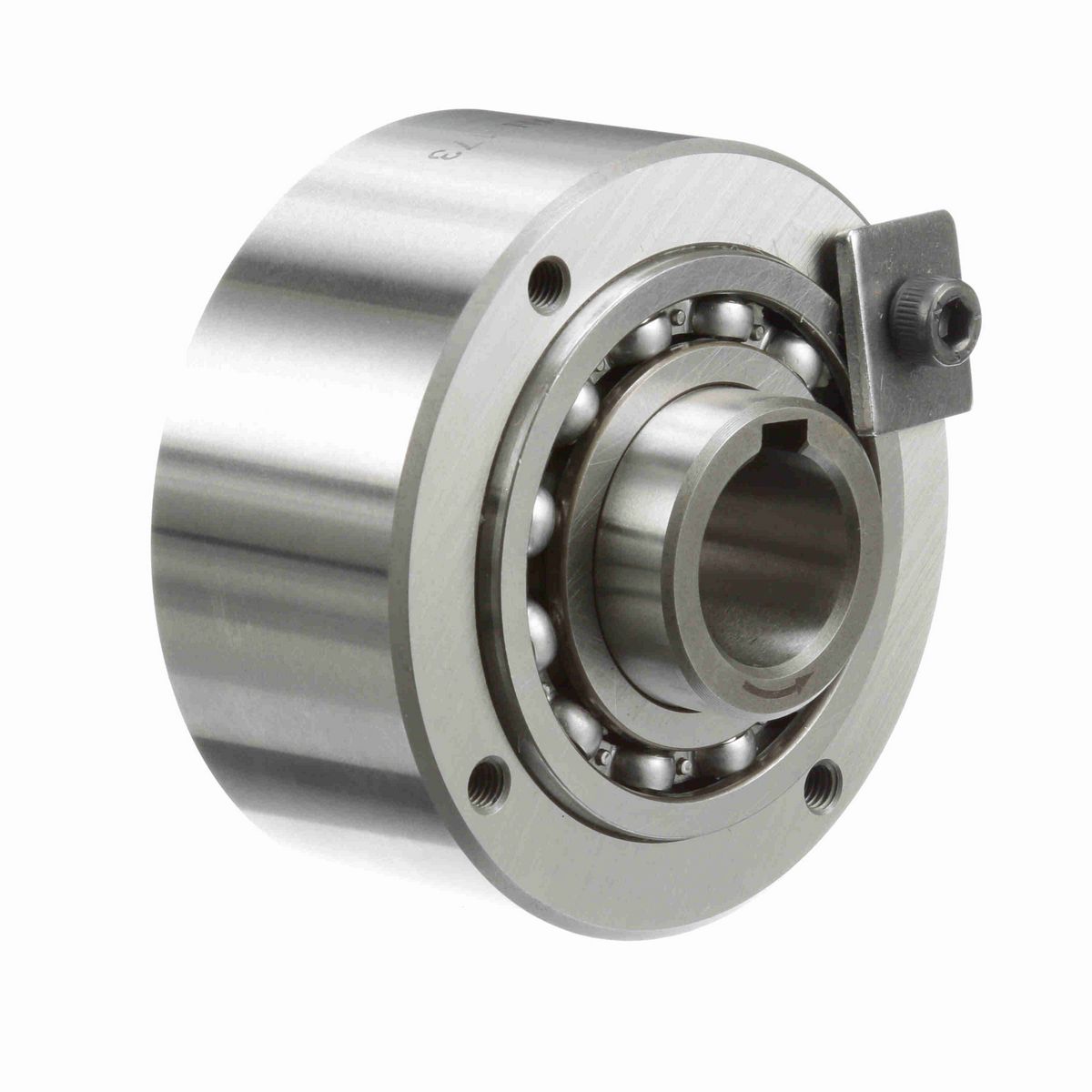

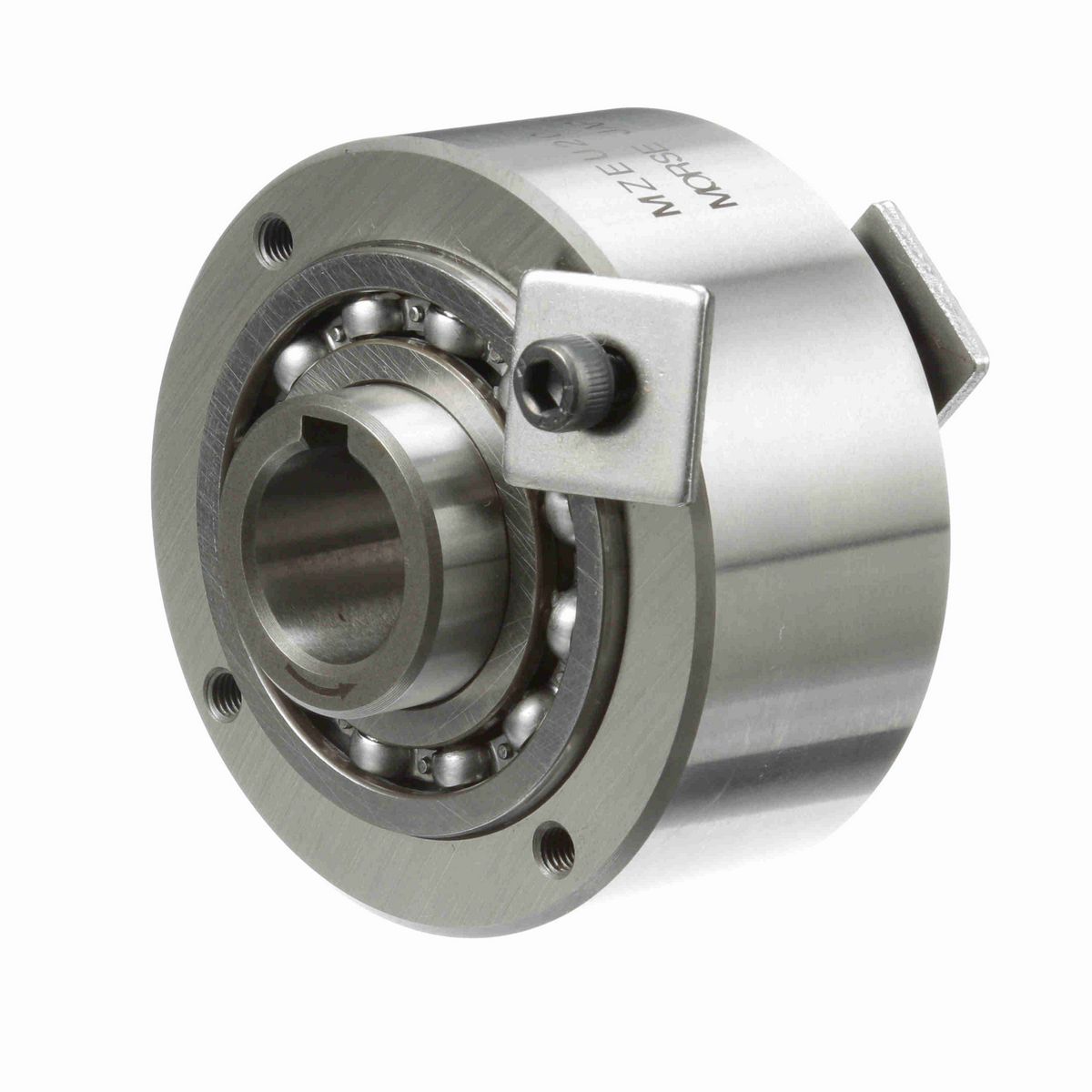

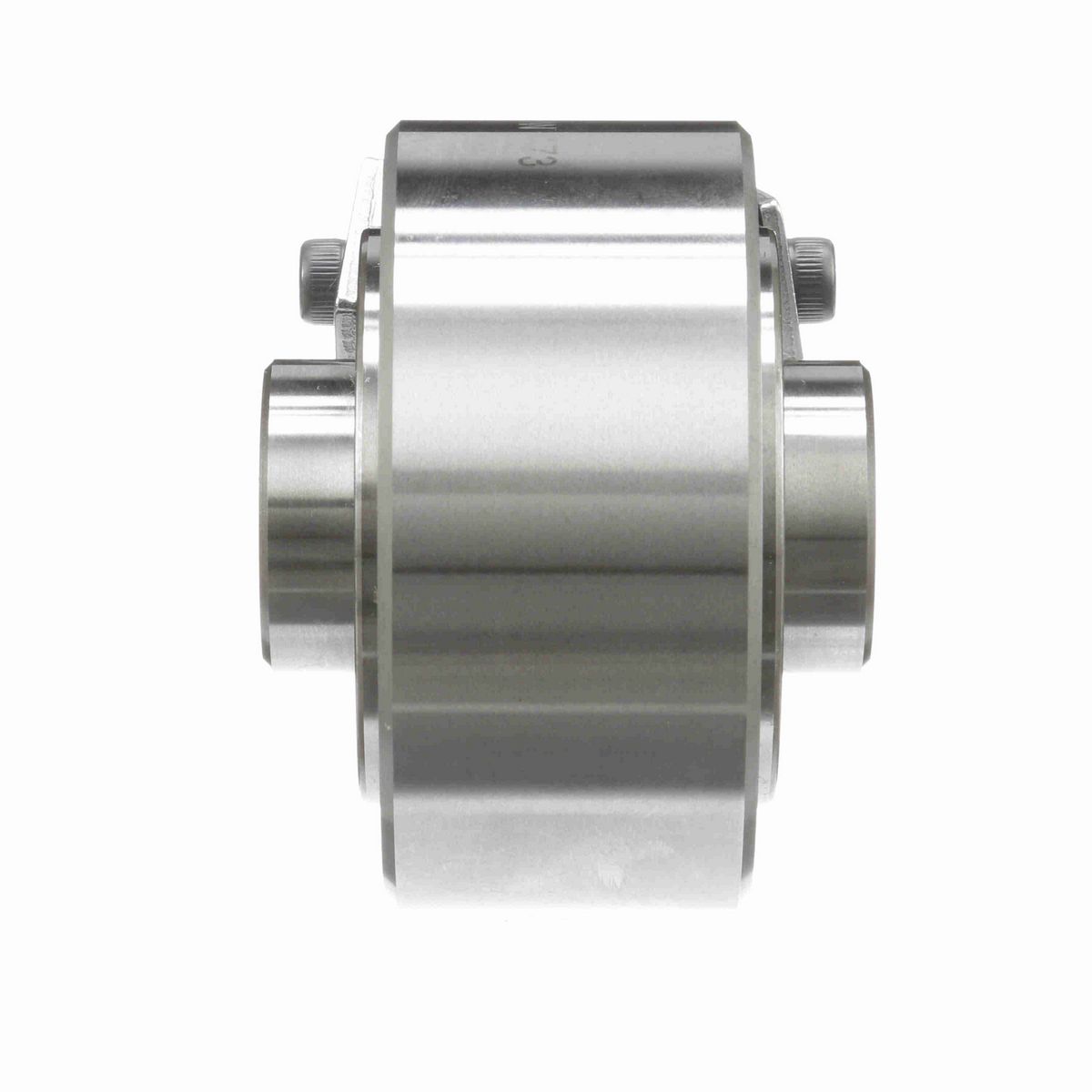

• MZEU series has a dual metric ball bearing supported design with metric bores. It is suitable for overrunnng and middle speed backstopping.
• This one way sprag clutch has tapped holes to mount accessories

Technical Specifications

Drag Torque (lb-ft)	0.213893
Bore Size Tolerances (in)	+0.0008/-0.0000 in
Model	MZEU 20
Drag Torque (N-m)	0.29
Rated Torque Capacity (ft.-lbs.)	180.7025
Keyway	6 X 2.8
Bore Size Tolerances (mm)	+0.021/-0.000 mm
Rated Torque Capacity (N-m)	245
Type	CAM Clutches
Add'l Bearing Support Requirement	No
Maximum Overrunning Speed - Outer Race (rpm)	700
Backstopping Clutch	Yes
Overrunning Clutch	Yes
Maximum Overrunning Speed - Inner Race (rpm)	1,600
Bore Size (in)	0.787399 in
Product Type	MZEU Series
Bore Size (mm)	20 mm
Indexing Clutch	No

General Specifications

UPC	662288930082
Weight	2.56 LB
Packaged Length	4.20 IN
Packaged Width	4.10 IN
Packaged Height	3.90 IN
HTC	8483.60.4040
Country of Origin	Japan
