• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

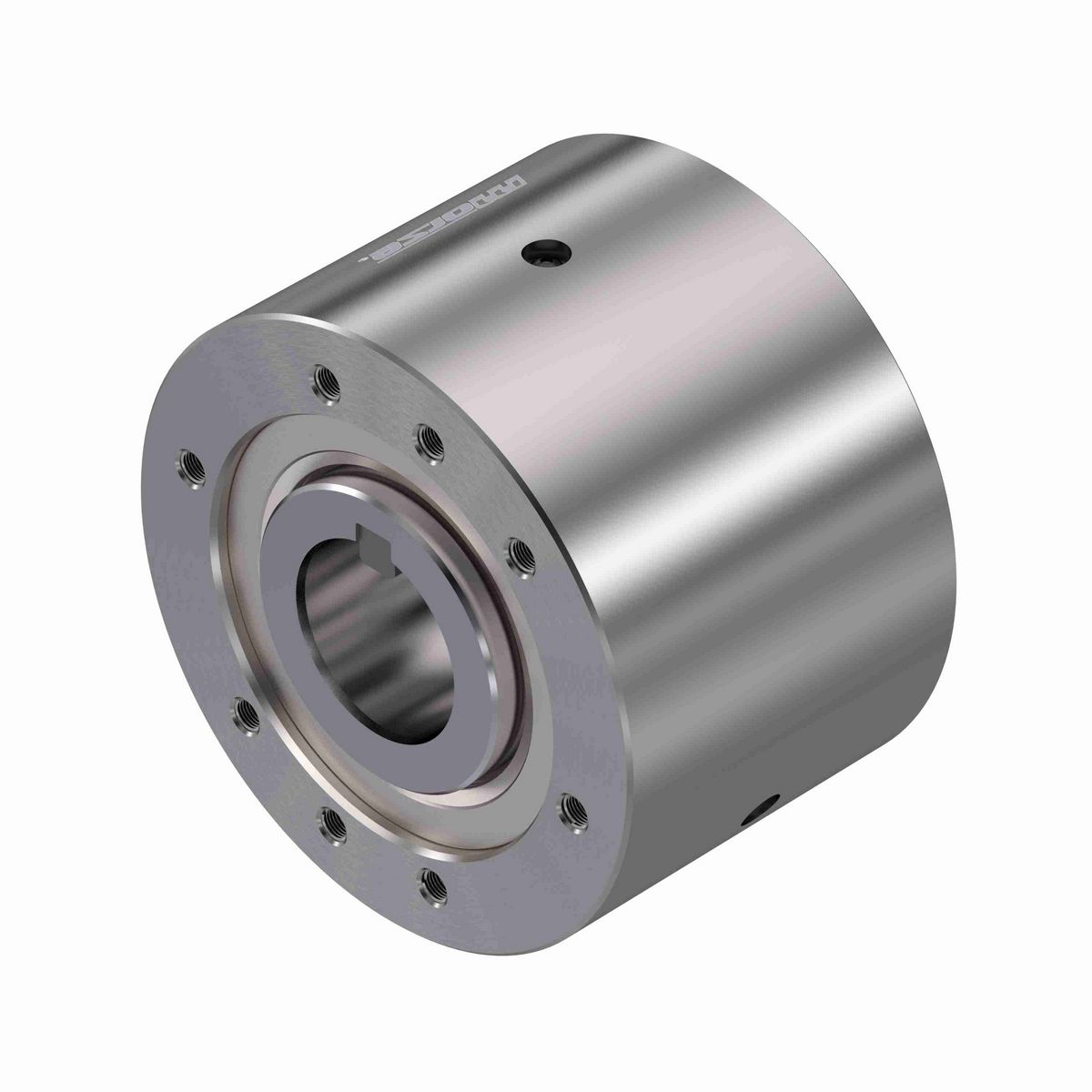

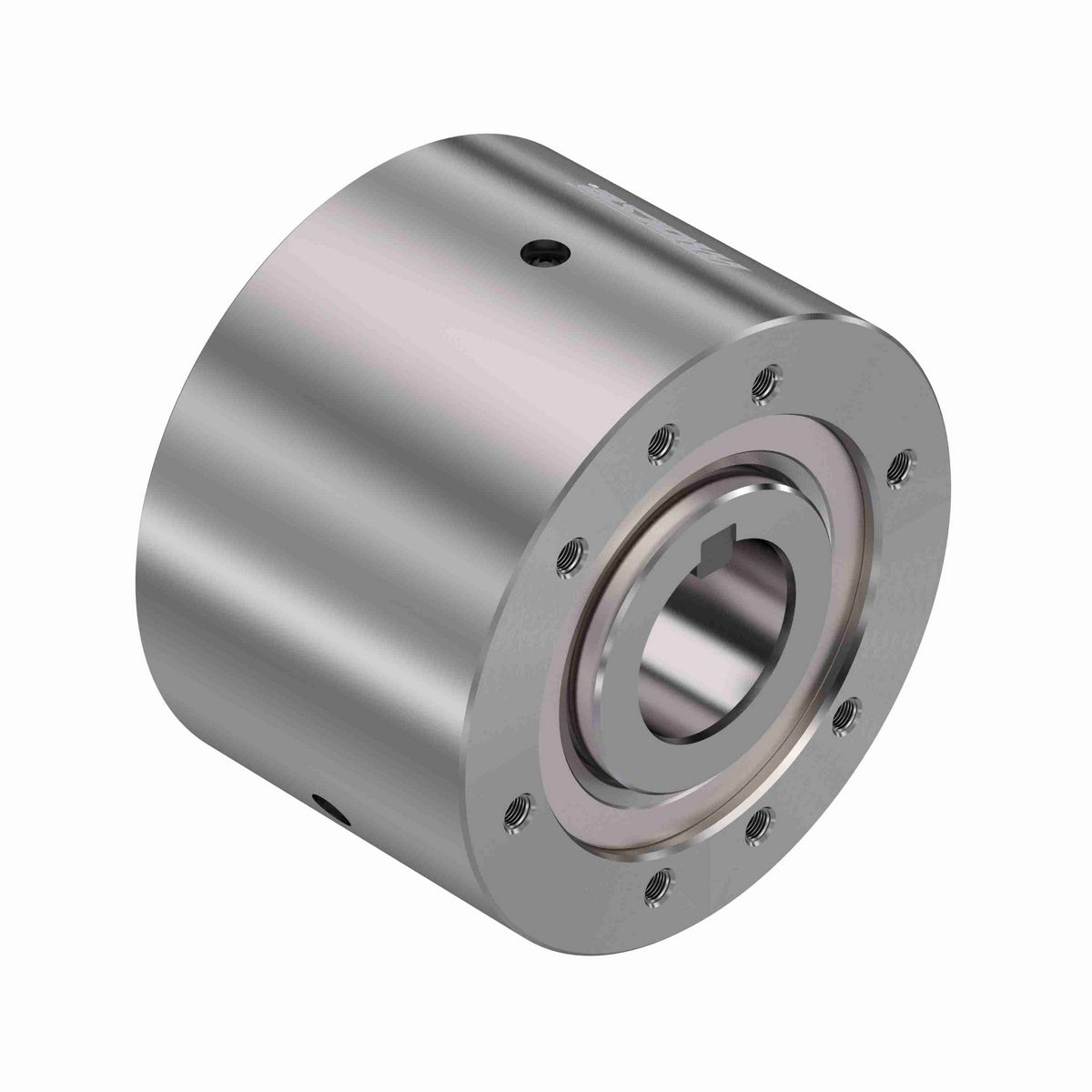

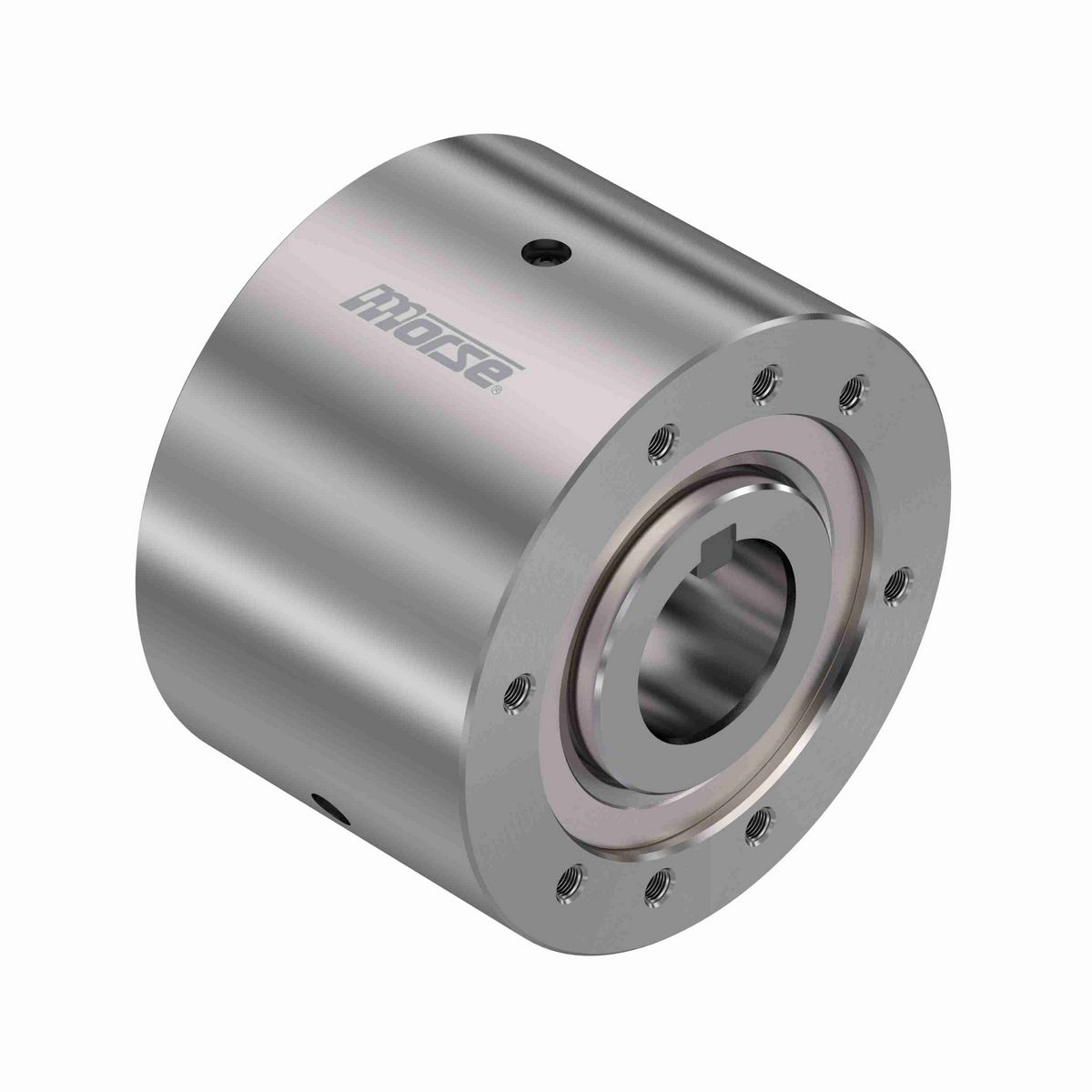

• The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
• MR is for high- speed outer race overruning. Incorporating a unique cam construction that uses centrifugal force to minimize cam drag

Technical Specifications

Outer Width (in)	5.875 in
RPM Max. - Inner Race	525
Rated Torque Capacity (ft.-lbs.)	7,000
Product Type	M Series
Type	CAM Clutches
Overall Diameter (in)	8.75 in
Inner Race Width (in)	6 in
Model	MR
Mode of Operation	High Speed outer race overrunning
RPM Max. - Outer Race	2600
Add'l Bearing Support Requirement	No
Bore (Min) (in)	2.4375 in
Lubrication Type	Oil
Bore Size (in)	3.25 in
Indexing Clutch	Yes
Overrunning Clutch	Yes
Backstopping Clutch	Yes
Bore (Max) (in)	3.4375 in
Nominal Overrunning Drag (ft-lb)	2.5

General Specifications

UPC	662288495741
Weight	84.00 LB
Packaged Length	9.25 IN
Packaged Width	9.25 IN
Packaged Height	9.63 IN
HTC	8483.60.4040
Country of Origin	Mexico
