• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

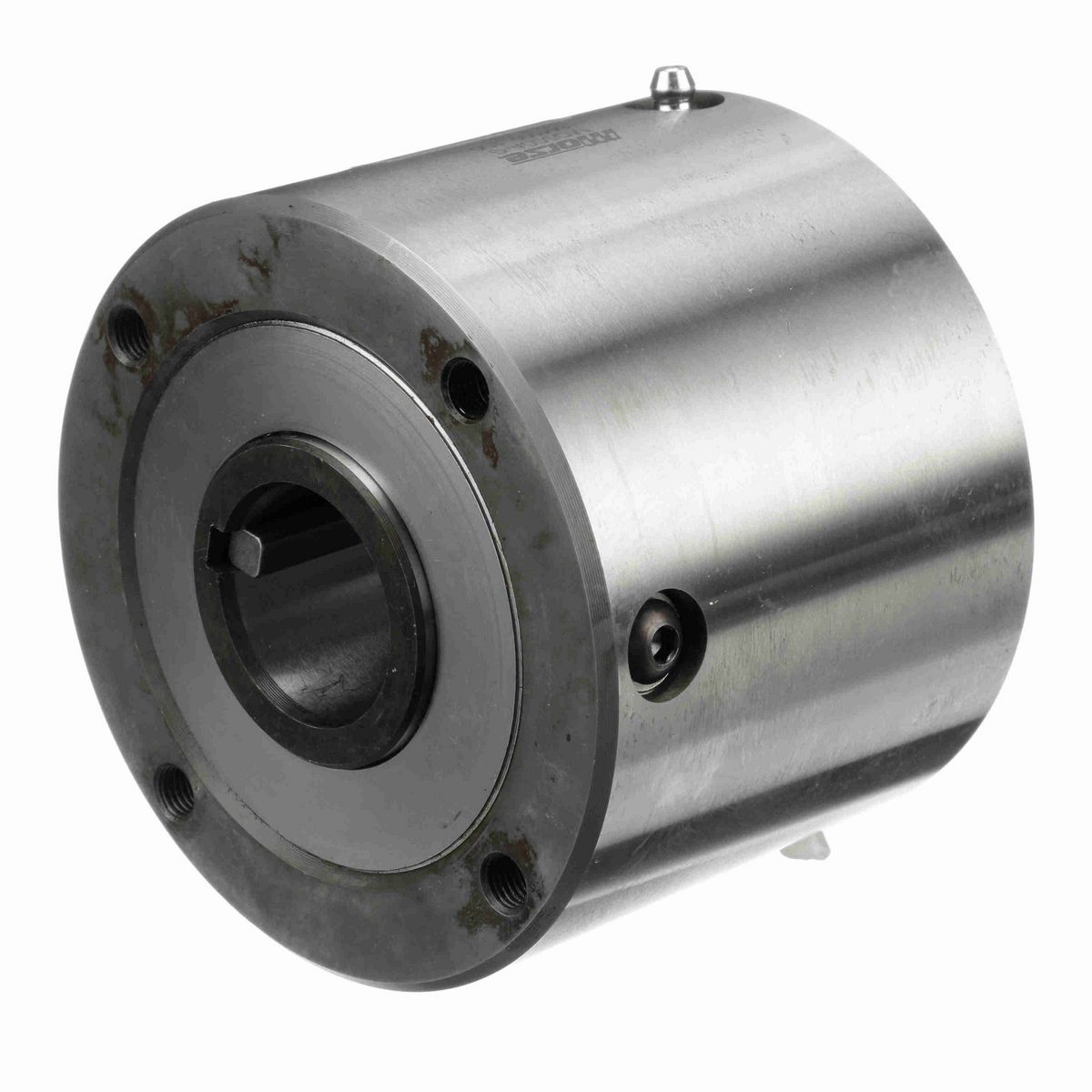

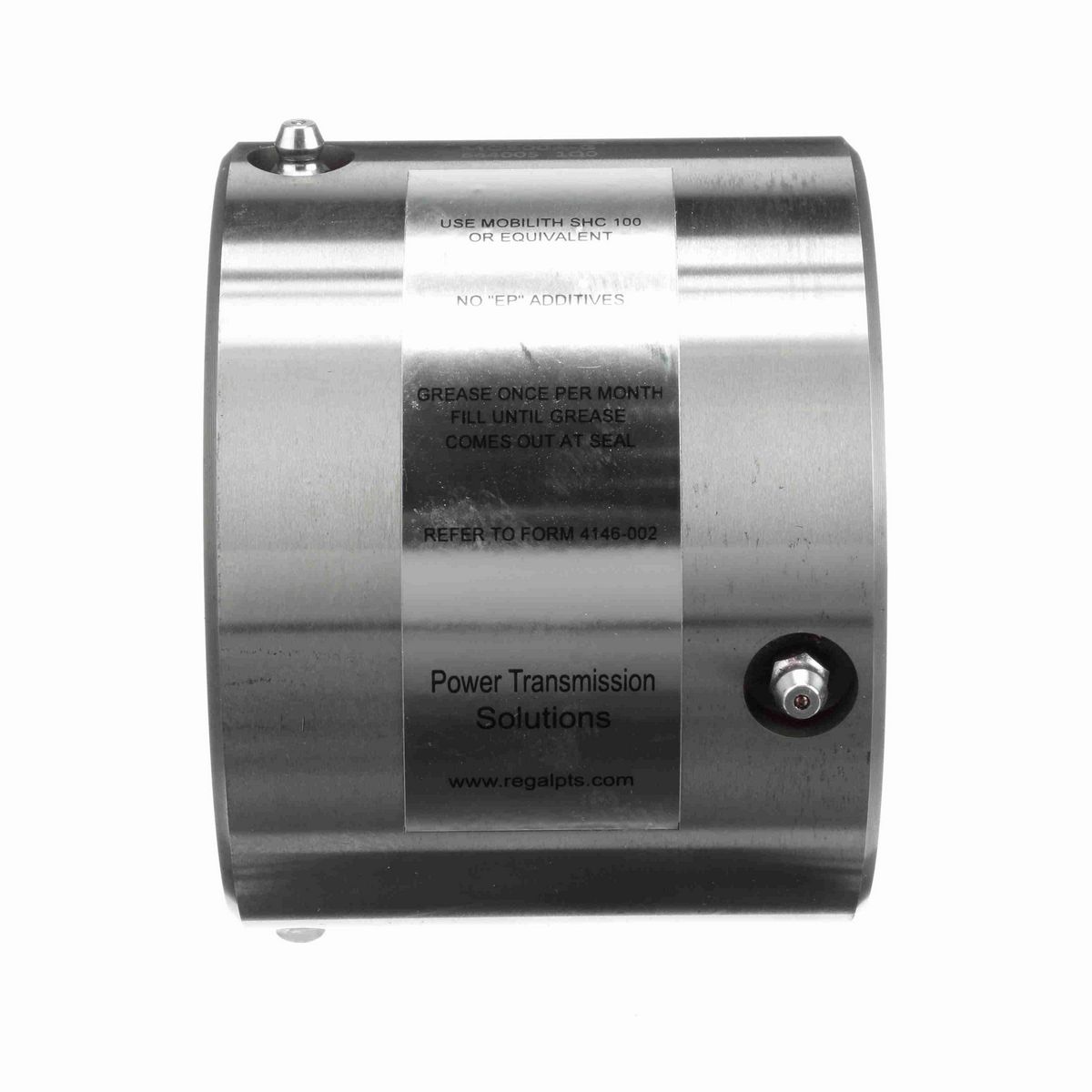

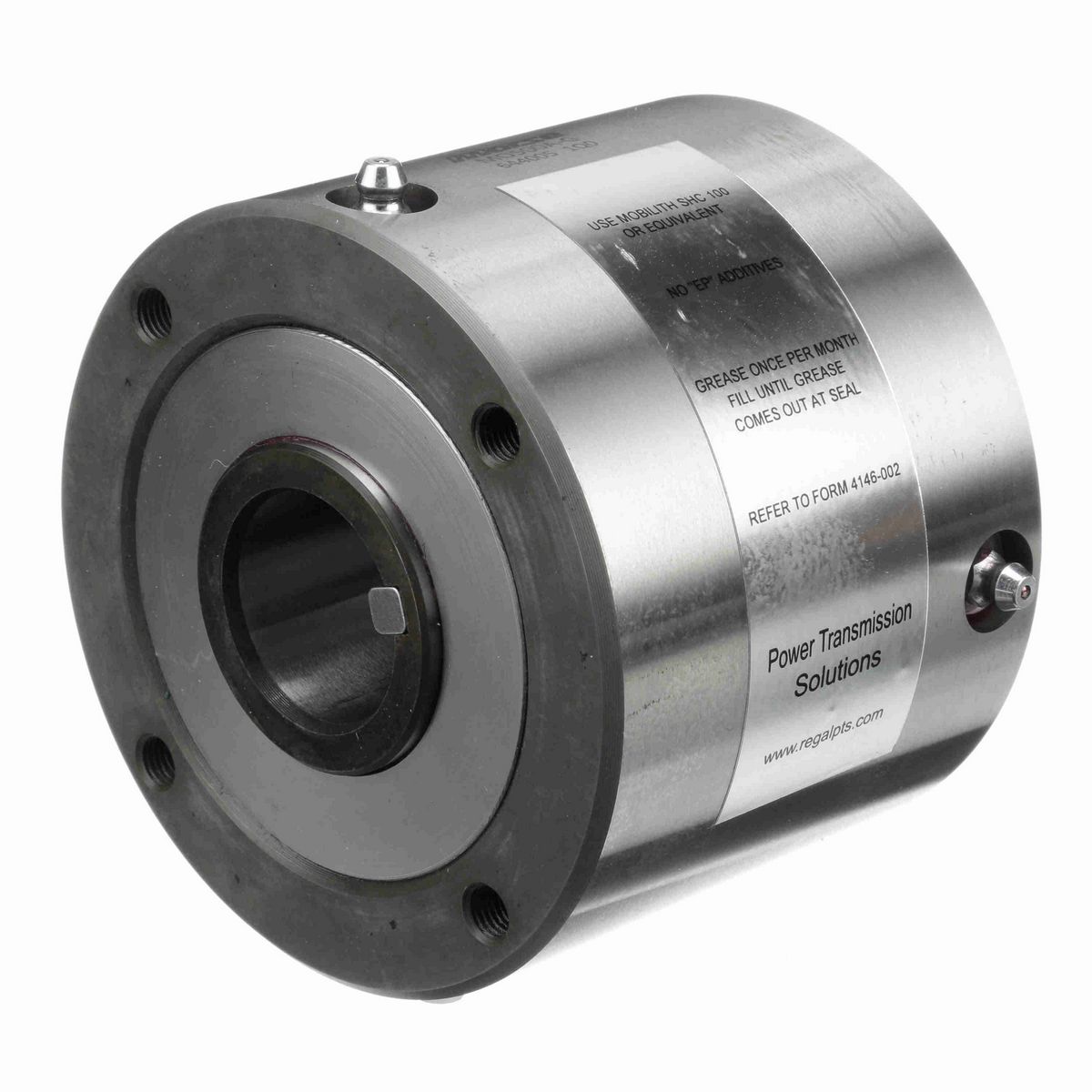

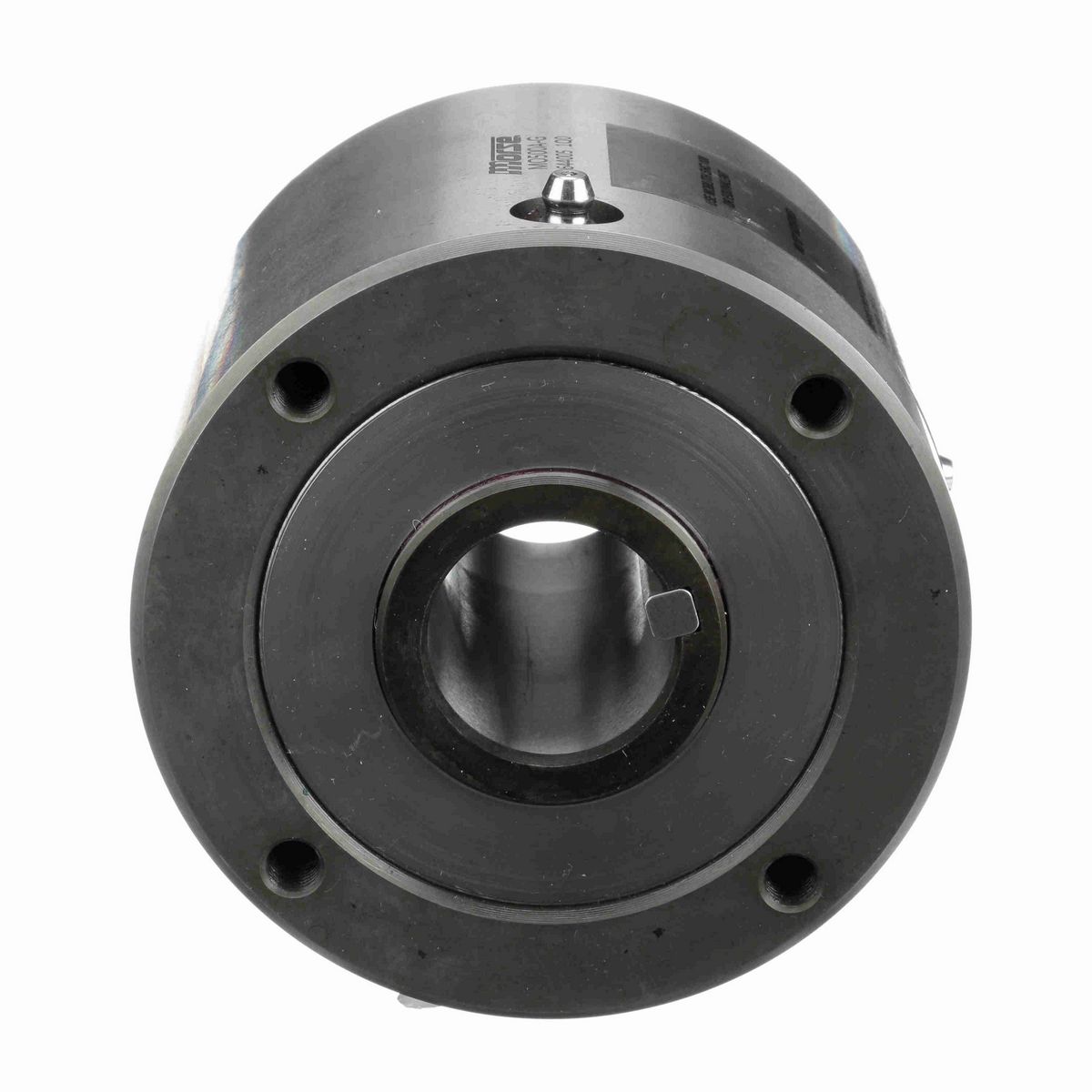

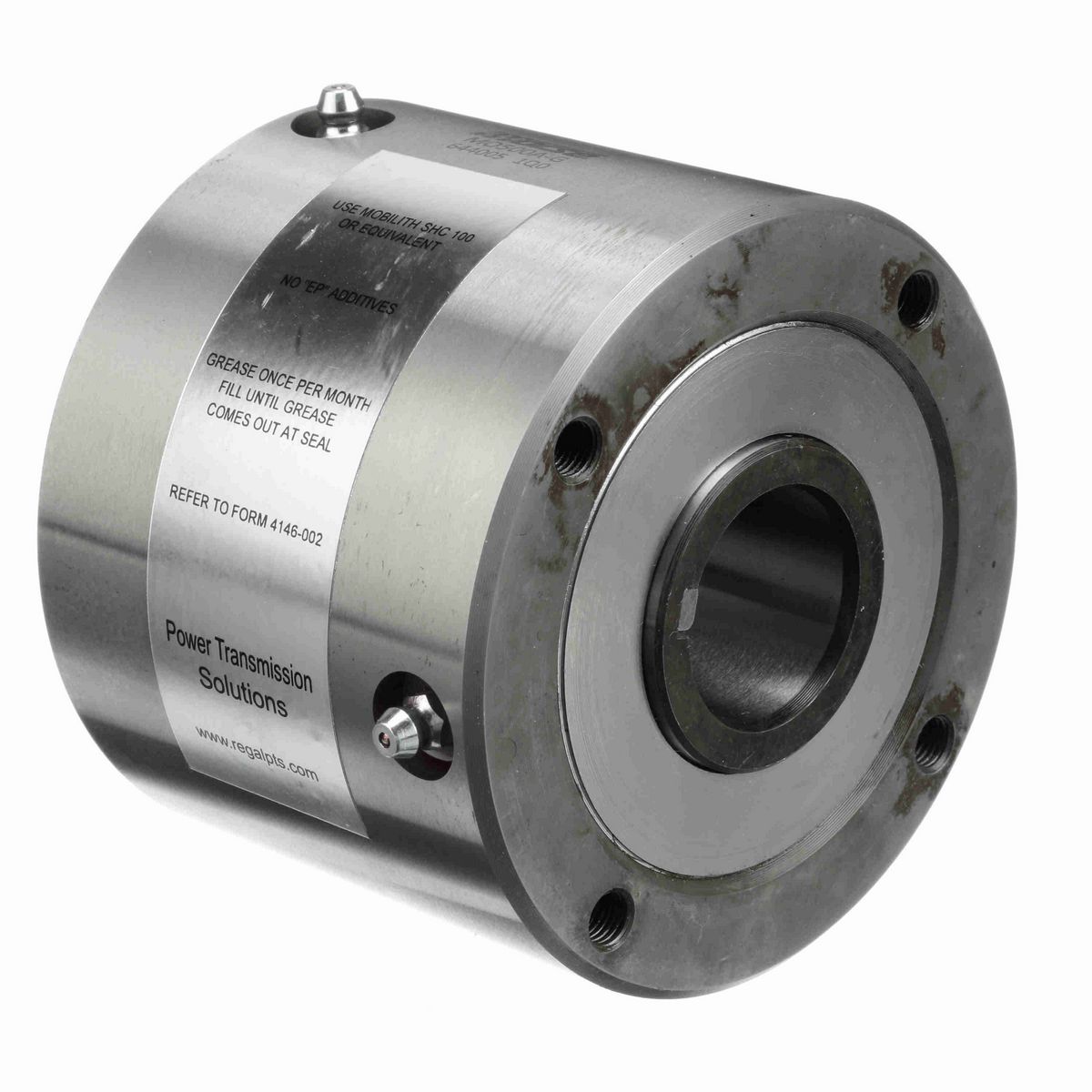

• The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
• MO is made with felt grease seals to minimize drag for high speed inner race overrunning application. Delivered with standard grease lubrication

Technical Specifications

Mode of Operation	High Speed inner race overrunning
Overall Diameter (in)	4.25 in
Product Type	M Series
Rated Torque Capacity (ft.-lbs.)	1,175
Clutch size code	500
Type	CAM Clutches
RPM Max. - Outer Race	750
Model	MO
Inner Race Width (in)	3.5 in
RPM Max. - Inner Race	3000
Outer Width (in)	3.375 in
Add'l Bearing Support Requirement	No
Backstopping Clutch	Yes
Indexing Clutch	Yes
Lubrication Type	Grease
Bore Size (in)	1.25 in
Bore (Min) (in)	0.875 in
Bore (Max) (in)	1.25 in
Overrunning Clutch	Yes
Nominal Overrunning Drag (ft-lb)	0.38
RPM Max. -inner Race	3,000

General Specifications

UPC	662288502210
Weight	11.13 LB
Packaged Length	5.70 IN
Packaged Width	5.40 IN
Packaged Height	4.30 IN
HTC	8483.60.4040
Country of Origin	Mexico
