• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

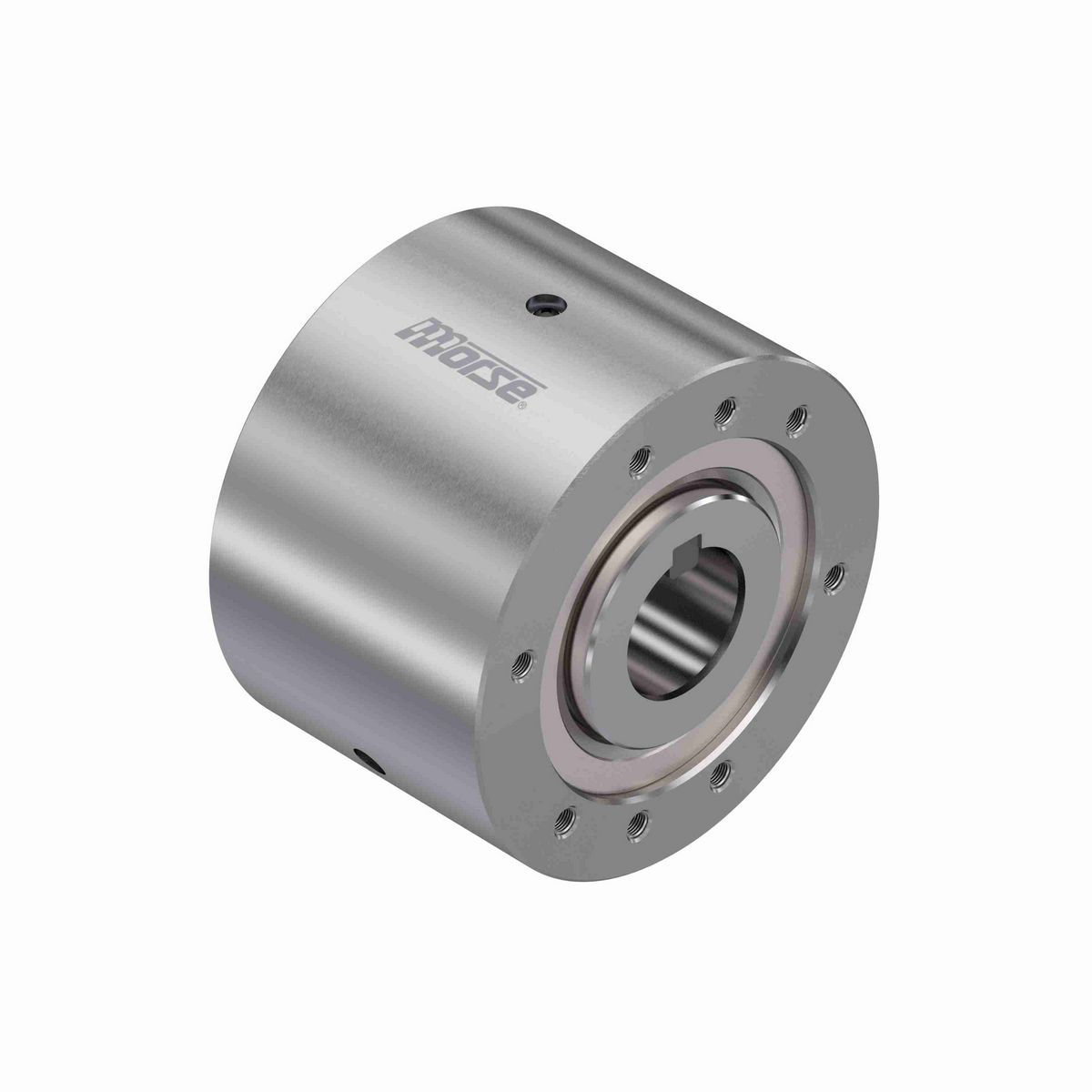

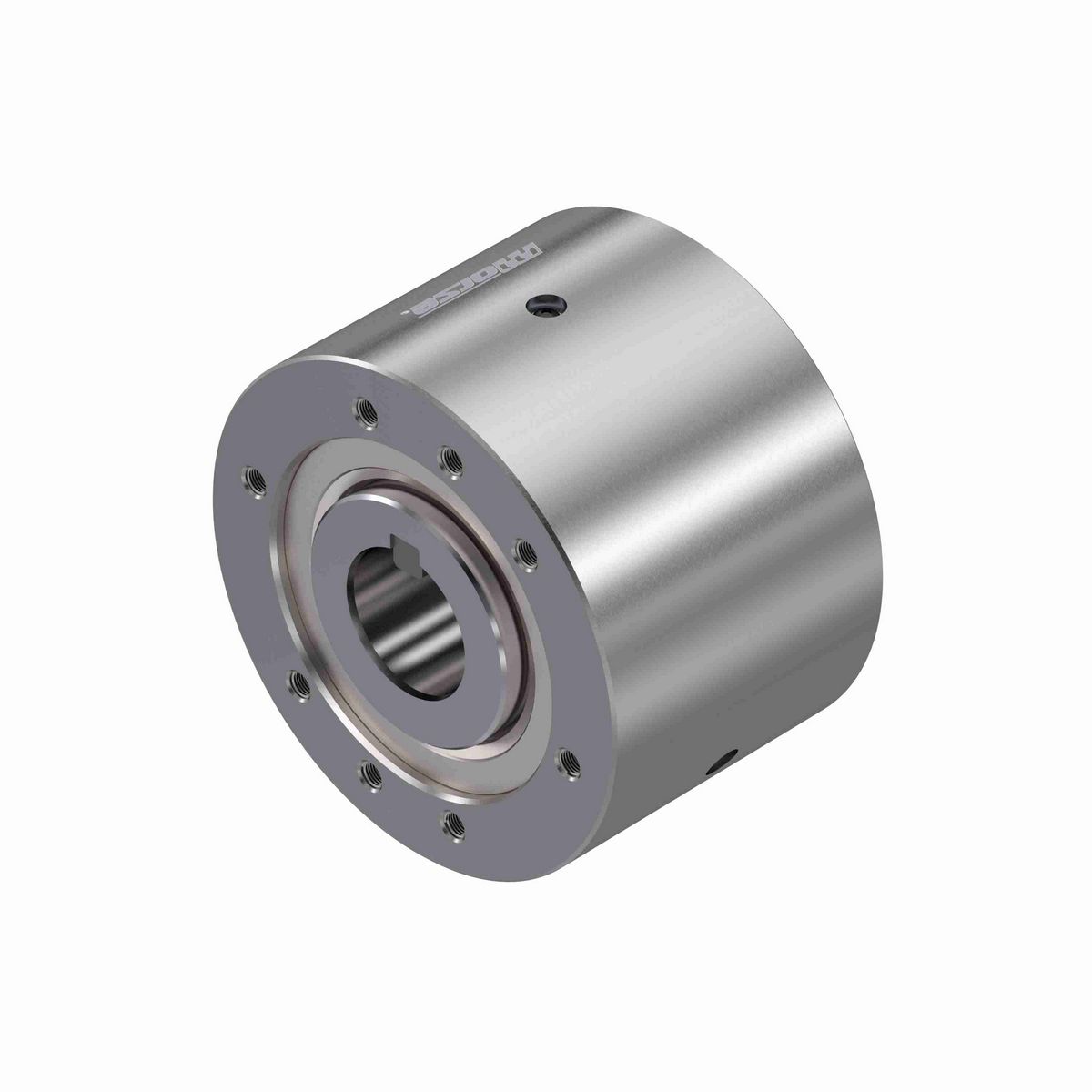

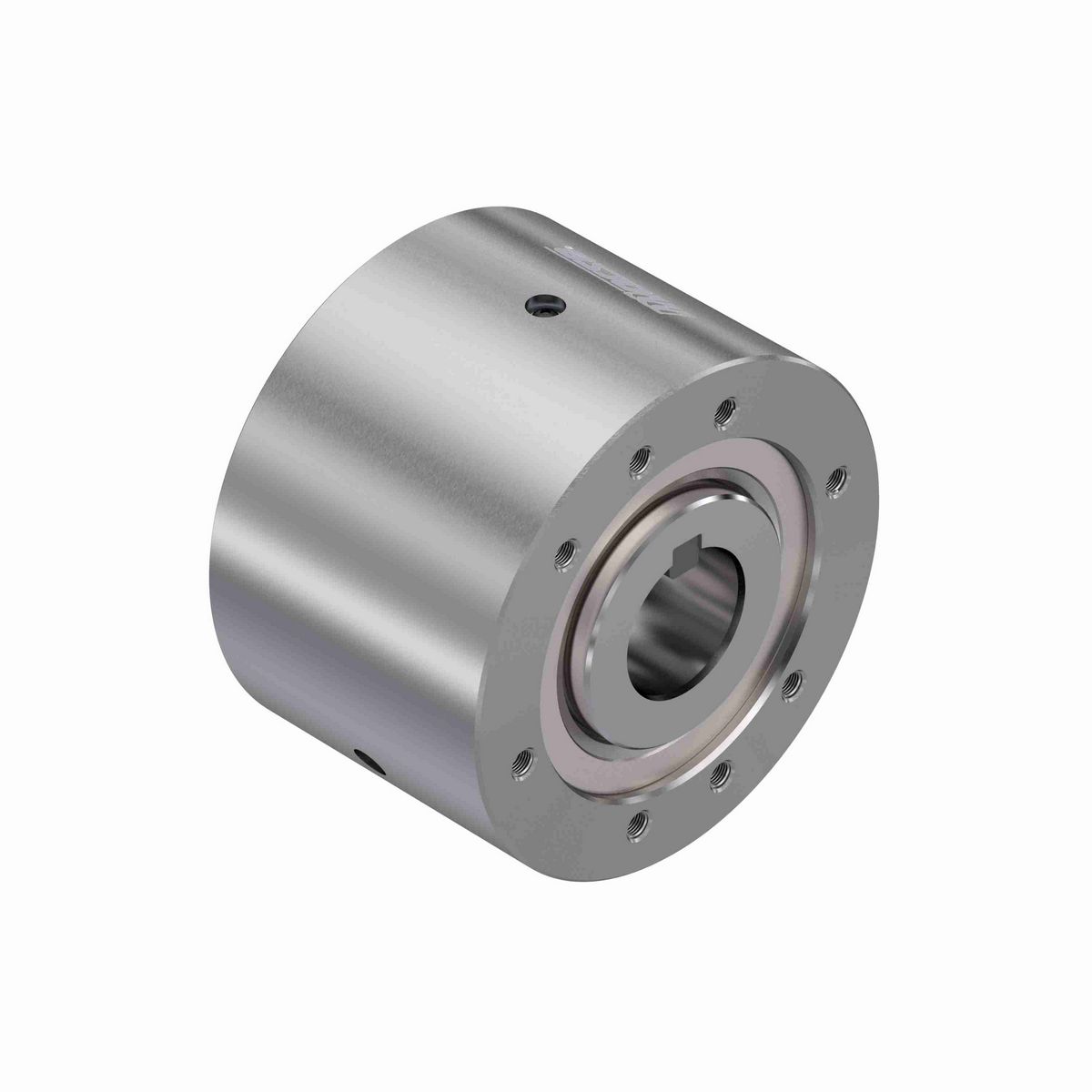

• The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
• MI is recommended for high performance indexing applications requiring high indexing accuracy. Incorporates and low inertia cage and heavy duty inergizing spring for quick cam reaction

Technical Specifications

Rated Torque Capacity (ft.-lbs.)	2,250
Mode of Operation	High Performance Indexing
Product Type	M Series
Clutch size code	600
Overall Diameter (in)	5.375 in
Outer Width (in)	3.625 in
Type	CAM Clutches
Model	MI
Inner Race Width (in)	3.75 in
Add'l Bearing Support Requirement	No
Backstopping Clutch	Yes
Indexing Clutch	Yes
Overrunning Clutch	Yes
Bore (Min) (in)	1.25 in
Bore (Max) (in)	2 in
Lubrication Type	Oil
Bore Size (in)	1.5 in
Nominal Overrunning Drag (ft-lb)	0.63

General Specifications

UPC	662288501589
Weight	19.00 LB
Packaged Length	5.19 IN
Packaged Width	5.19 IN
Packaged Height	4.57 IN
HTC	8483.60.4040
Country of Origin	Mexico
