• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
• The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry

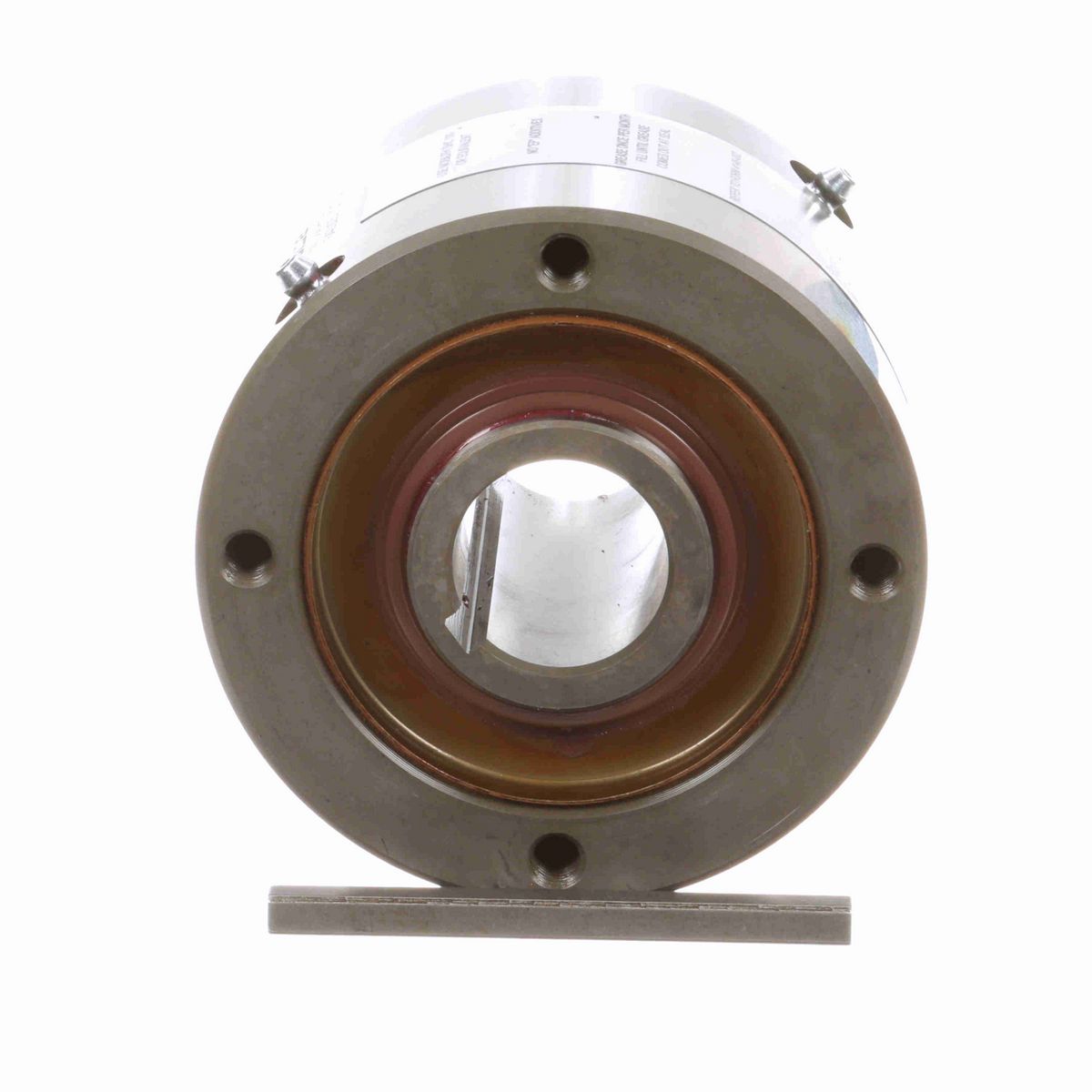

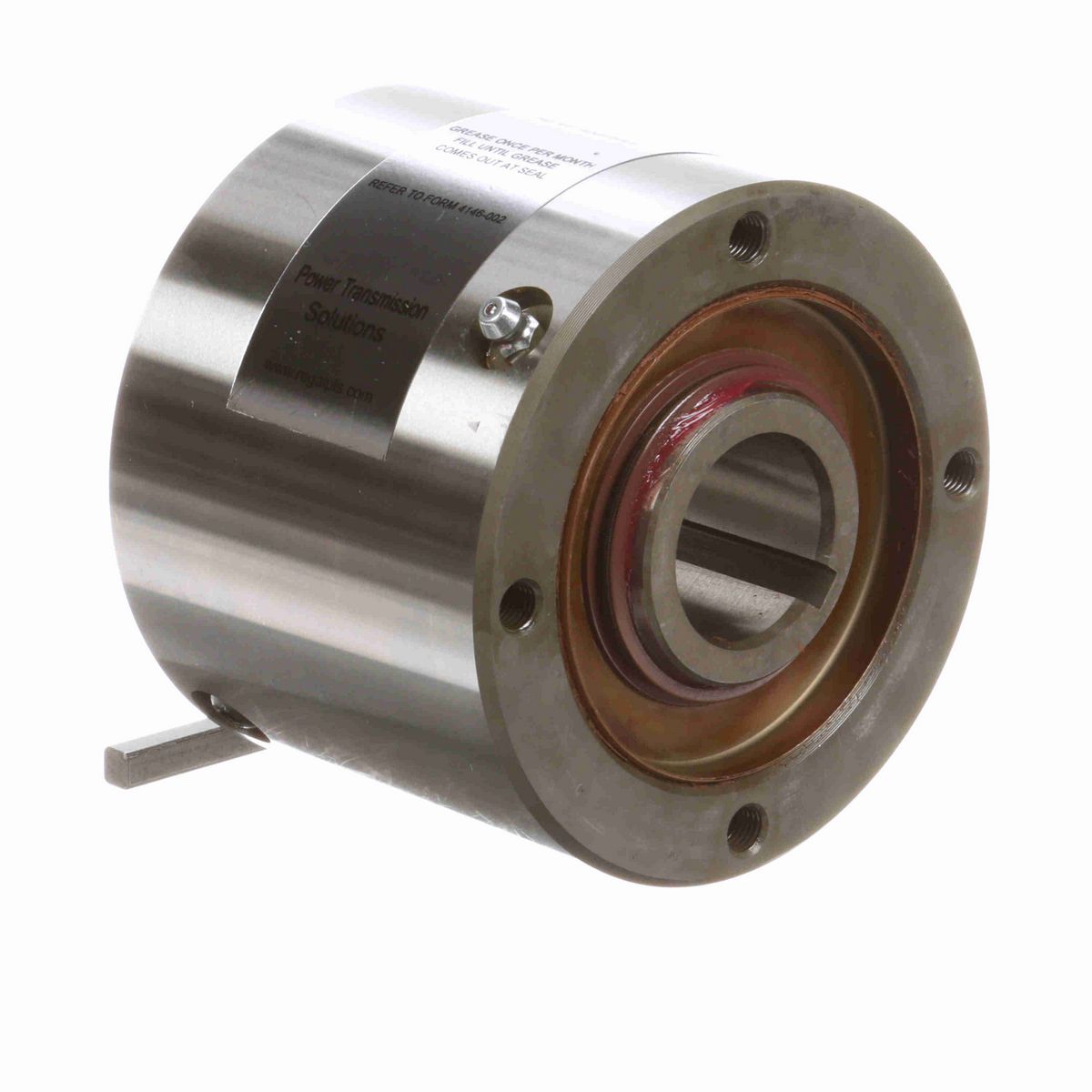

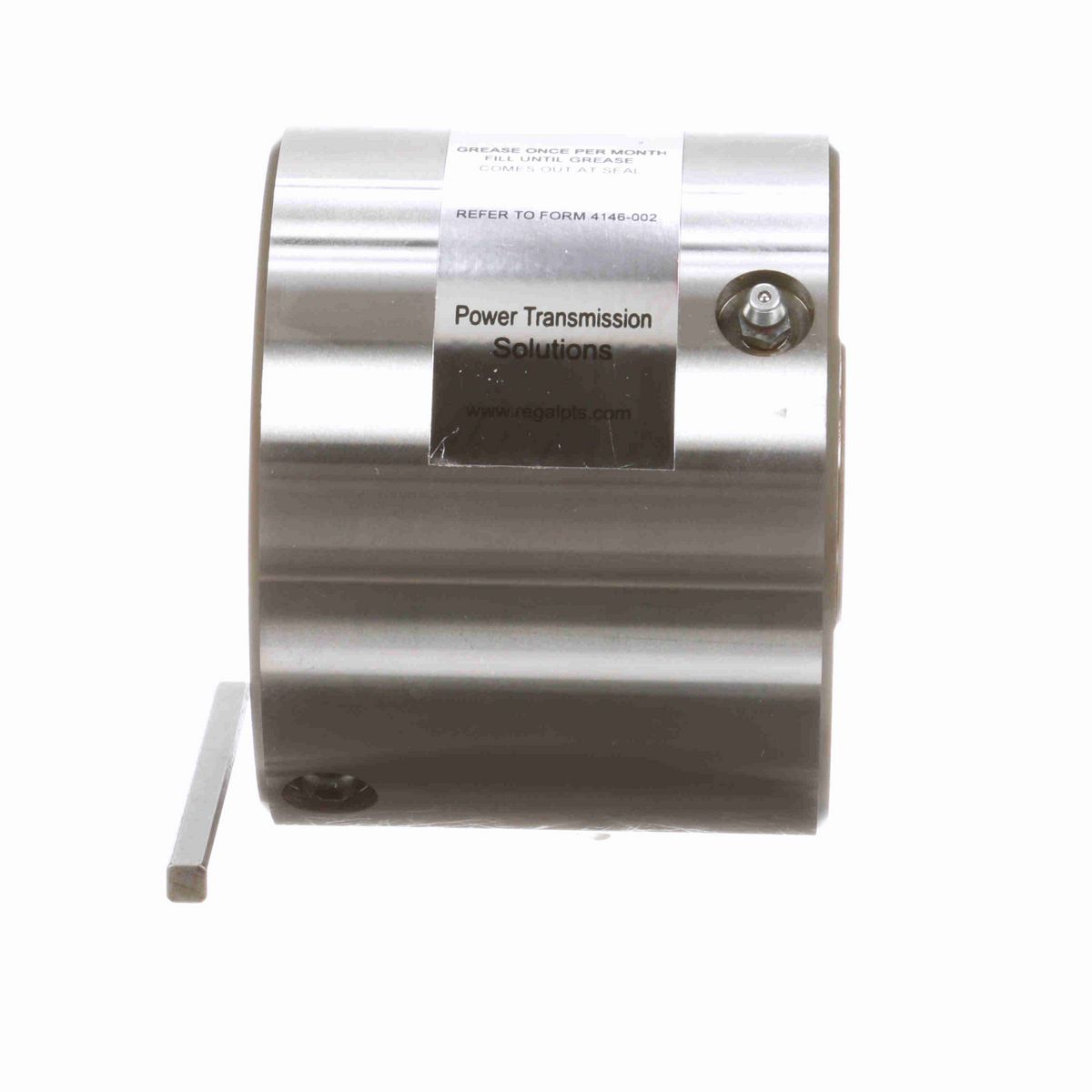

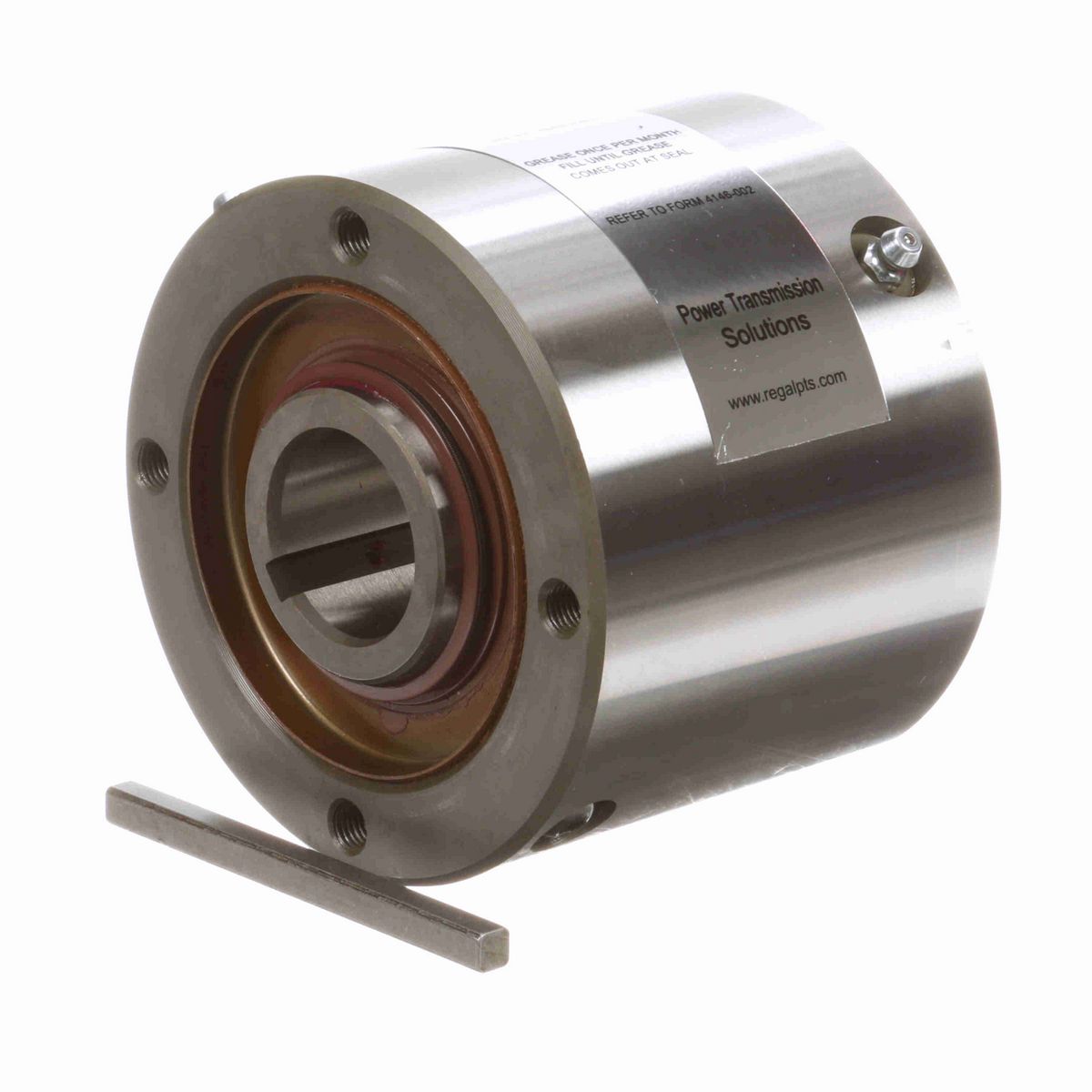

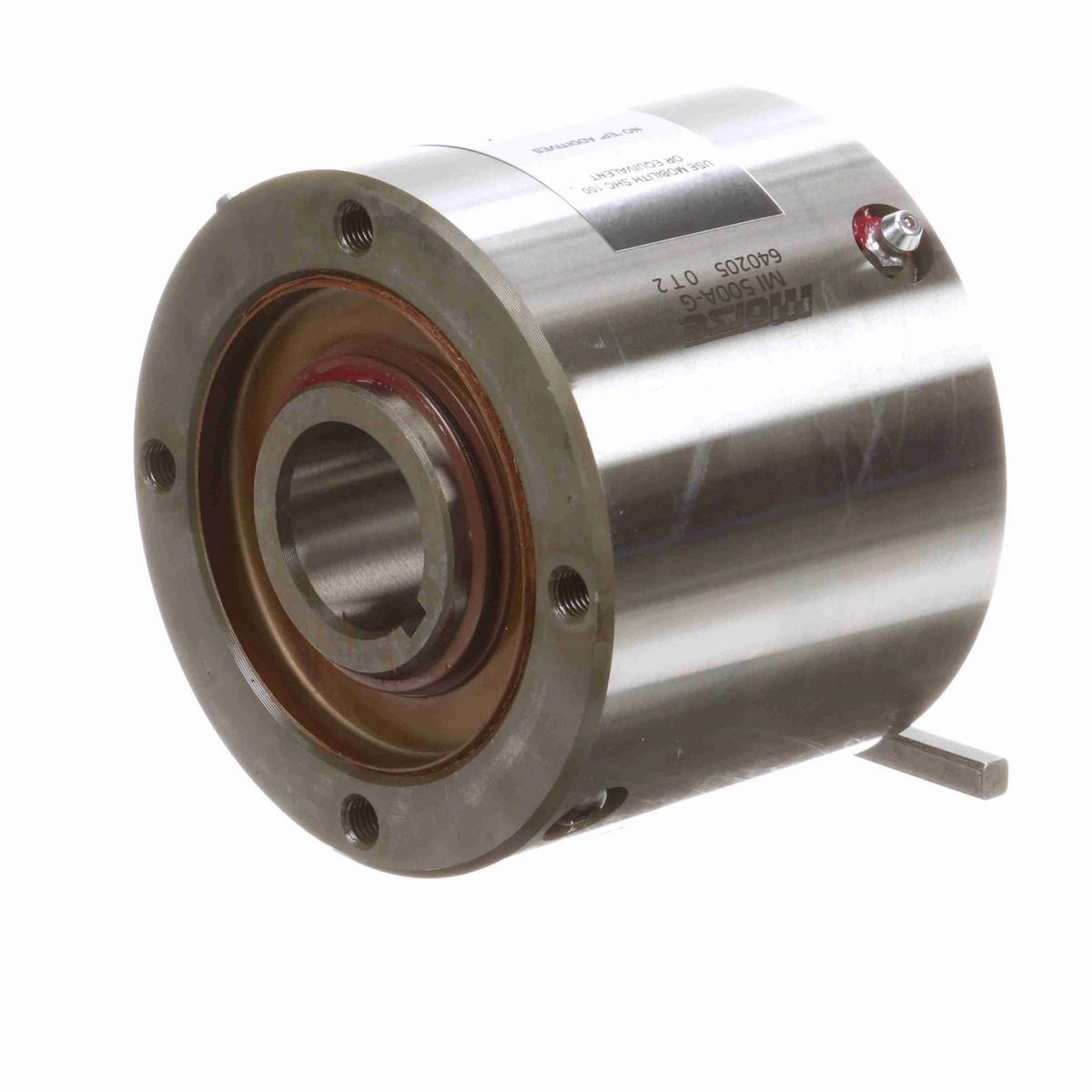

• MI is recommended for high performance indexing applications requiring high indexing accuracy. Incorporates and low inertia cage and heavy duty inergizing spring for quick cam reaction

Technical Specifications

Rated Torque Capacity (ft.-lbs.)	1,175
Type	CAM Clutches
Outer Width (in)	3.375 in
Clutch size code	500
Model	MI
Overall Diameter (in)	4.25 in
Inner Race Width (in)	3.5 in
Product Type	M Series
Mode of Operation	High Performance Indexing
Add'l Bearing Support Requirement	No
Lubrication Type	Grease
Indexing Clutch	Yes
Backstopping Clutch	Yes
Bore (Min) (in)	0.875 in
Bore (Max) (in)	1.25 in
Overrunning Clutch	Yes
Bore Size (in)	1.25 in
Nominal Overrunning Drag (ft-lb)	0.38

General Specifications

UPC	662288501374
Weight	11.00 LB
Packaged Length	4.25 IN
Packaged Width	4.25 IN
Packaged Height	3.63 IN
HTC	8483.60.4040
Country of Origin	Mexico
