• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

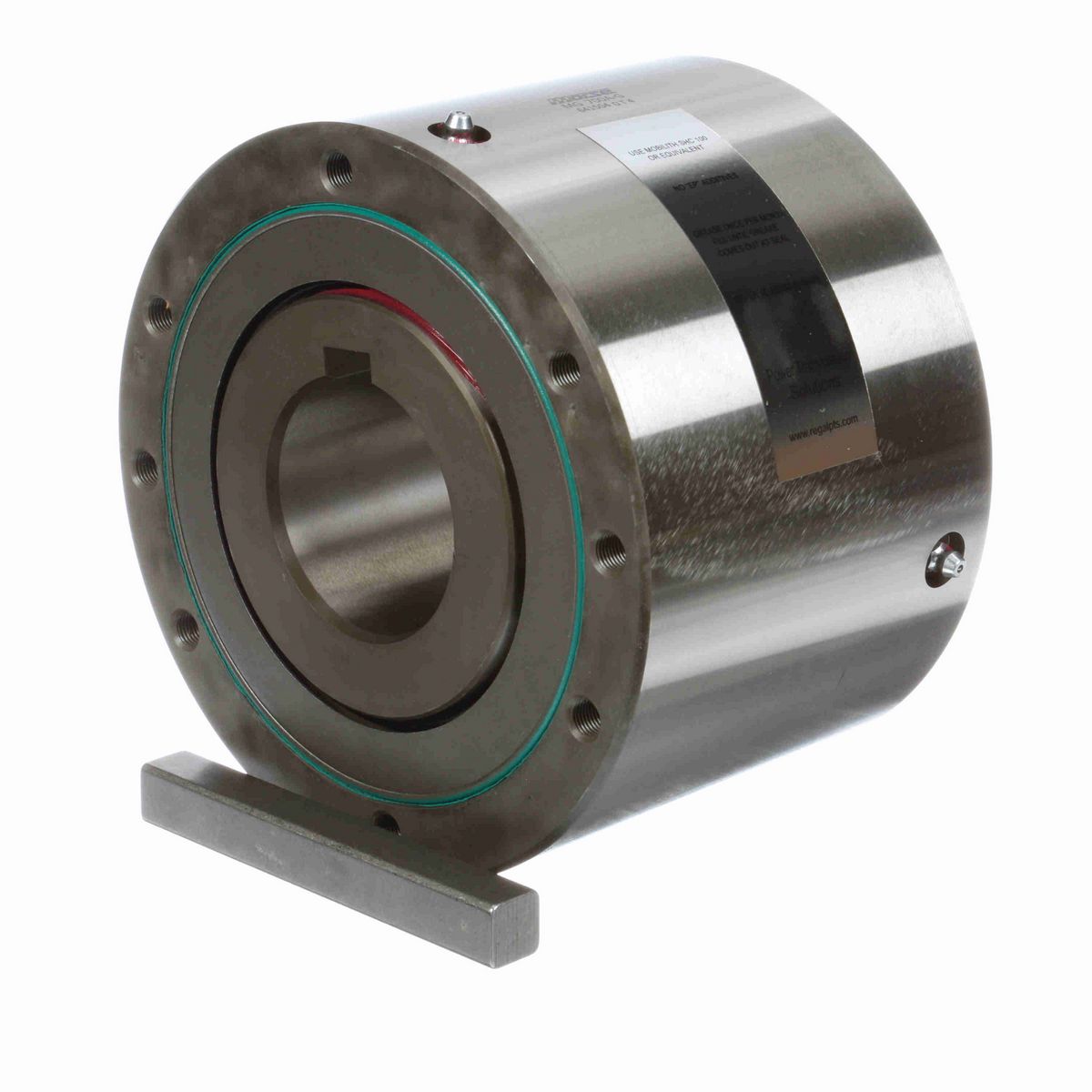

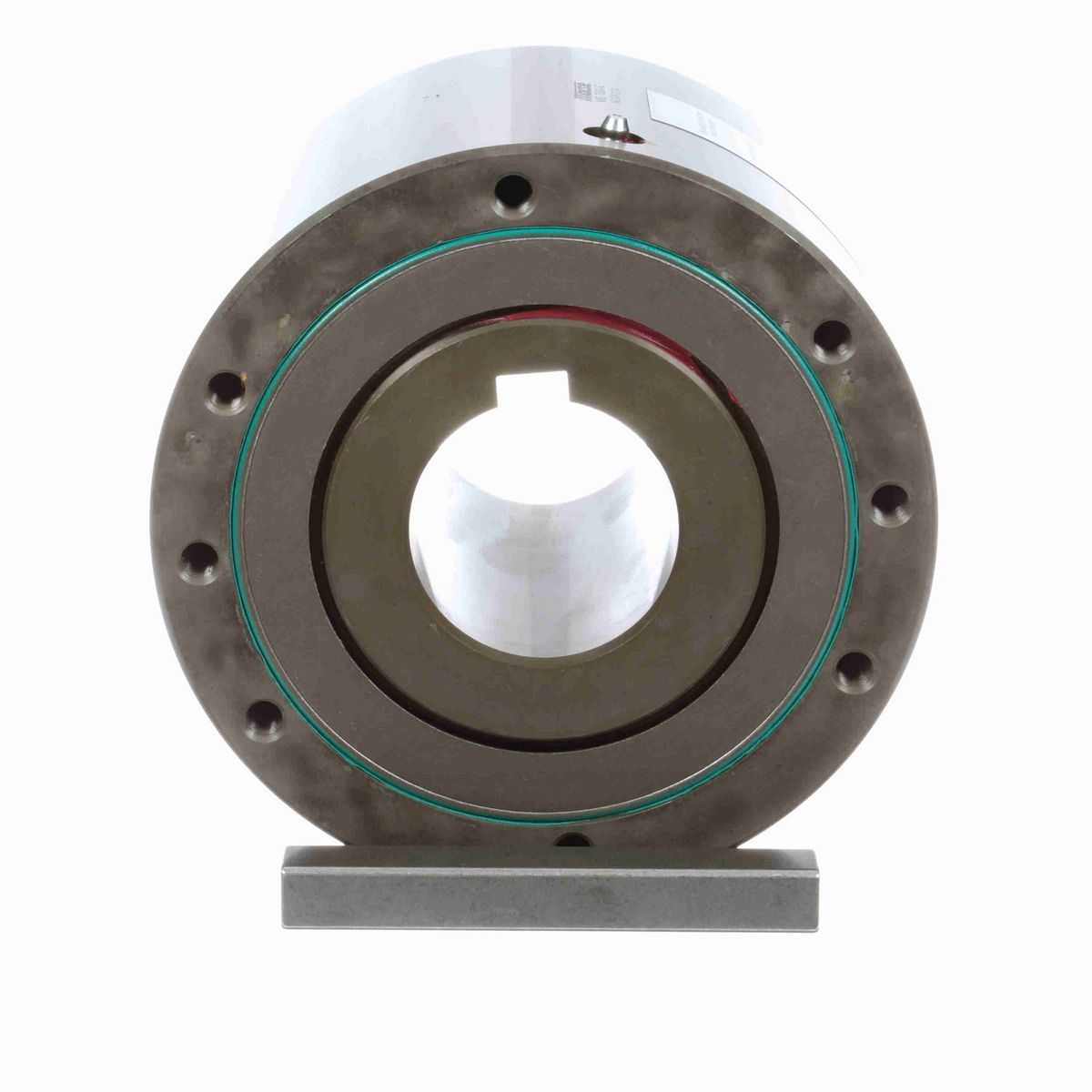

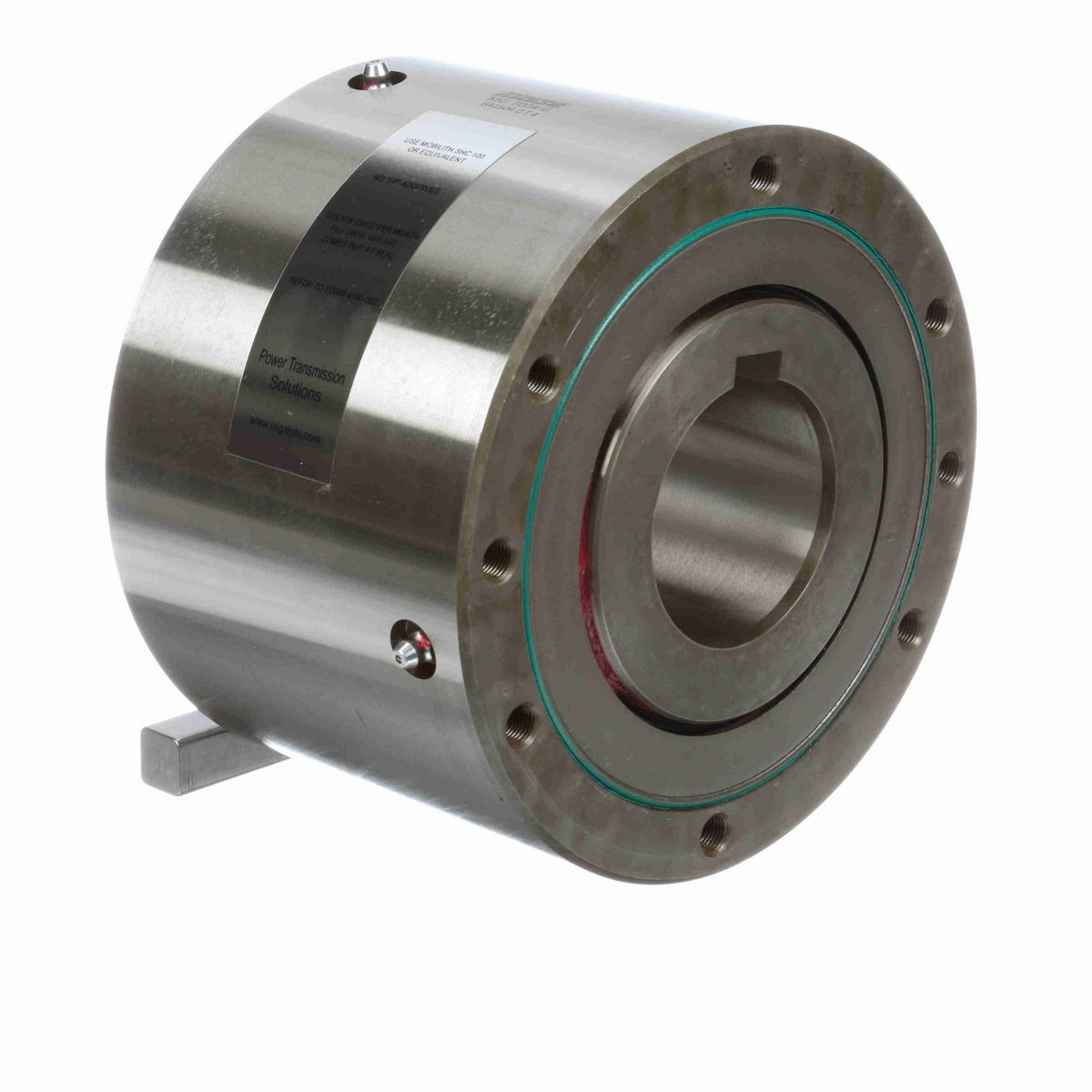

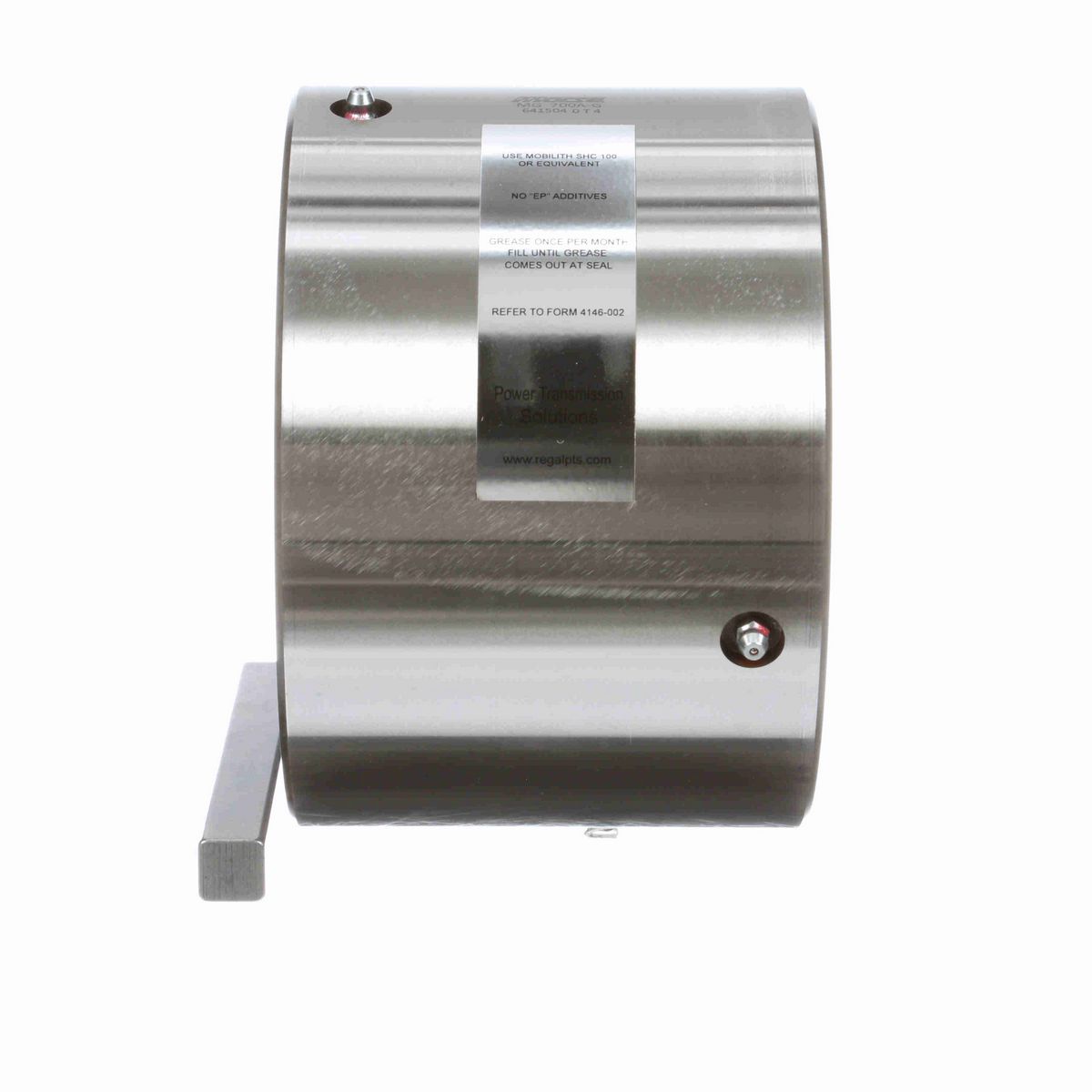

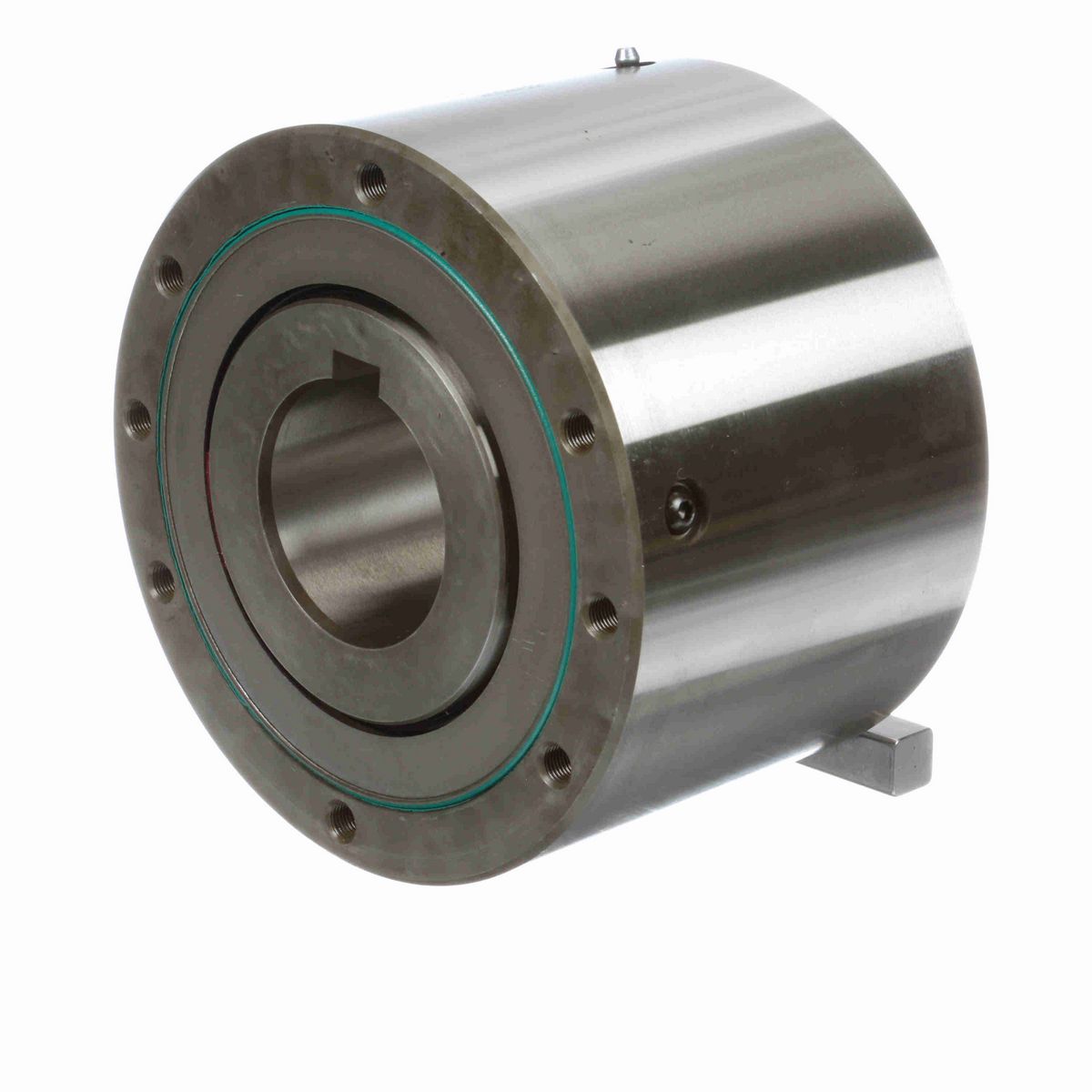

• The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
• MG is primarily used for general duty overriding, indexing, back-stopping. Offers precise spring energizing to provide ling overcunning life.

Technical Specifications

Rated Torque Capacity (ft.-lbs.)	5,000
RPM Max. - Outer Race	400
Mode of Operation	General duty all types
Type	CAM Clutches
Product Type	M Series
Clutch size code	700
Model	MG
RPM Max. - Inner Race	1200
Inner Race Width (in)	5 in
Overall Diameter (in)	7.125 in
Outer Width (in)	4.875 in
Add'l Bearing Support Requirement	No
Indexing Clutch	Yes
Bore Size (in)	2.4375 in
Bore (Max) (in)	2.9375 in
Overrunning Clutch	Yes
Backstopping Clutch	Yes
Lubrication Type	Grease
Bore (Min) (in)	2 in
Nominal Overrunning Drag (ft-lb)	1.3
RPM Max. -inner Race	1,200

General Specifications

UPC	662288501831
Weight	43.00 LB
Packaged Length	7.25 IN
Packaged Width	7.25 IN
Packaged Height	5.50 IN
