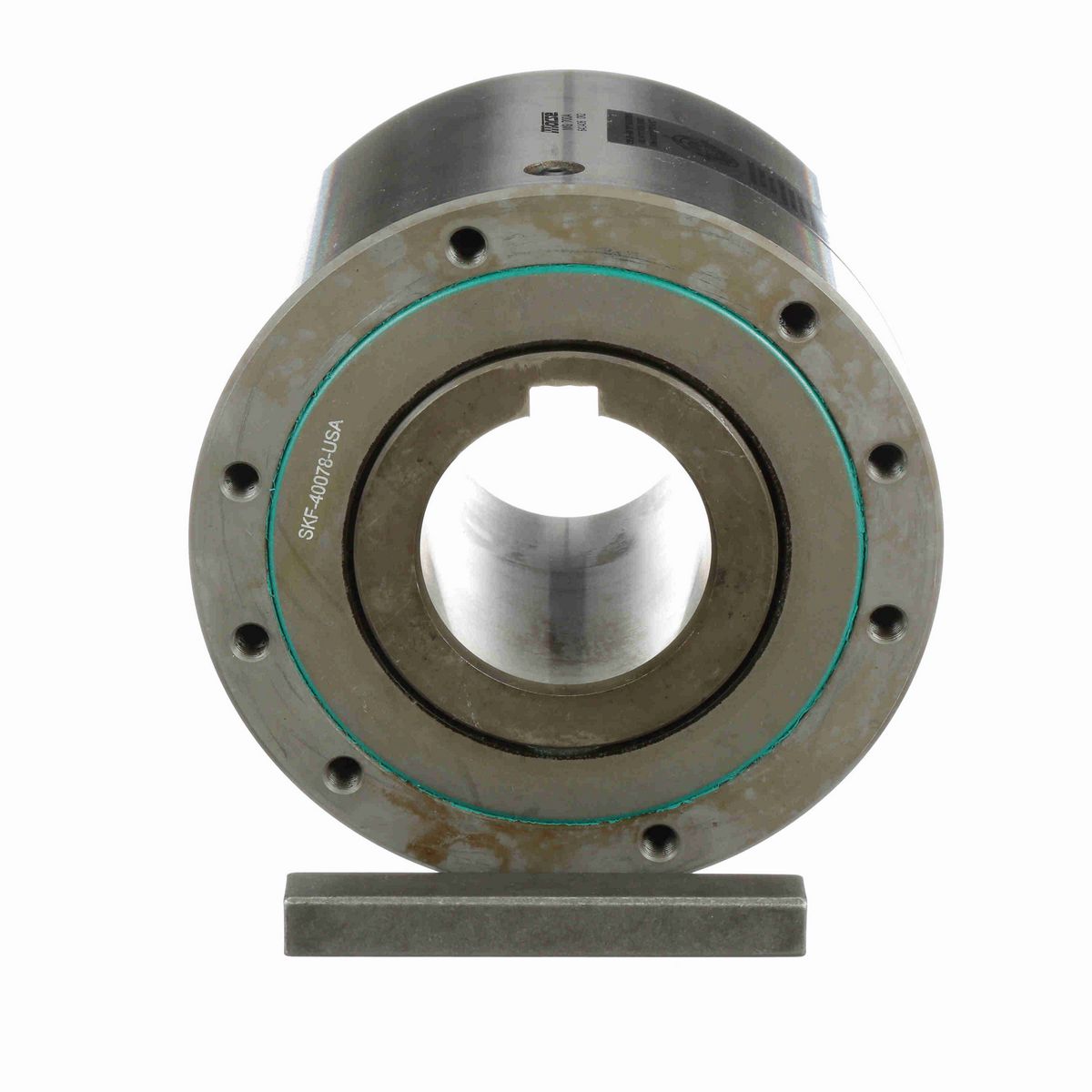

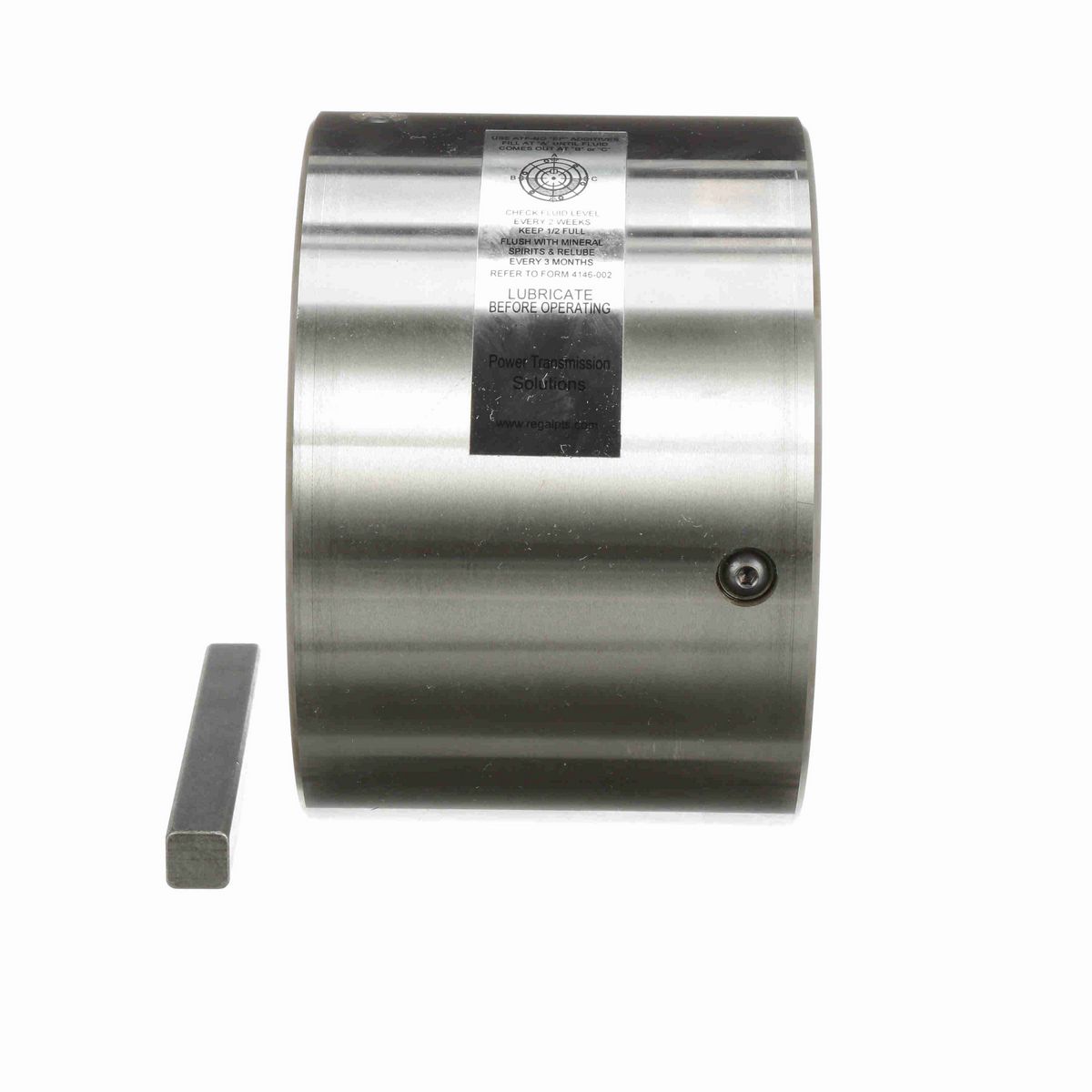

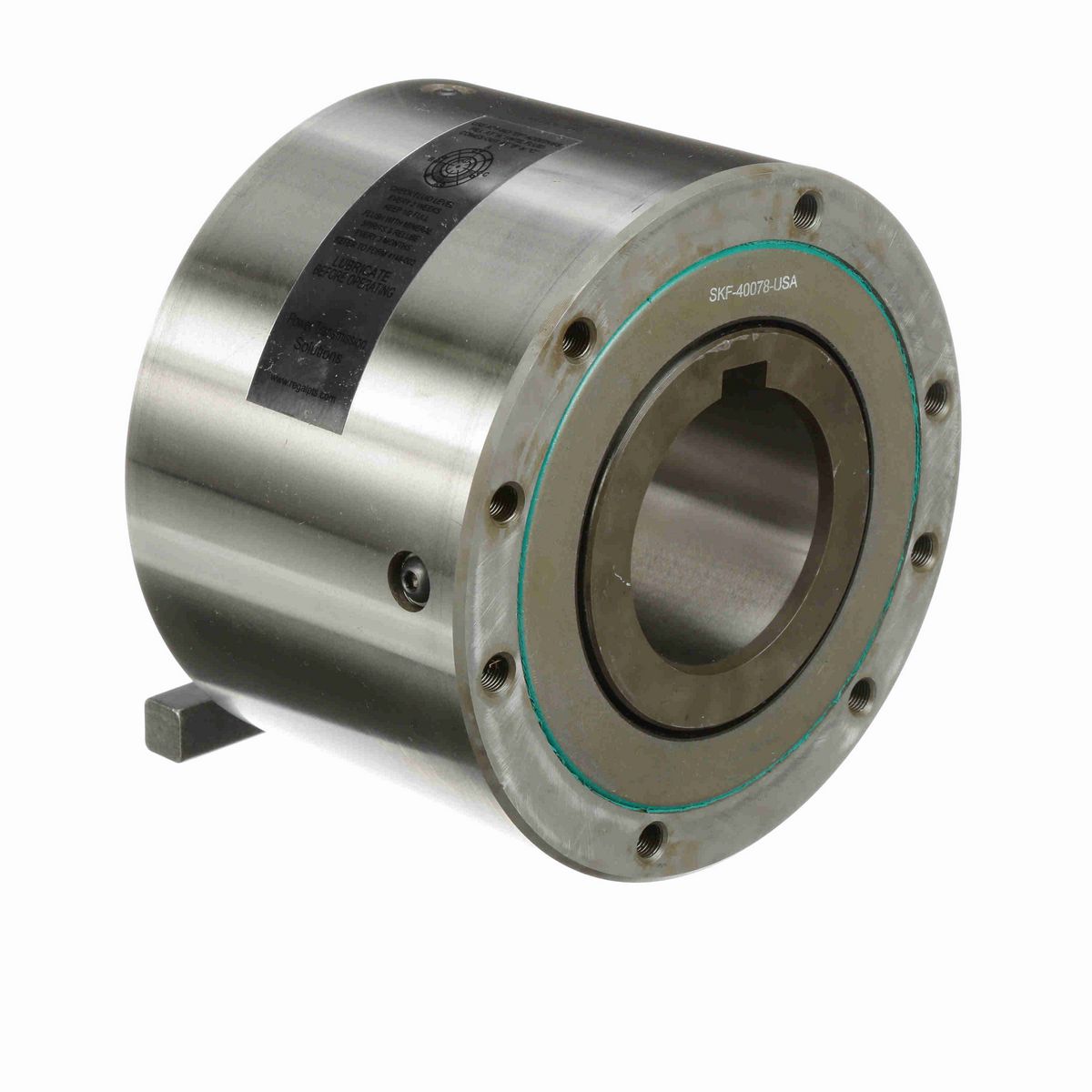

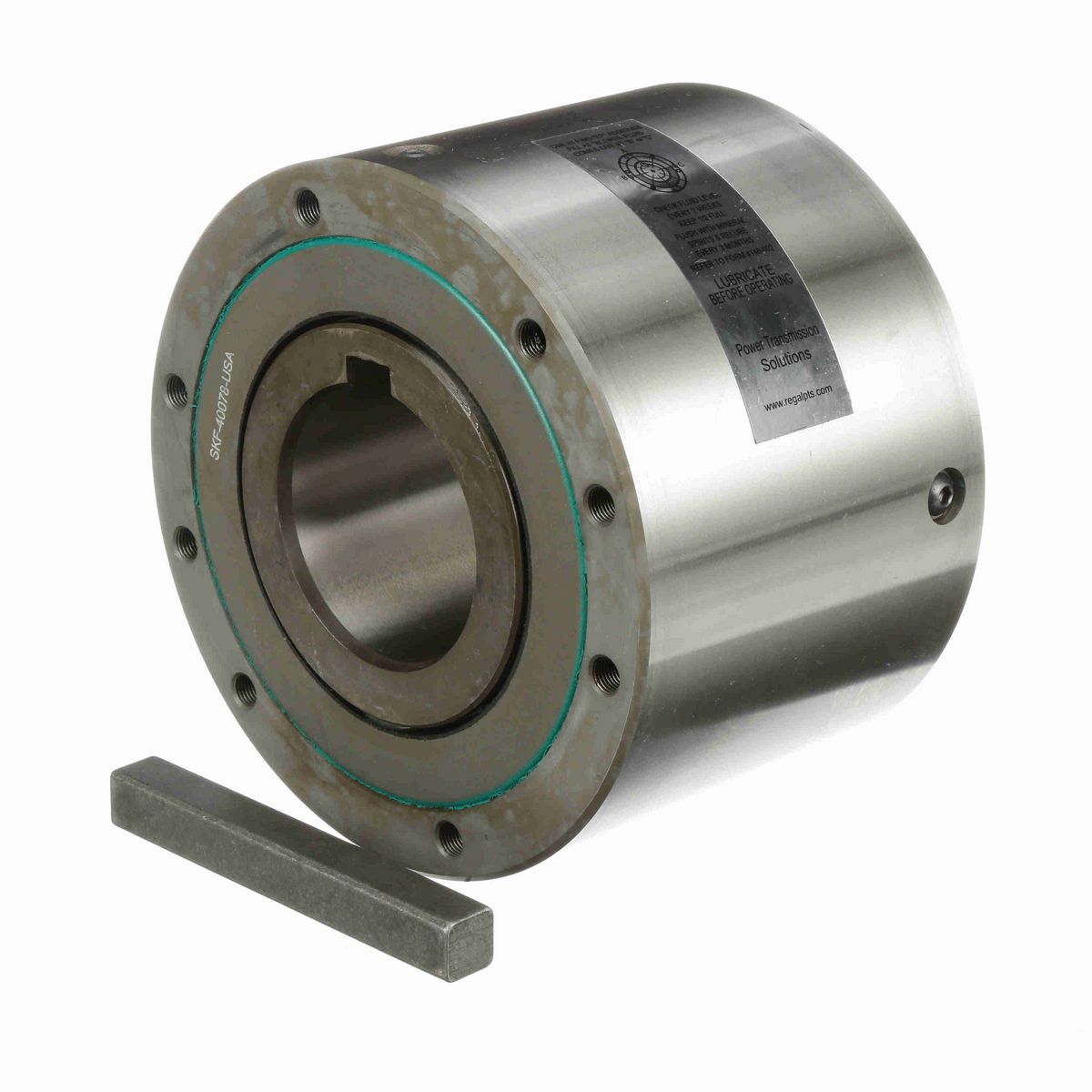

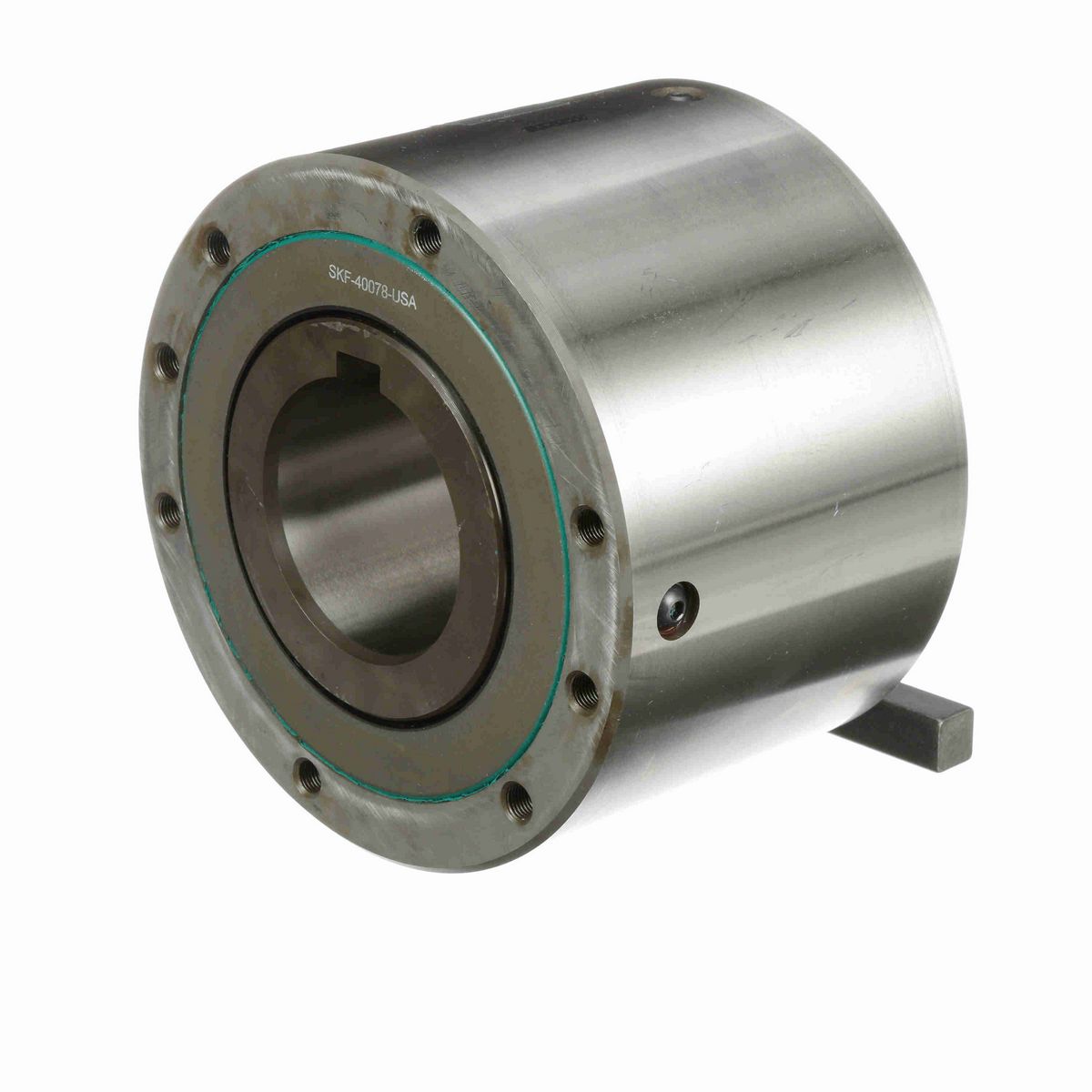

• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
• The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
• MG is primarily used for general duty overriding, indexing, back-stopping. Offers precise spring energizing to provide ling overcunning life.

Technical Specifications

RPM Max. - Inner Race	1200
Overall Diameter (in)	7.125 in
Model	MG
Inner Race Width (in)	5 in
Rated Torque Capacity (ft.-lbs.)	5,000
Type	CAM Clutches
Product Type	M Series
Clutch size code	700
Mode of Operation	General duty all types
RPM Max. - Outer Race	400
Outer Width (in)	4.875 in
Add'l Bearing Support Requirement	No
Bore (Min) (in)	2 in
Overrunning Clutch	Yes
Indexing Clutch	Yes
Bore (Max) (in)	2.9375 in
Lubrication Type	Oil
Backstopping Clutch	Yes
Bore Size (in)	2.75 in
Nominal Overrunning Drag (ft-lb)	1.3
RPM Max. -inner Race	1,200

General Specifications

UPC	662288501794
Weight	43.00 LB
Packaged Length	7.25 IN
Packaged Width	7.25 IN
Packaged Height	5.50 IN
HTC	8483.60.4040
Country of Origin	Mexico
