• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

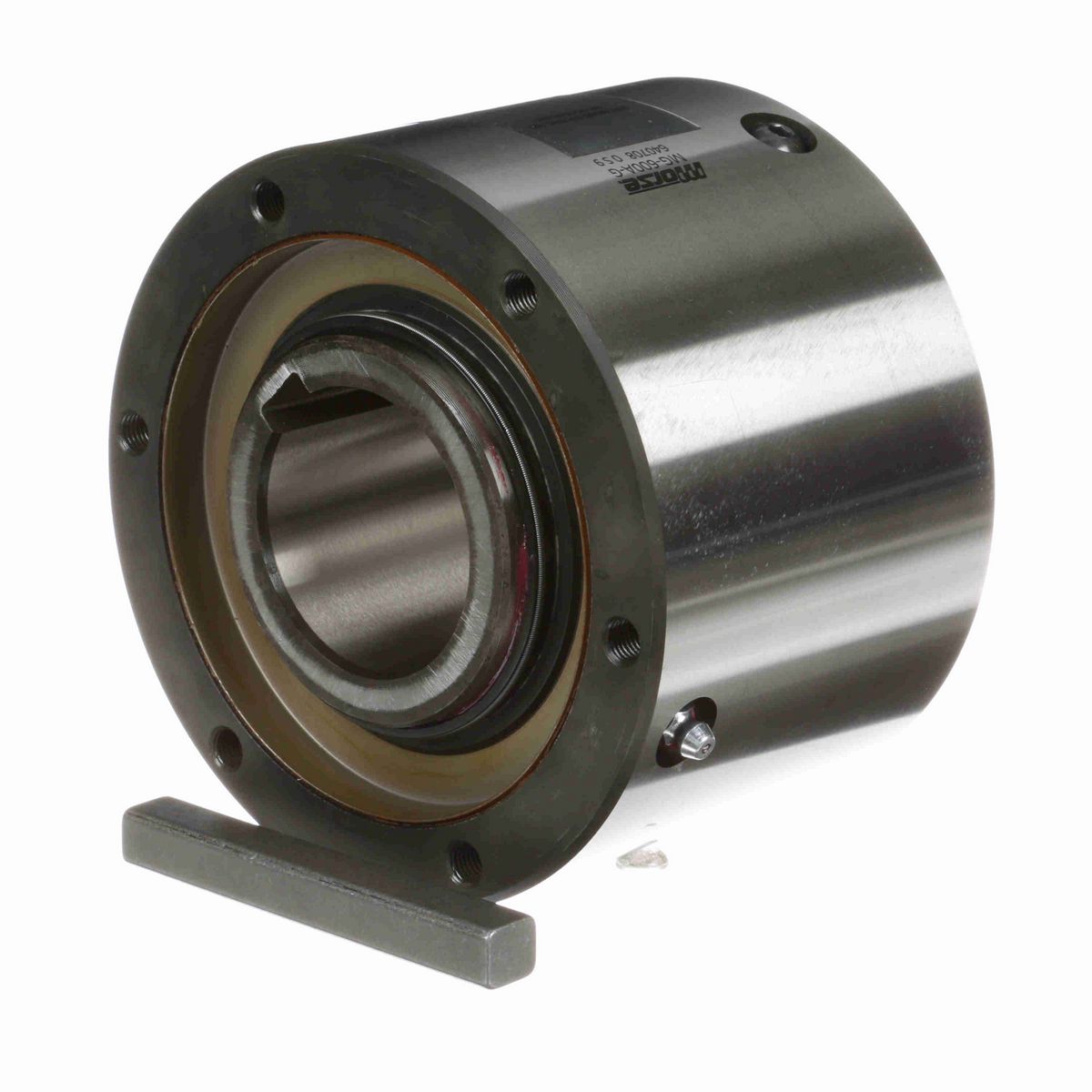

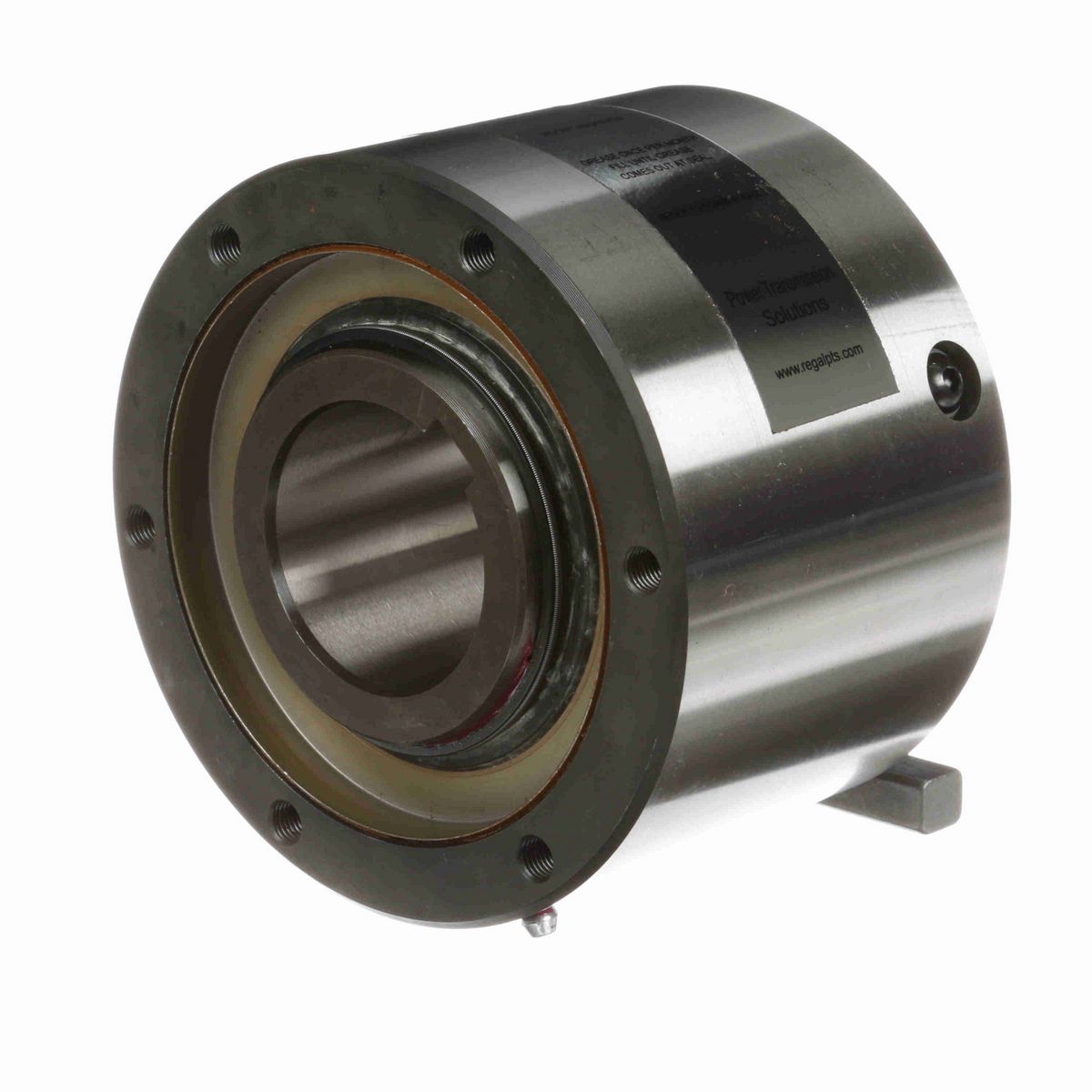

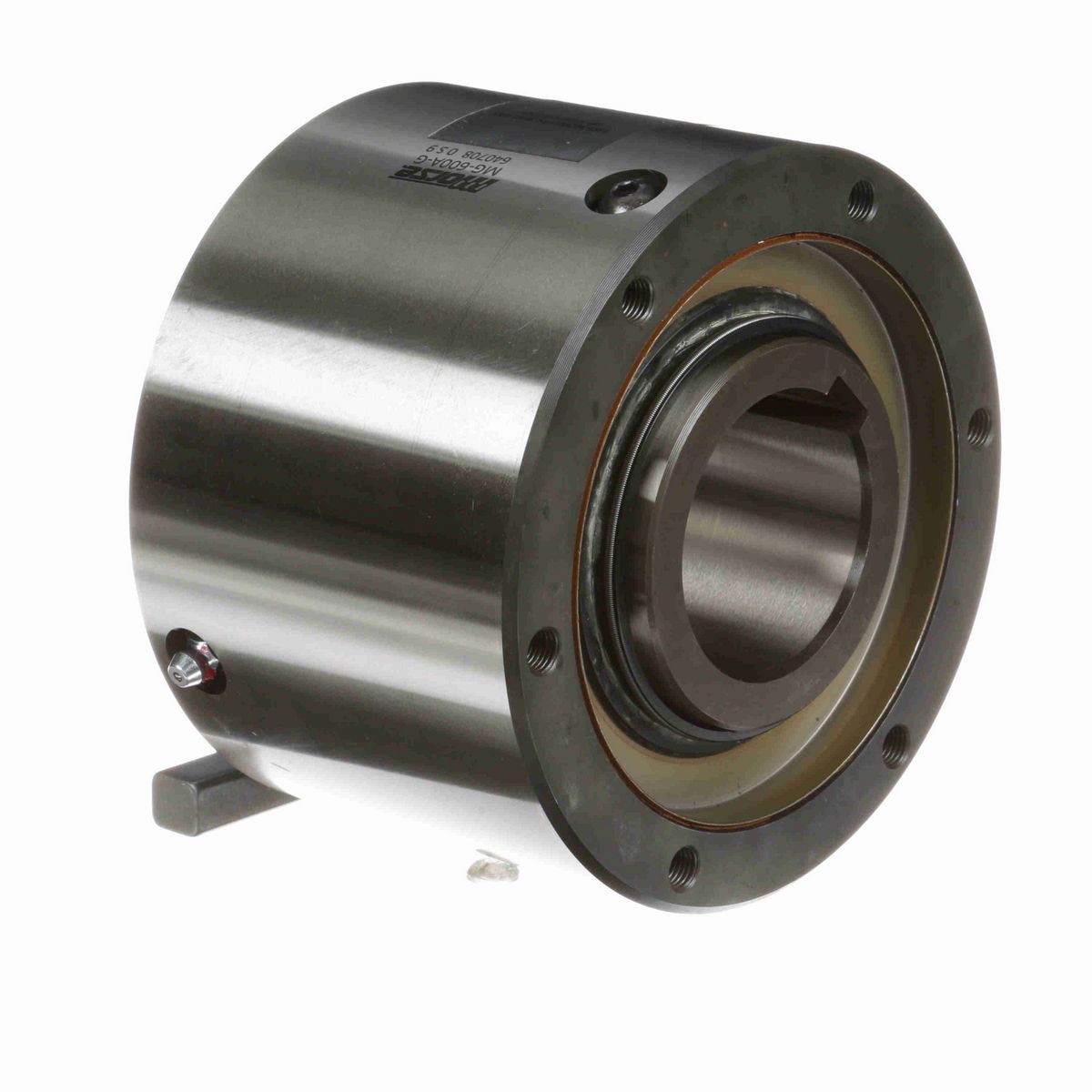

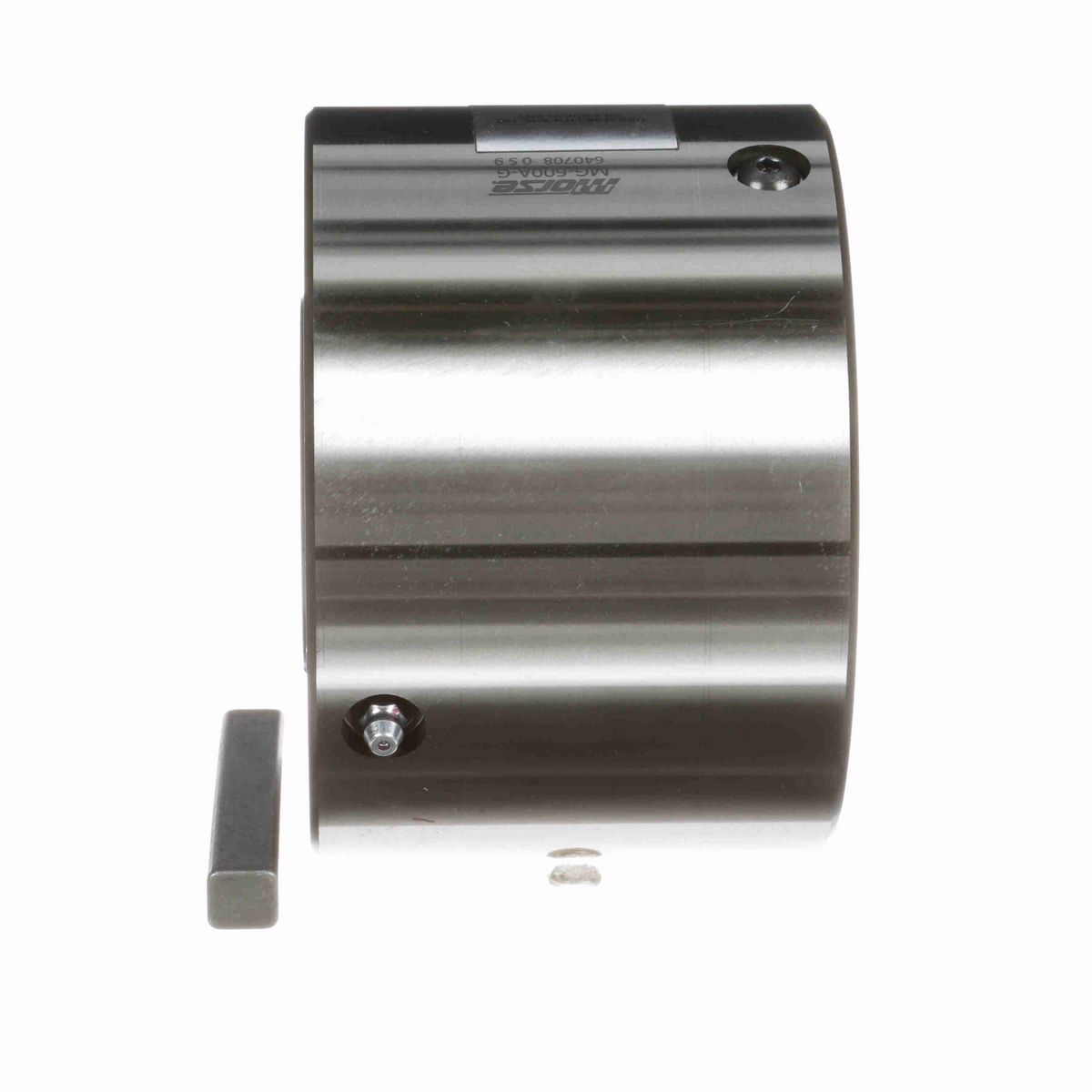

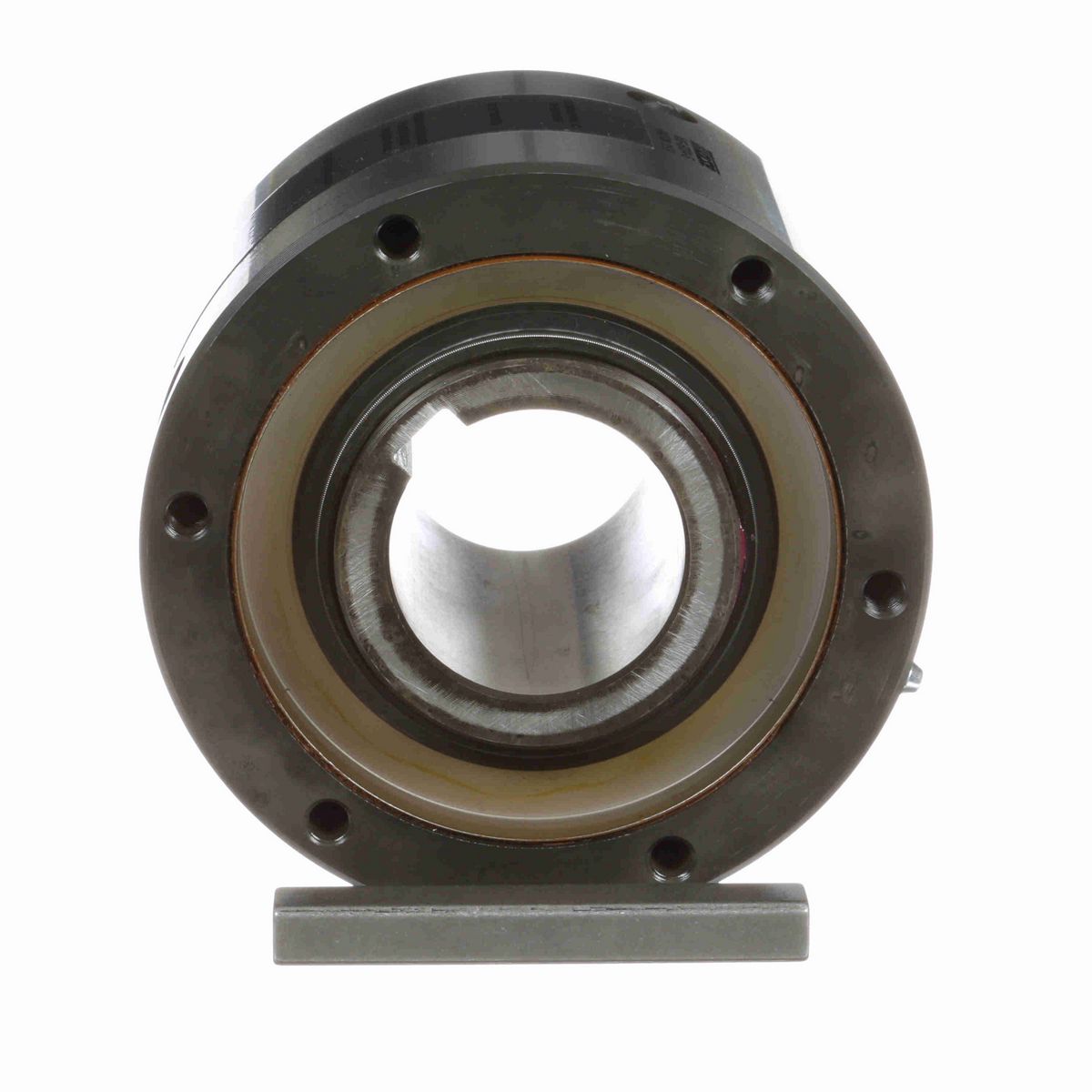

• The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
• MG is primarily used for general duty overriding, indexing, back-stopping. Offers precise spring energizing to provide ling overcunning life.

Technical Specifications

Overall Diameter (in)	5.375 in
RPM Max. - Outer Race	700
Inner Race Width (in)	3.75 in
Mode of Operation	General duty all types
RPM Max. - Inner Race	1800
Model	MG
Type	CAM Clutches
Rated Torque Capacity (ft.-lbs.)	2,250
Product Type	M Series
Clutch size code	600
Outer Width (in)	3.625 in
Add'l Bearing Support Requirement	No
Indexing Clutch	Yes
Bore (Min) (in)	1.25 in
Overrunning Clutch	Yes
Bore (Max) (in)	2 in
Lubrication Type	Grease
Bore Size (in)	2 in
Backstopping Clutch	Yes
Nominal Overrunning Drag (ft-lb)	0.63

General Specifications

UPC	662288501558
Weight	16.86 LB
Packaged Length	6.70 IN
Packaged Width	6.40 IN
Packaged Height	4.30 IN
HTC	8483.60.4040
Country of Origin	Mexico
