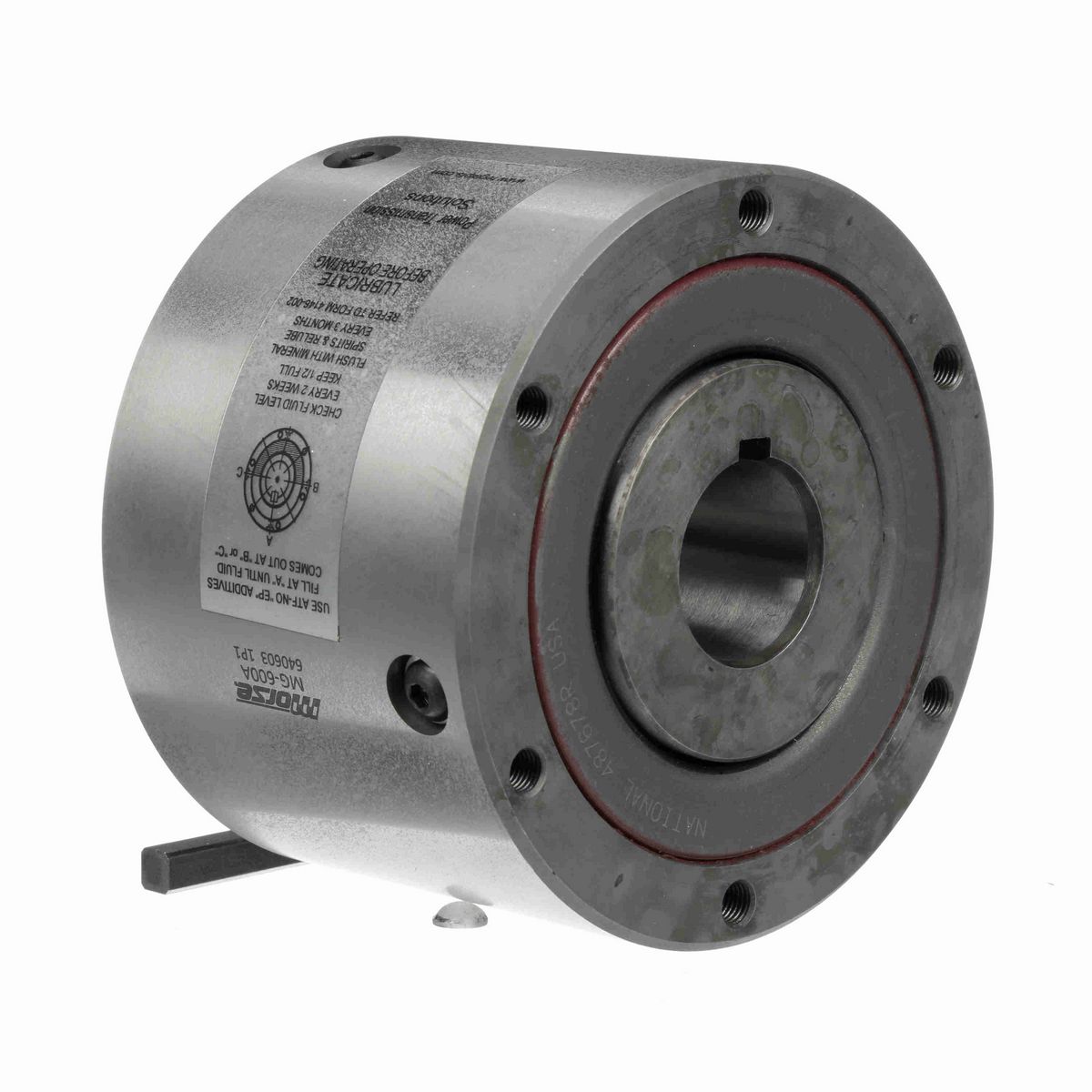

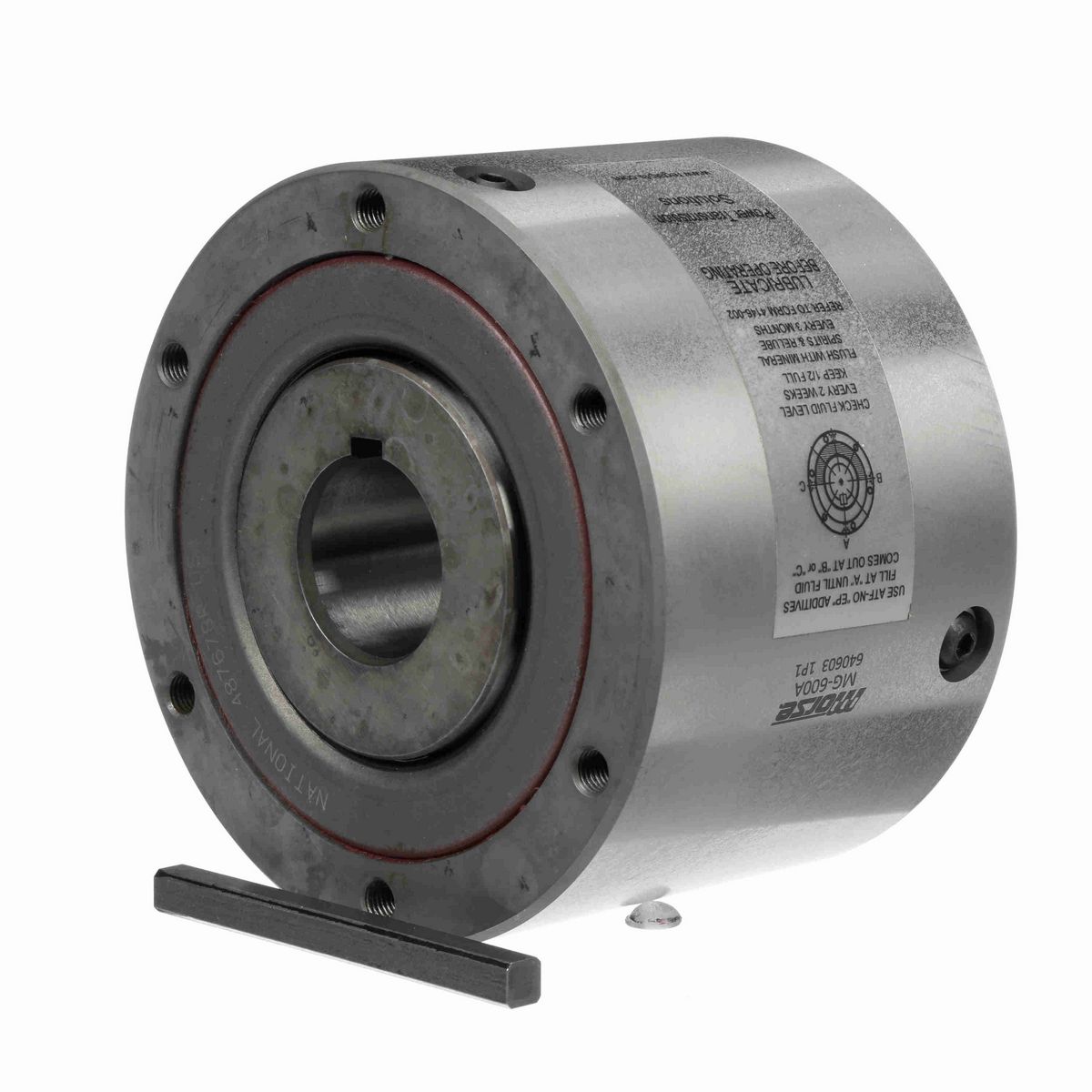

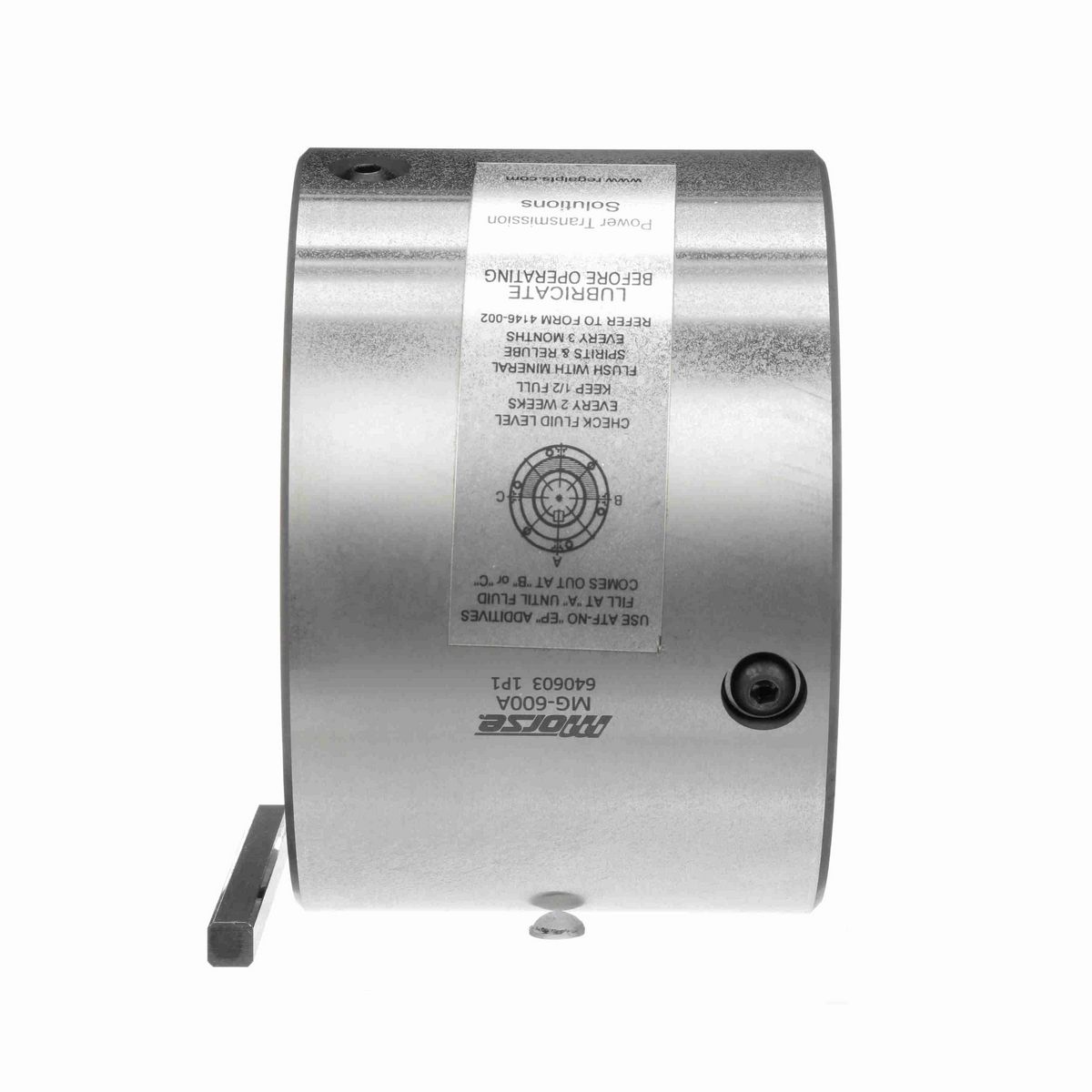

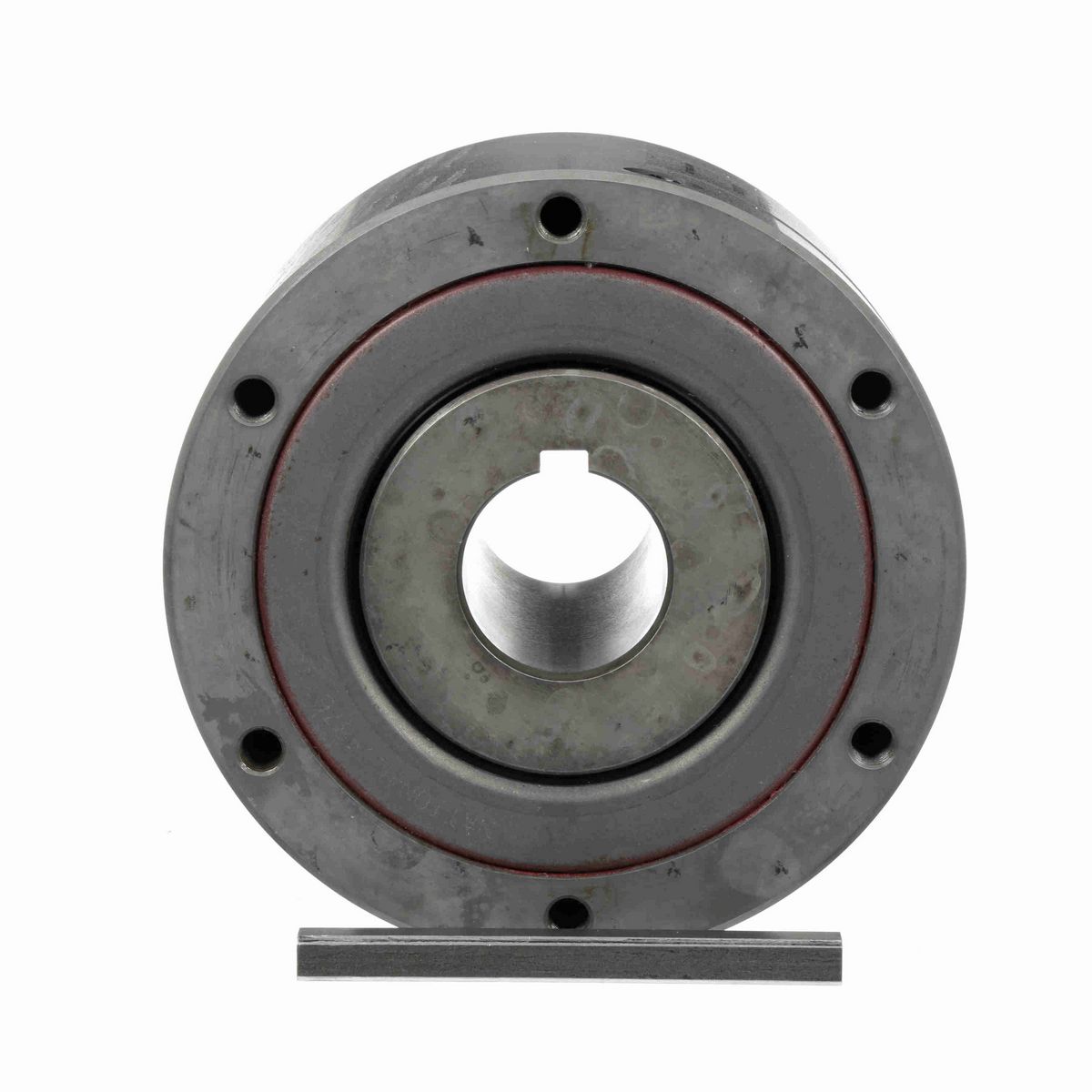

• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
• The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
• MG is primarily used for general duty overriding, indexing, back-stopping. Offers precise spring energizing to provide ling overcunning life.

Technical Specifications

Mode of Operation	General duty all types
Outer Width (in)	3.625 in
Clutch size code	600
Inner Race Width (in)	3.75 in
Type	CAM Clutches
Rated Torque Capacity (ft.-lbs.)	2,250
Model	MG
Overall Diameter (in)	5.375 in
RPM Max. - Inner Race	1800
RPM Max. - Outer Race	700
Product Type	M Series
Add'l Bearing Support Requirement	No
Lubrication Type	Oil
Indexing Clutch	Yes
Bore Size (in)	1.375 in
Backstopping Clutch	Yes
Bore (Max) (in)	2 in
Bore (Min) (in)	1.25 in
Overrunning Clutch	Yes
Nominal Overrunning Drag (ft-lb)	0.63

General Specifications

UPC	662288501435
Weight	18.46 LB
Packaged Length	6.80 IN
Packaged Width	6.20 IN
Packaged Height	4.20 IN
HTC	8483.60.4040
Country of Origin	Mexico
