• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

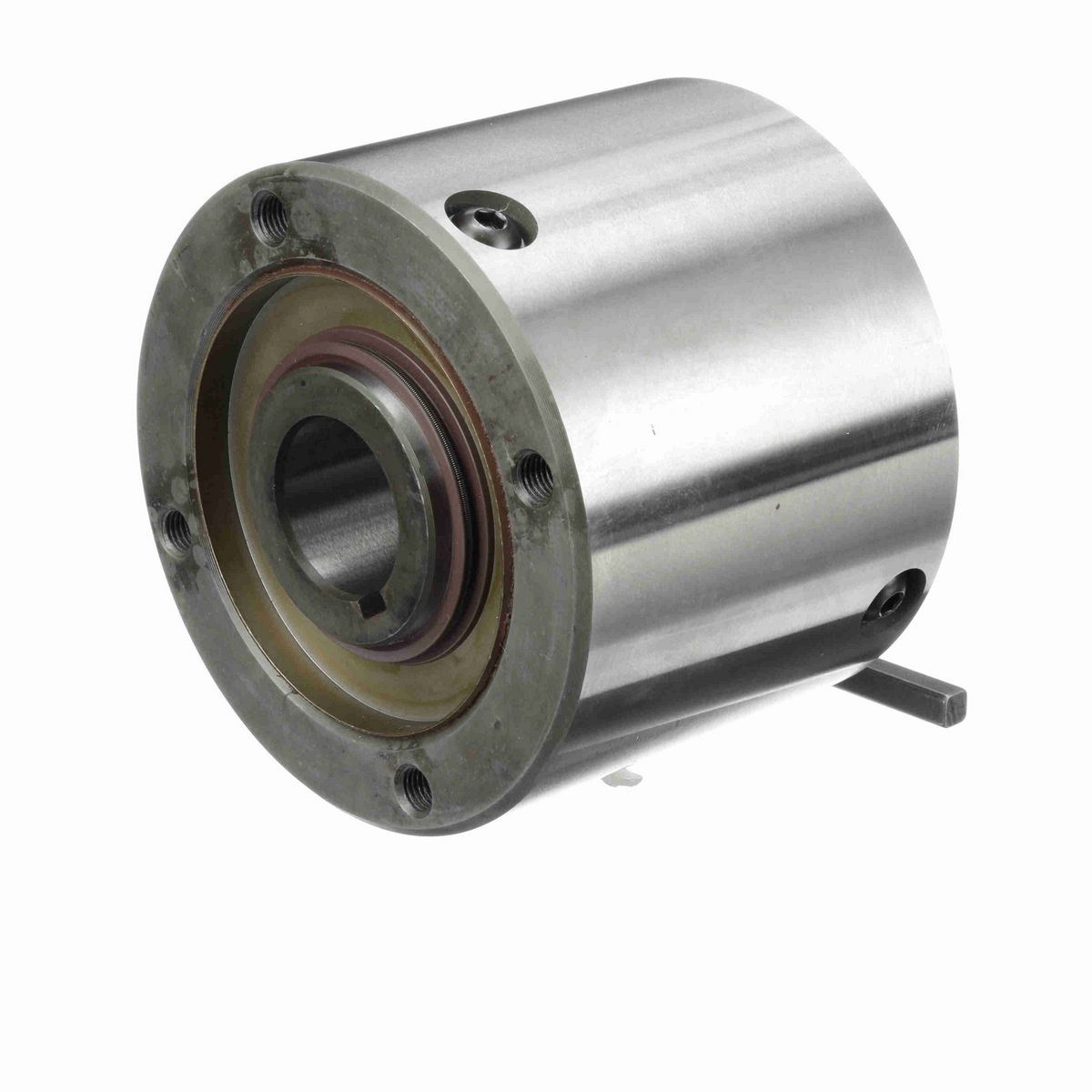

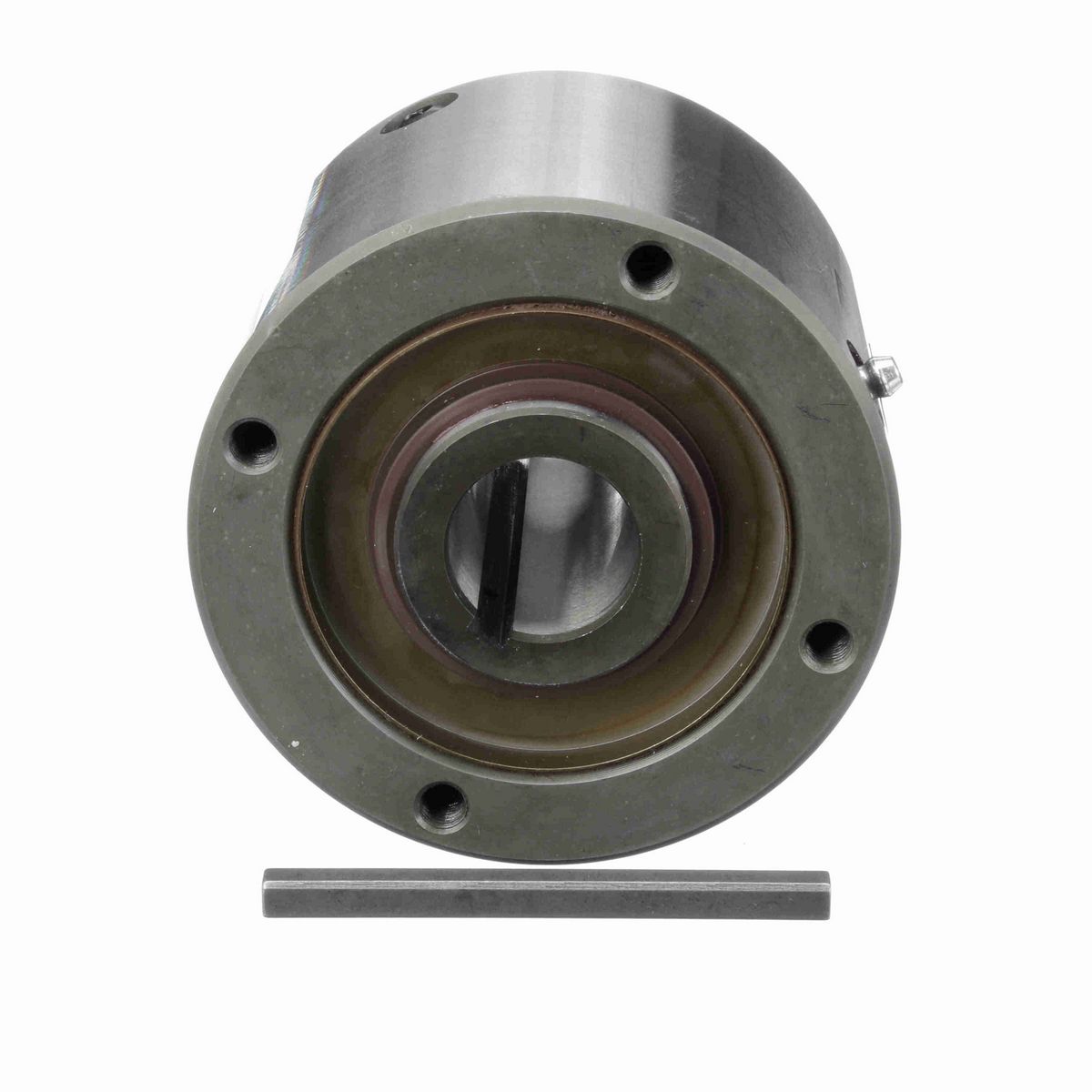

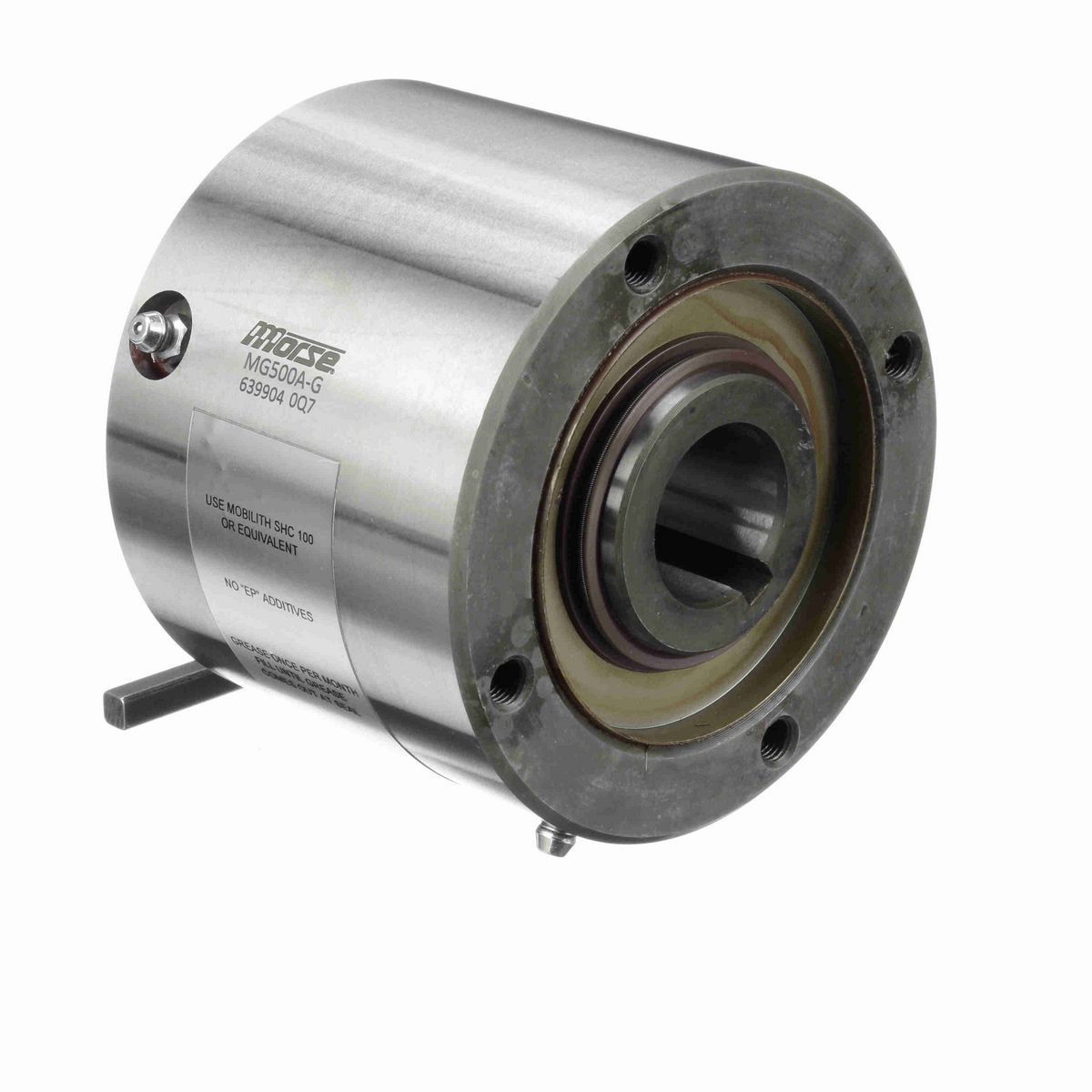

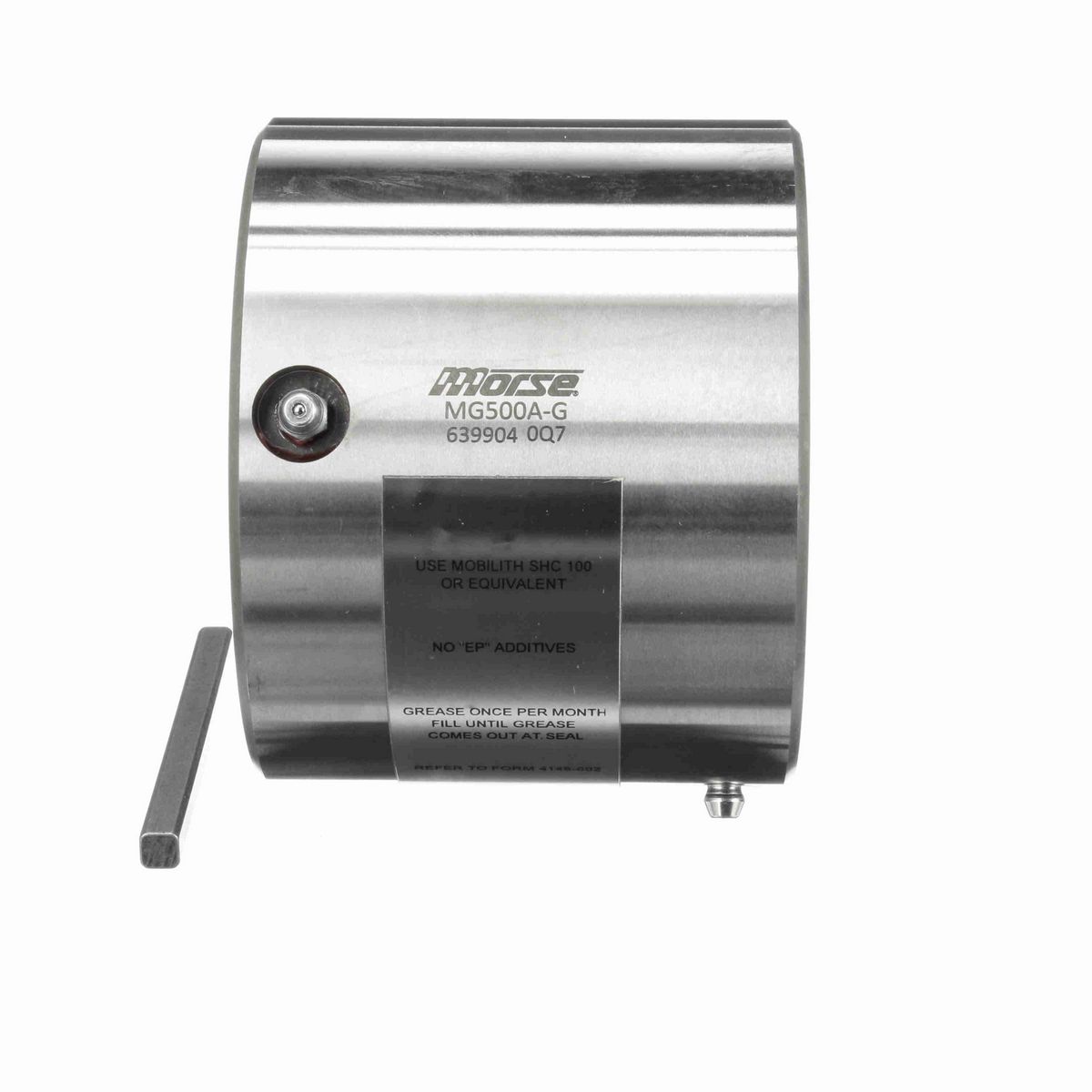

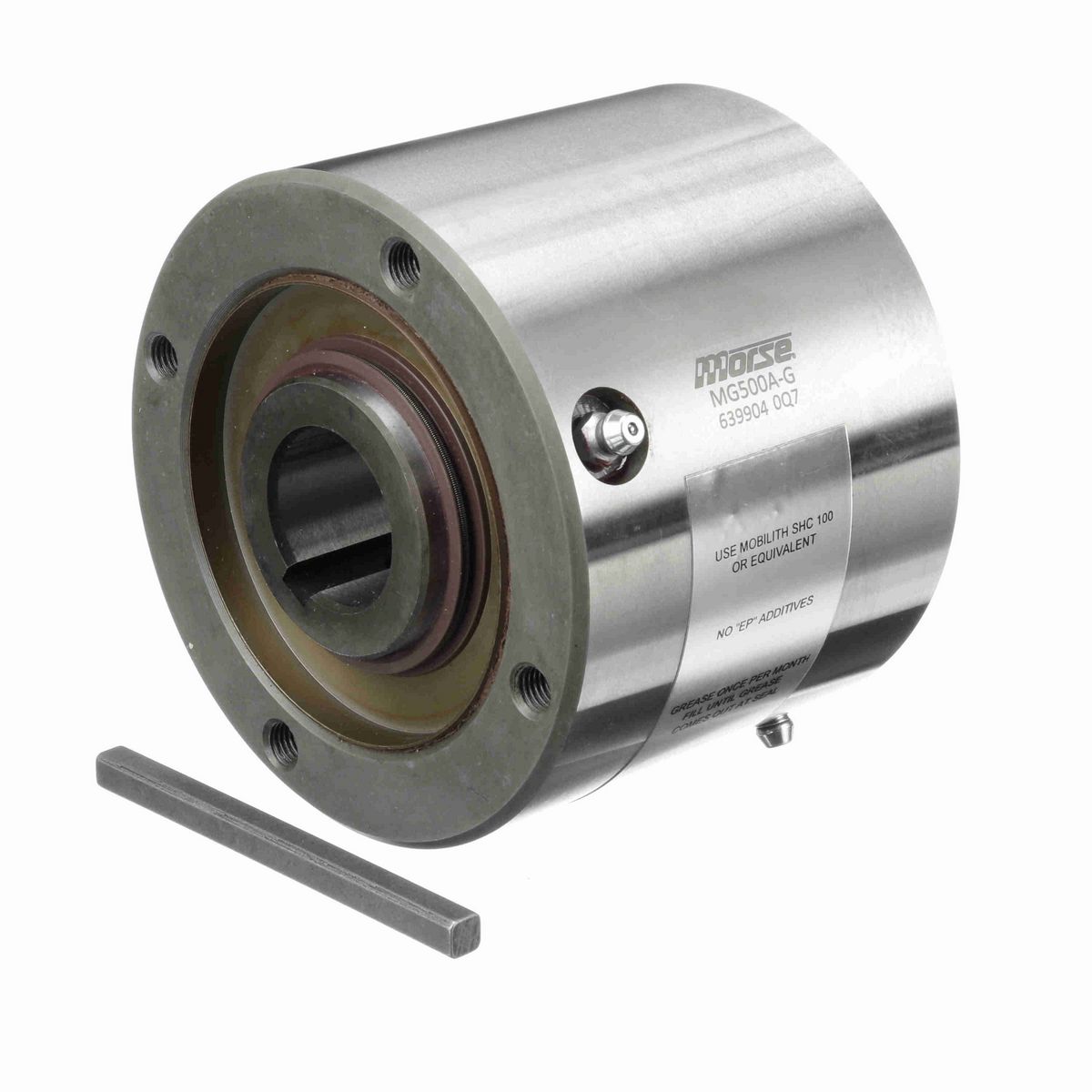

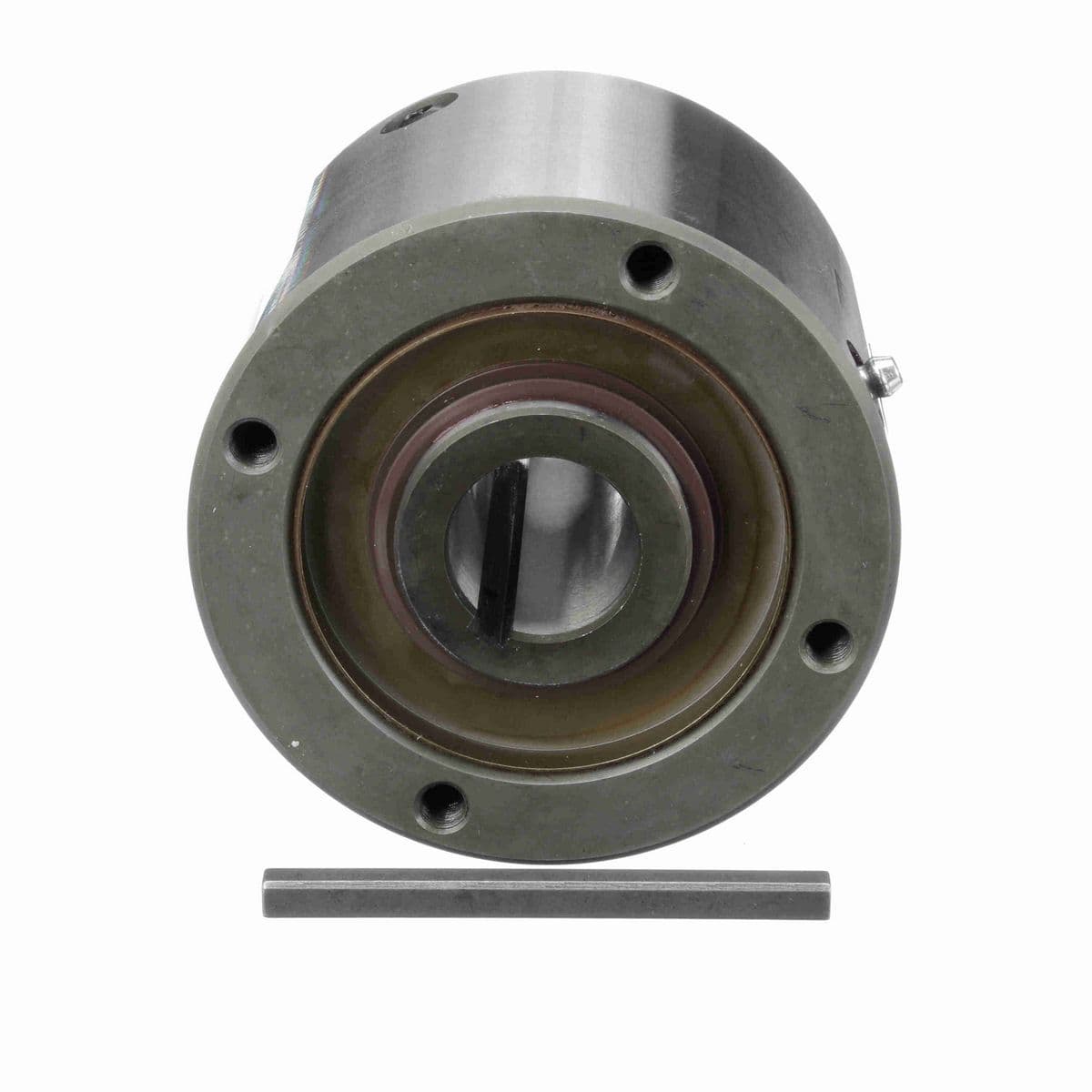

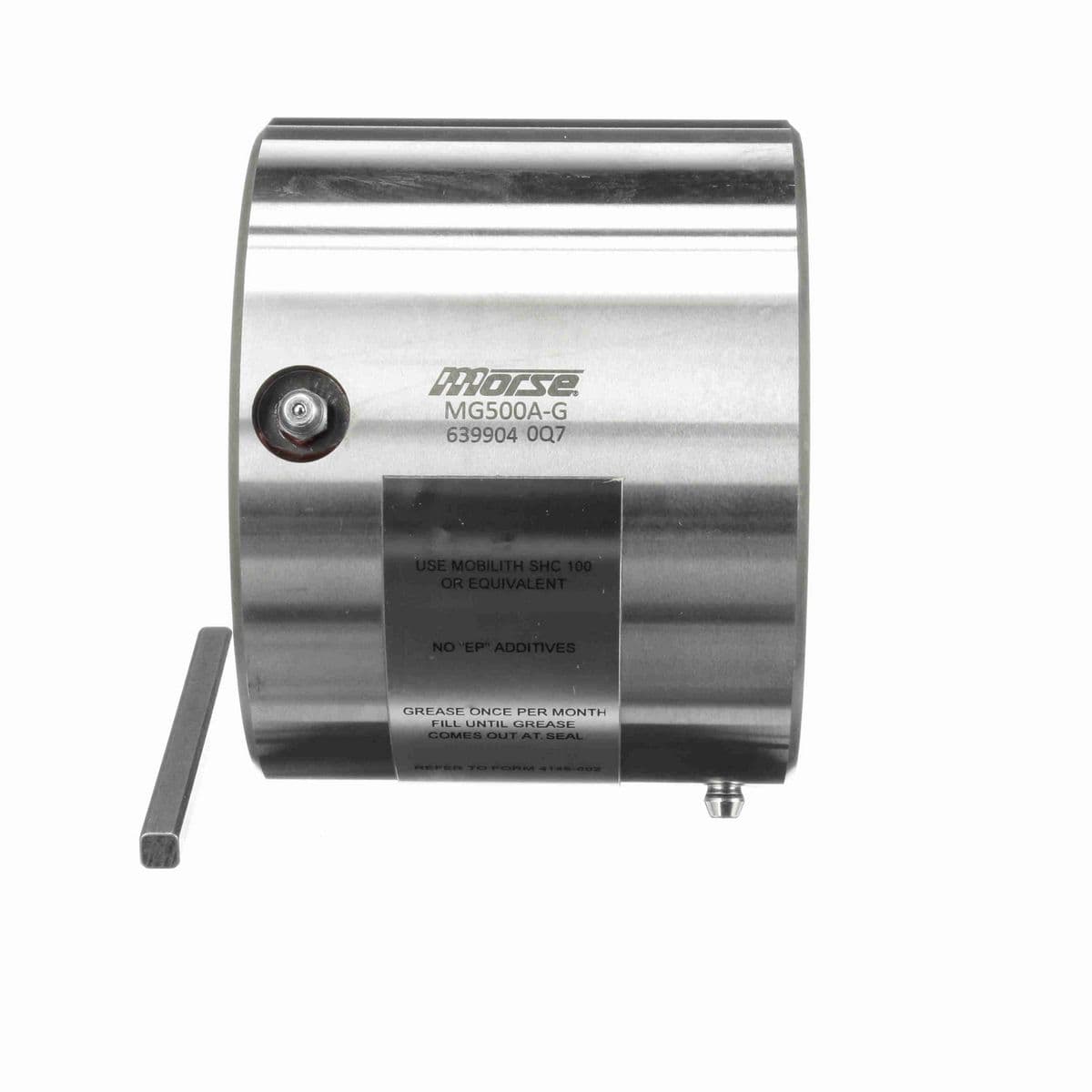

• The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
• MG is primarily used for general duty overriding, indexing, back-stopping. Offers precise spring energizing to provide ling overcunning life.

Technical Specifications

Rated Torque Capacity (ft.-lbs.)	1,175
RPM Max. - Inner Race	2400
RPM Max. - Outer Race	750
Mode of Operation	General duty all types
Type	CAM Clutches
Inner Race Width (in)	3.5 in
Outer Width (in)	3.375 in
Product Type	M Series
Overall Diameter (in)	4.25 in
Model	MG
Clutch size code	500
Add'l Bearing Support Requirement	No
Lubrication Type	Grease
Indexing Clutch	Yes
Bore (Min) (in)	0.875 in
Overrunning Clutch	Yes
Bore Size (in)	1.125 in
Backstopping Clutch	Yes
Bore (Max) (in)	1.25 in
Nominal Overrunning Drag (ft-lb)	0.38

General Specifications

UPC	662288501282
Weight	10.83 LB
Packaged Length	5.80 IN
Packaged Width	5.40 IN
Packaged Height	4.40 IN
HTC	8483.60.4040
Country of Origin	Mexico
