• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

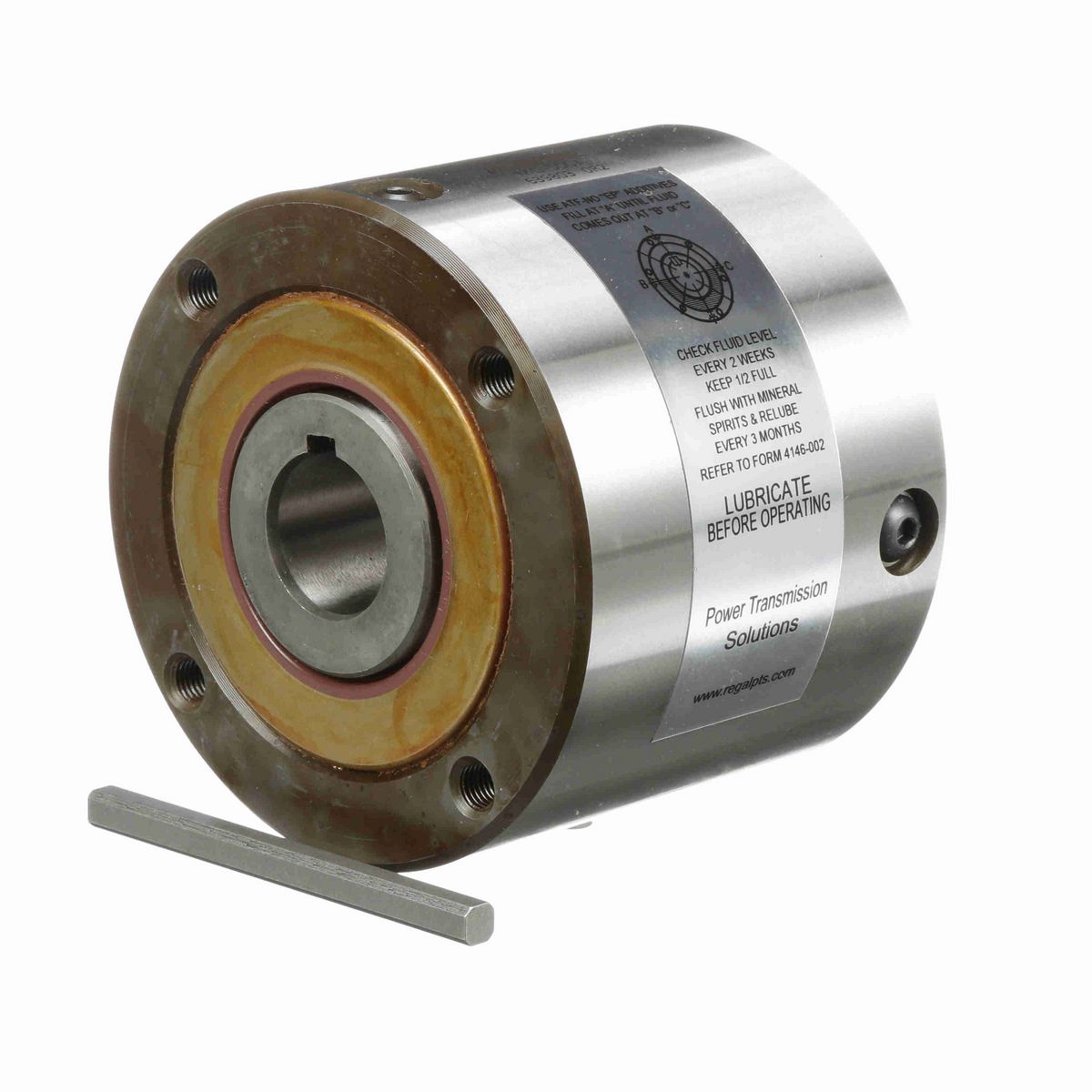

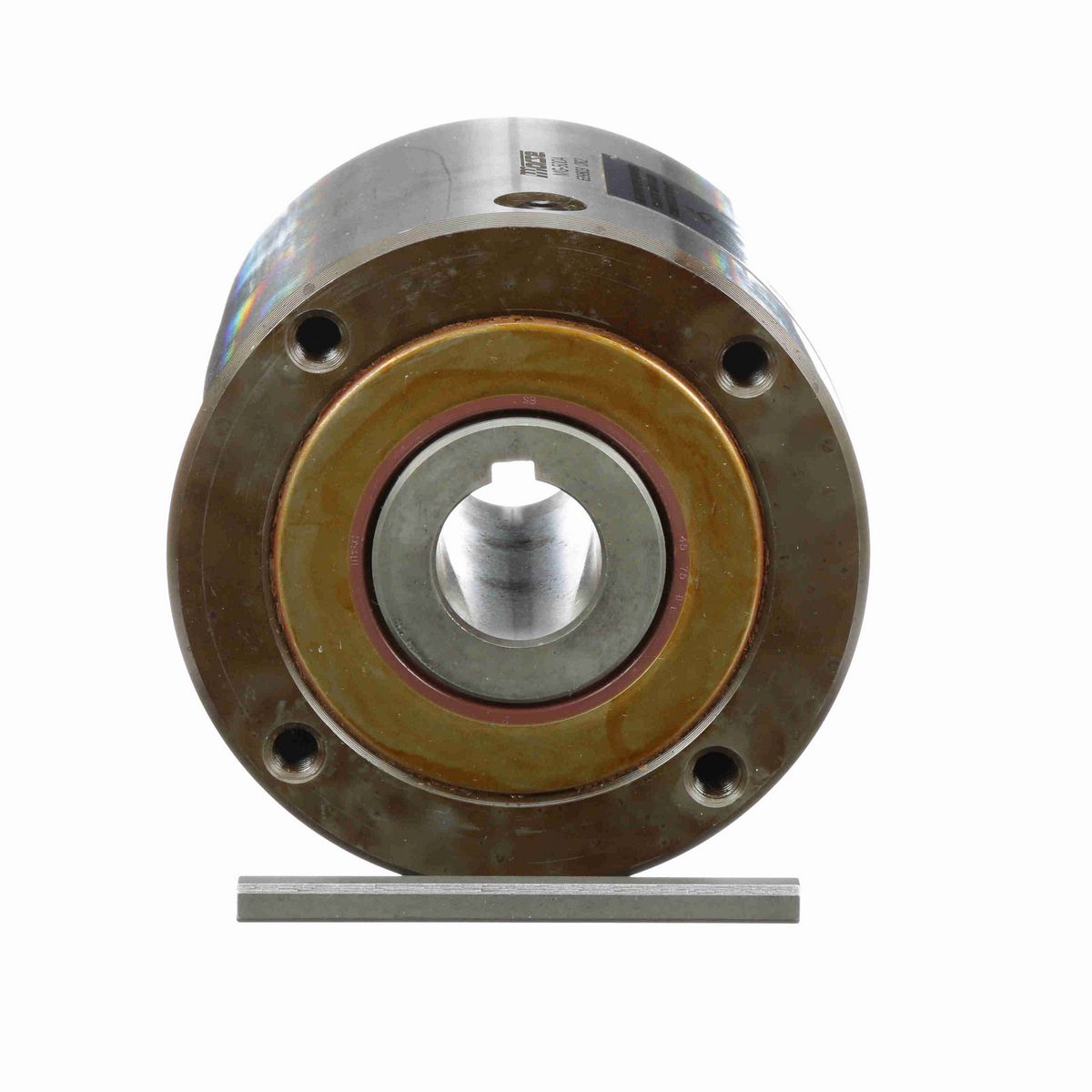

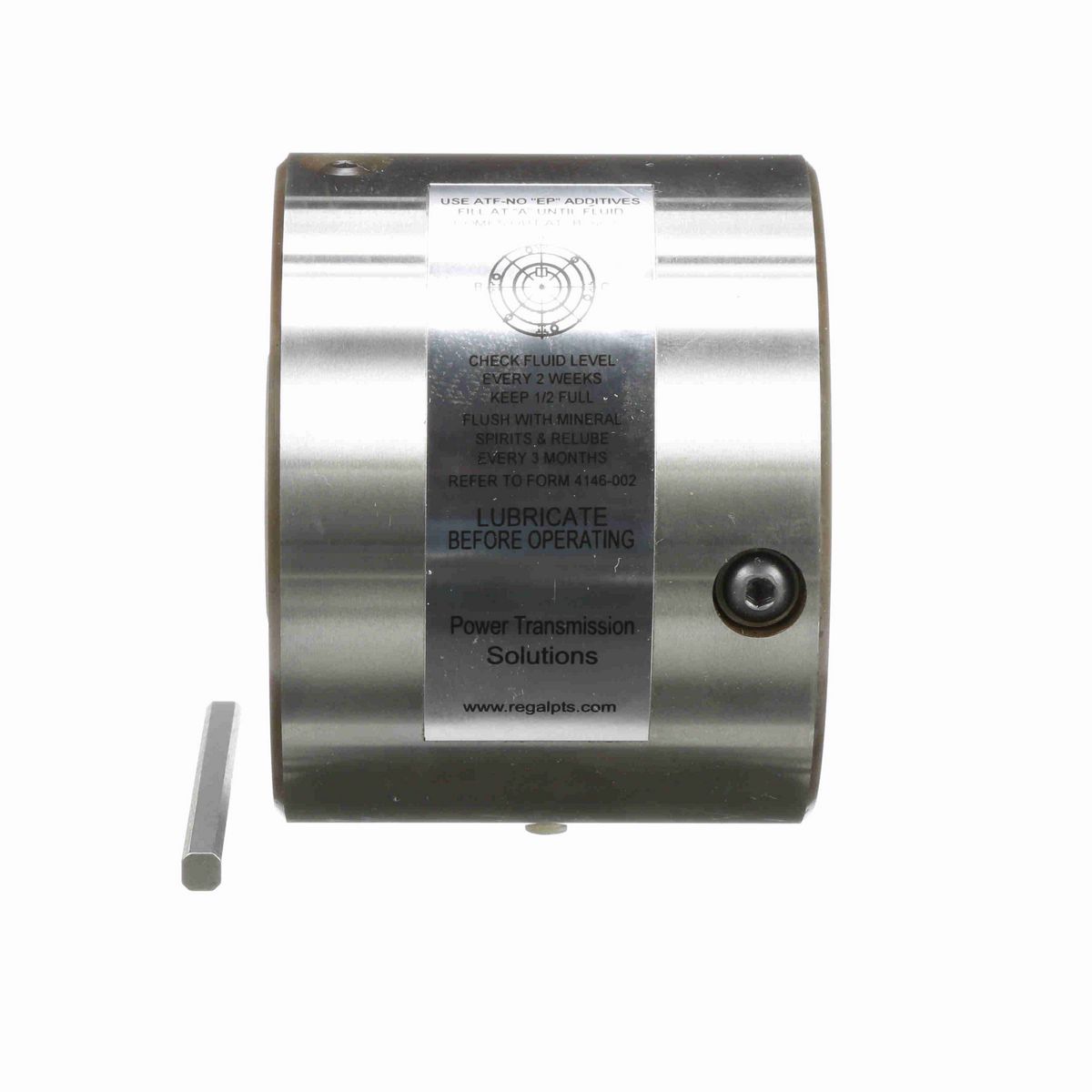

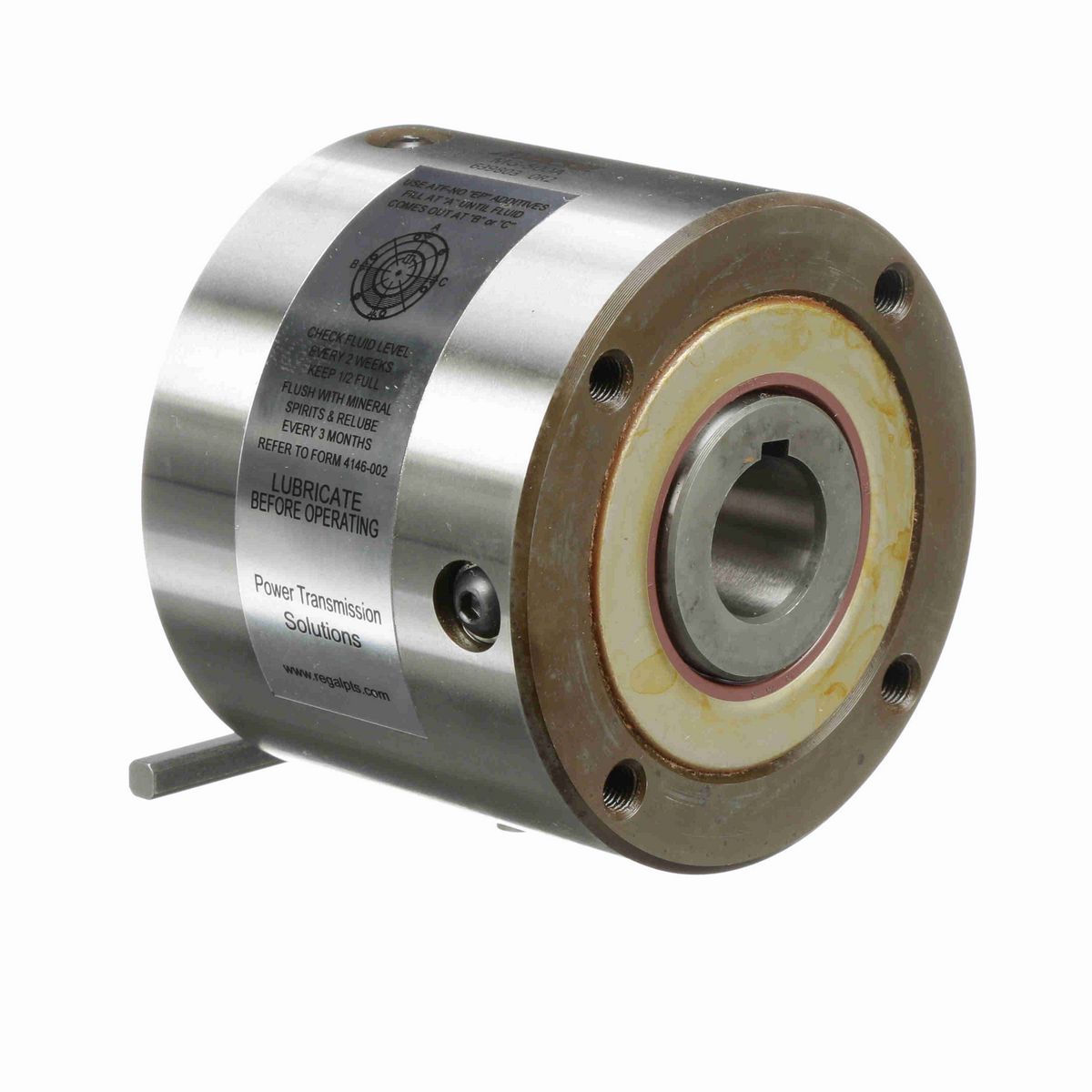

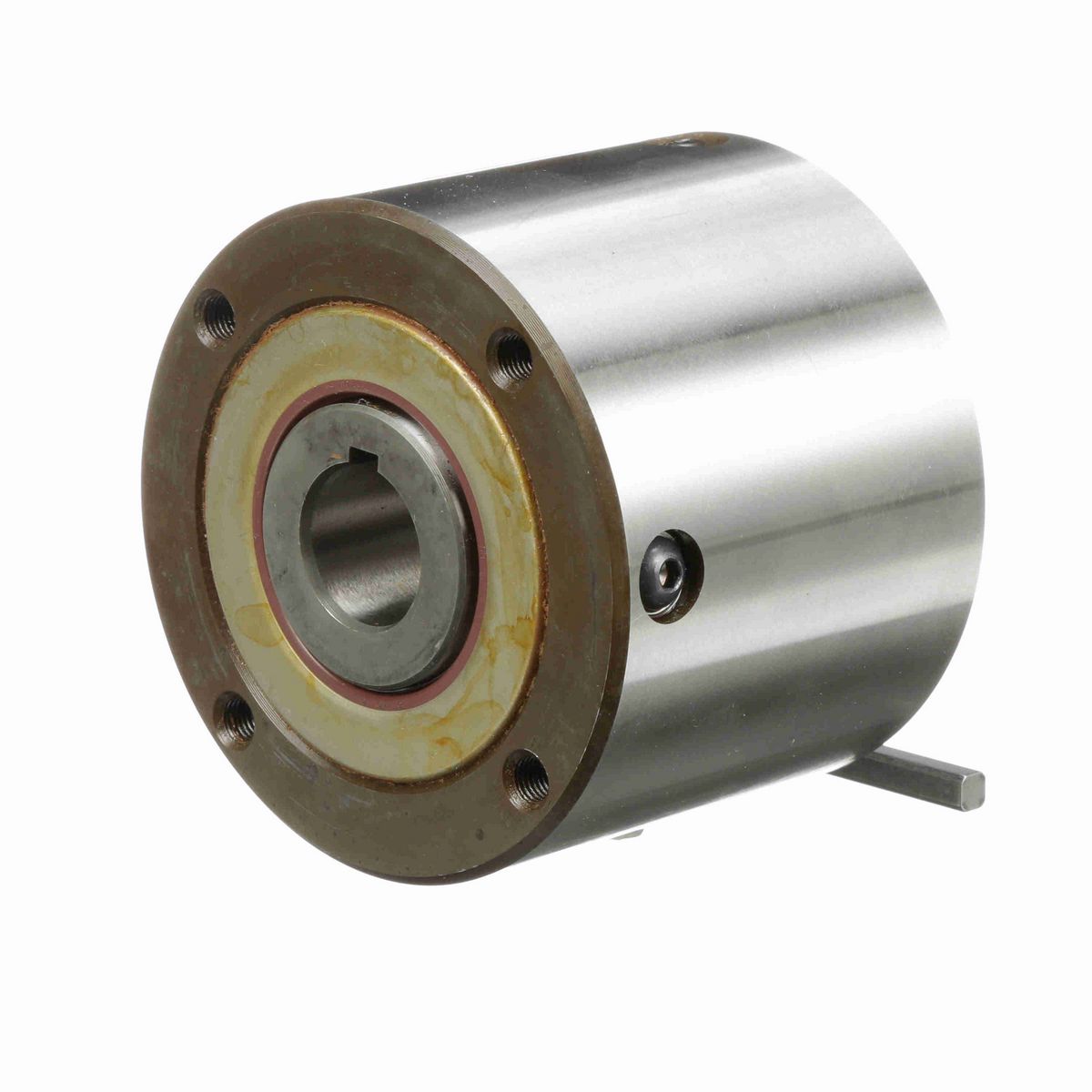

• The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
• MG is primarily used for general duty overriding, indexing, back-stopping. Offers precise spring energizing to provide ling overcunning life.

Technical Specifications

Outer Width (in)	3.375 in
Model	MG
Type	CAM Clutches
Product Type	M Series
Inner Race Width (in)	3.5 in
Clutch size code	500
Overall Diameter (in)	4.25 in
RPM Max. - Inner Race	2400
RPM Max. - Outer Race	750
Mode of Operation	General duty all types
Rated Torque Capacity (ft.-lbs.)	1,175
Add'l Bearing Support Requirement	No
Overrunning Clutch	Yes
Bore (Min) (in)	0.875 in
Indexing Clutch	Yes
Backstopping Clutch	Yes
Lubrication Type	Oil
Bore Size (in)	1 in
Bore (Max) (in)	1.25 in
Nominal Overrunning Drag (ft-lb)	0.38

General Specifications

UPC	662288501237
Weight	10.96 LB
Packaged Length	6.00 IN
Packaged Width	5.30 IN
Packaged Height	4.20 IN
HTC	8483.60.4040
Country of Origin	Mexico
