• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

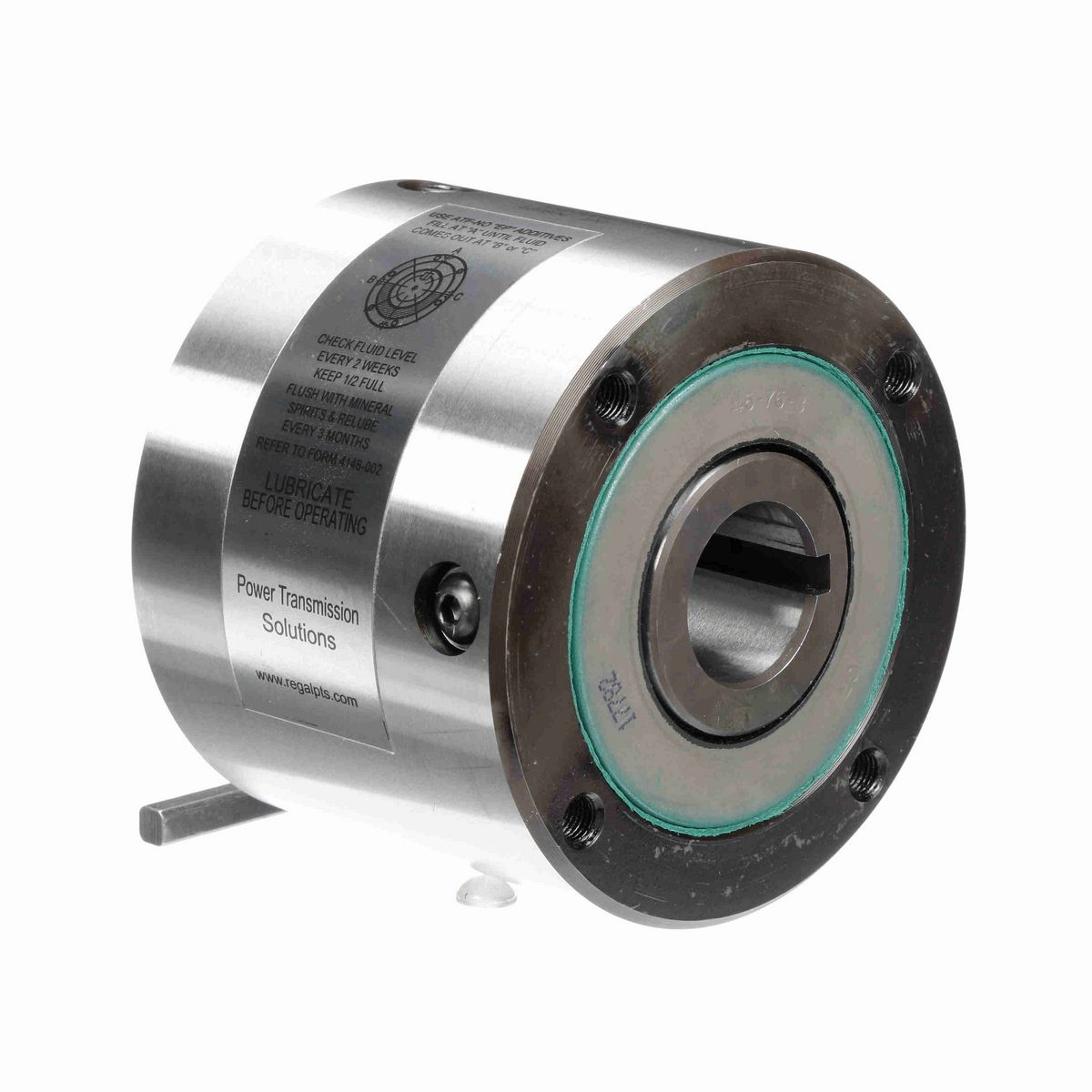

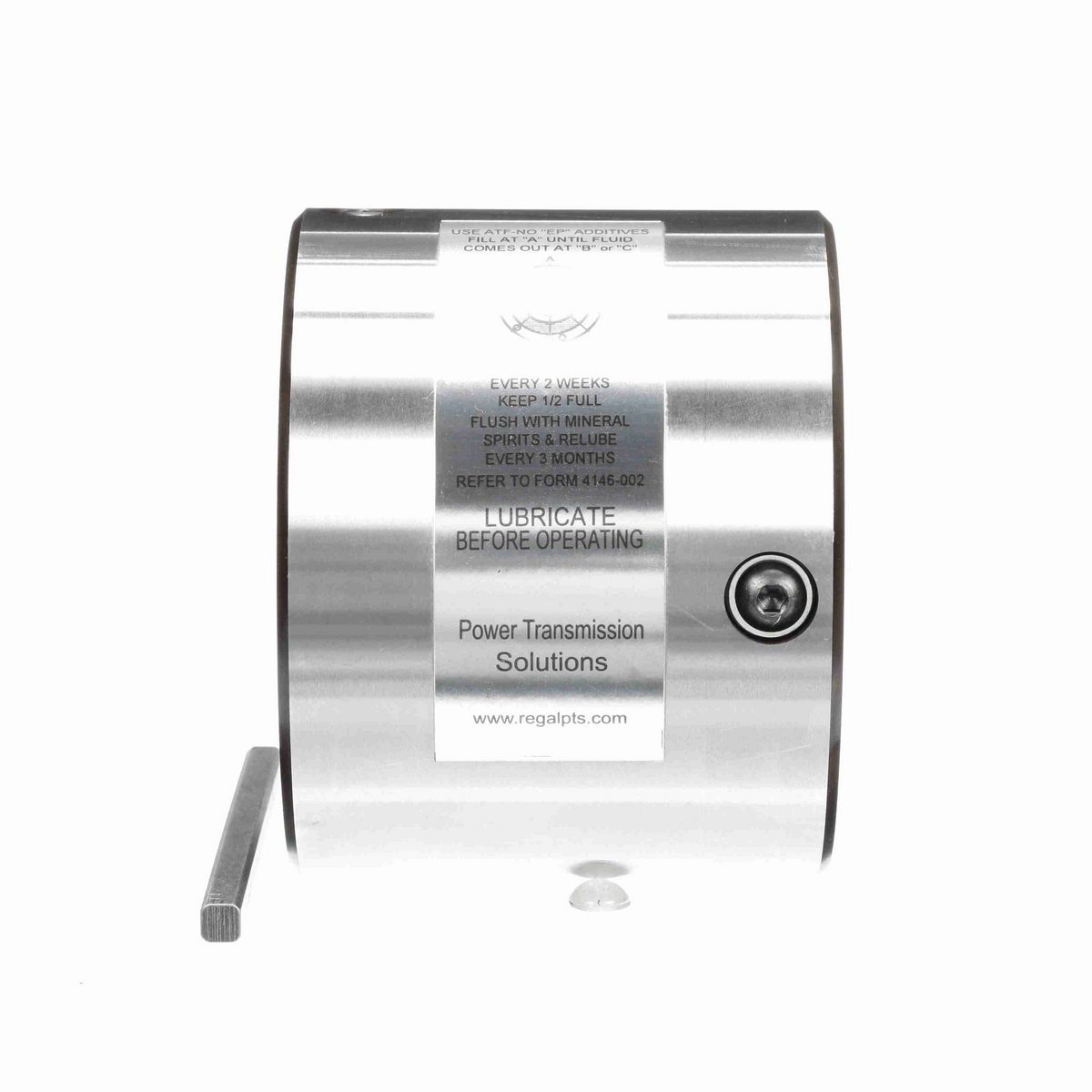

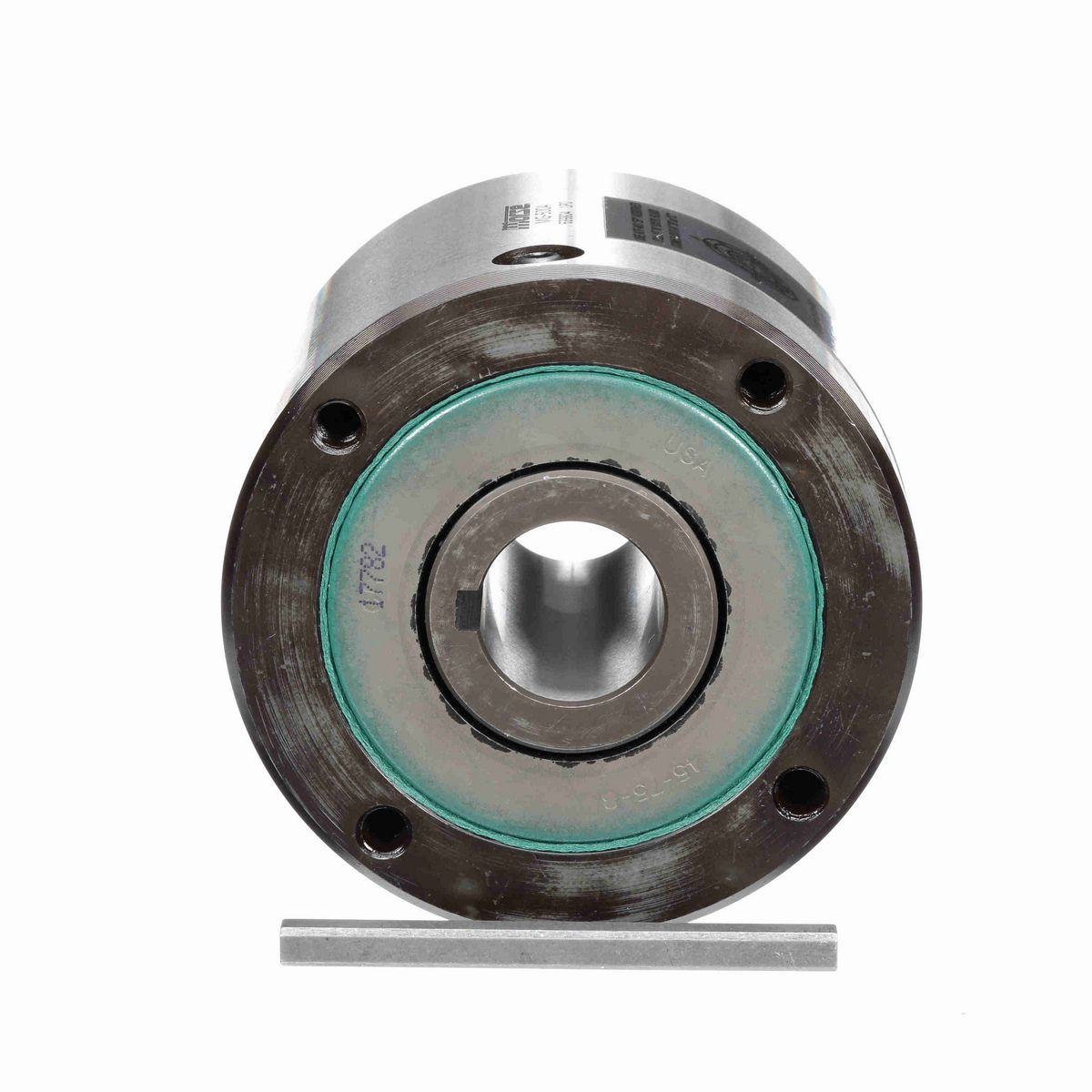

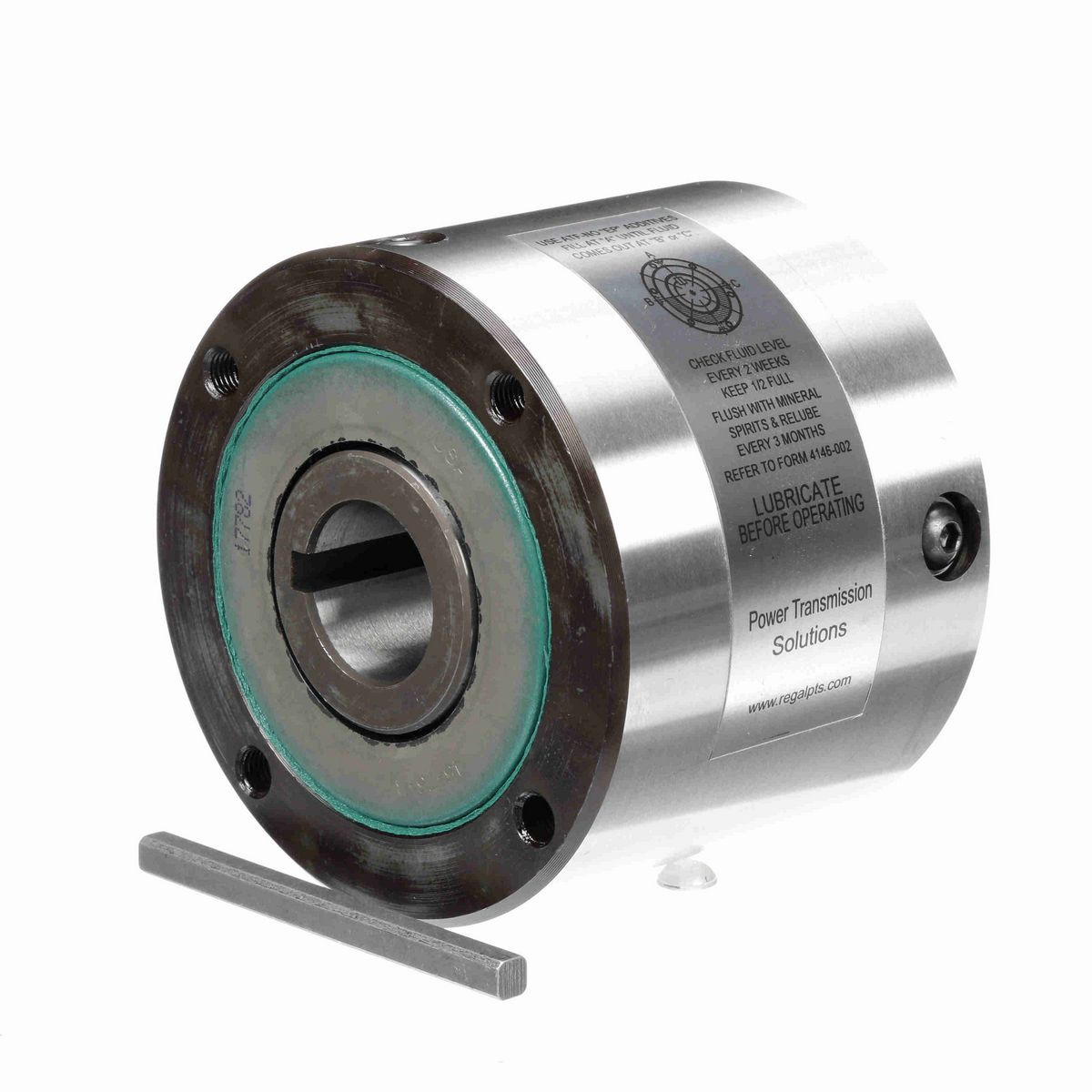

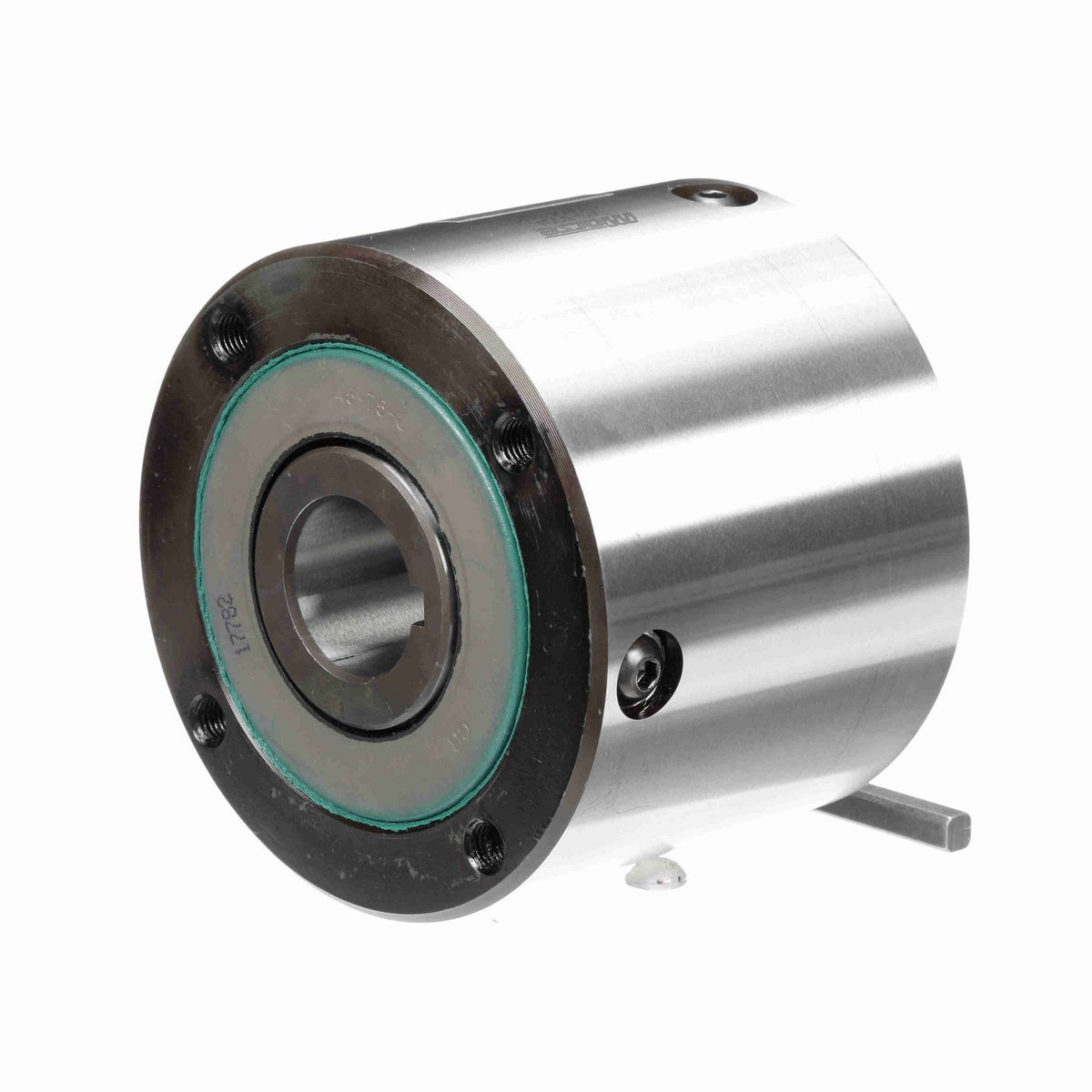

• The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
• MG is primarily used for general duty overriding, indexing, back-stopping. Offers precise spring energizing to provide ling overcunning life.

Technical Specifications

Type	CAM Clutches
Clutch size code	500
Inner Race Width (in)	3.5 in
Outer Width (in)	3.375 in
Product Type	M Series
Mode of Operation	General duty all types
RPM Max. - Inner Race	2400
RPM Max. - Outer Race	750
Rated Torque Capacity (ft.-lbs.)	1,175
Model	MG
Overall Diameter (in)	4.25 in
Add'l Bearing Support Requirement	No
Overrunning Clutch	Yes
Bore (Max) (in)	1.25 in
Lubrication Type	Oil
Backstopping Clutch	Yes
Bore Size (in)	1.125 in
Bore (Min) (in)	0.875 in
Indexing Clutch	Yes
Nominal Overrunning Drag (ft-lb)	0.38

General Specifications

UPC	662288501244
Weight	11.00 LB
Packaged Length	4.25 IN
Packaged Width	4.25 IN
Packaged Height	3.63 IN
HTC	8483.60.4040
Country of Origin	Mexico
