• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

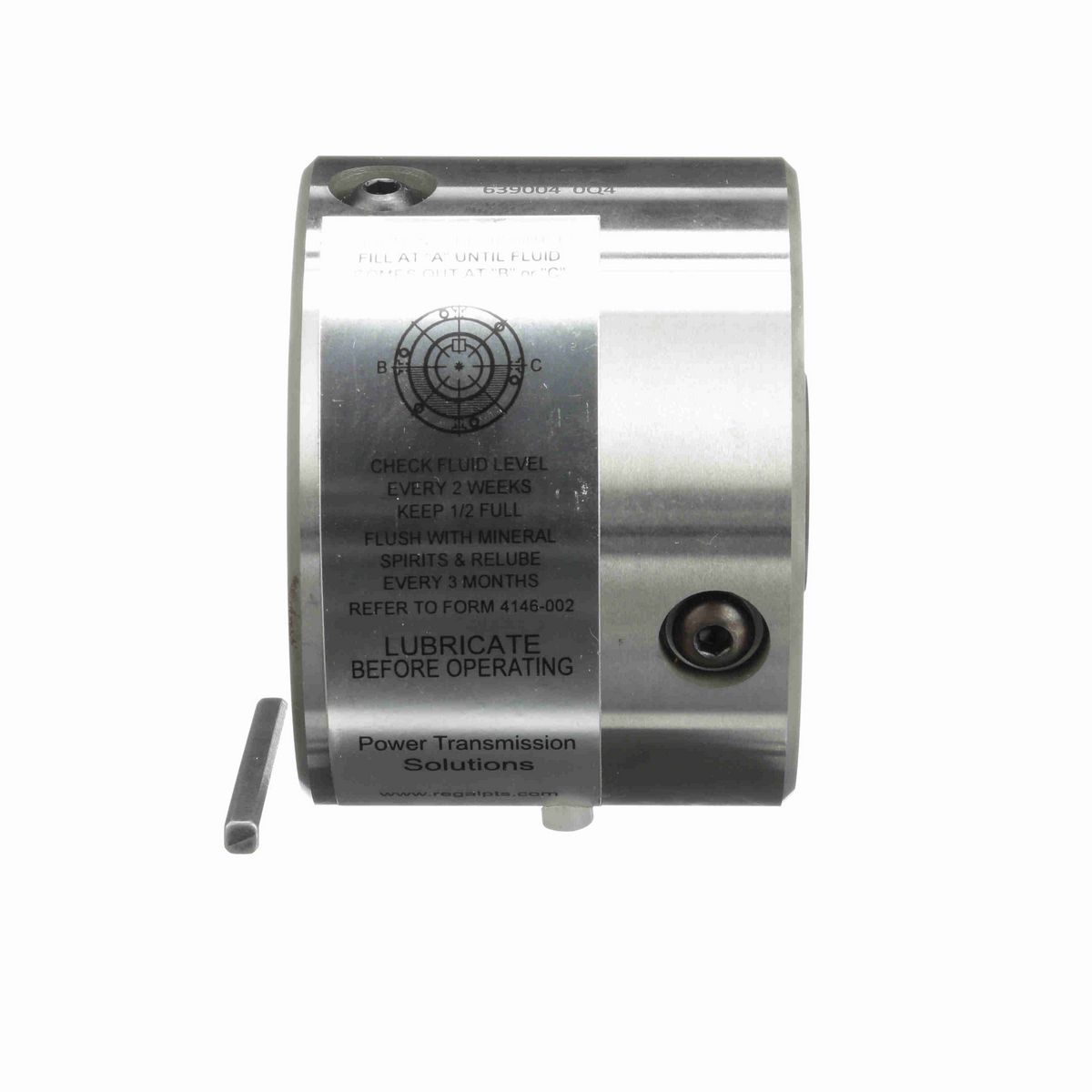

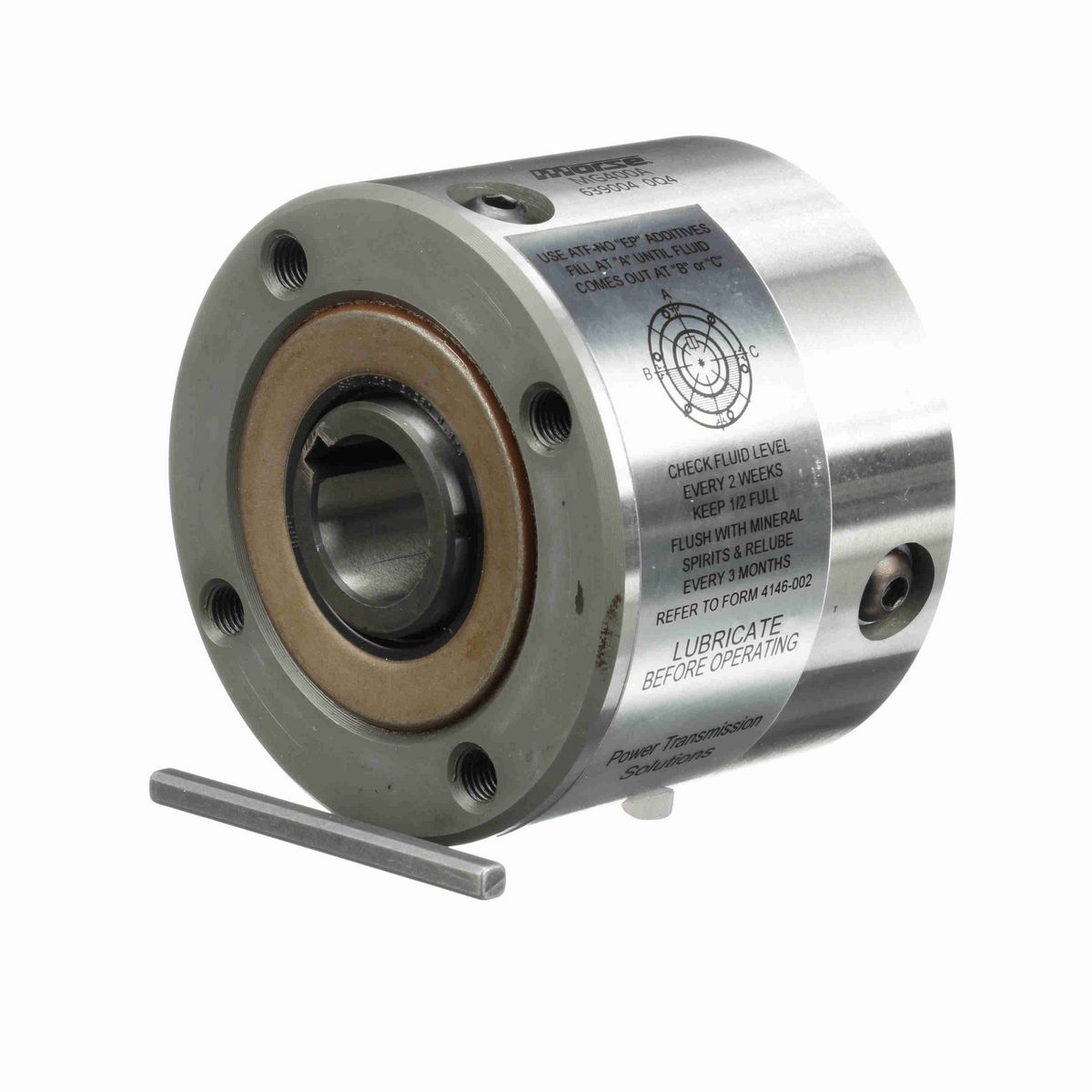

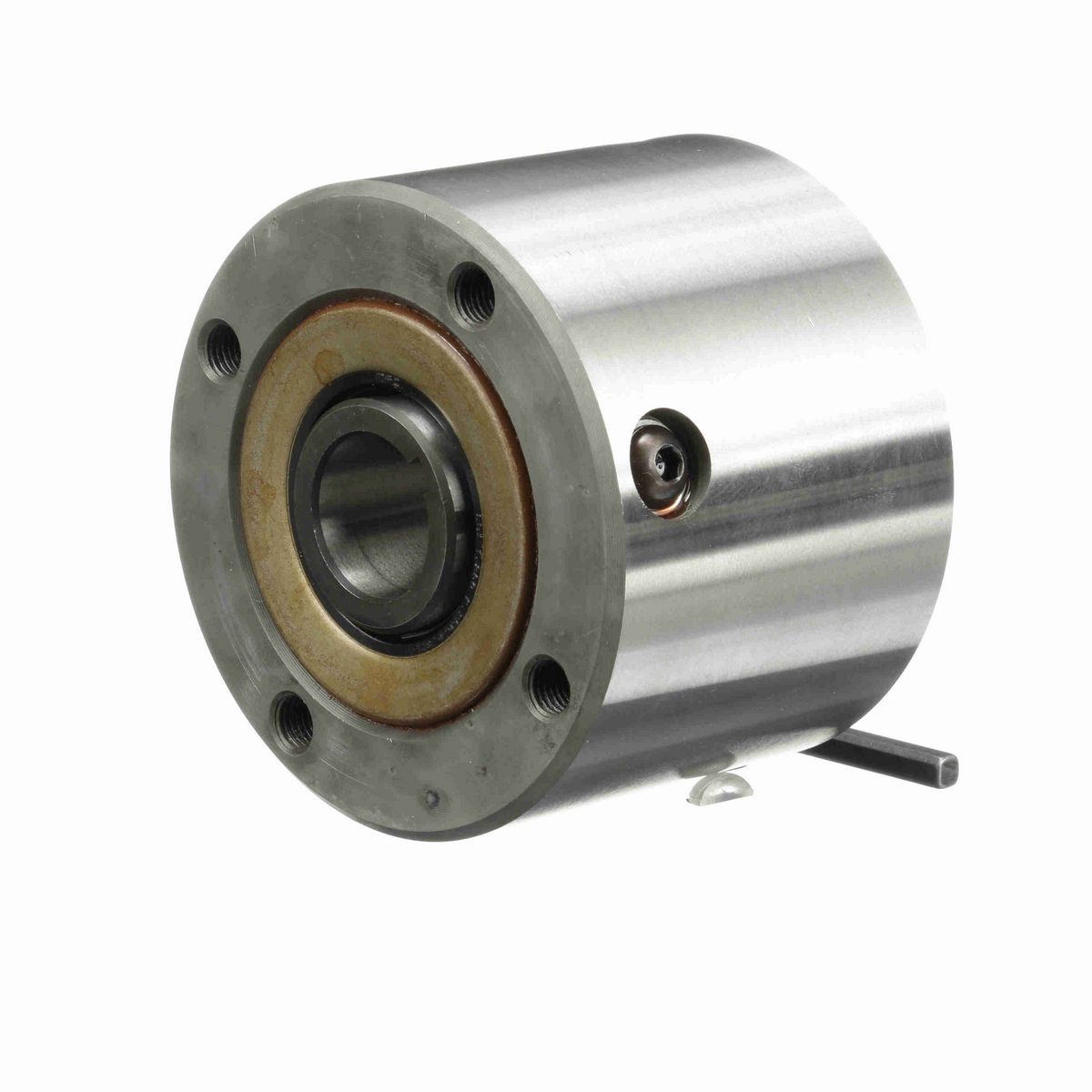

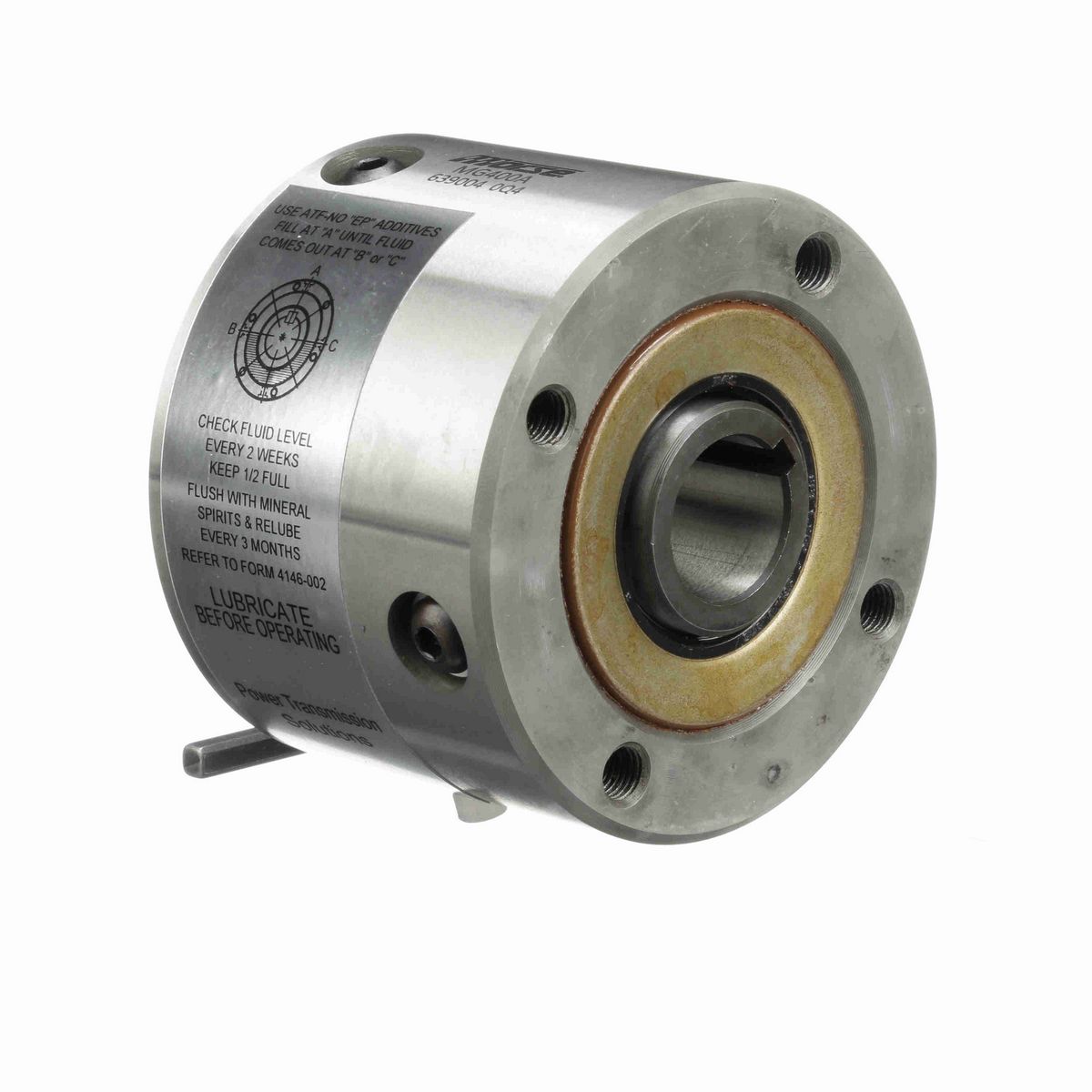

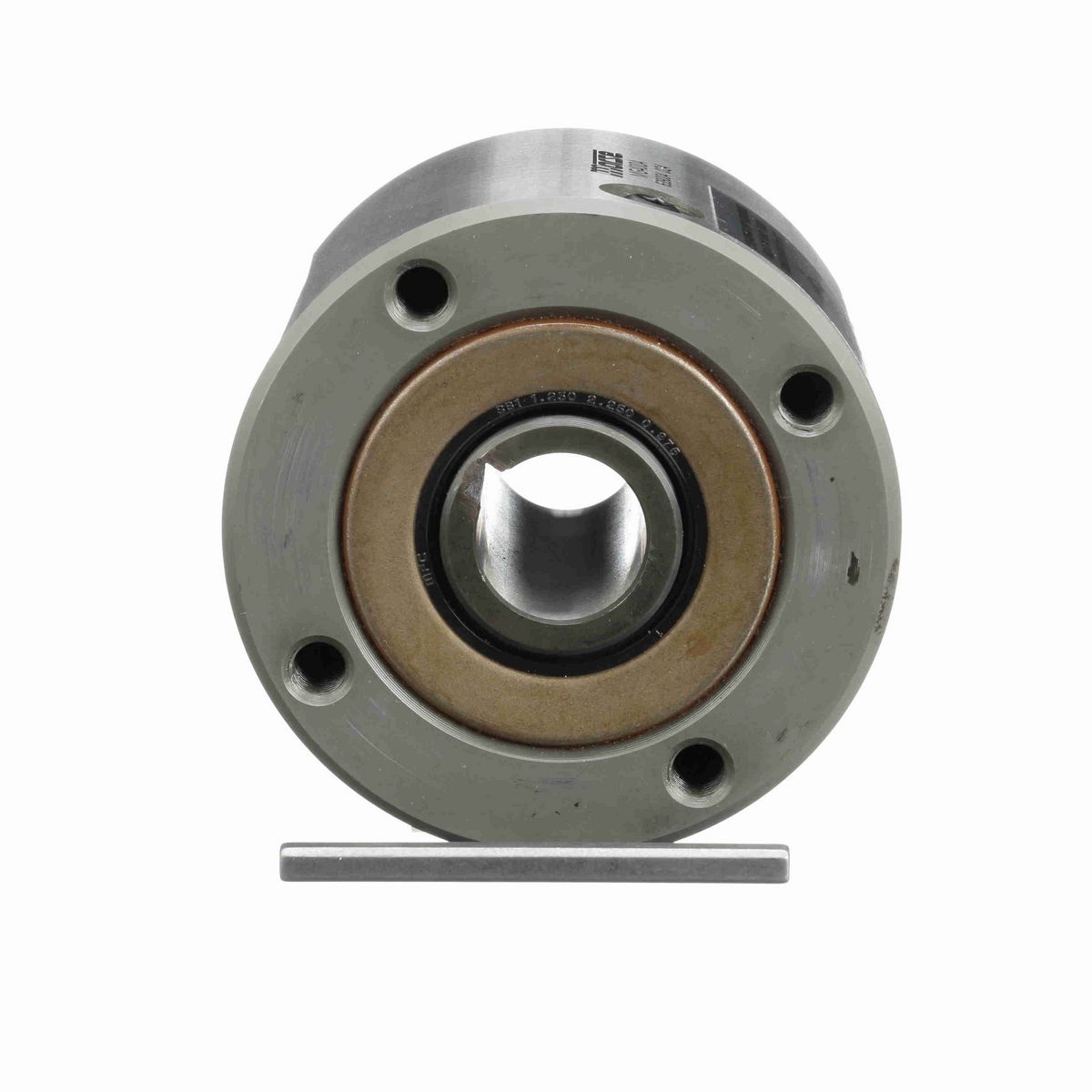

• The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
• MG is primarily used for general duty overriding, indexing, back-stopping. Offers precise spring energizing to provide ling overcunning life.

Technical Specifications

RPM Max. - Inner Race	2700
Type	CAM Clutches
Outer Width (in)	2.625 in
Overall Diameter (in)	3.5 in
Rated Torque Capacity (ft.-lbs.)	400
Inner Race Width (in)	2.75 in
RPM Max. - Outer Race	800
Product Type	M Series
Mode of Operation	General duty all types
Model	MG
Clutch size code	400
Add'l Bearing Support Requirement	No
Bore (Max) (in)	0.875 in
Bore (Min) (in)	0.625 in
Lubrication Type	Oil
Backstopping Clutch	Yes
Overrunning Clutch	Yes
Indexing Clutch	Yes
Bore Size (in)	0.875 in
Nominal Overrunning Drag (ft-lb)	0.21

General Specifications

UPC	662288501091
Weight	5.62 LB
Packaged Length	4.70 IN
Packaged Width	4.40 IN
Packaged Height	3.20 IN
HTC	8483.60.4040
Country of Origin	Mexico
