• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry

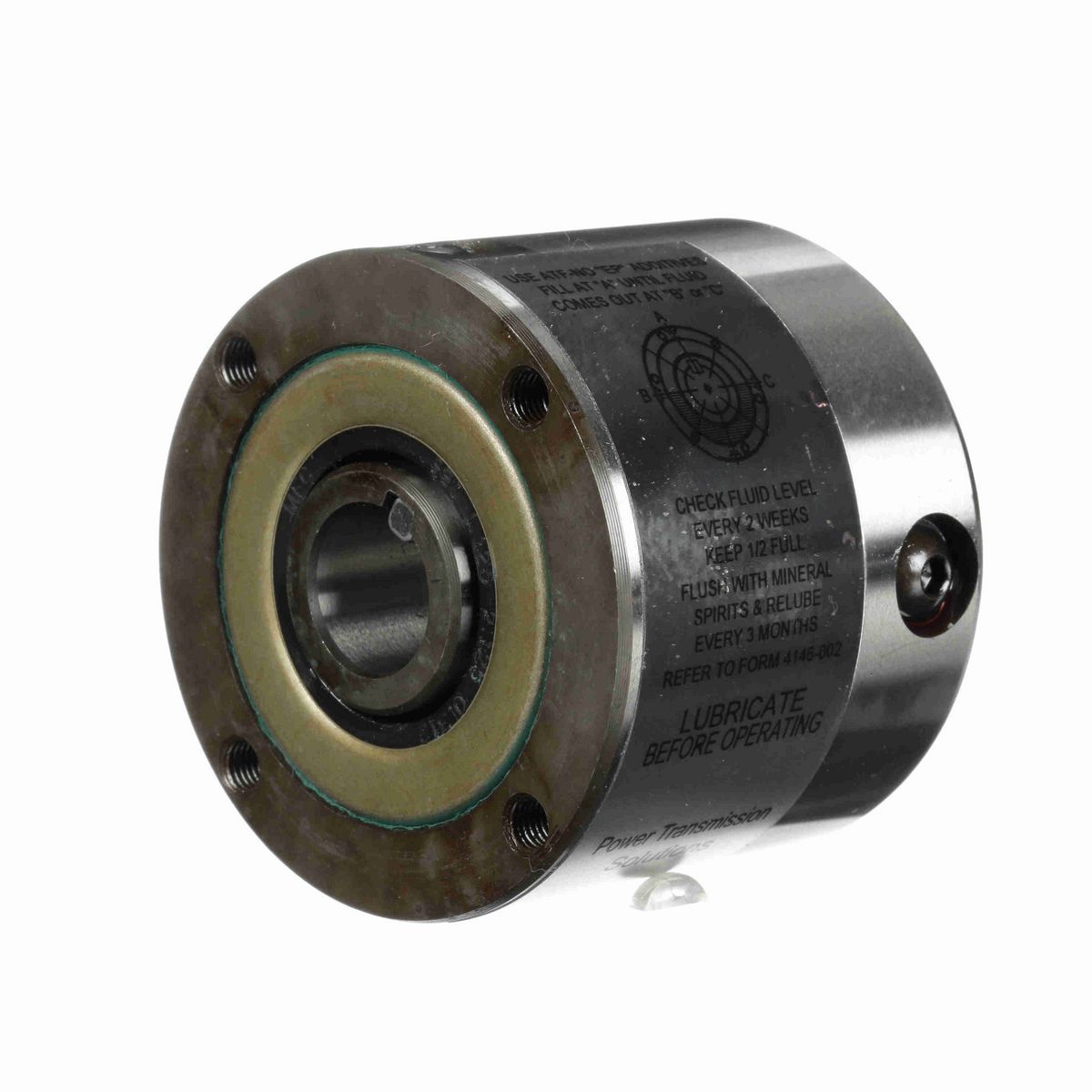

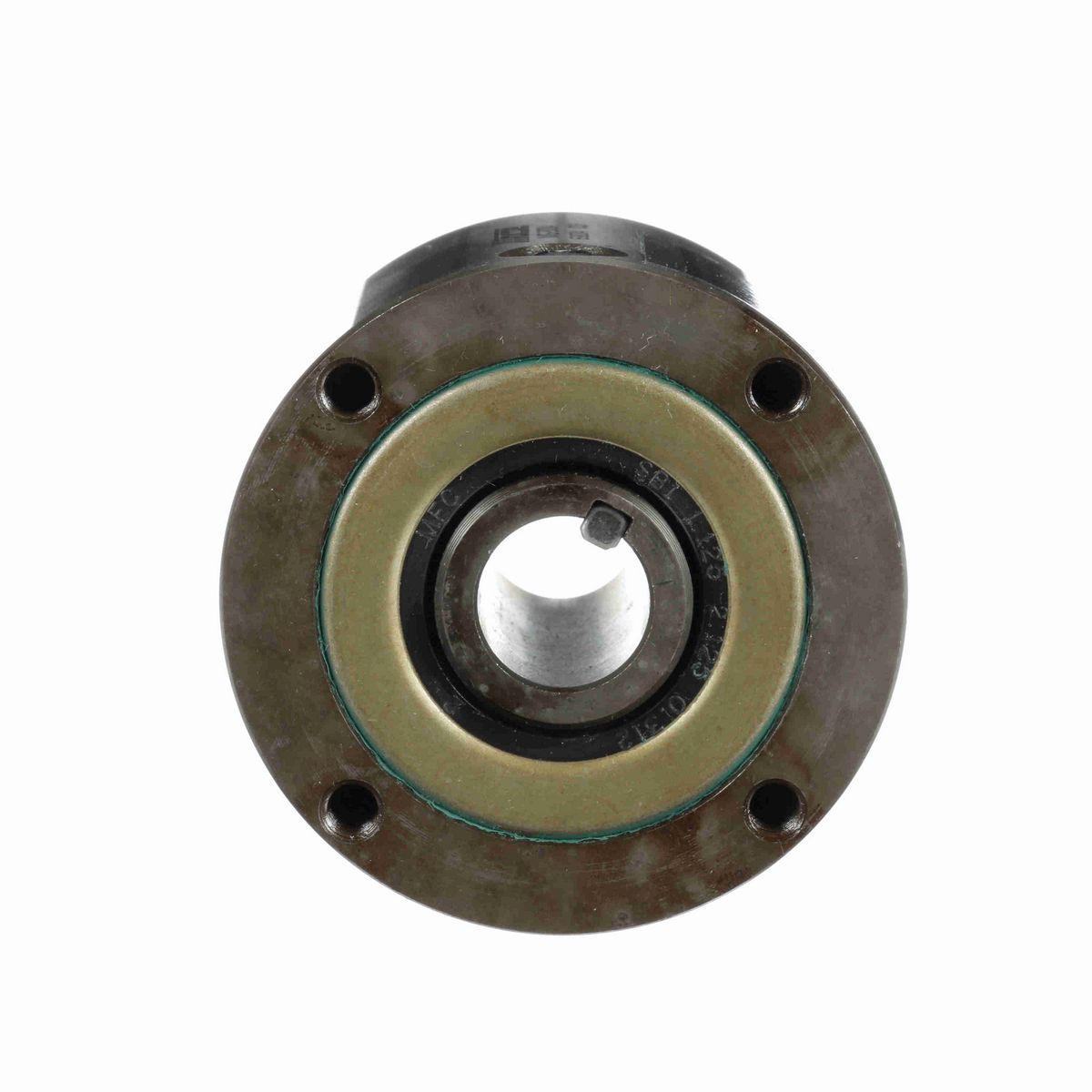

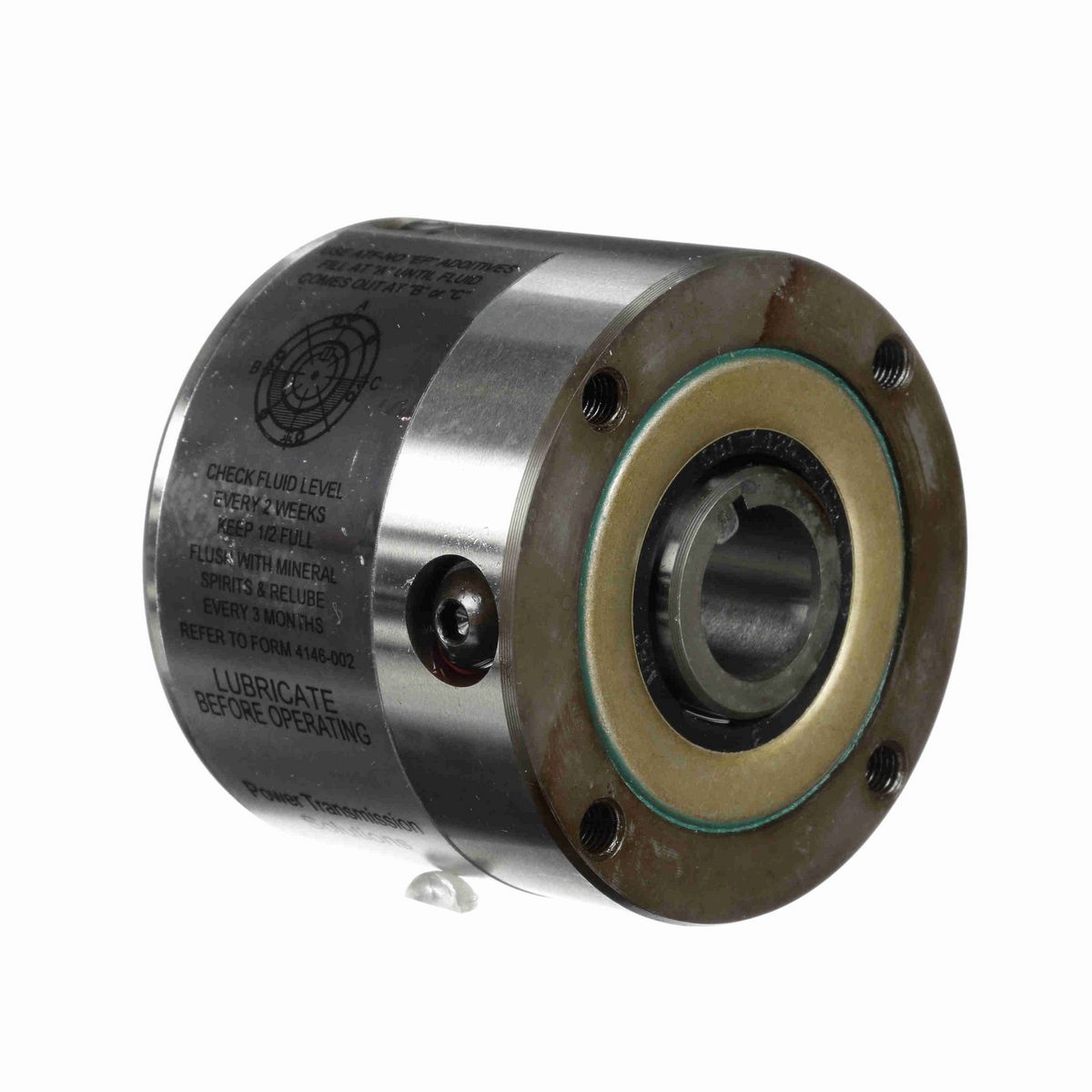

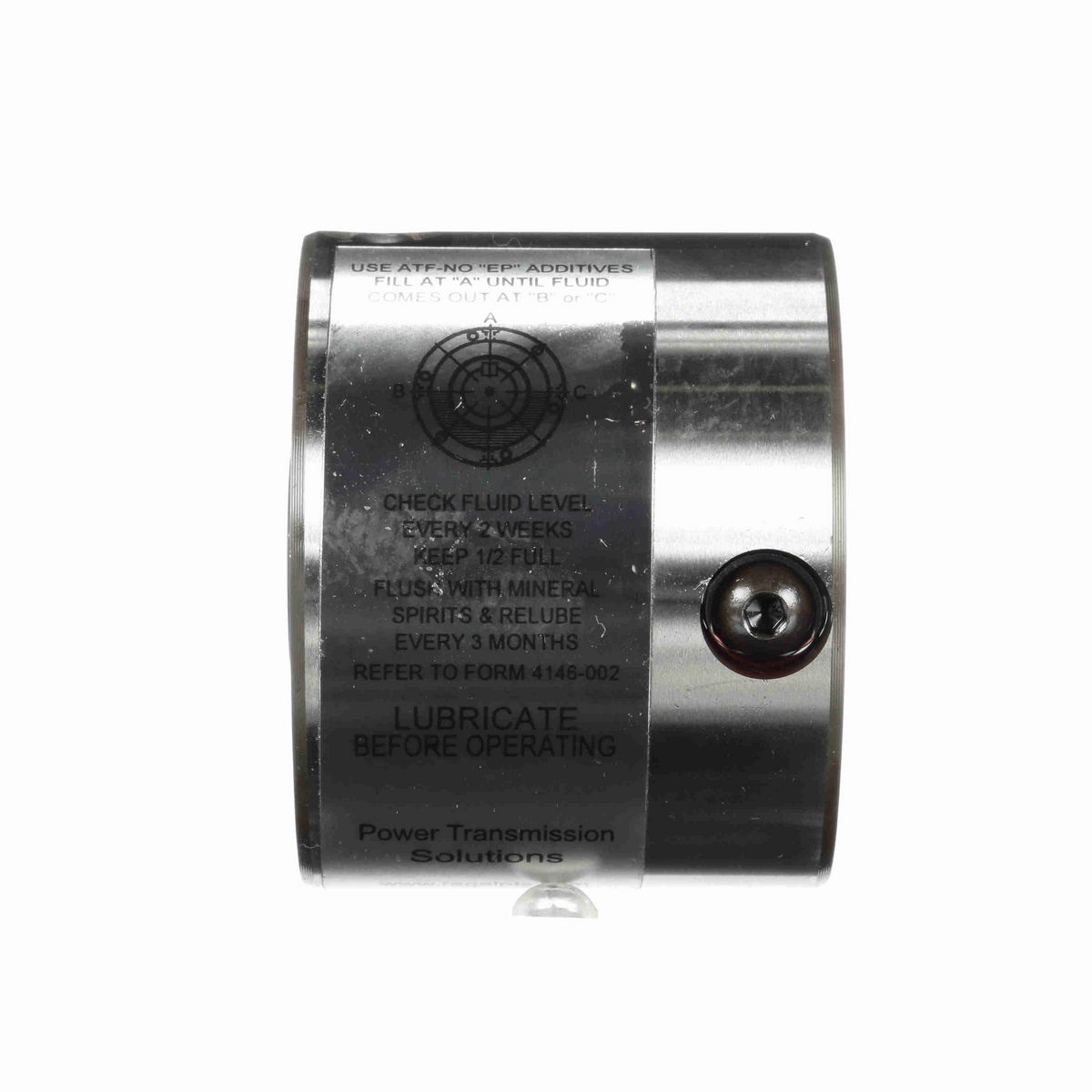

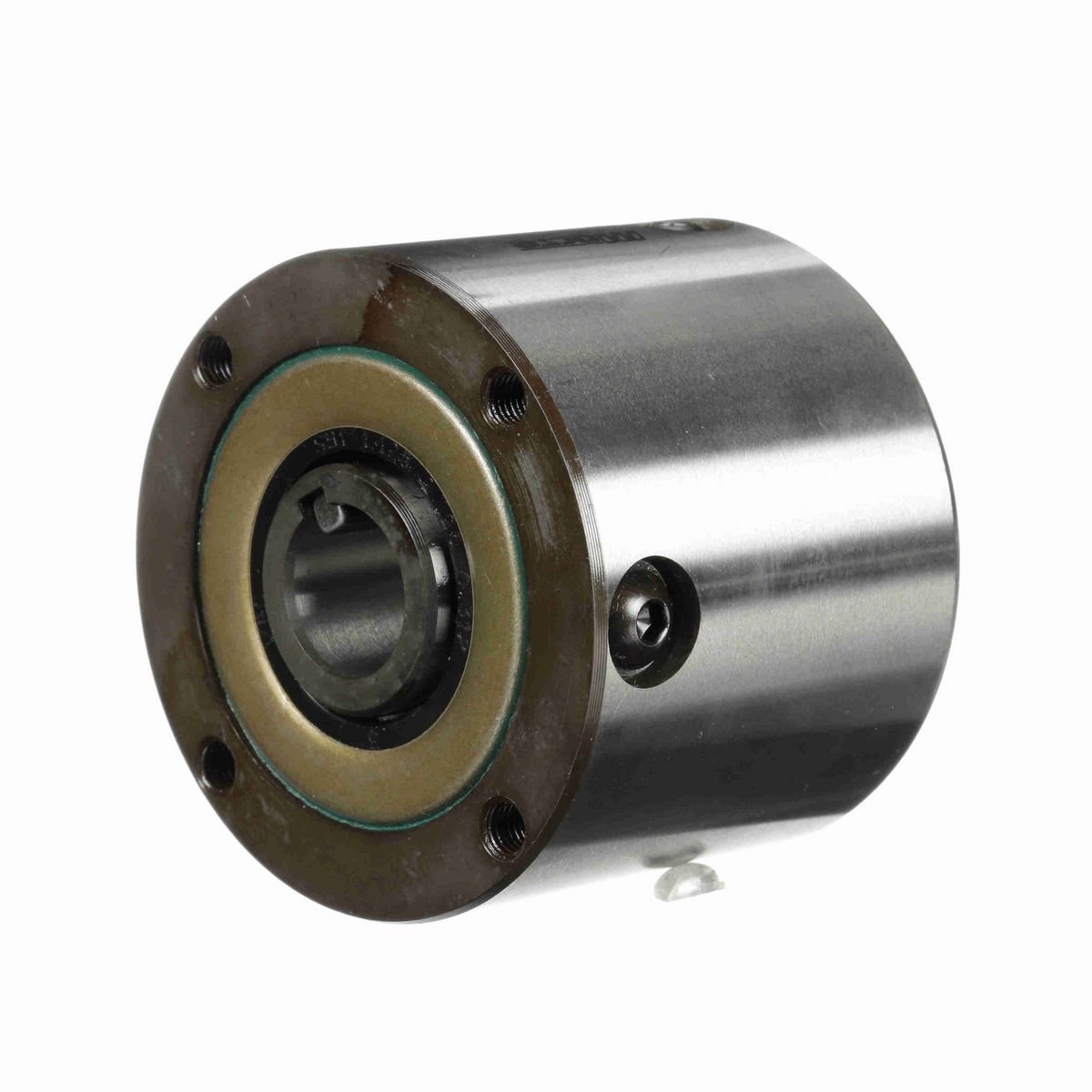

• The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
• MG is primarily used for general duty overriding, indexing, back-stopping. Offers precise spring energizing to provide ling overcunning life.

Technical Specifications

RPM Max. - Outer Race	800
Product Type	M Series
Overall Diameter (in)	3 in
Type	CAM Clutches
RPM Max. - Inner Race	2900
Outer Width (in)	2.375 in
Clutch size code	300
Inner Race Width (in)	2.5 in
Mode of Operation	General duty all types
Rated Torque Capacity (ft.-lbs.)	275
Model	MG
Add'l Bearing Support Requirement	No
Bore Size (in)	0.75 in
Lubrication Type	Oil
Bore (Max) (in)	0.75 in
Backstopping Clutch	Yes
Indexing Clutch	Yes
Overrunning Clutch	Yes
Bore (Min) (in)	0.5 in
Nominal Overrunning Drag (ft-lb)	0.17

General Specifications

UPC	662288500933
Weight	3.76 LB
Packaged Length	3.70 IN
Packaged Width	3.30 IN
Packaged Height	3.40 IN
HTC	8483.60.4040
Country of Origin	Mexico
