• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
• This general bearing clutch can be utilized with both oil and grease lubrication. Self contained ball bearing and cam clutch

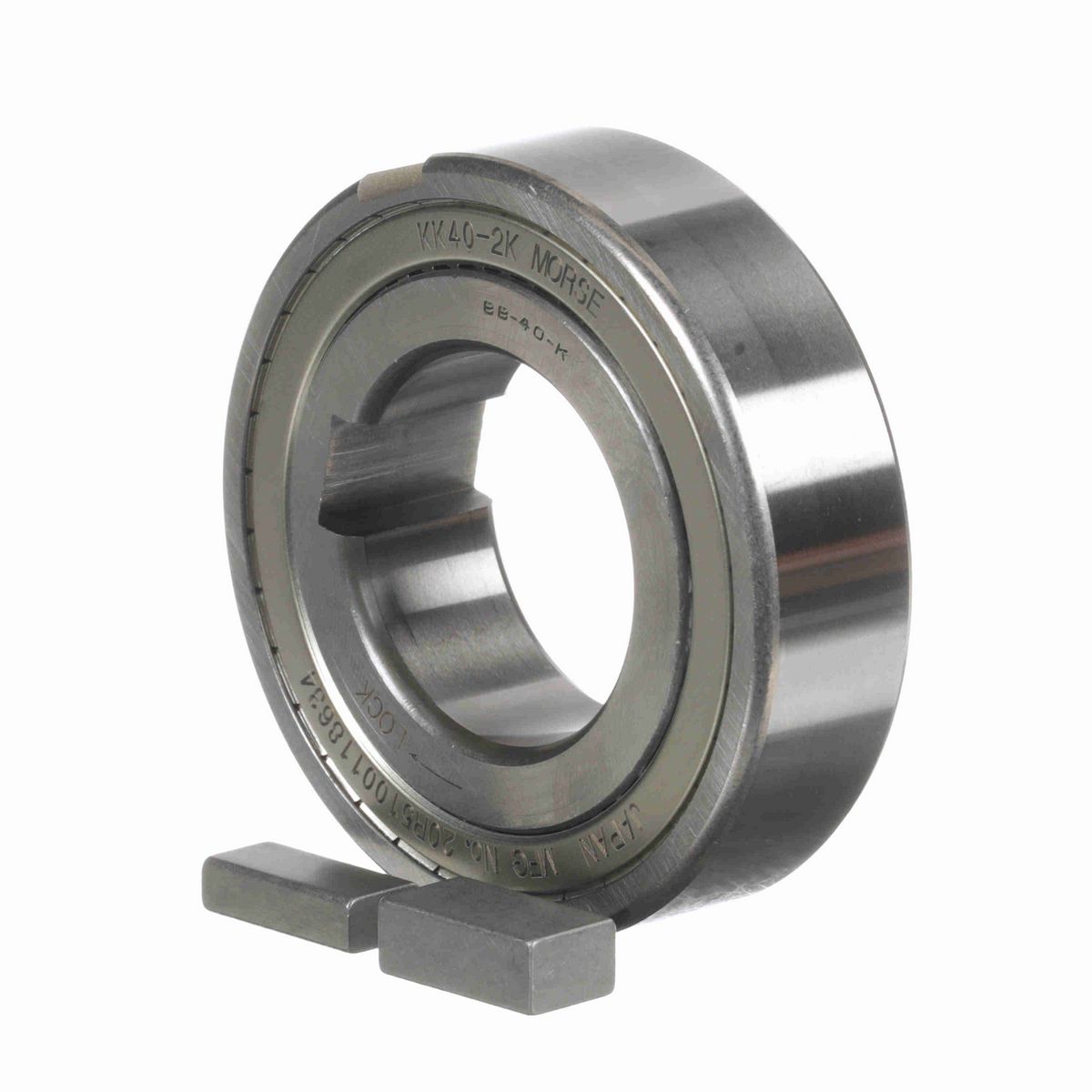

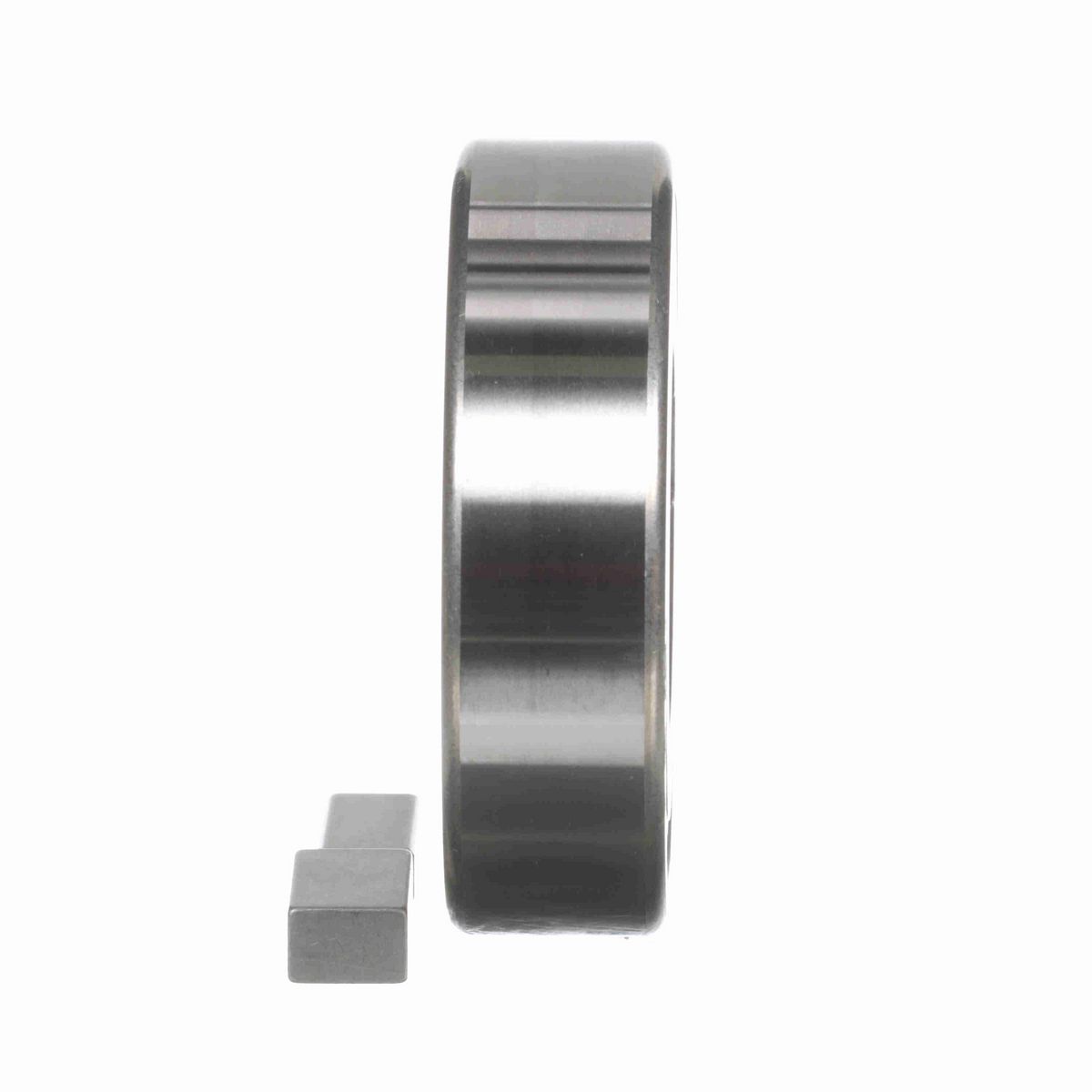

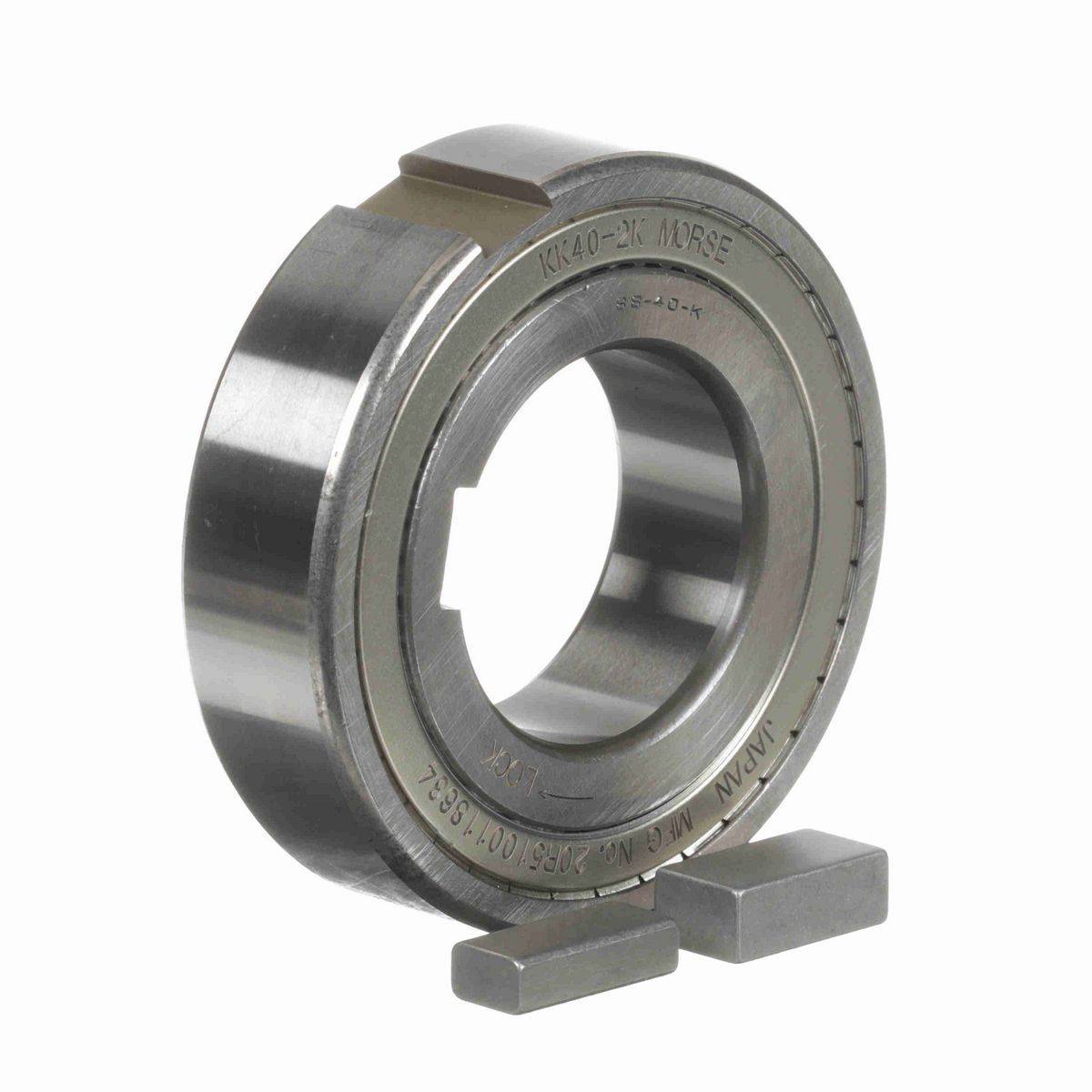

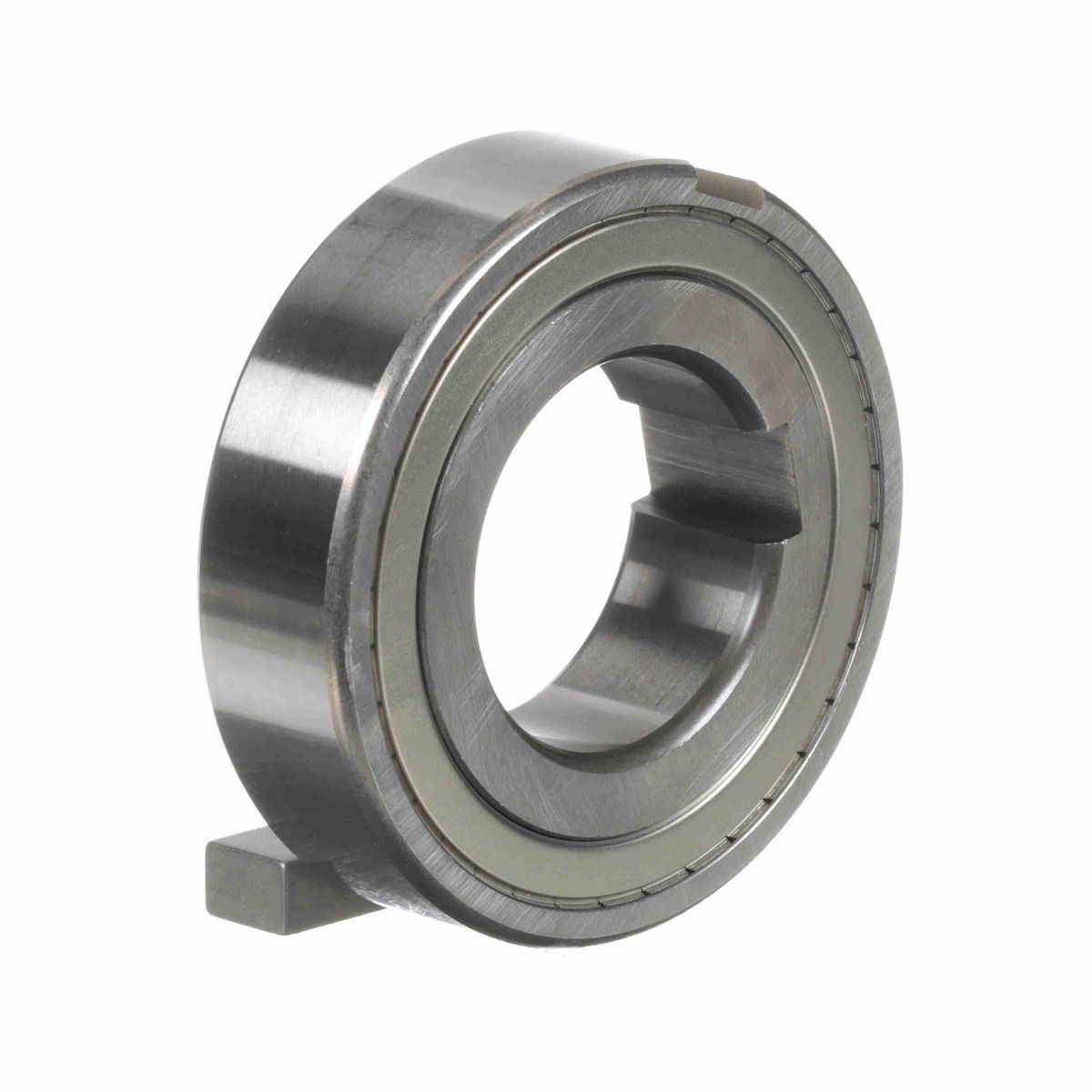

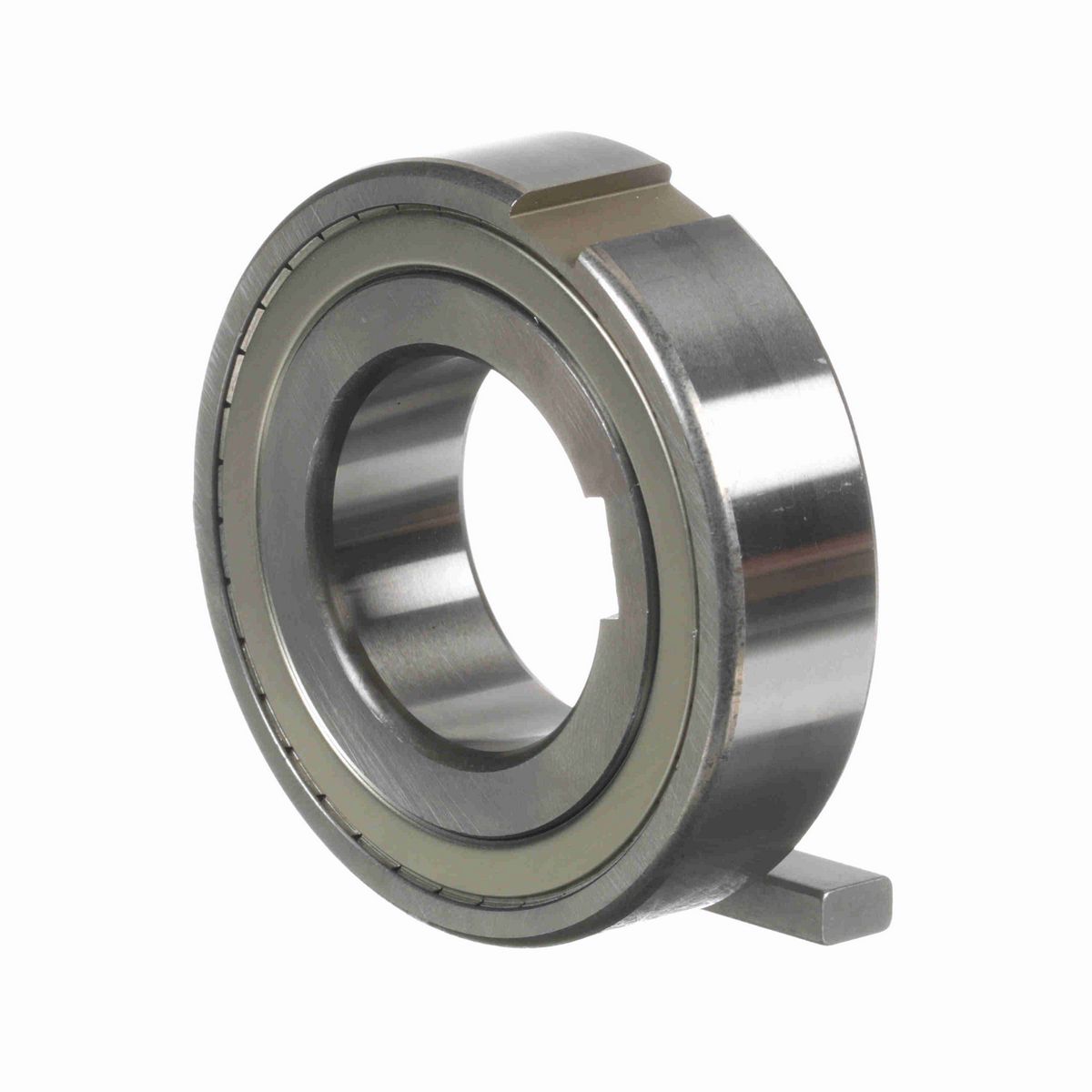

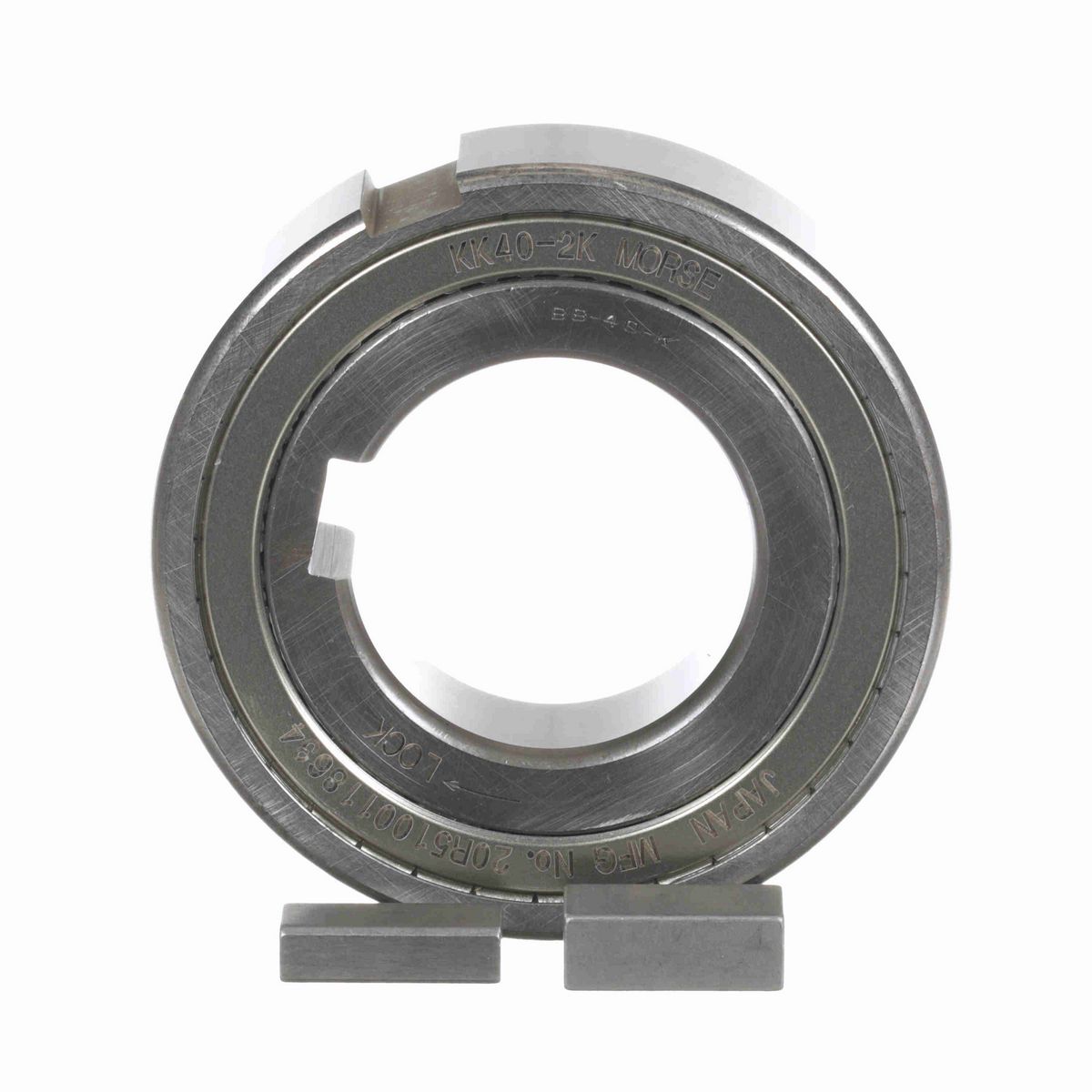

• KK Clutch is available in several configurations with different sealing options and inner and outer keyway options.

Technical Specifications

Overall Width (in)	0.866 in
Dynamic Radial Load Rating (lb)	3529.7
Static Radial Load Rating (lb)	2630.3
RPM Max. -inner Race	1,800
Type	CAM Clutches
Mounting Shaft Diameter	1.5743/1.5733
Overall Diameter (in)	3.15 in
Overall Diameter (mm)	80 mm
RPM Max. - Outer Race	900
Corner Radius	1.1
Mounting Housing Diameter	3.1494/3.1486
Add'l Bearing Support Requirement	No
Bore Size (mm)	40 mm
Overrunning Clutch	Yes
Product Type	KK Series
Rated Torque Capacity (ft.-lbs.)	191.8
Indexing Clutch	Yes
Backstopping Clutch	Yes

General Specifications

UPC	662288927600
Weight	1.32 LB
HTC	8483.60.4040
Country of Origin	Japan
