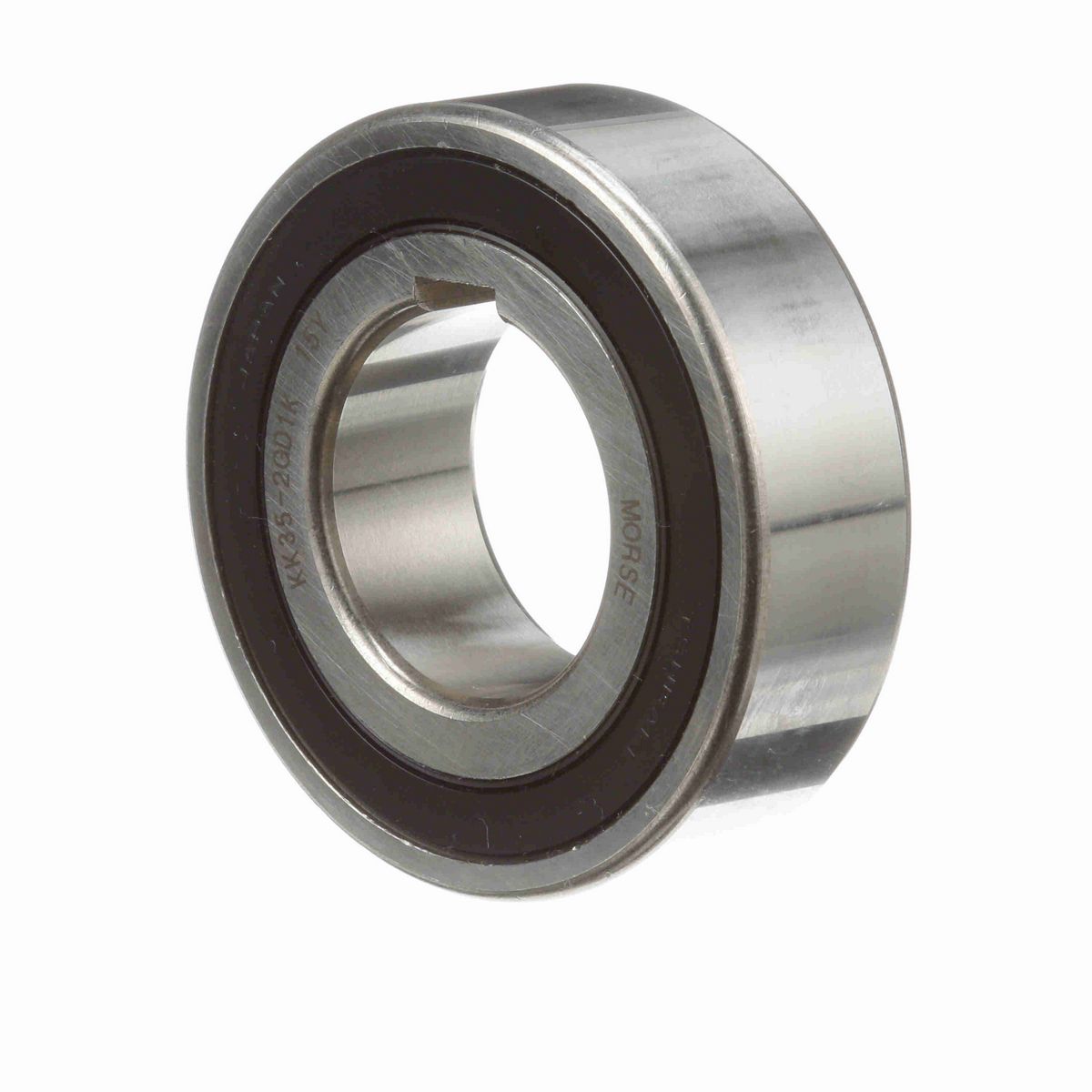

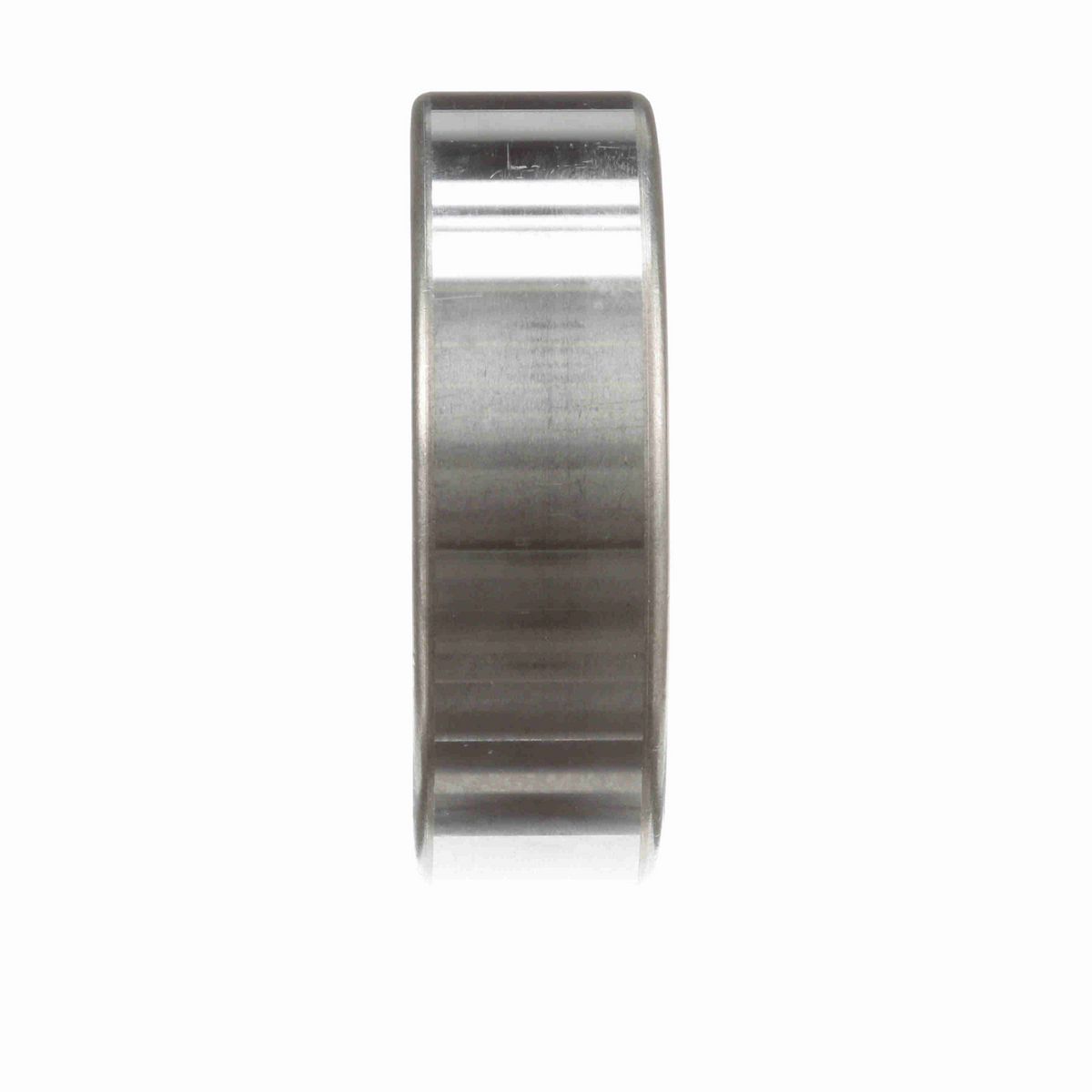

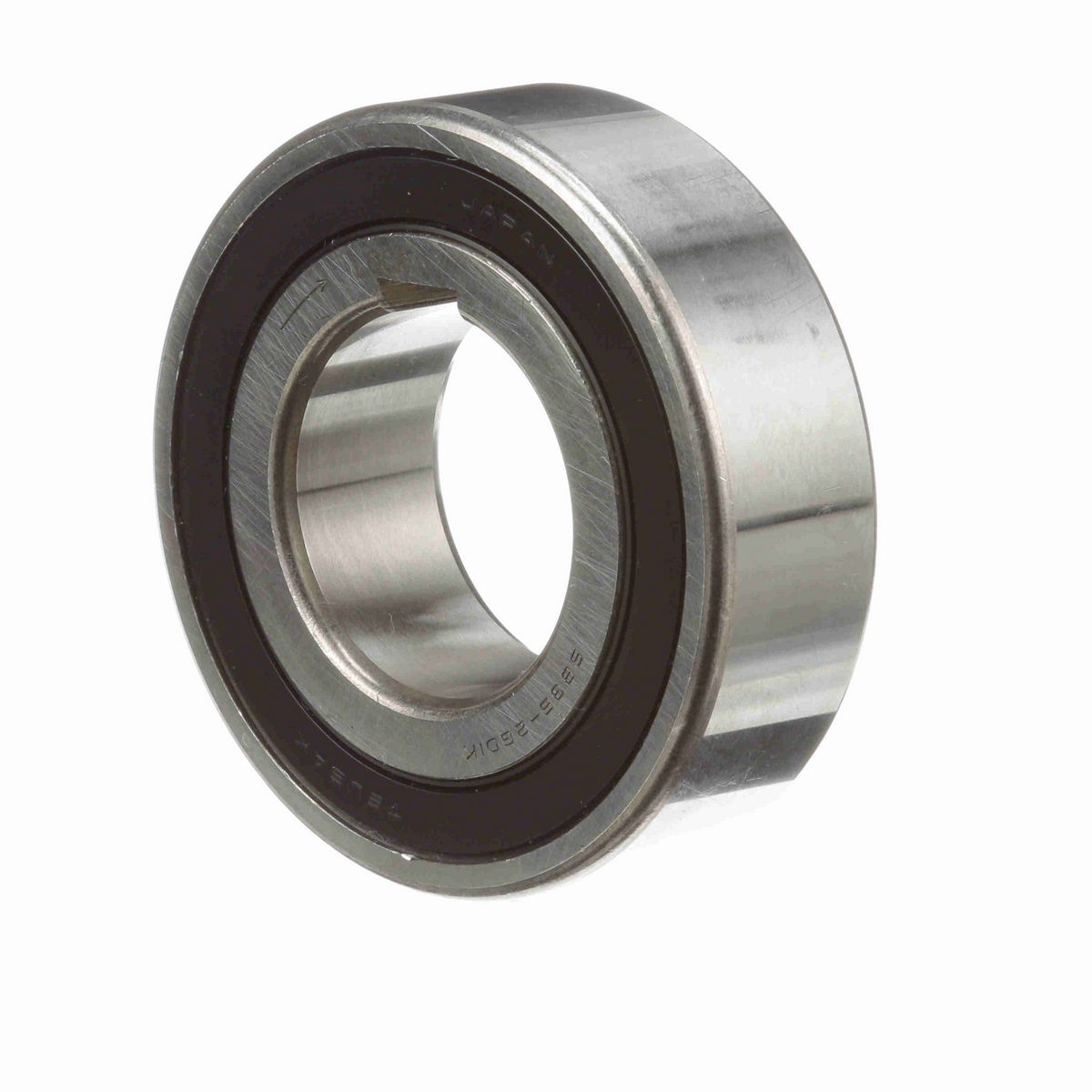

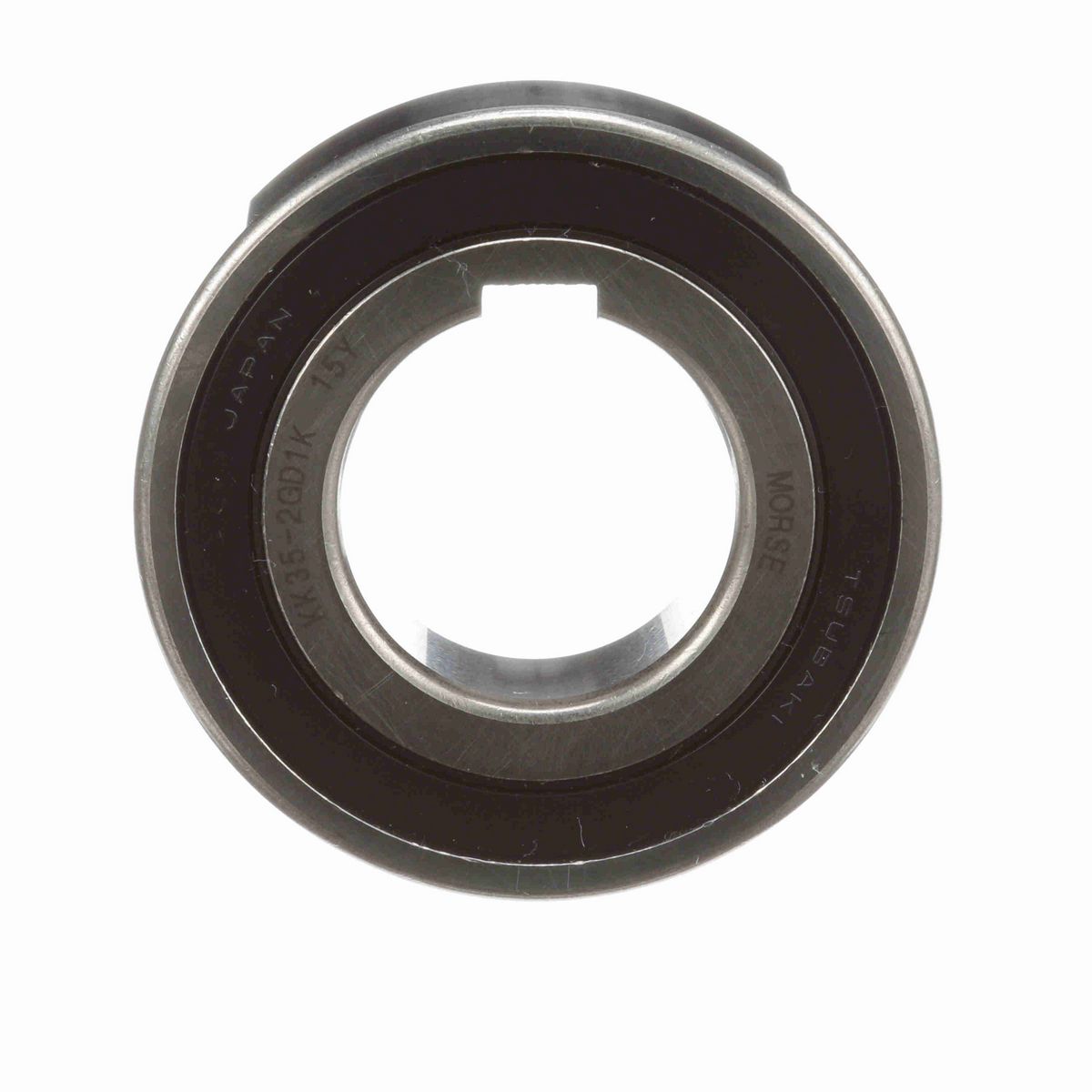

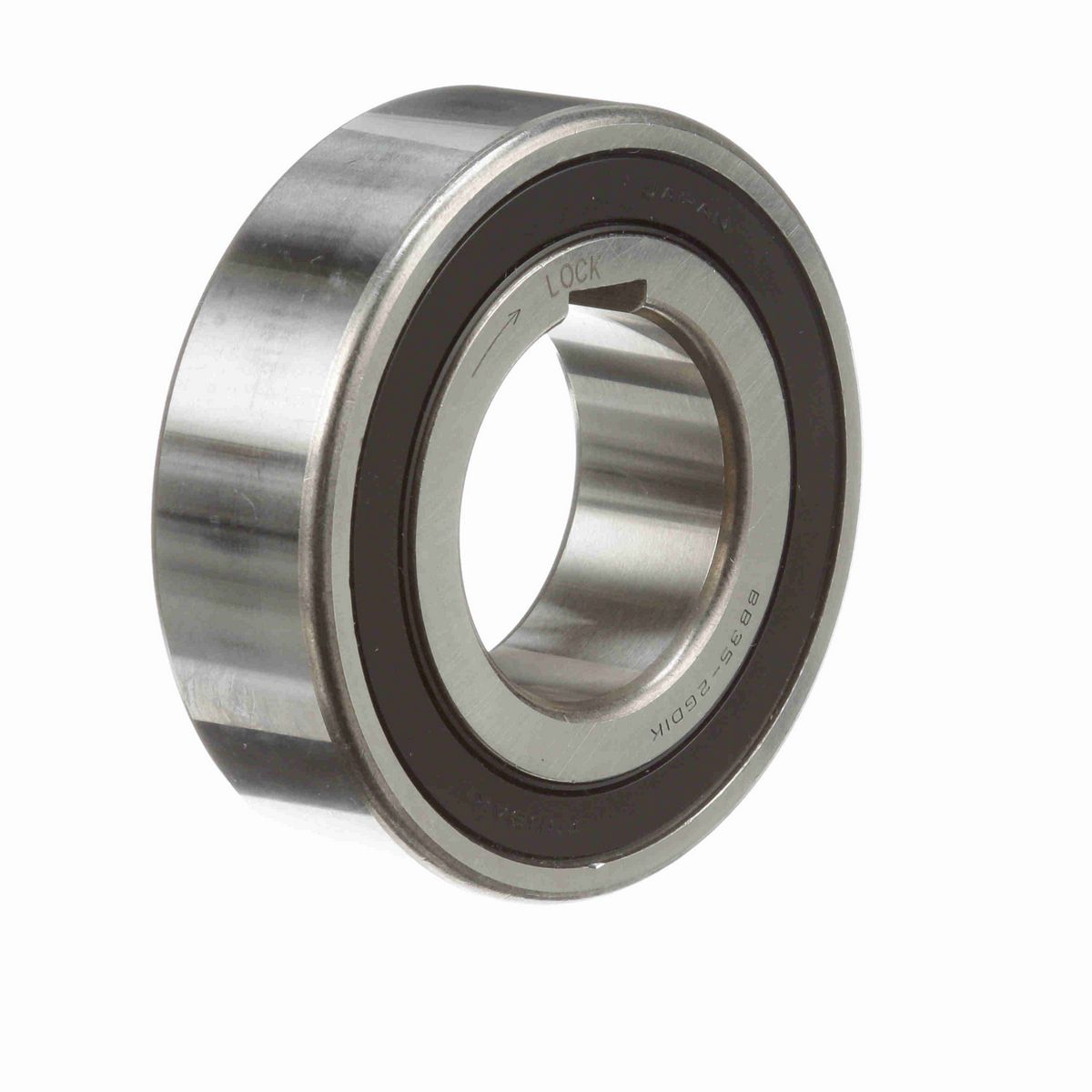

• Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
• This general bearing clutch can be utilized with both oil and grease lubrication. Self contained ball bearing and cam clutch
• KK Clutch is available in several configurations with different sealing options and inner and outer keyway options.

Technical Specifications

Mounting Housing Diameter	2.834/2.8333
Type	CAM Clutches
RPM Max. - Outer Race	1000
RPM Max. -inner Race	1,800
Static Radial Load Rating (lb)	2180.6
Overall Diameter (mm)	72 mm
Corner Radius	1.1
Mounting Shaft Diameter	1.3775/1.3765
Overall Diameter (in)	2.835 in
Dynamic Radial Load Rating (lb)	3034.9
Overall Width (in)	0.866 in
Add'l Bearing Support Requirement	No
Backstopping Clutch	Yes
Product Type	KK Series
Overrunning Clutch	Yes
Rated Torque Capacity (ft.-lbs.)	127.6
Bore Size (mm)	35 mm
Indexing Clutch	Yes

General Specifications

UPC	662288927570
Weight	1.39 LB
Packaged Length	3.20 IN
Packaged Width	3.10 IN
Packaged Height	1.10 IN
HTC	8483.60.4040
Country of Origin	Japan
