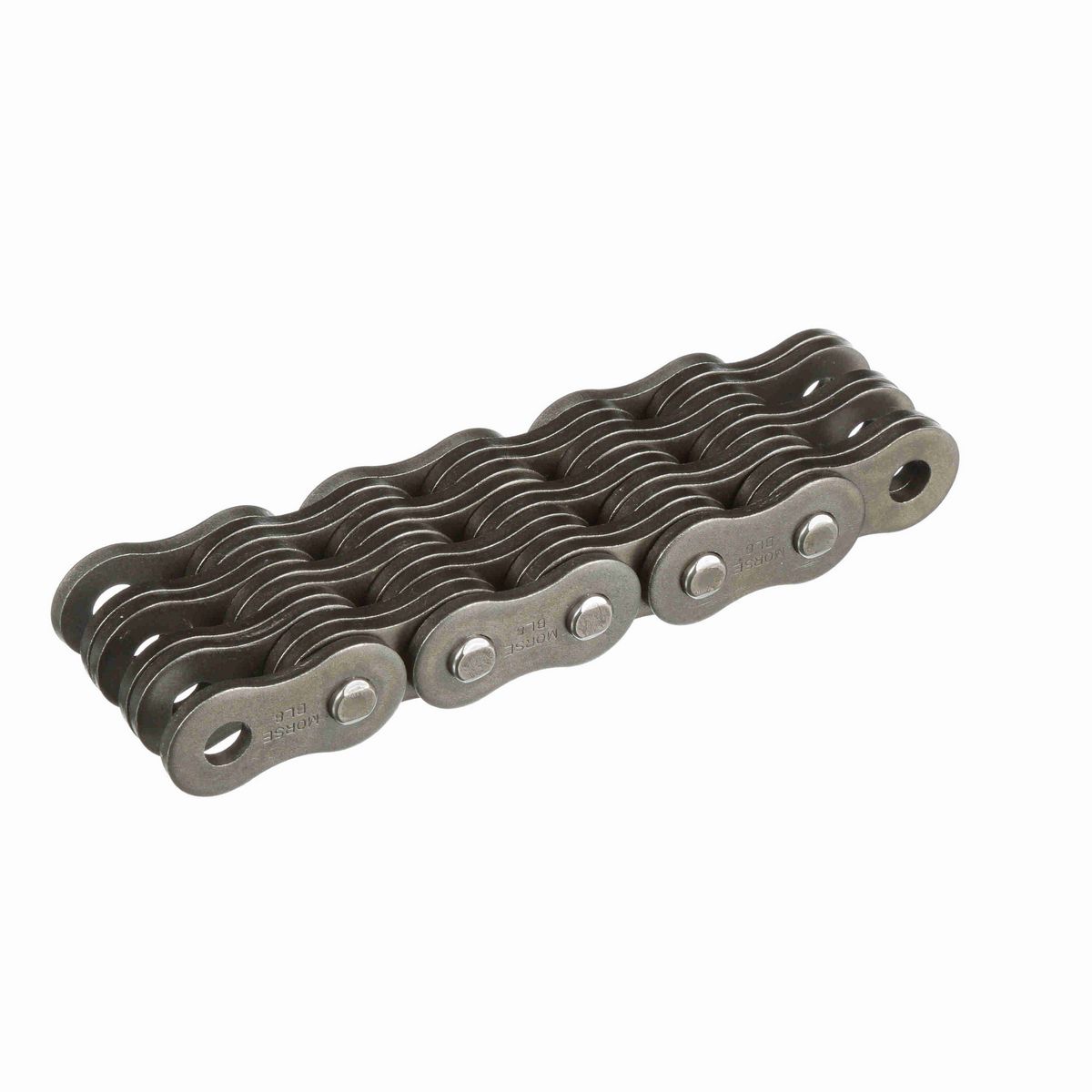

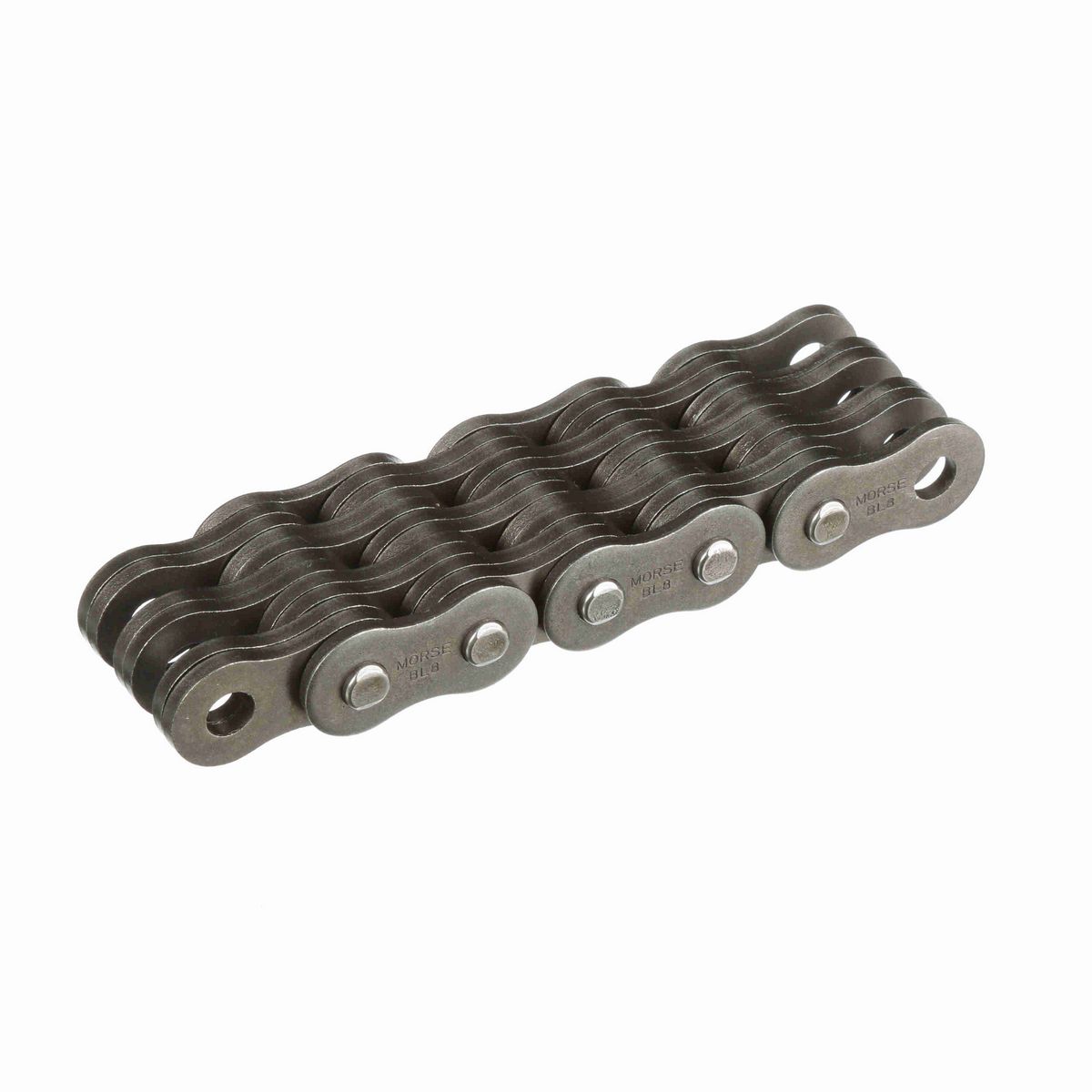

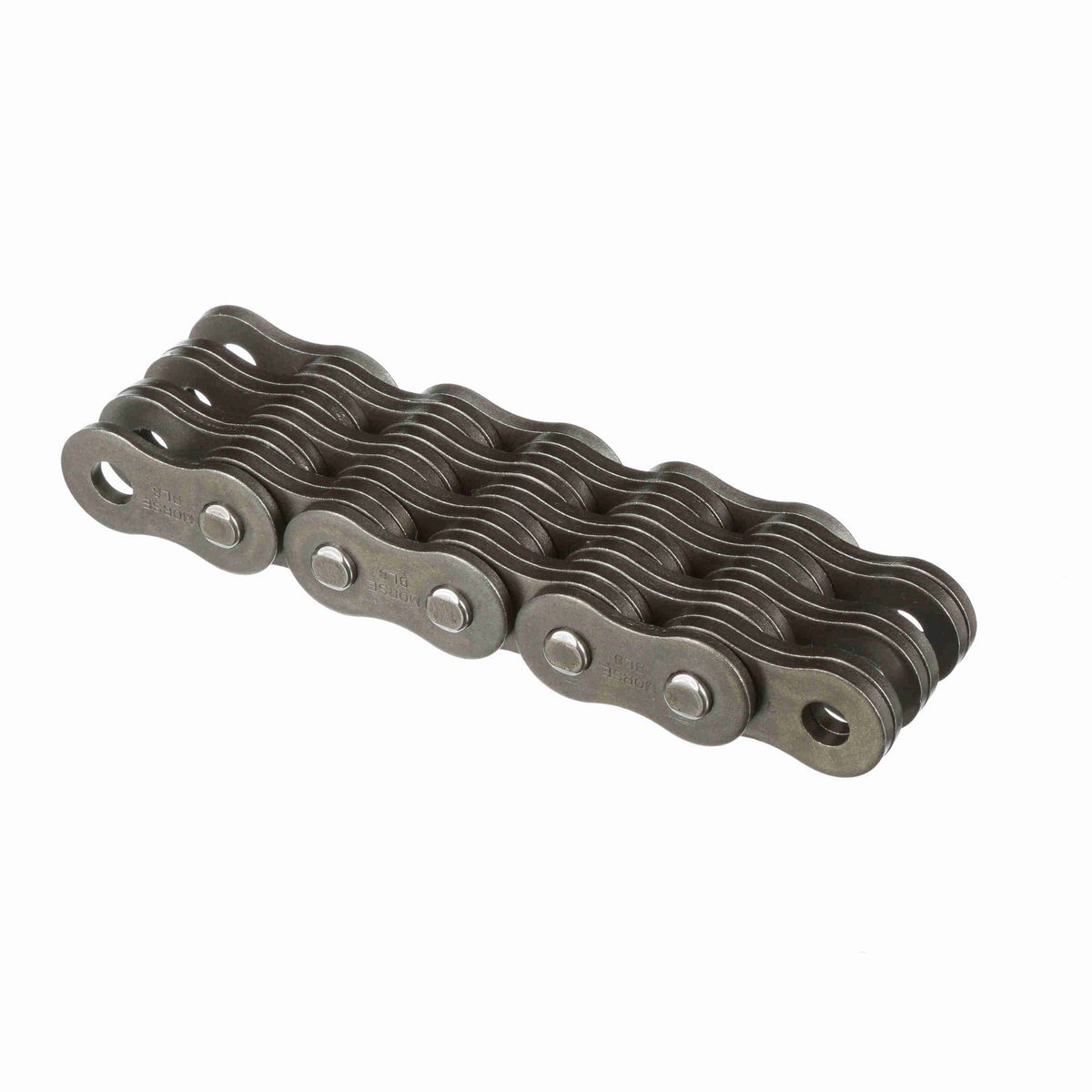

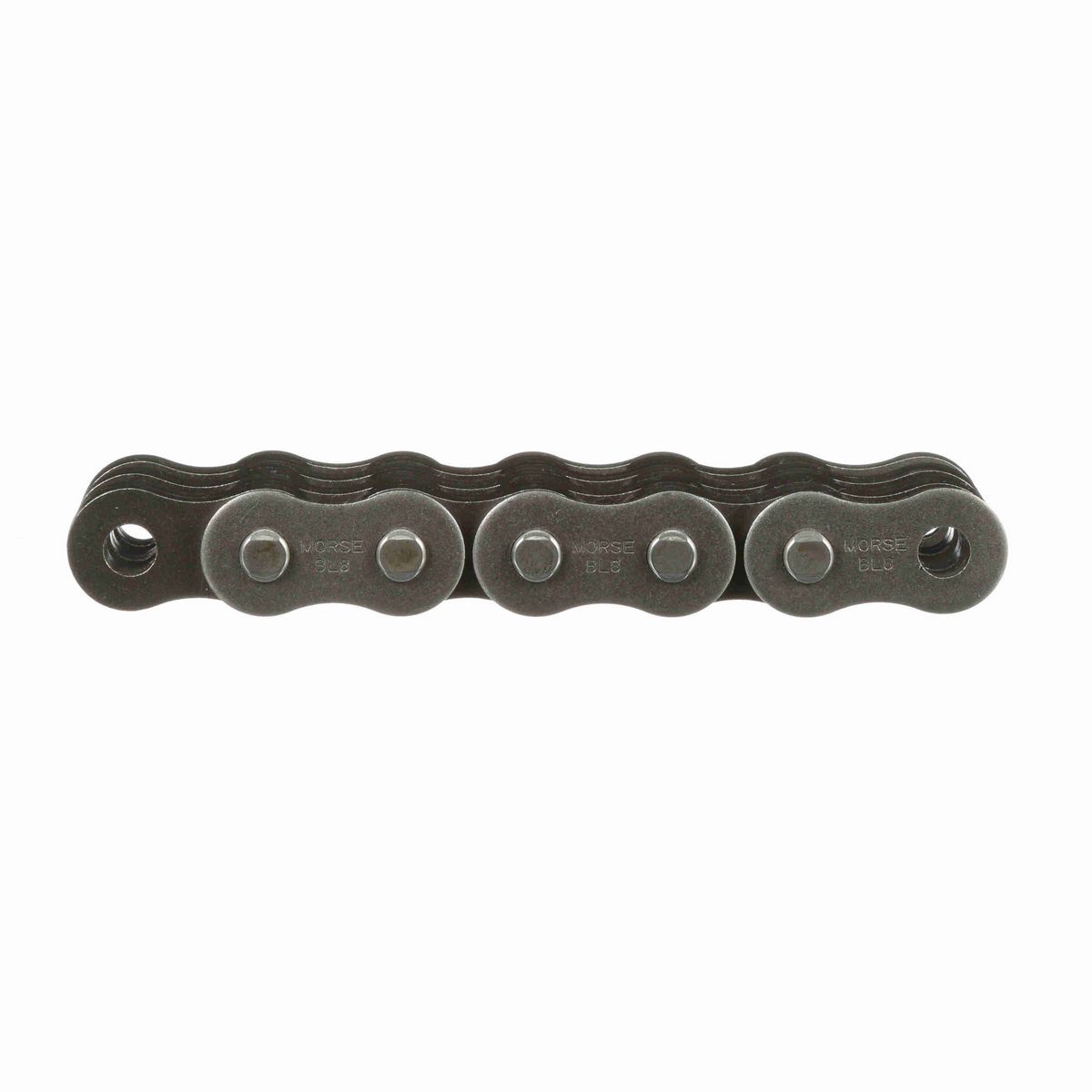

• Morse Leaf chains are designed for high lifting power at low speeds
• Morse leaf chain is constructed from link plates and riveted pins
• Available with F97 Certification
• Available in package quantities or as strands of a specific length.

Technical Specifications

Chain Size	BL8
Chain Pitch (in)	1 in
Pin Diameter (in)	0.375 in
Product Type	Leaf Chain
Chain Type	Leaf Chain
Lacing (in)	6 x 6 in
Plate Thickness (mm)	4 mm
Pin Diameter (mm)	9.53 mm
Overall Width/Pin Length (in)	2.13 in
Overall Width/Pin Length (mm)	54.1 mm
Base Catalog No	BL866
Plate Depth (in)	0.929 in
Plate Thickness (in)	0.157 in
Width Over Rivets (in)	2.105 in
ISO Minimum Tensile Strength (N)	253600 N
Rex/Morse Minimum Tensile Strength (lbs)	57,000 lb
Plate Depth (mm)	23.6 mm

General Specifications

UPC	662288464877
Weight	4.91 LB
Packaged Length	12.10 IN
Packaged Width	14.90 IN
Packaged Height	2.20 IN
HTC	7315.12.0080
Country of Origin	Taiwan, Republic of China
