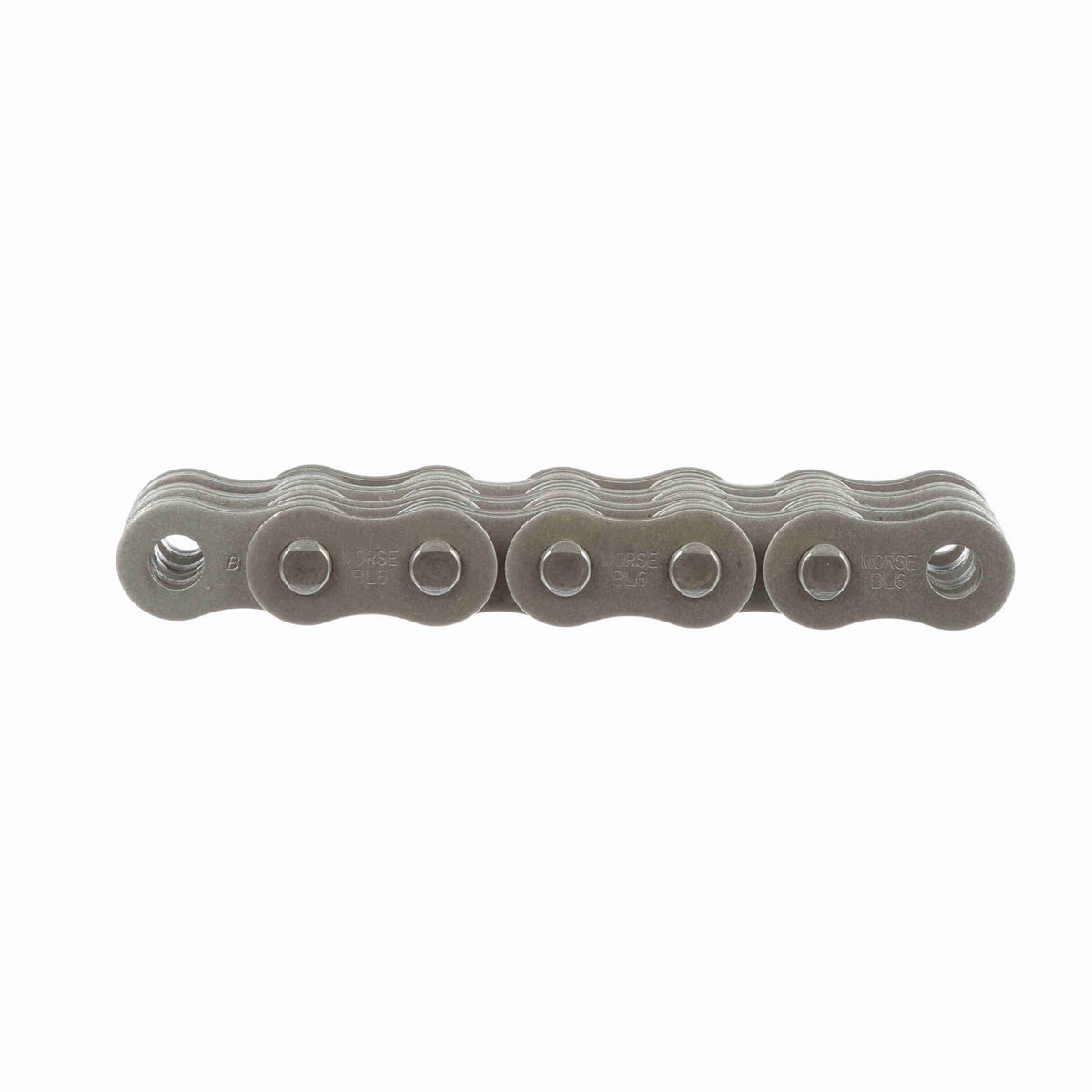

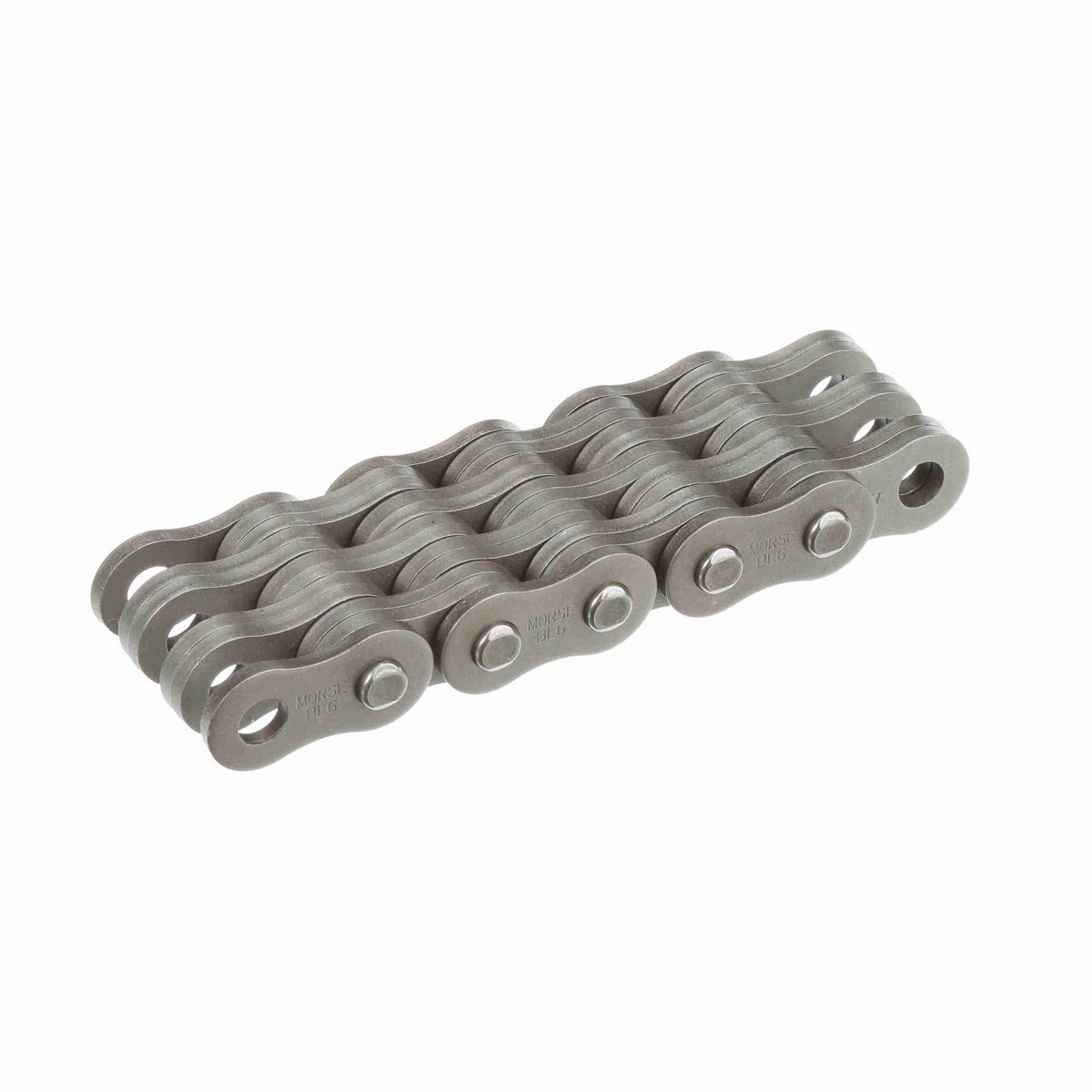

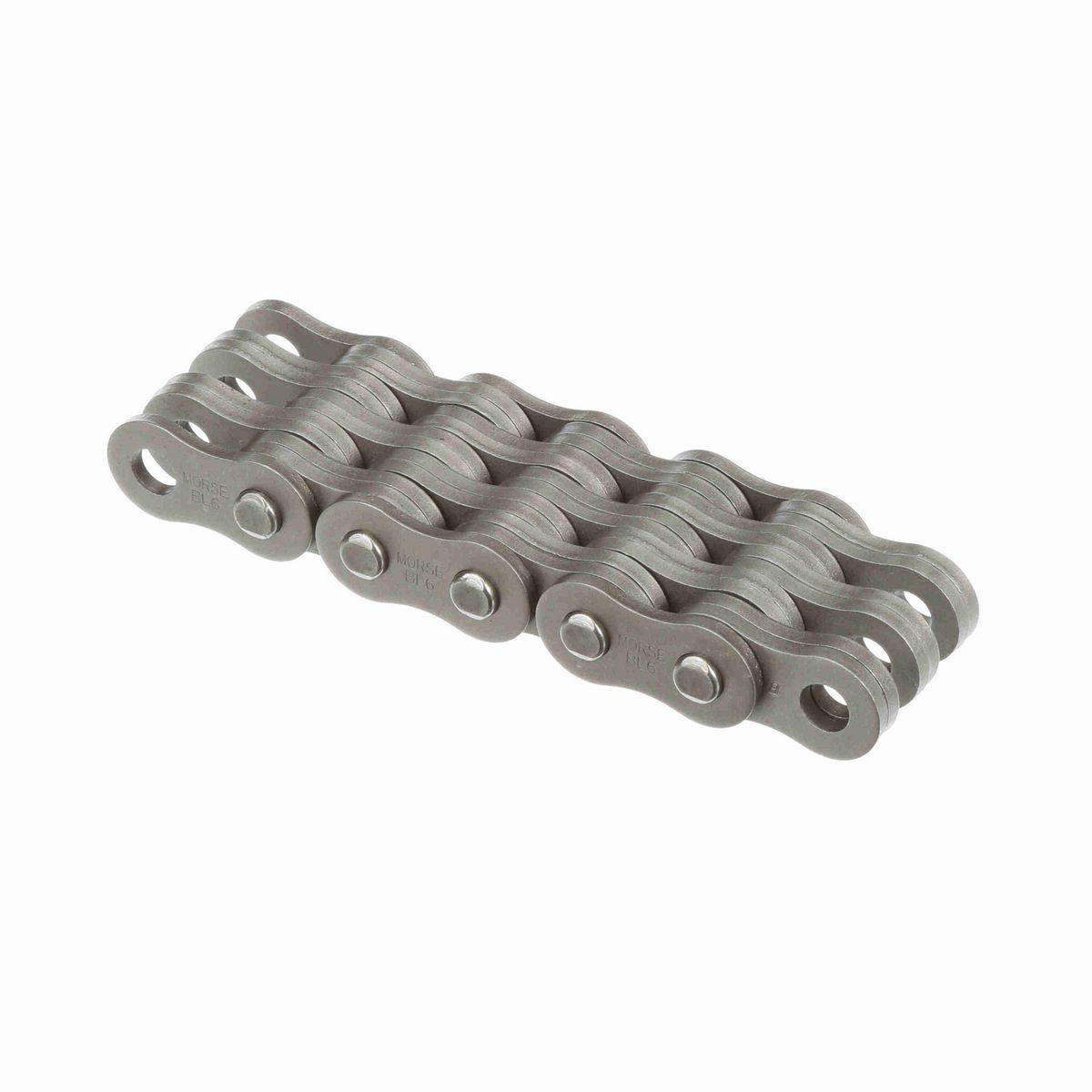

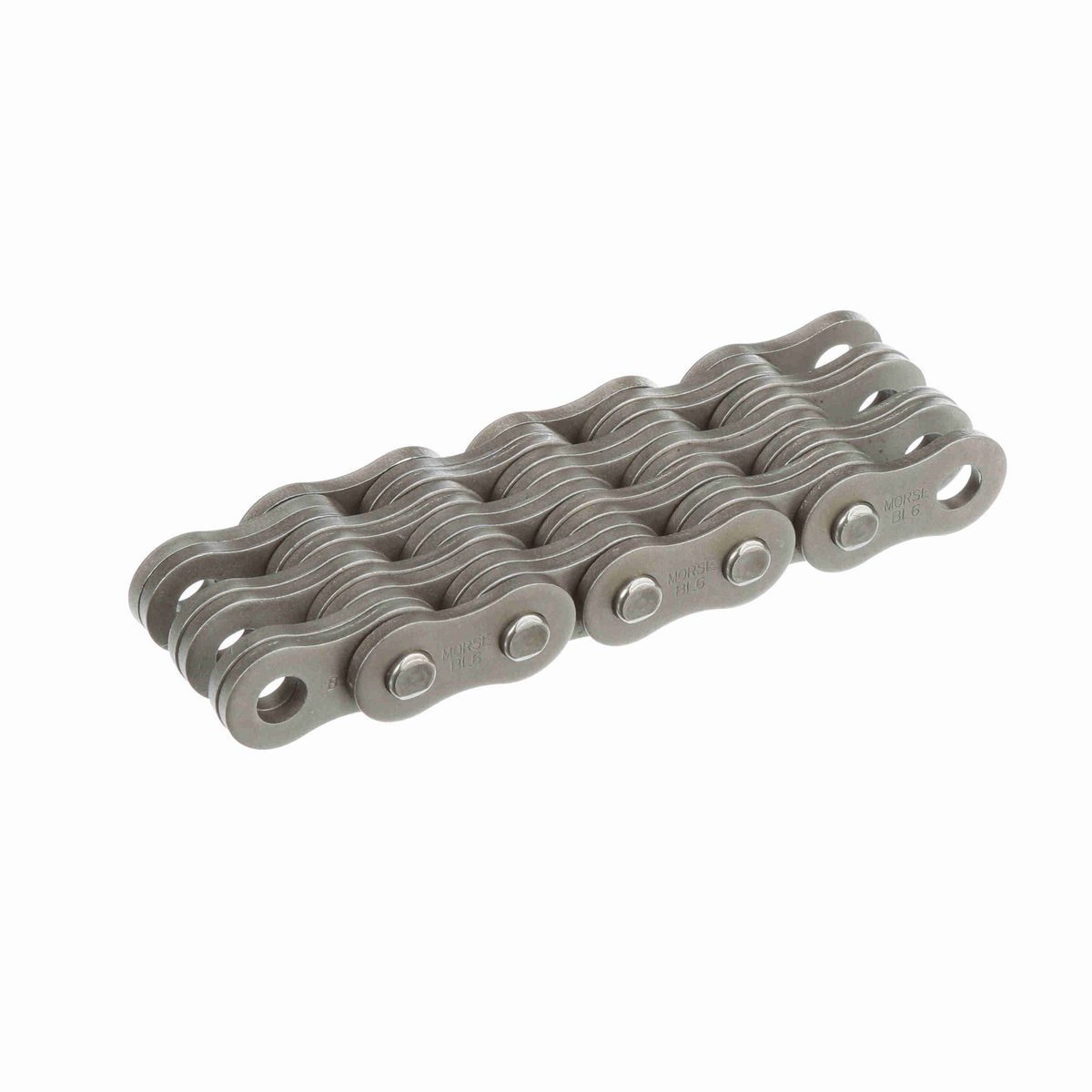

• Morse Leaf chains are designed for high lifting power at low speeds
• Morse leaf chain is constructed from link plates and riveted pins
• Available with F97 Certification
• Available in package quantities or as strands of a specific length.

Technical Specifications

Chain Size	BL6
Chain Type	Leaf Chain
Product Type	Leaf Chain
Pin Diameter (in)	0.312 in
Chain Pitch (in)	0.75 in
Plate Thickness (mm)	3.1 mm
Lacing (in)	6 x 6 in
Width Over Rivets (in)	1.705 in
Plate Depth (mm)	17.9 mm
Base Catalog No	BL666
ISO Minimum Tensile Strength (N)	146800 N
Plate Thickness (in)	0.122 in
Overall Width/Pin Length (mm)	42.5 mm
Plate Depth (in)	0.705 in
Rex/Morse Minimum Tensile Strength (lbs)	33,000 lb
Pin Diameter (mm)	7.92 mm
Overall Width/Pin Length (in)	1.673 in

General Specifications

UPC	662288464822
Weight	2.86 LB
Packaged Length	11.60 IN
Packaged Width	11.70 IN
Packaged Height	2.00 IN
HTC	7315.12.0080
Country of Origin	Taiwan, Republic of China
