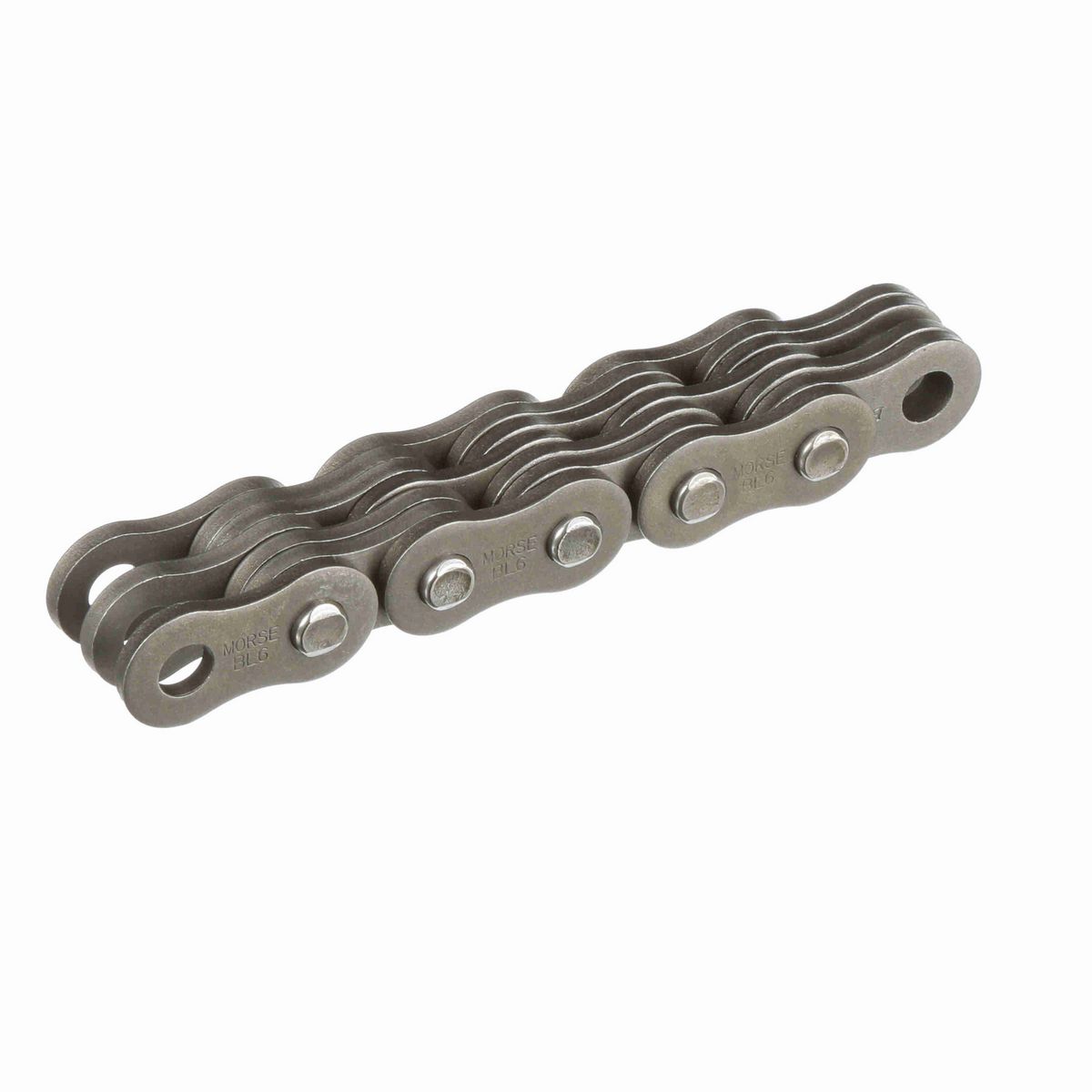

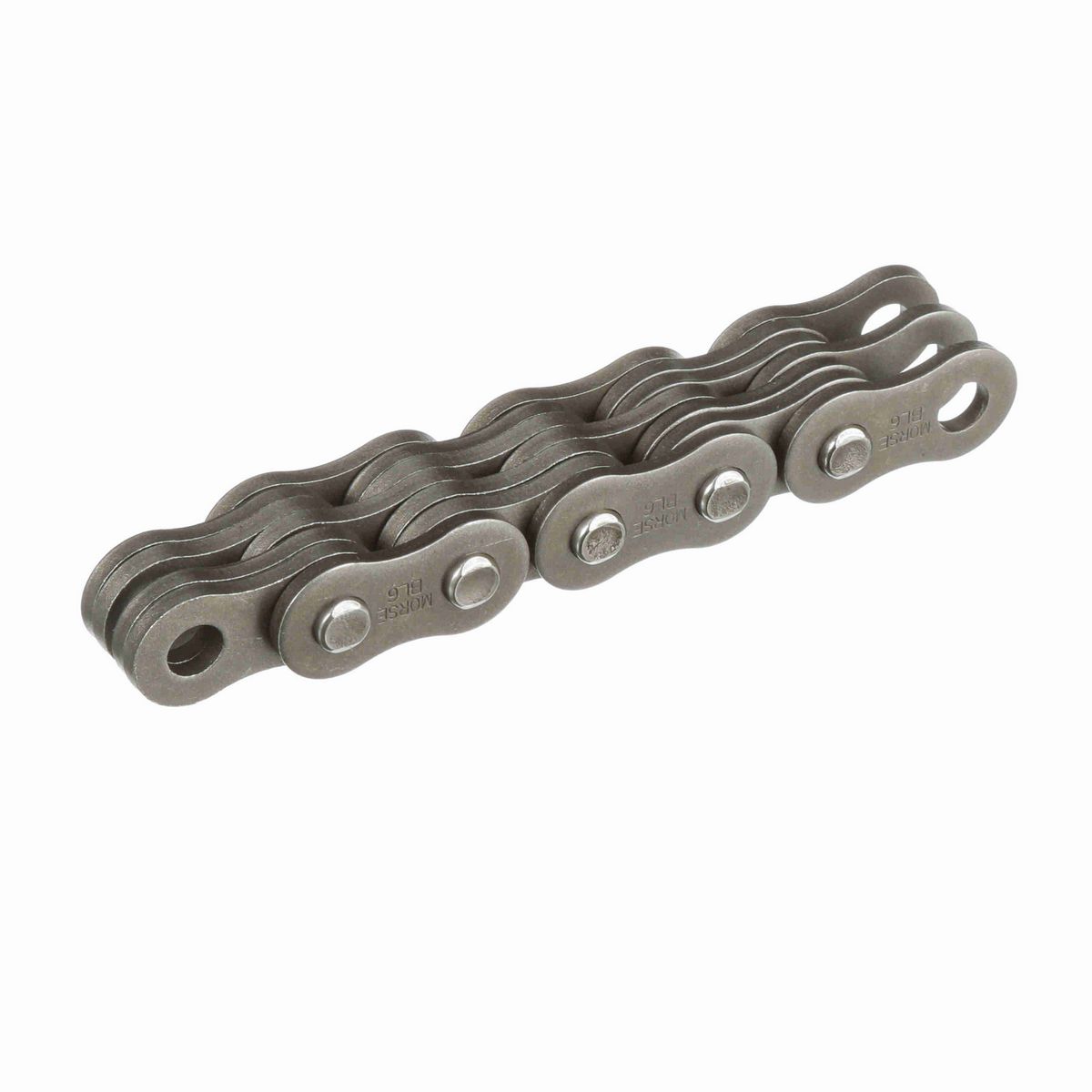

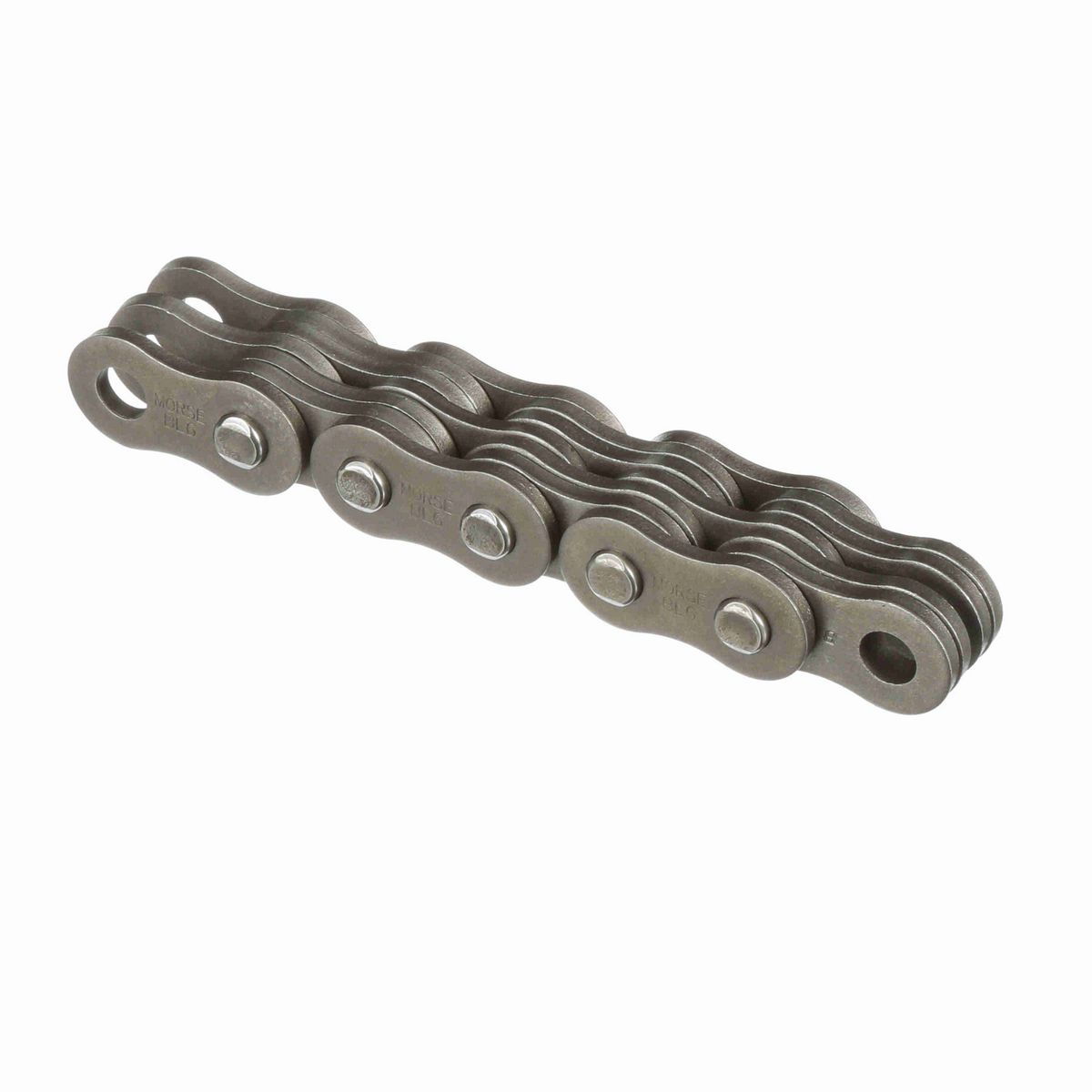

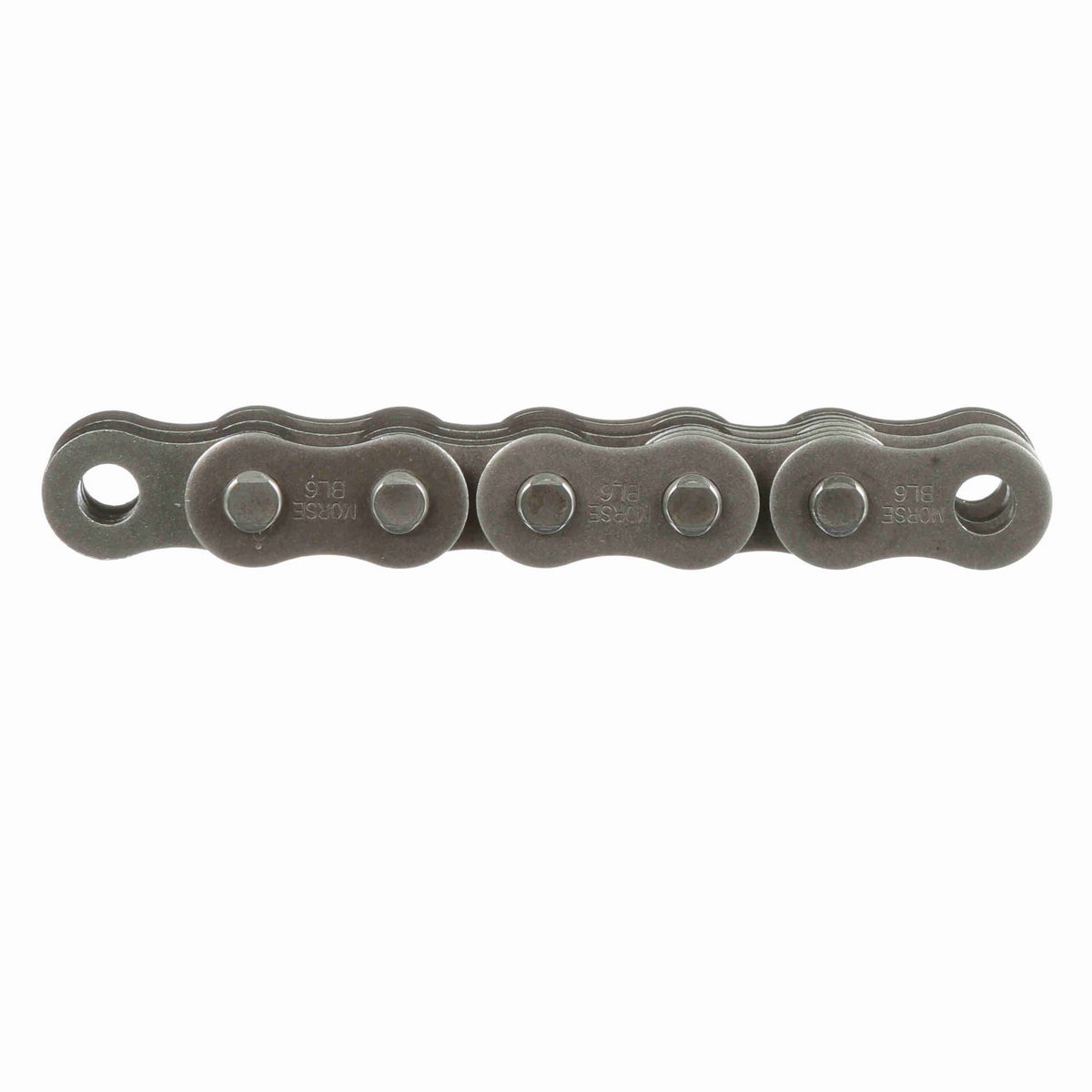

• Morse Leaf chains are designed for high lifting power at low speeds
• Morse leaf chain is constructed from link plates and riveted pins
• Available with F97 Certification
• Available in package quantities or as strands of a specific length.

Technical Specifications

Chain Size	BL6
Chain Pitch (in)	0.75 in
Product Type	Leaf Chain
Pin Diameter (in)	0.312 in
Chain Type	Leaf Chain
Plate Thickness (in)	0.122 in
Rex/Morse Minimum Tensile Strength (lbs)	17,000 lb
Overall Width/Pin Length (mm)	26.4 mm
Pin Diameter (mm)	7.92 mm
Lacing (in)	3 x 4 in
Plate Depth (in)	0.705 in
Plate Thickness (mm)	3.1 mm
Base Catalog No	BL634
ISO Minimum Tensile Strength (N)	75600 N
Width Over Rivets (in)	1.048 in
Overall Width/Pin Length (in)	1.039 in
Plate Depth (mm)	17.9 mm

General Specifications

UPC	662288459569
Weight	1.70 LB
Packaged Length	11.70 IN
Packaged Width	11.80 IN
Packaged Height	1.80 IN
HTC	7315.12.0080
Country of Origin	Taiwan, Republic of China
