• Clutches Require Bearing support to assure concentricity between inner and outer races. Taper on this shaft should not exceed .0002 inches per inch.

Technical Specifications

RPM Max. - Inner Race (shaft)	1,800
Model	B210A
Overall Diameter (in)	3.5413 in
Std Package Quantity	1

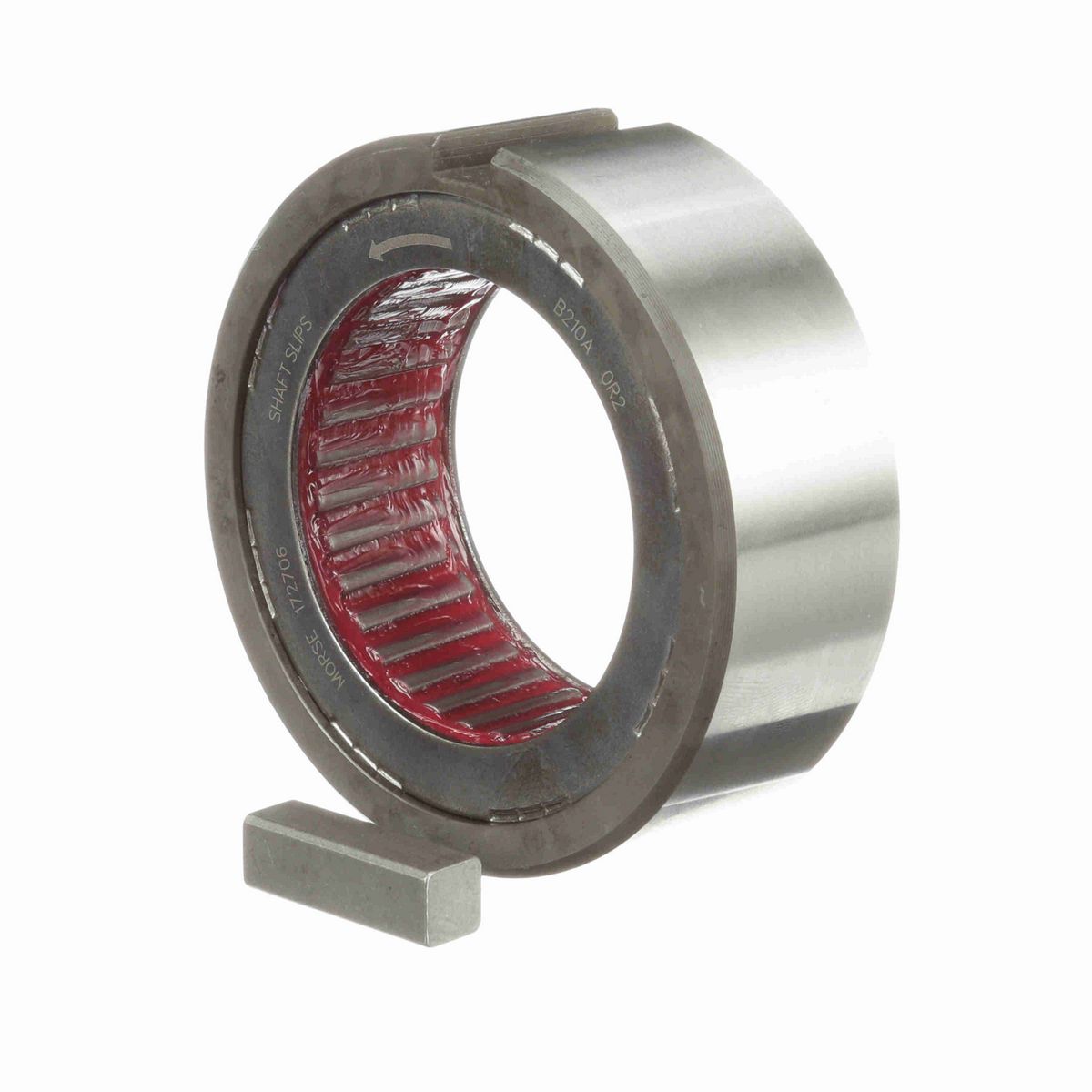

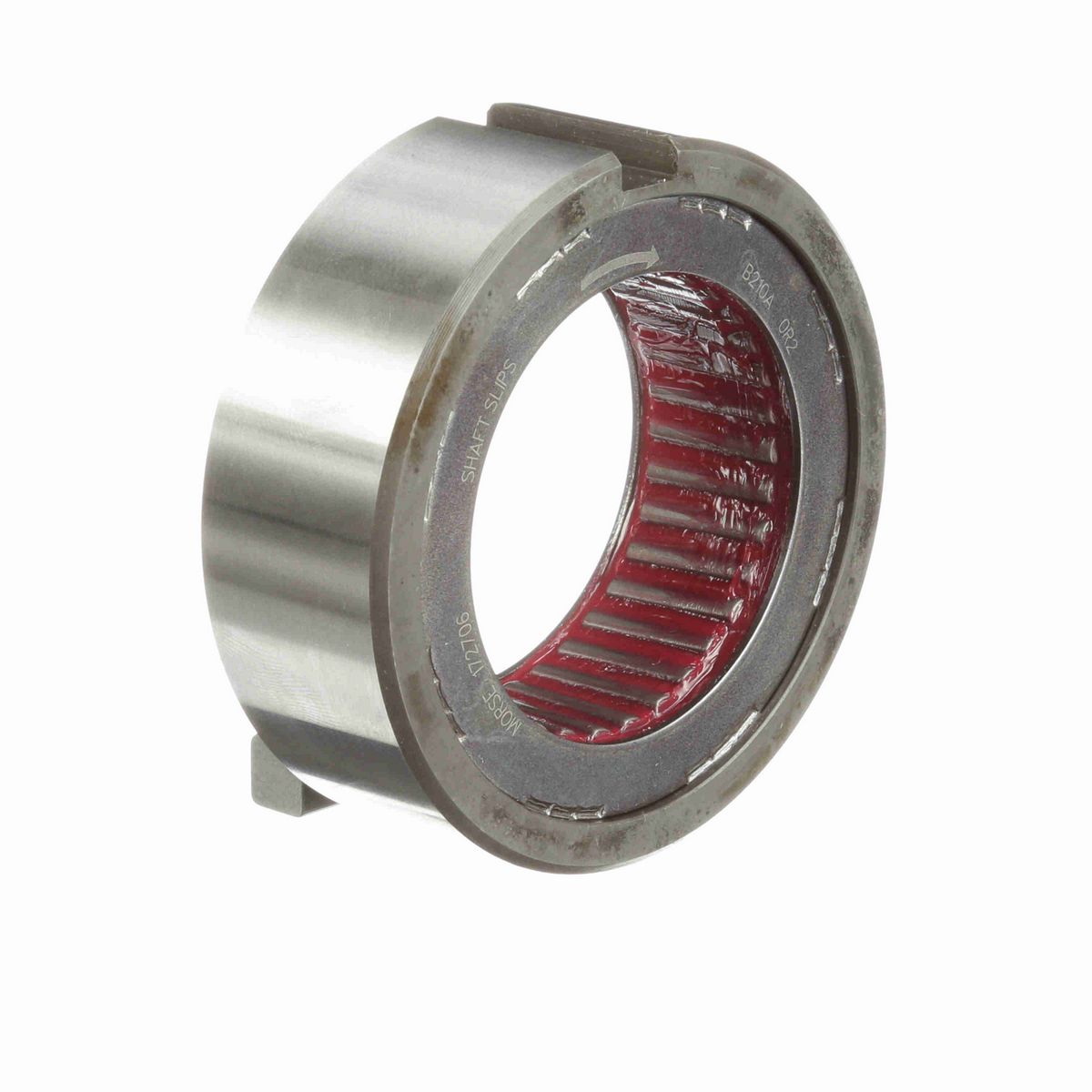

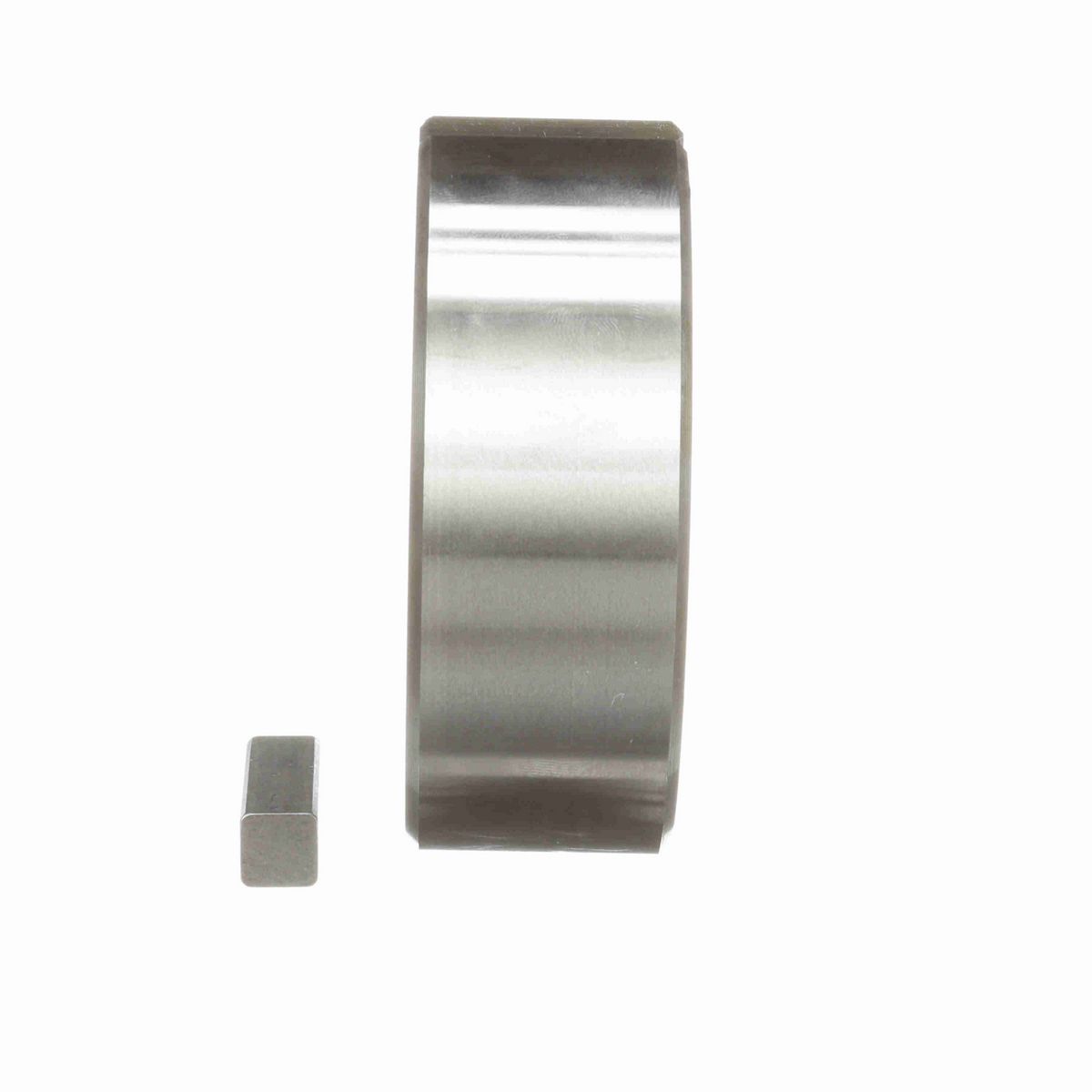

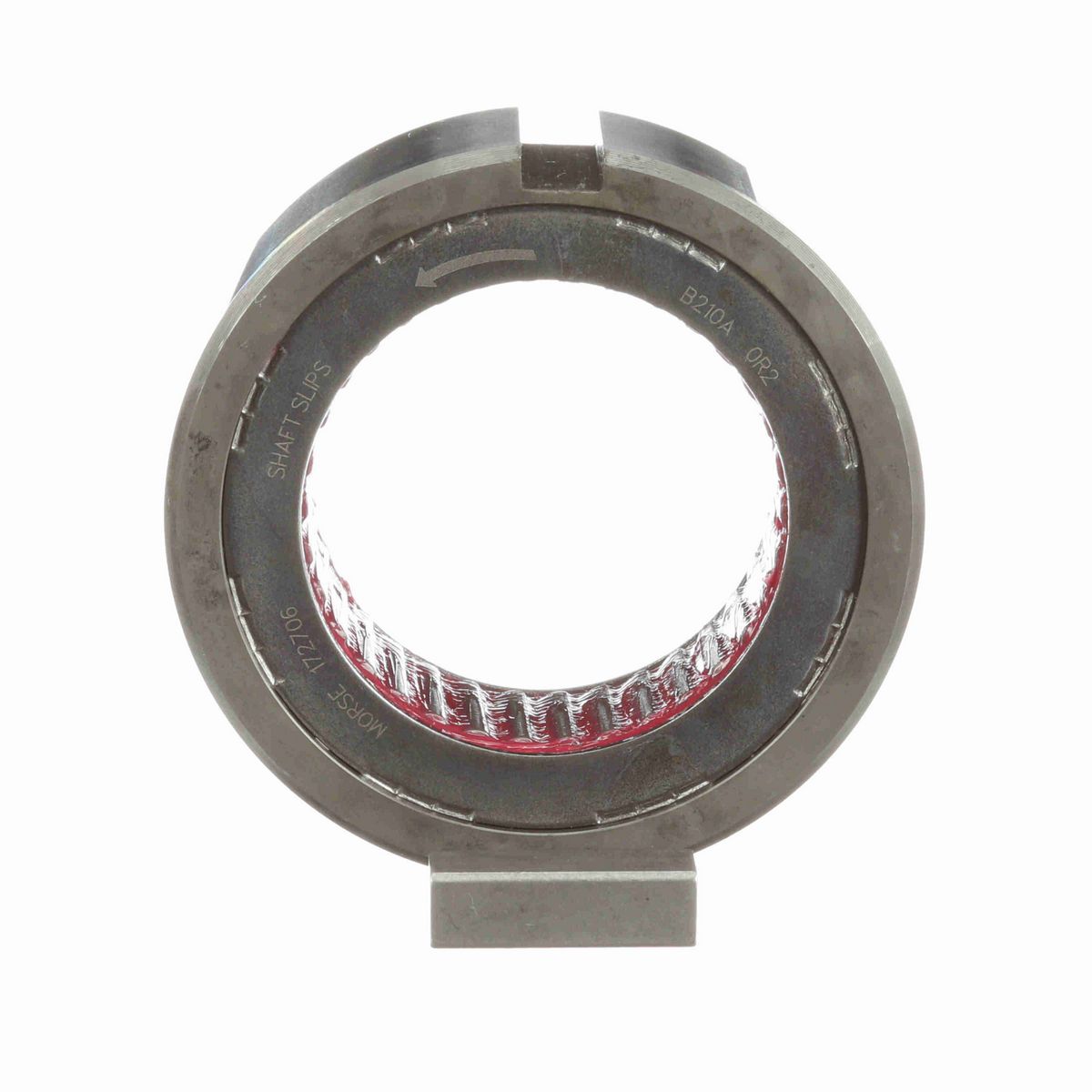

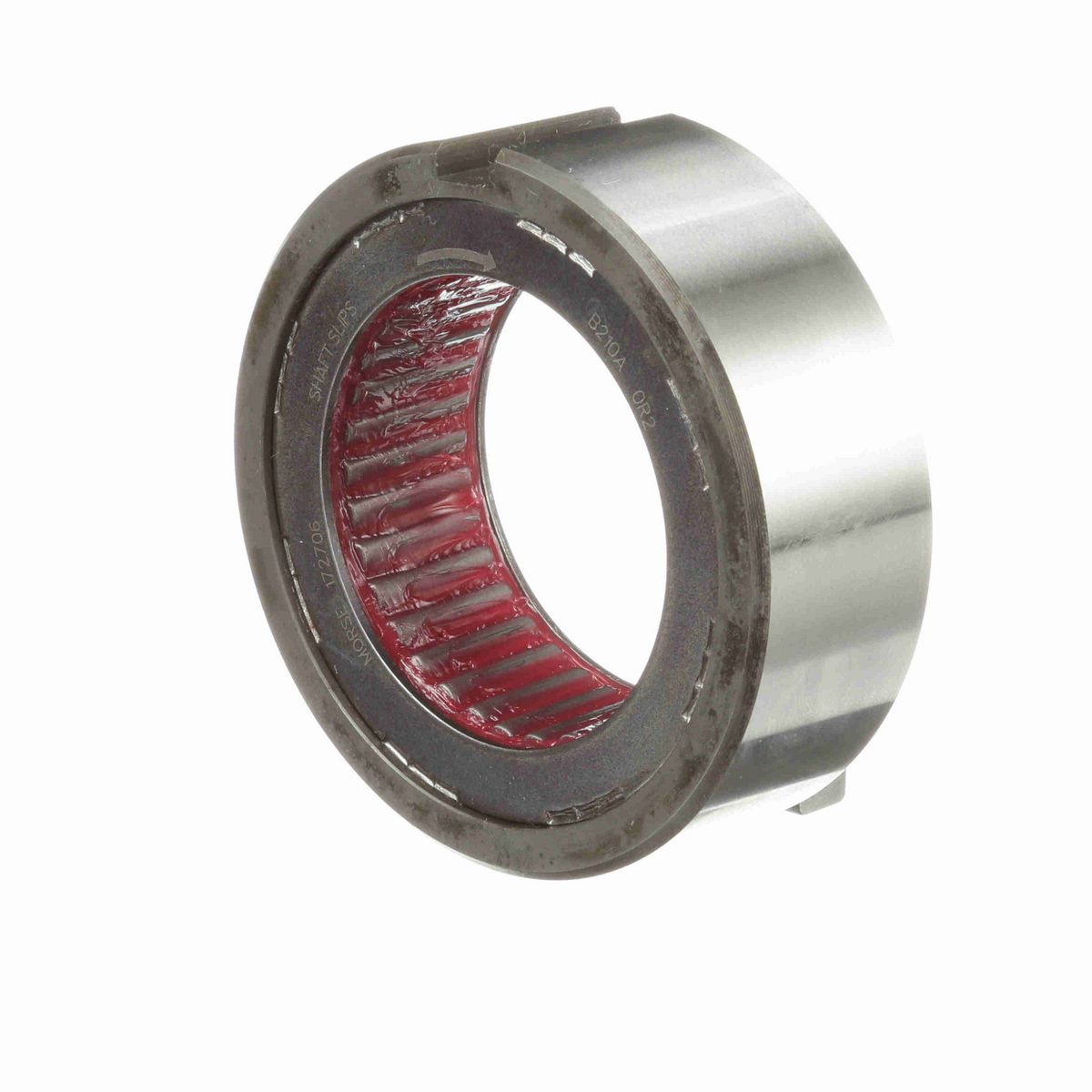

Type	Mechanical Clutches
Overall Width (in)	1.25 in
Bearing Size to Use with Clutch	210
Key Size	3/8 x 3/16 in
Bore Type	Shaft Mounted
Configuration	LH Or RH Depending upon order
Add'l Bearing Support Requirement	Yes
Backstopping Clutch	Yes
Overrunning Clutch	Yes
Indexing Clutch	Yes
Bore Size (in)	2.209 in
Rated Torque Capacity (ft.-lbs.)	575
Product Type	B200 Series

General Specifications

UPC	662288407980
Weight	2.00 LB
Packaged Length	4.80 IN
Packaged Width	4.30 IN
Packaged Height	2.30 IN
HTC	8483.60.4040
Country of Origin	Mexico
