• Clutches Require Bearing support to assure concentricity between inner and outer races. Taper on this shaft should not exceed .0002 inches per inch.

Technical Specifications

Key Size	3/8 x 3/16 in
Overall Width (in)	1.25 in
Std Package Quantity	1
Type	Mechanical Clutches
RPM Max. - Inner Race (shaft)	1,800

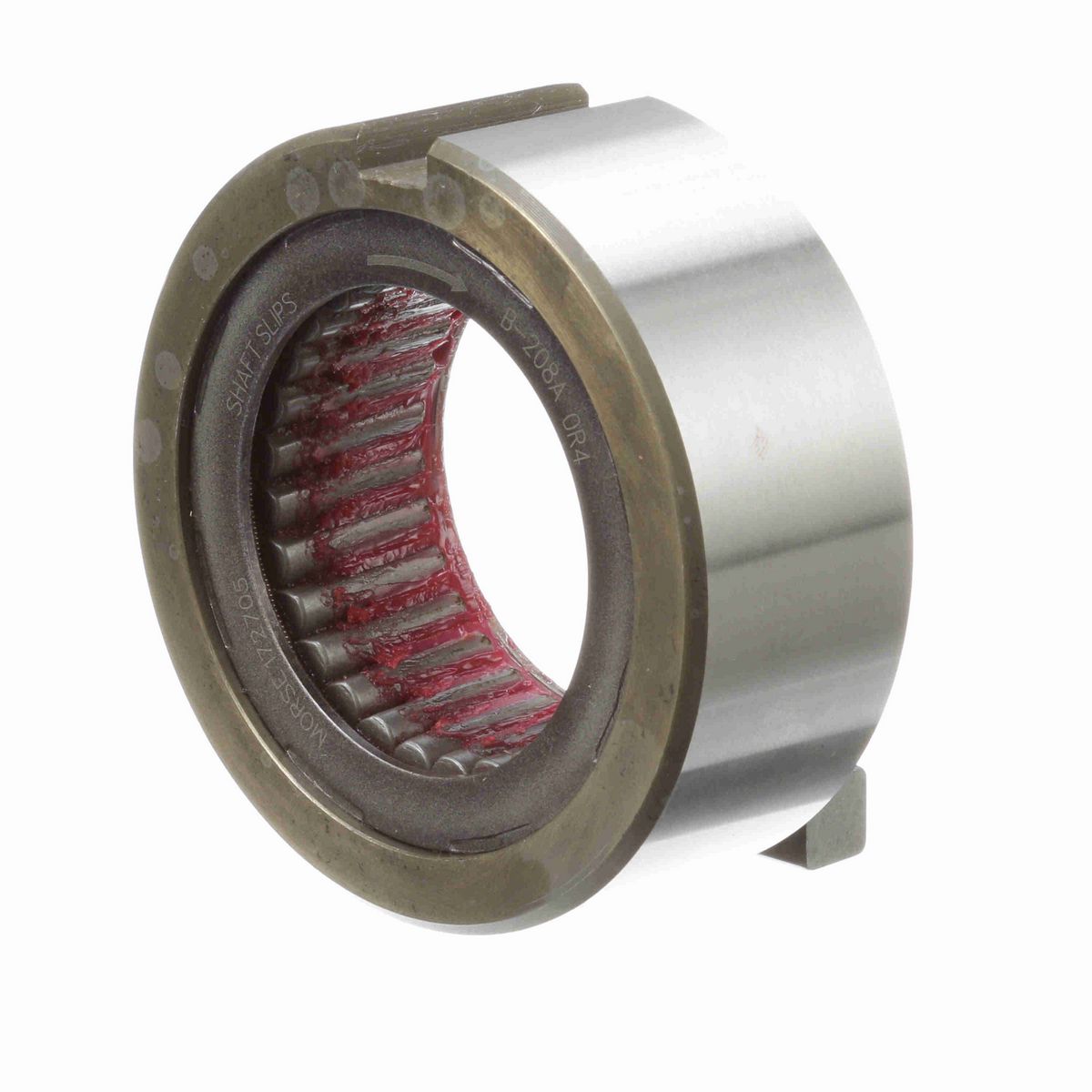

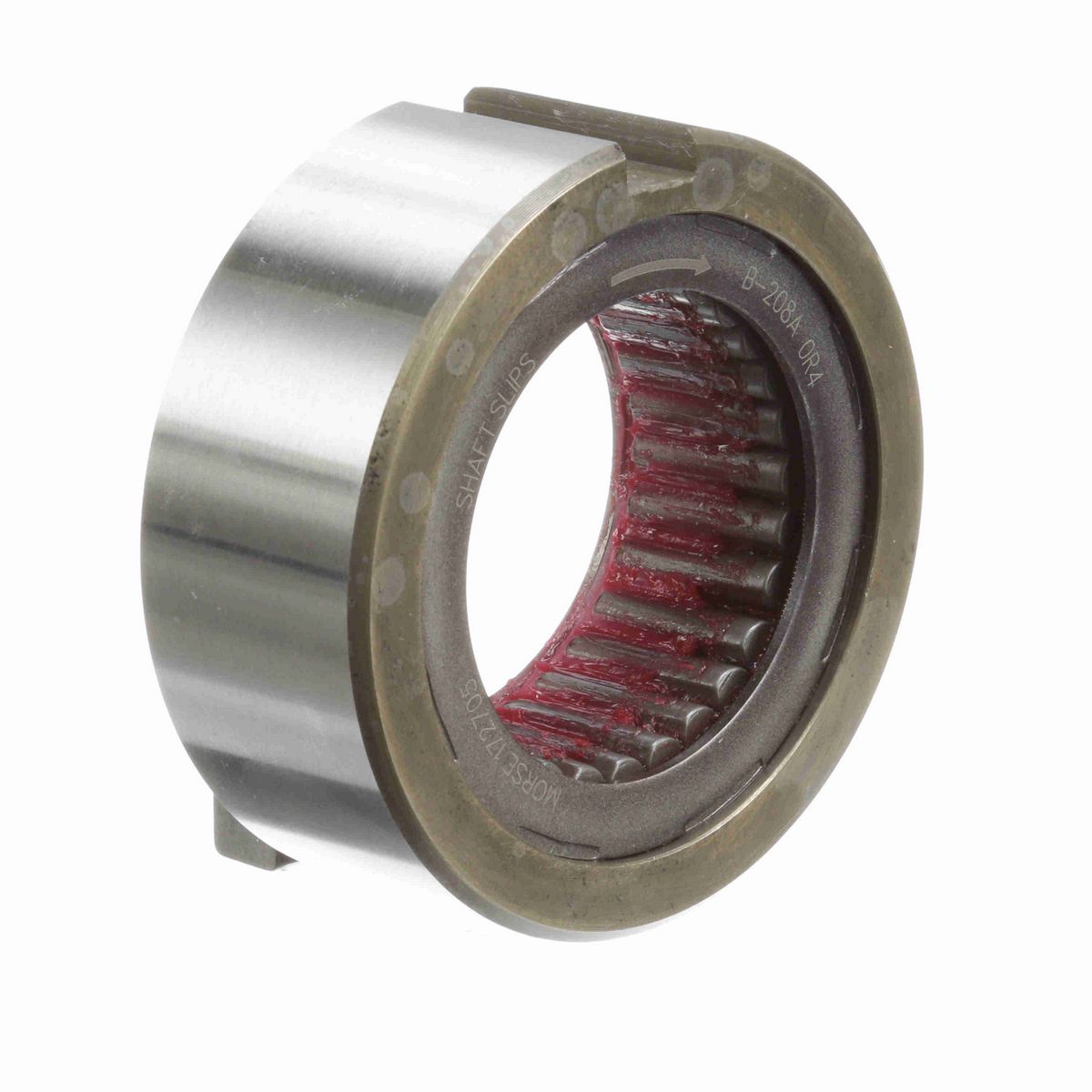

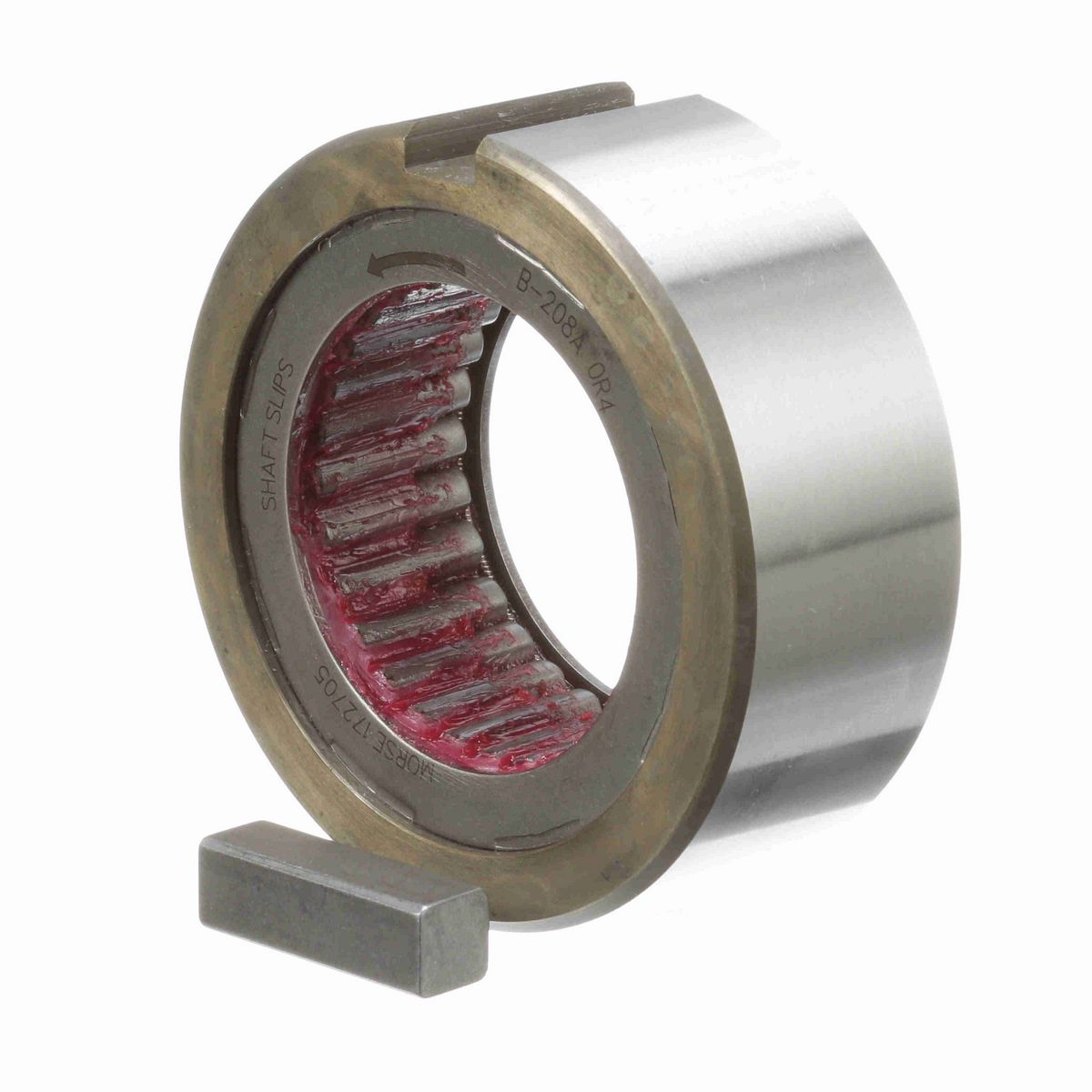

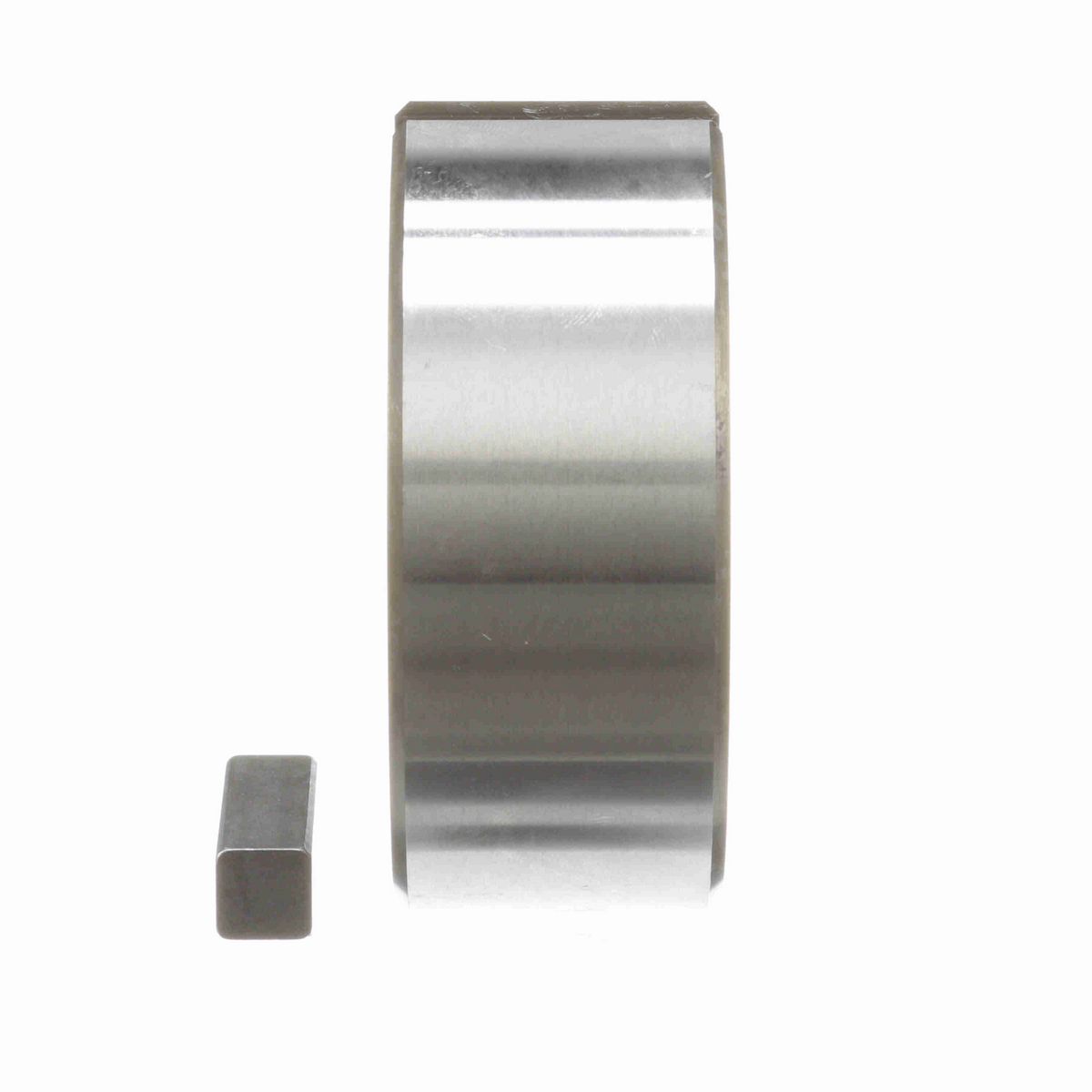

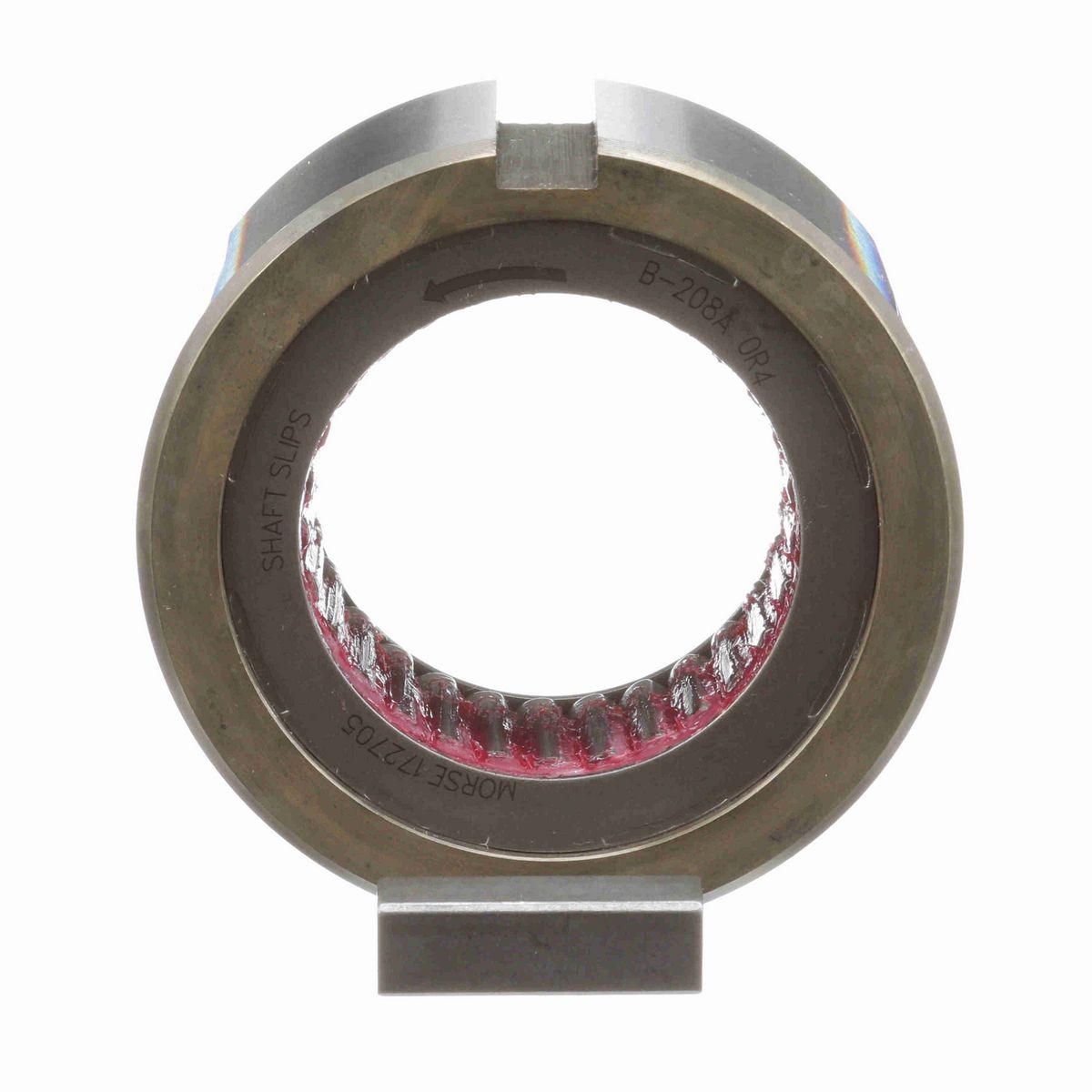

Model	B208A
Overall Diameter (in)	3.1476 in
Bearing Size to Use with Clutch	208
Add'l Bearing Support Requirement	Yes
Backstopping Clutch	Yes
Indexing Clutch	Yes
Overrunning Clutch	Yes
Rated Torque Capacity (ft.-lbs.)	405
Product Type	B200 Series
Bore Size (in)	1.841 in

General Specifications

UPC	662288407973
Weight	1.74 LB
Packaged Length	4.80 IN
Packaged Width	4.20 IN
Packaged Height	2.20 IN
HTC	8483.60.4040
Country of Origin	Mexico
