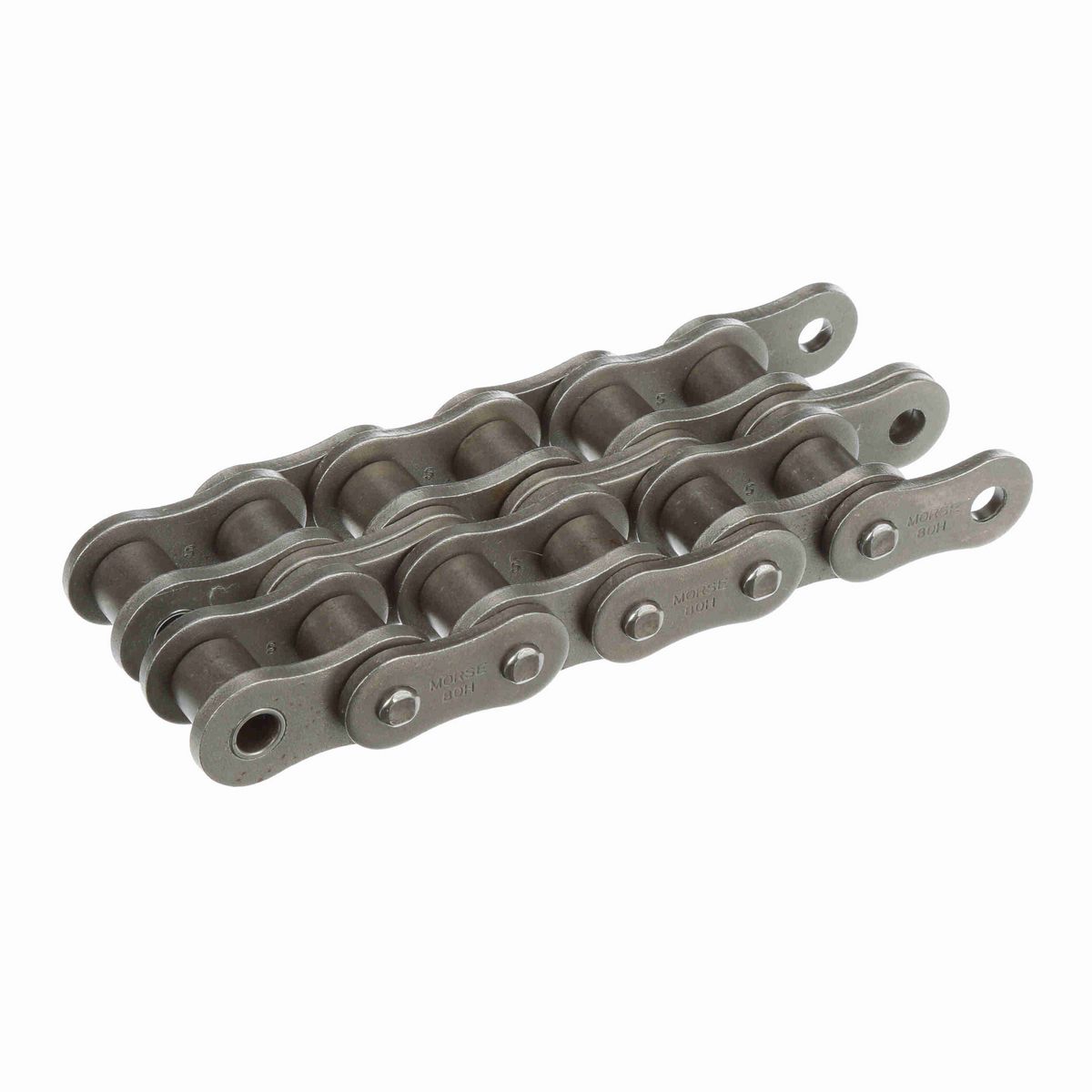

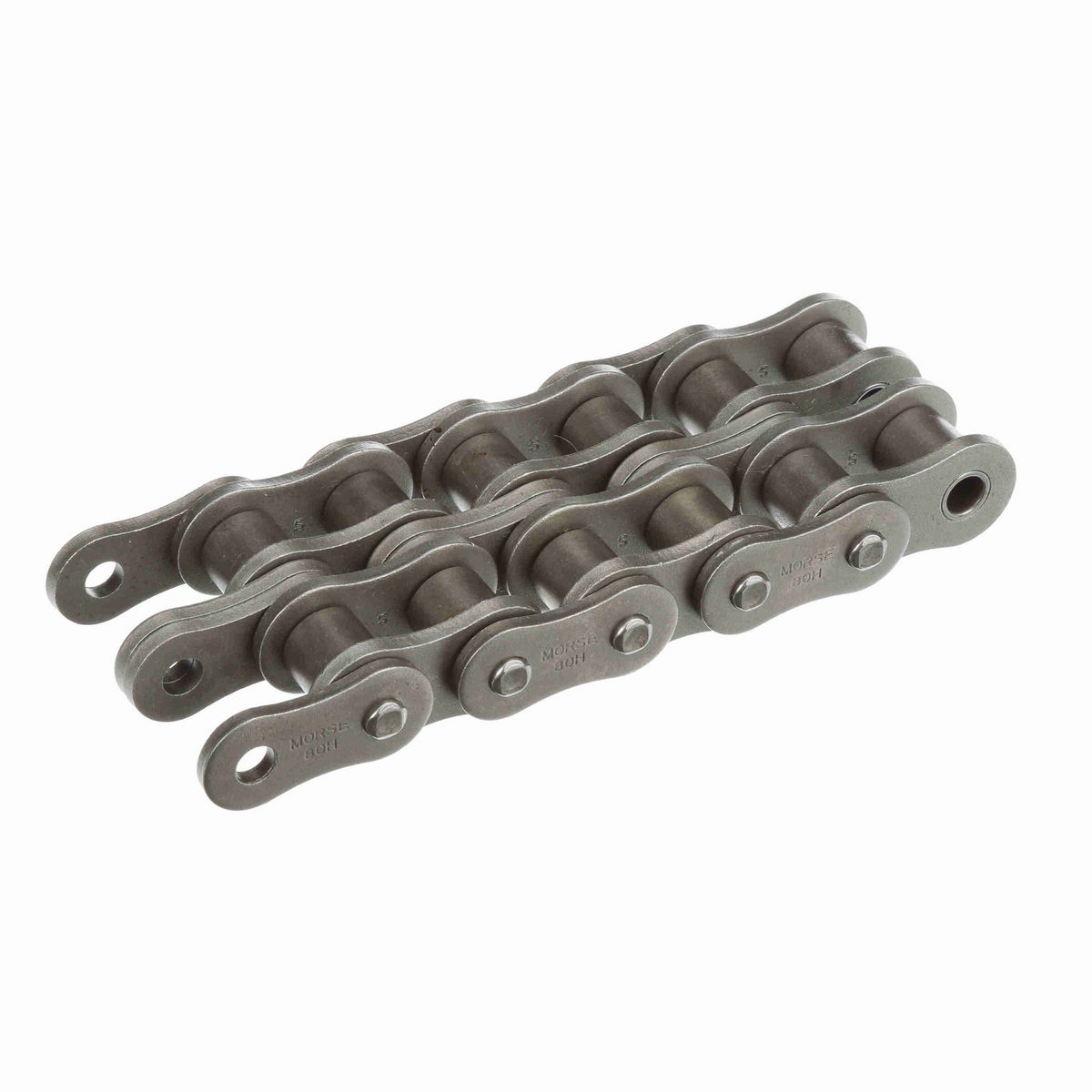

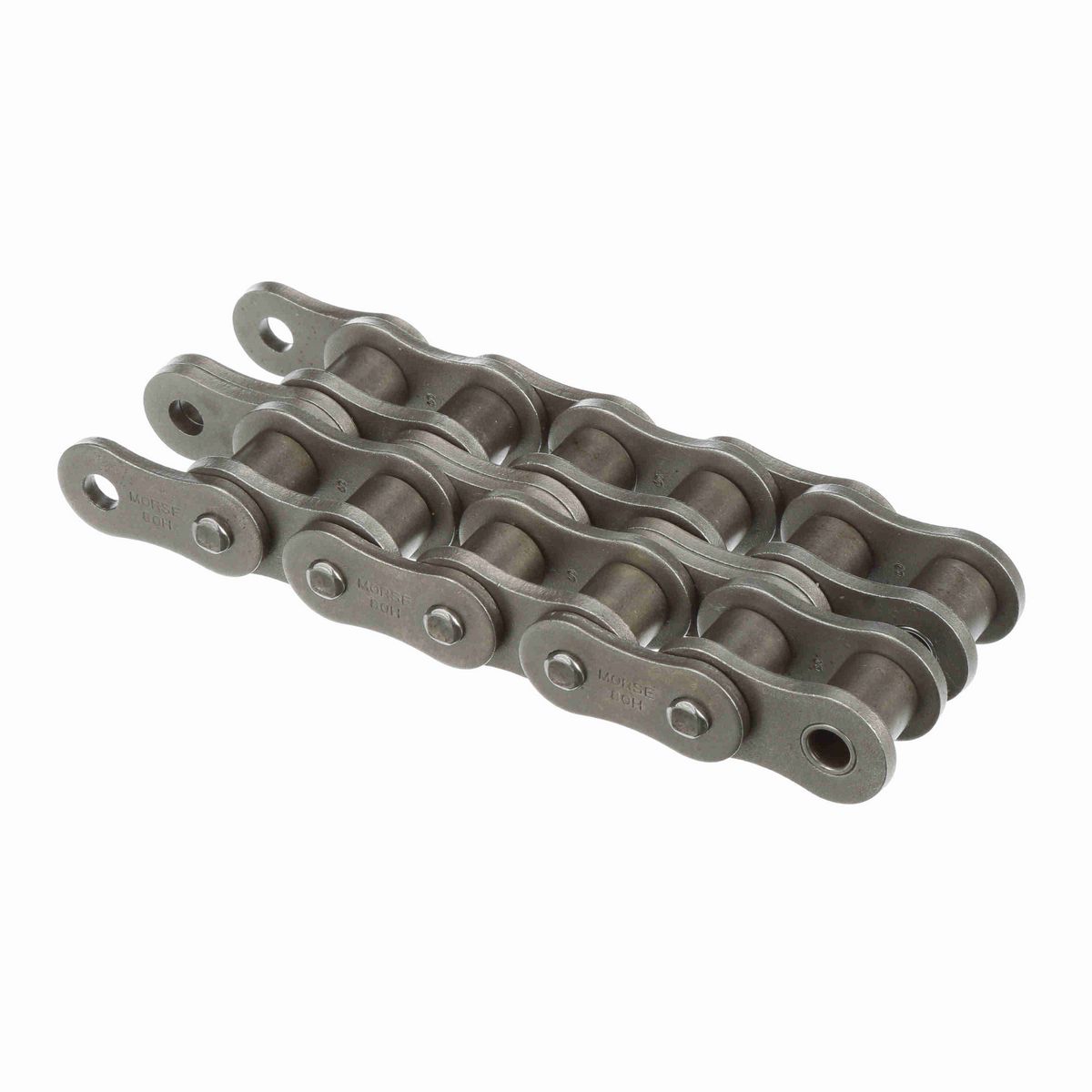

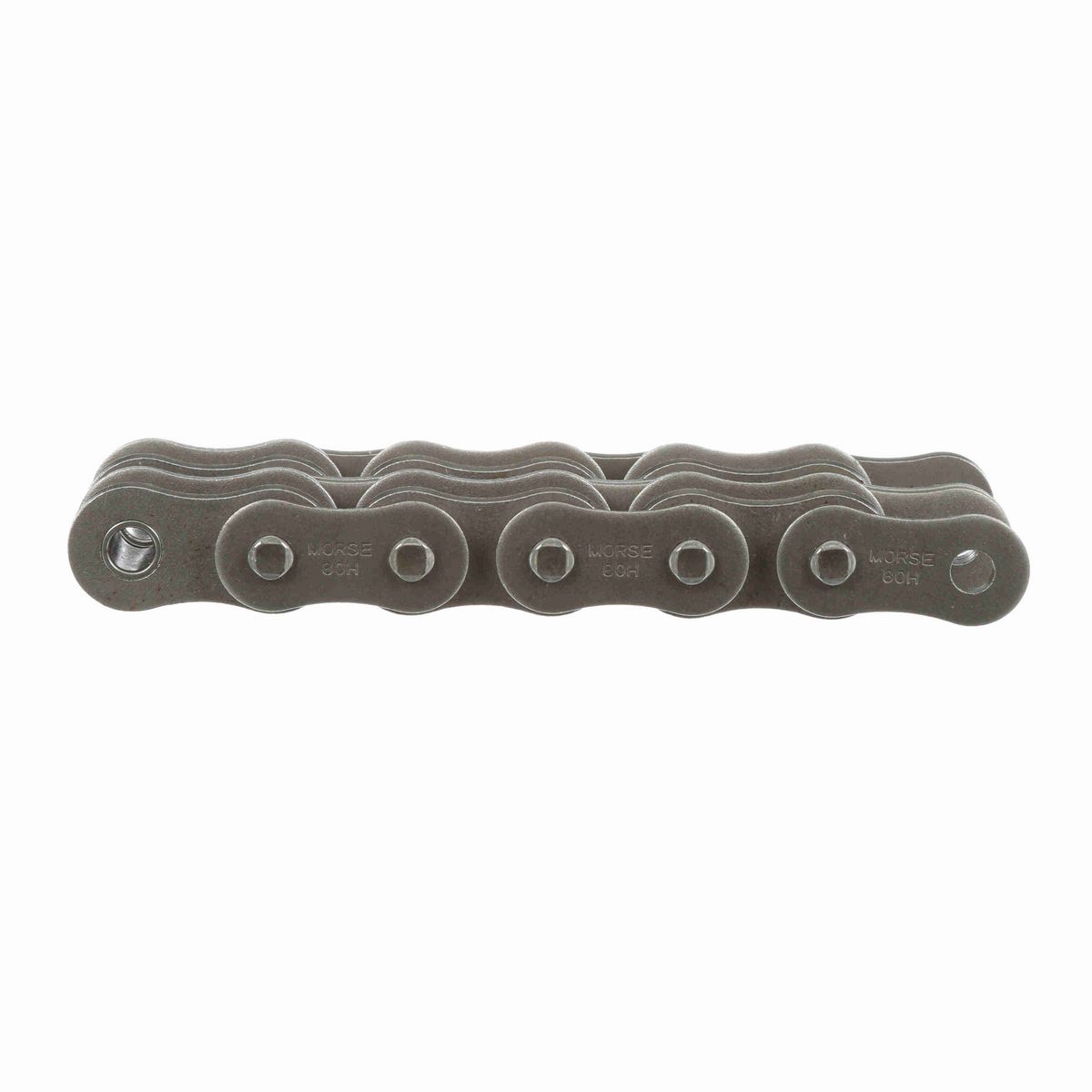

• Unmatched Quality and Performance in Morse Brand Chain
• Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
• Available in package quantities or via quick-turnaround cut-to-length

Technical Specifications

Number of Connecting Links Included	1
Number of Strands/Width	2
Roller Diameter (in)	0.625 in
Roller Width (in)	0.625 in
Chain Construction	Riveted
Chain Family	80
Pin Diameter (in)	0.312 in
Material	Steel
Chain Pitch (in)	1 in
Product Type	Roller Chain
Chain Type	Heavy
Coating	Uncoated
Standard Met	ANSI B29.1
Measurement System	Imperial
Inside Plate Height (in)	0.934 in
Pin Length (in)	2.688 in
Plate Thickness (in)	0.156 in
Width Over Pins/Total Width (in)	2.688 in
Total Length (ft)	10 ft
Transverse Pitch (in)	1.283 in
Base Catalog No	80H-2
Side Plate Configuration	Hourglass

General Specifications

UPC	662288456469
Weight	4.17 LB
Packaged Length	12.40 IN
Packaged Width	11.90 IN
Packaged Height	2.90 IN
HTC	7315.11.0060
Country of Origin	Taiwan, Republic of China
