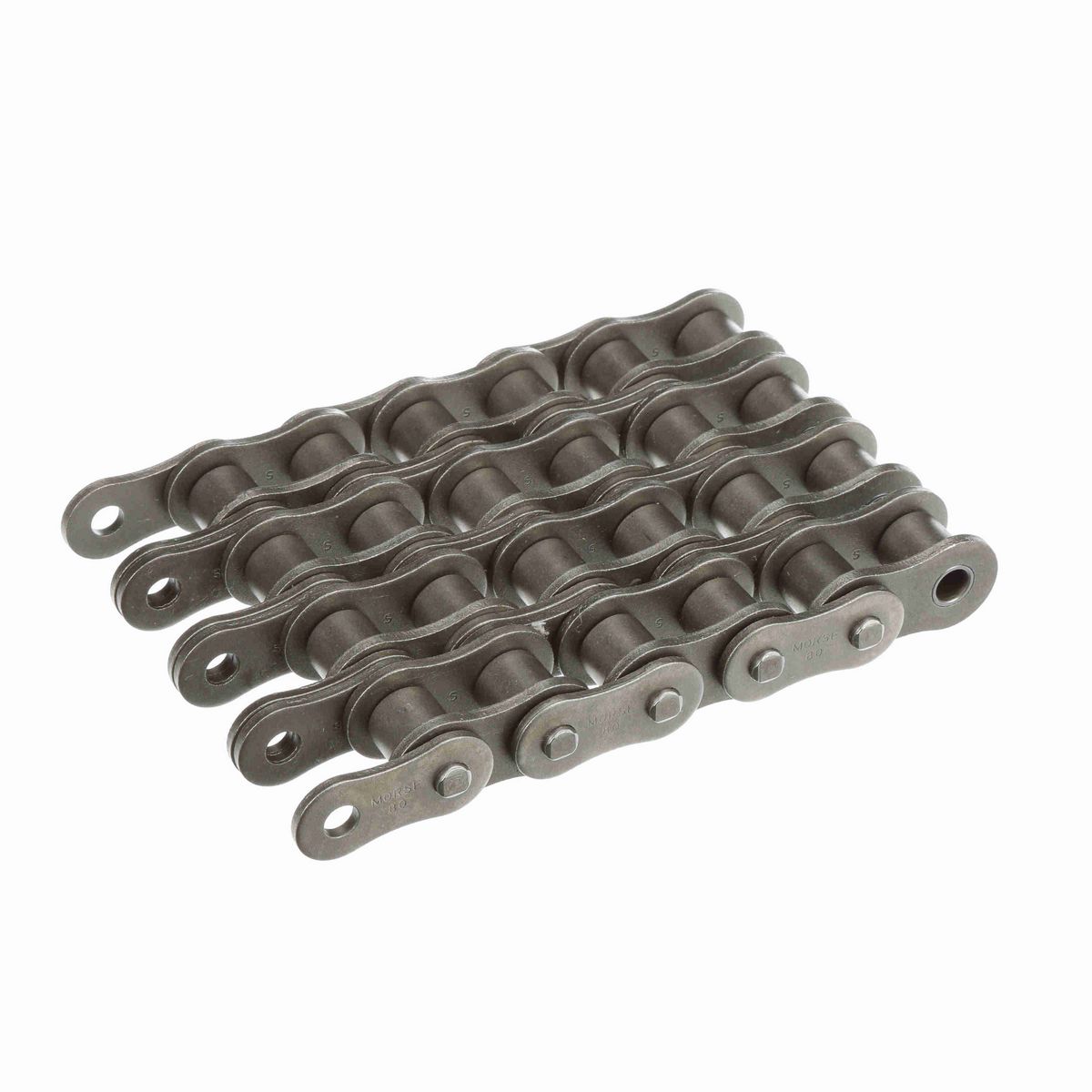

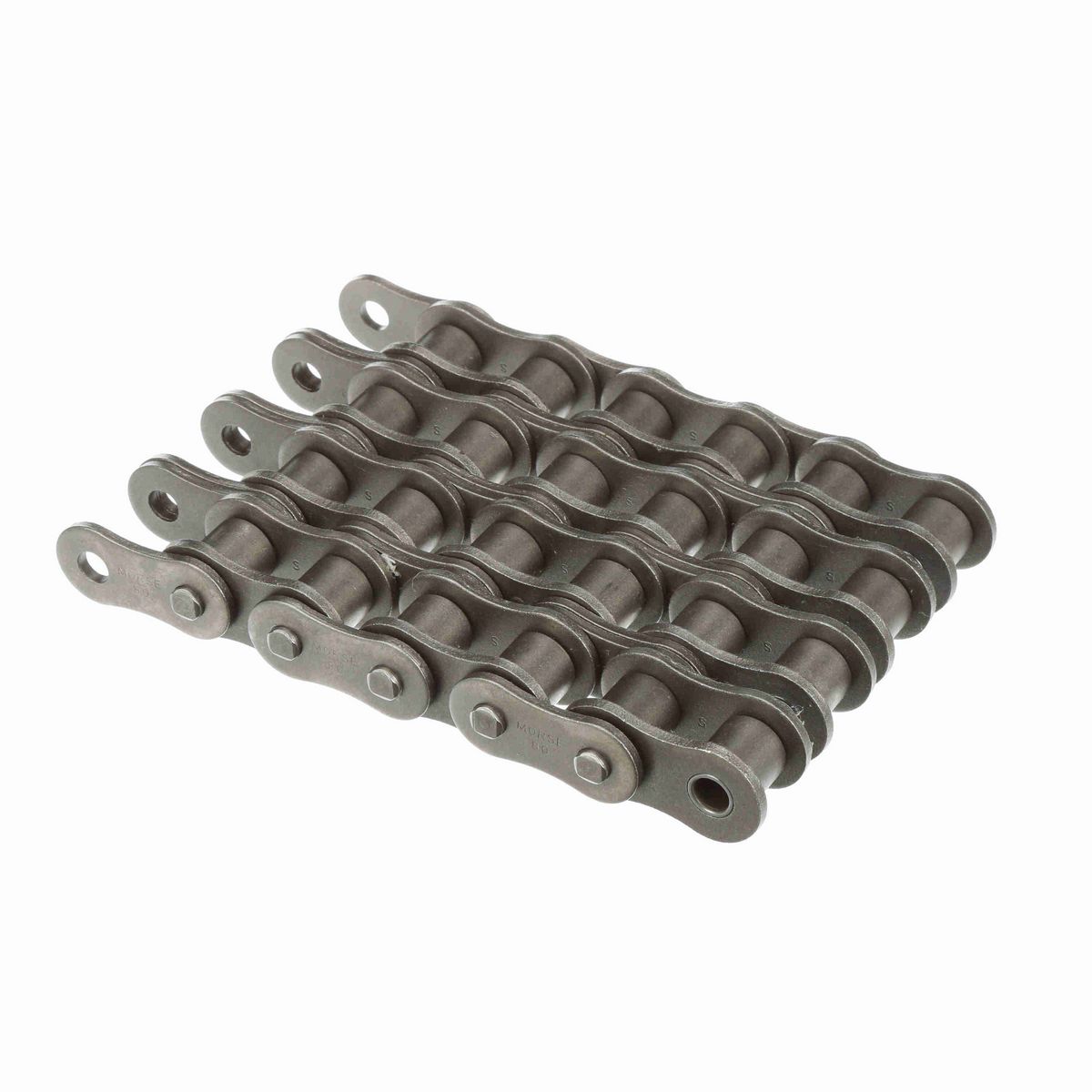

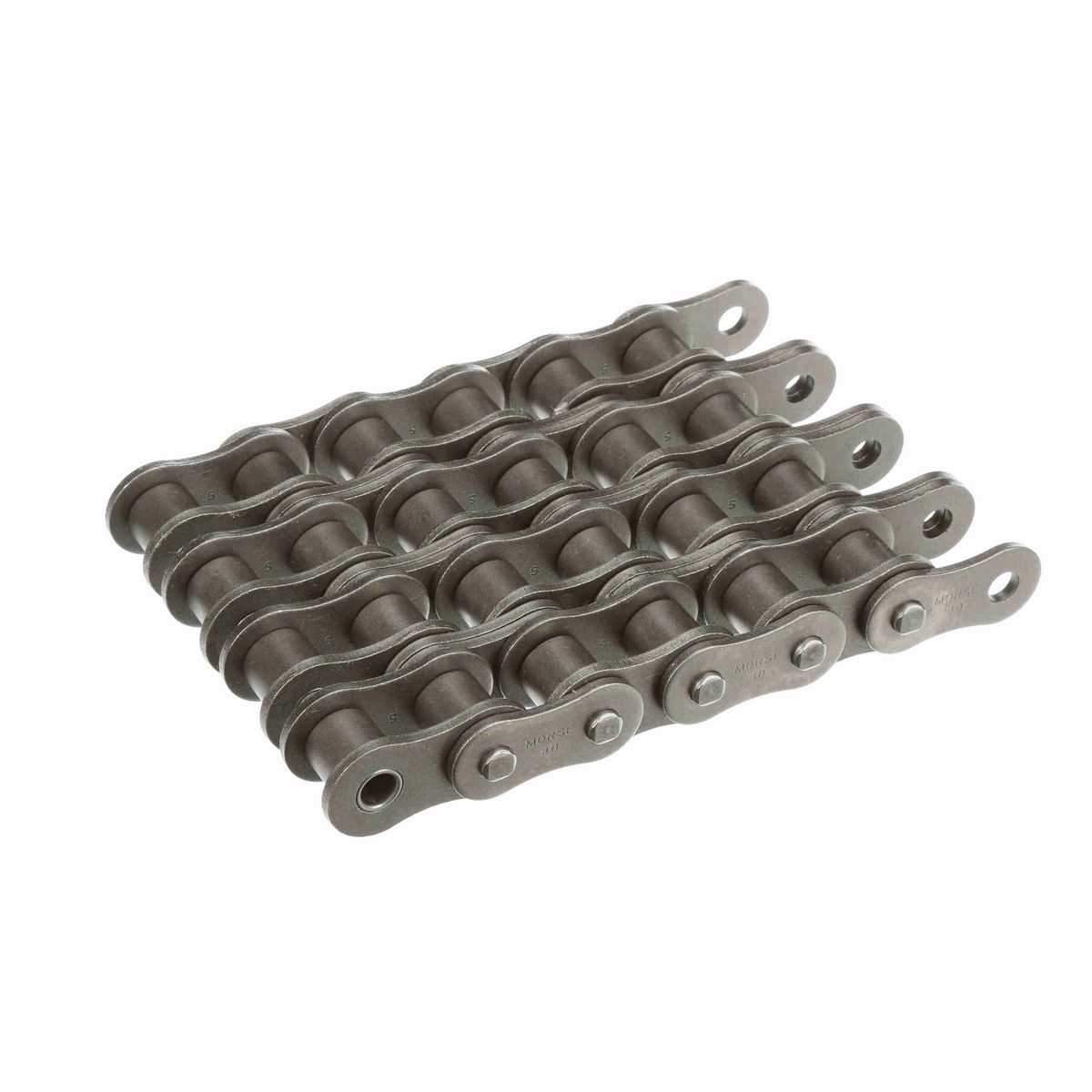

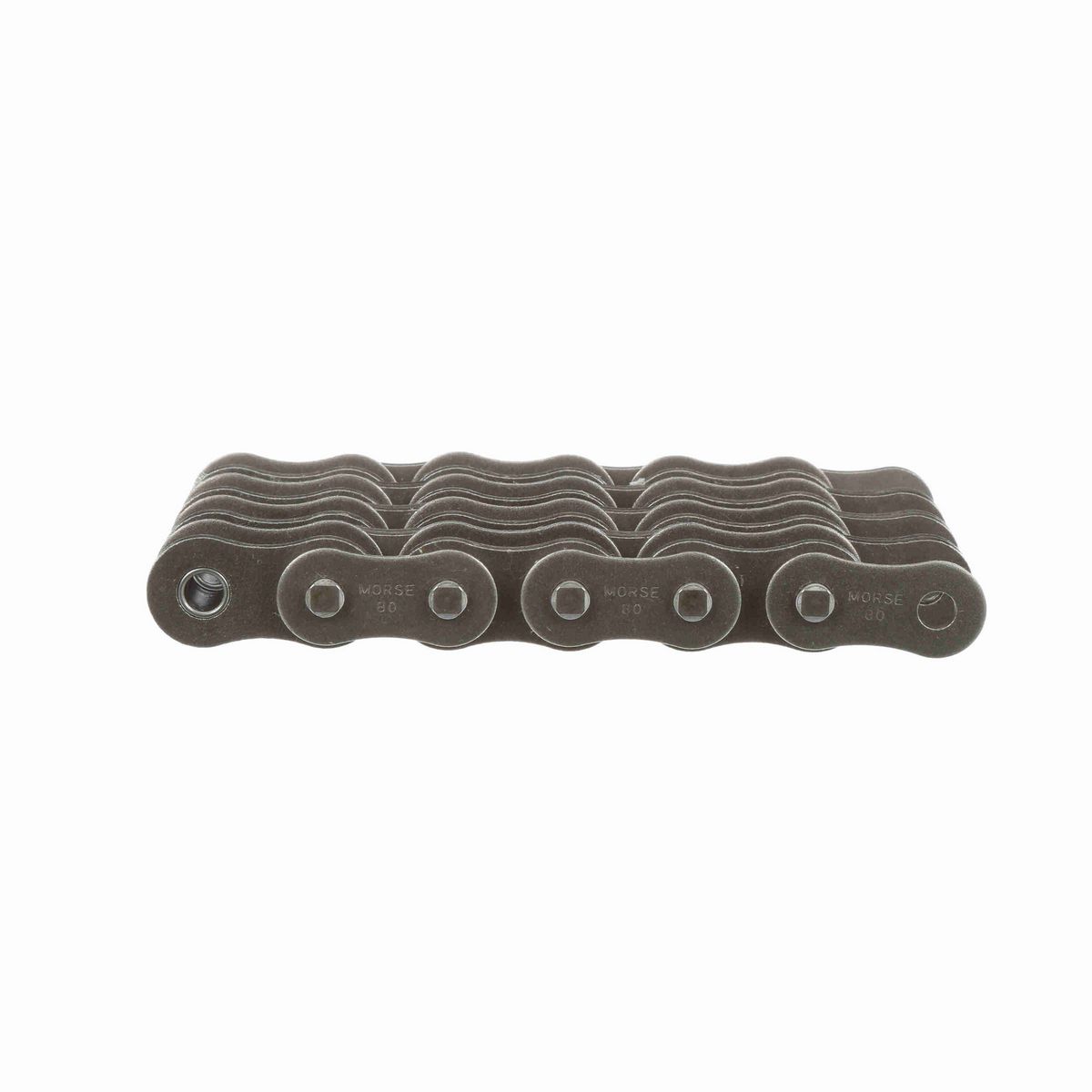

• Unmatched Quality and Performance in Morse Brand Chain
• Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
• Available in package quantities or via quick-turnaround cut-to-length

Technical Specifications

Chain Family	80
Pin Diameter (in)	0.312 in
Number of Strands/Width	4
Roller Width (in)	0.625 in
Roller Diameter (in)	0.625 in
Material	Steel
Number of Connecting Links Included	1
Chain Construction	Riveted
Chain Type	Standard
Chain Pitch (in)	1 in
Product Type	Roller Chain
Coating	Uncoated
Measurement System	Imperial
Standard Met	ANSI B29.1
Base Catalog No	80-4
Plate Thickness (in)	0.125 in
Pin Length (in)	4.738 in
Total Length (ft)	10 ft
Width Over Pins/Total Width (in)	4.738 in
Side Plate Configuration	Hourglass
Transverse Pitch (in)	1.153 in
Inside Plate Height (in)	0.934 in
Minimum Tensile Strength (lbs)	50,000 lb

General Specifications

UPC	662288455394
Weight	7.12 LB
Packaged Length	11.60 IN
Packaged Width	15.50 IN
Packaged Height	5.70 IN
HTC	7315.11.0060
Country of Origin	Taiwan, Republic of China
