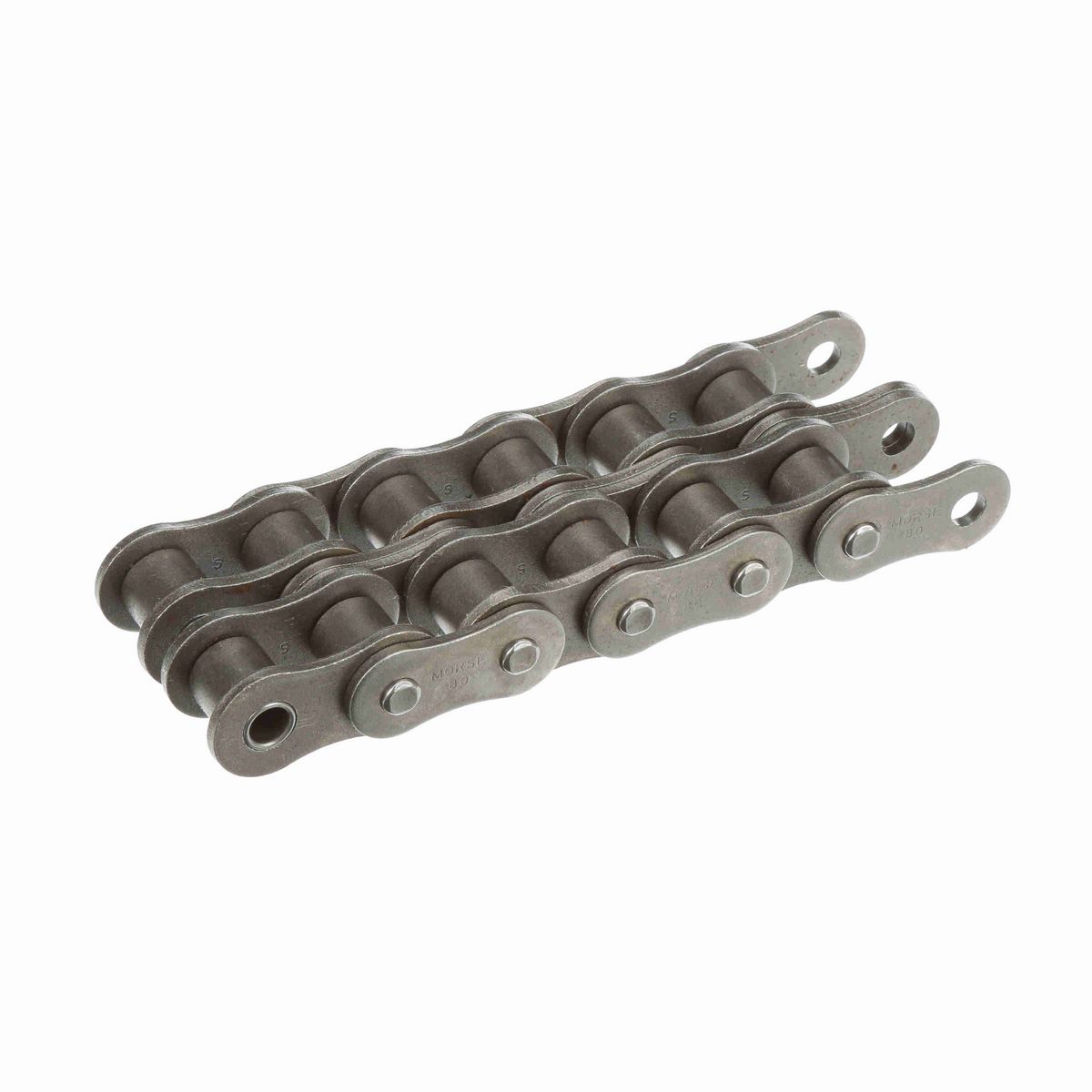

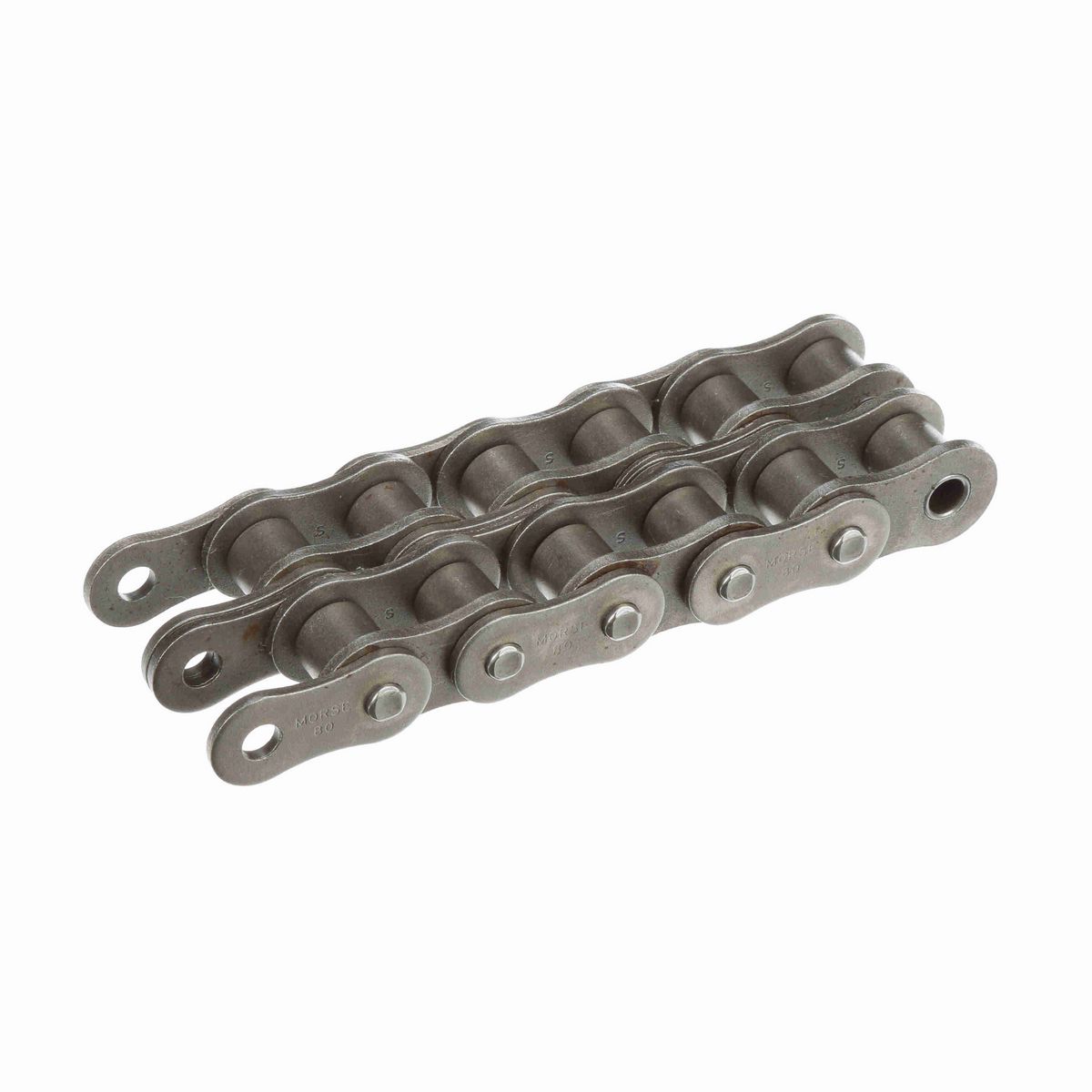

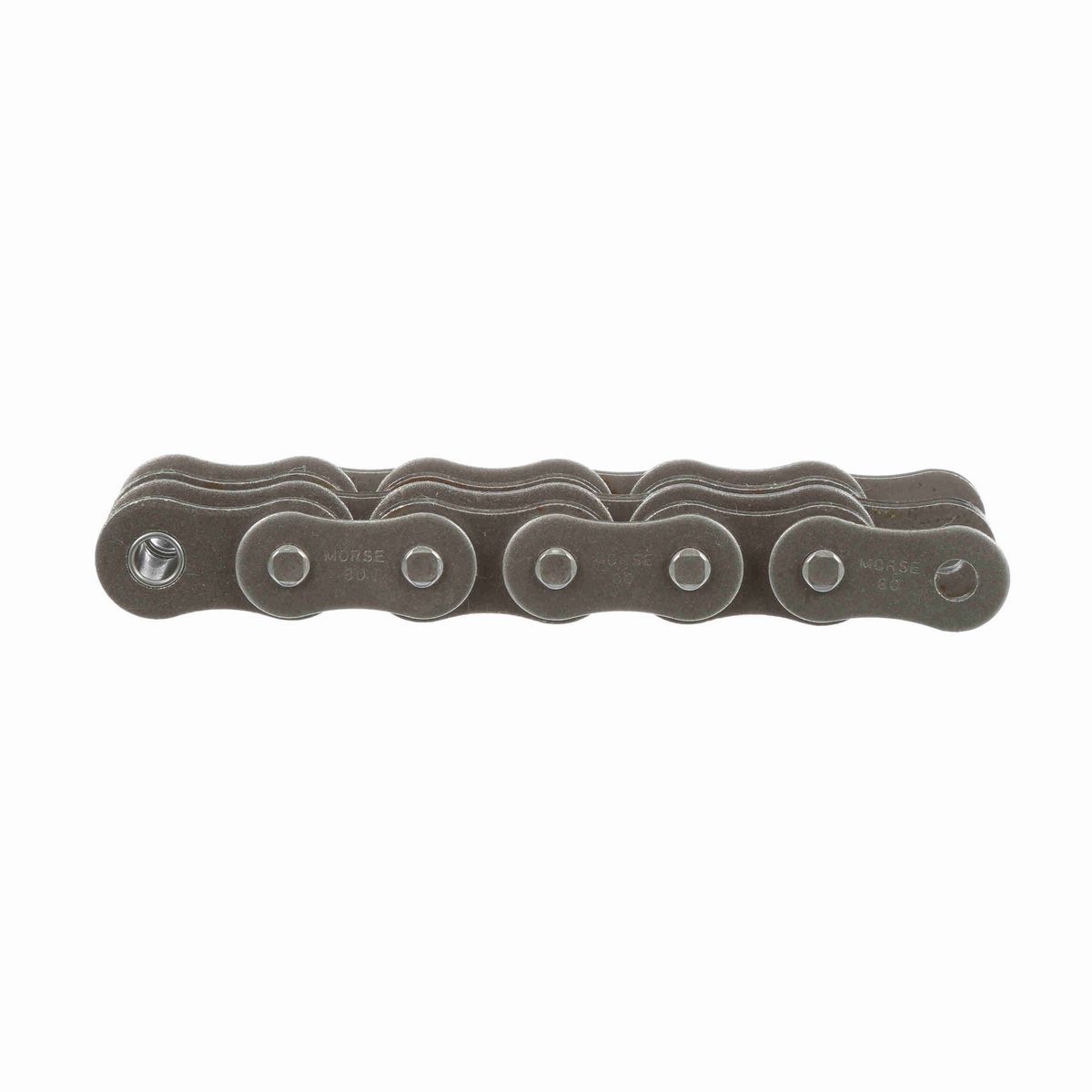

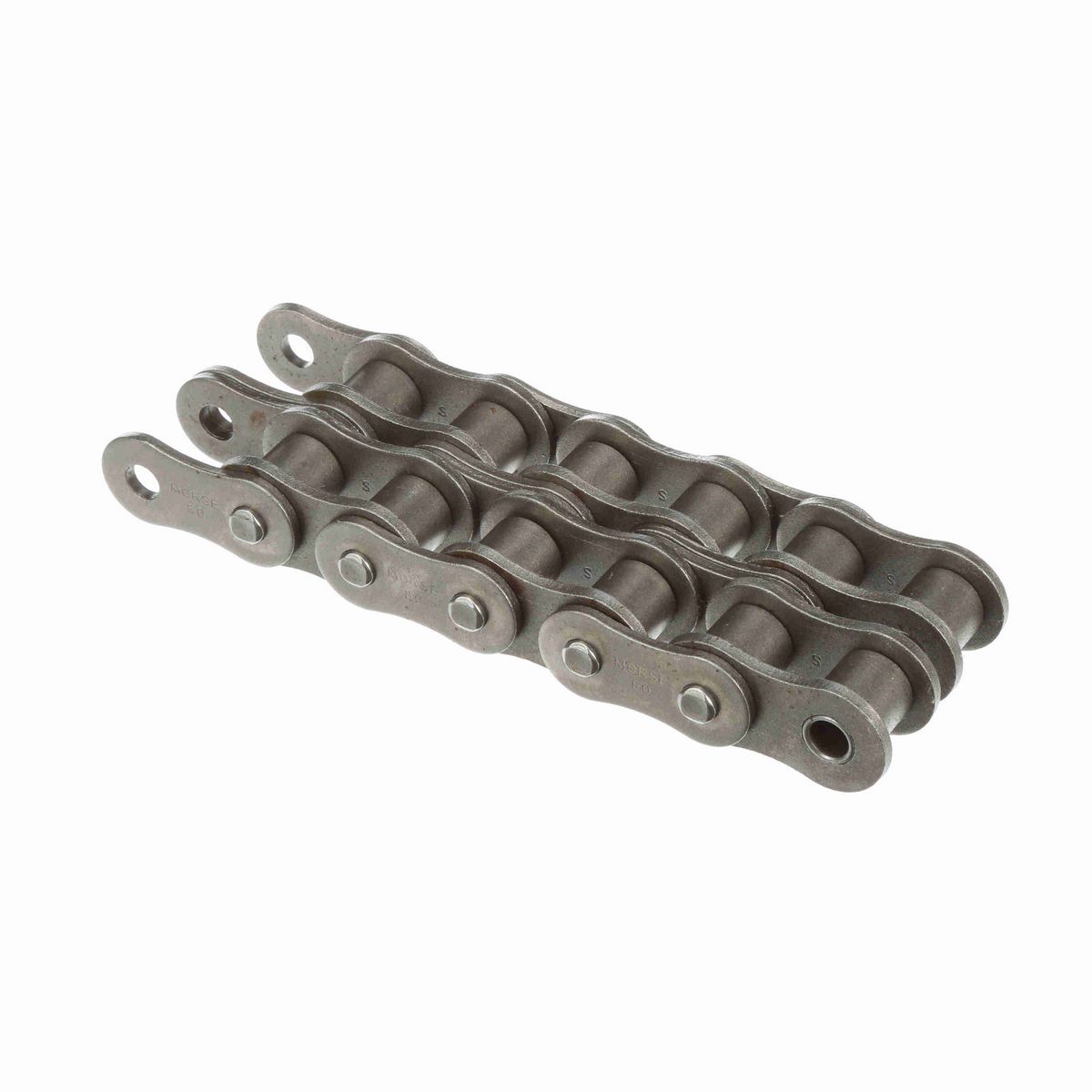

• Unmatched Quality and Performance in Morse Brand Chain
• Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
• Available in package quantities or via quick-turnaround cut-to-length

Technical Specifications

Material	Steel
Roller Width (in)	0.625 in
Pin Diameter (in)	0.312 in
Chain Family	80
Number of Strands/Width	2
Roller Diameter (in)	0.625 in
Number of Connecting Links Included	1
Chain Construction	Riveted
Product Type	Roller Chain
Chain Pitch (in)	1 in
Chain Type	Standard
Coating	Uncoated
Standard Met	ANSI B29.1
Measurement System	Imperial
Width Over Pins/Total Width (in)	2.432 in
Pin Length (in)	2.432 in
Minimum Tensile Strength (lbs)	25,000 lb
Transverse Pitch (in)	1.153 in
Total Length (ft)	10 ft
Inside Plate Height (in)	0.934 in
Base Catalog No	80-2
Side Plate Configuration	Hourglass
Plate Thickness (in)	0.125 in

General Specifications

UPC	662288395263
Weight	3.60 LB
Packaged Length	12.10 IN
Packaged Width	11.80 IN
Packaged Height	2.60 IN
HTC	7315.11.0060
Country of Origin	Taiwan, Republic of China
