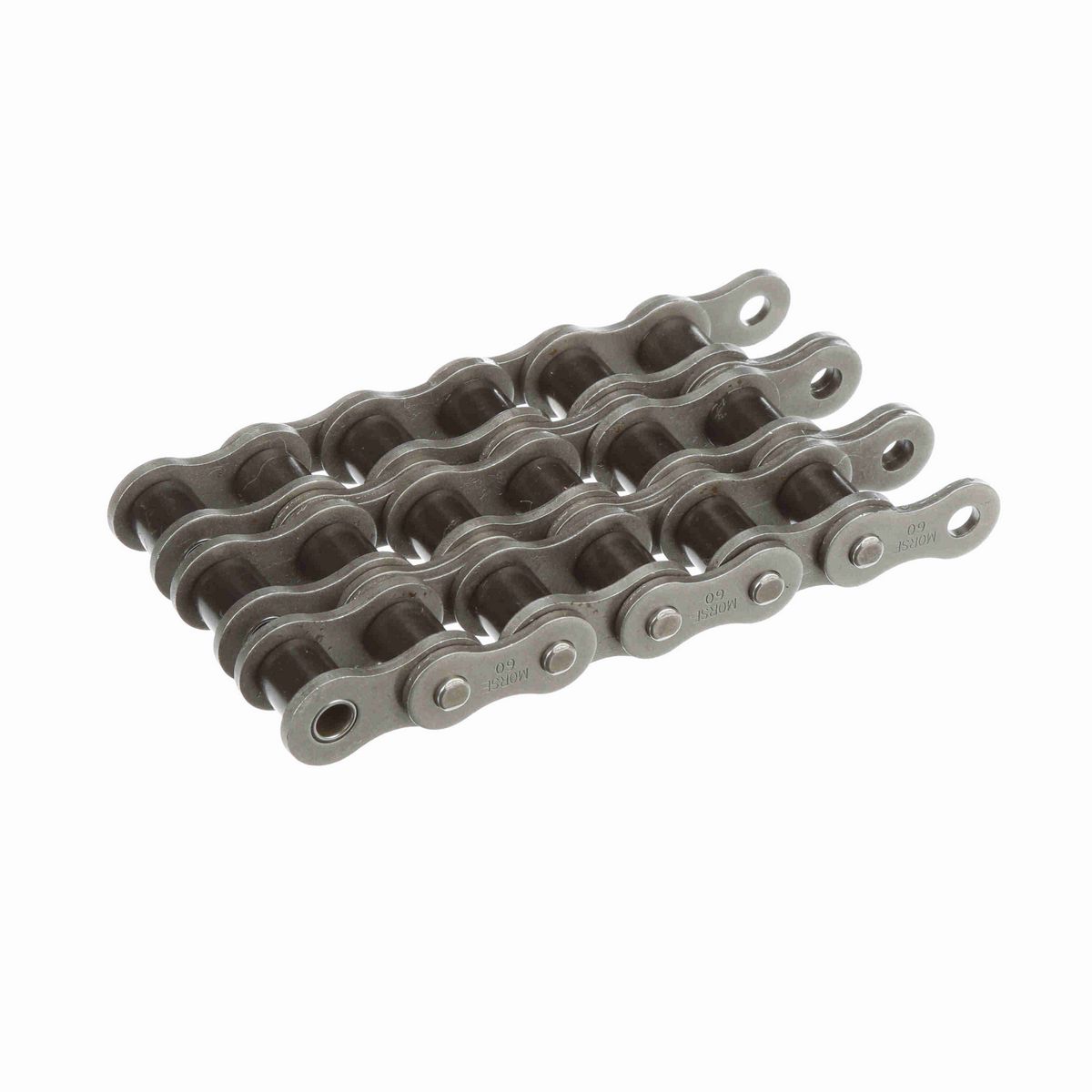

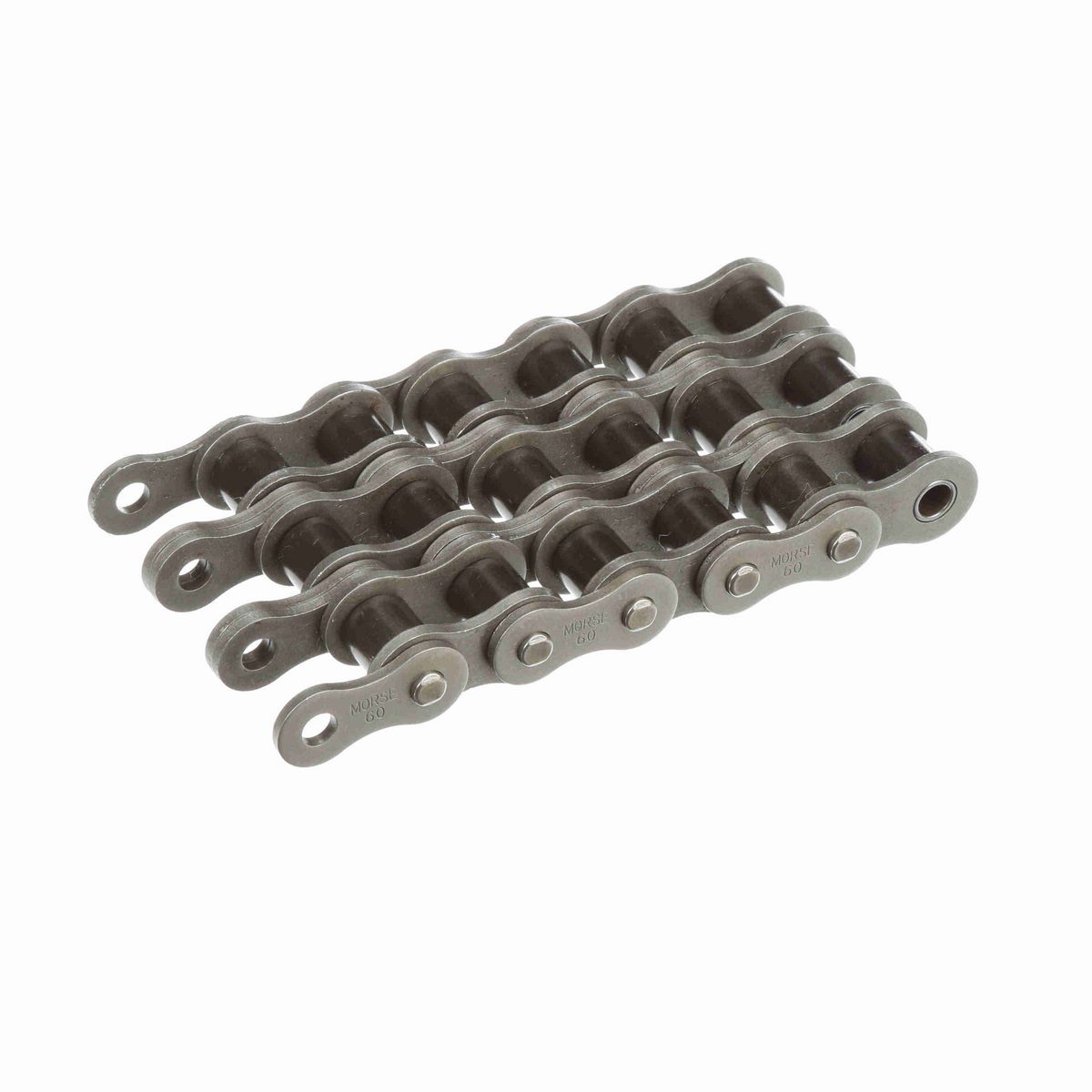

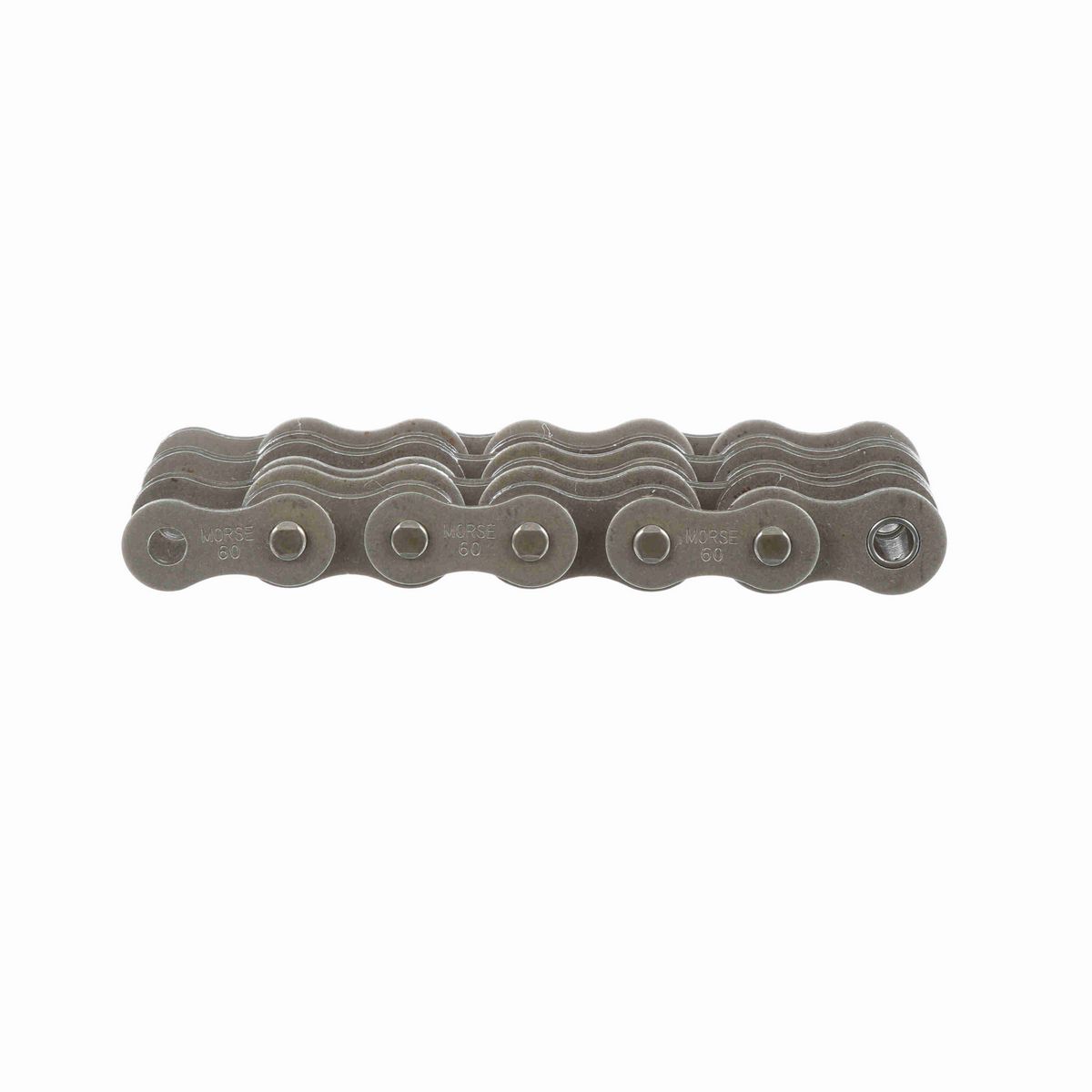

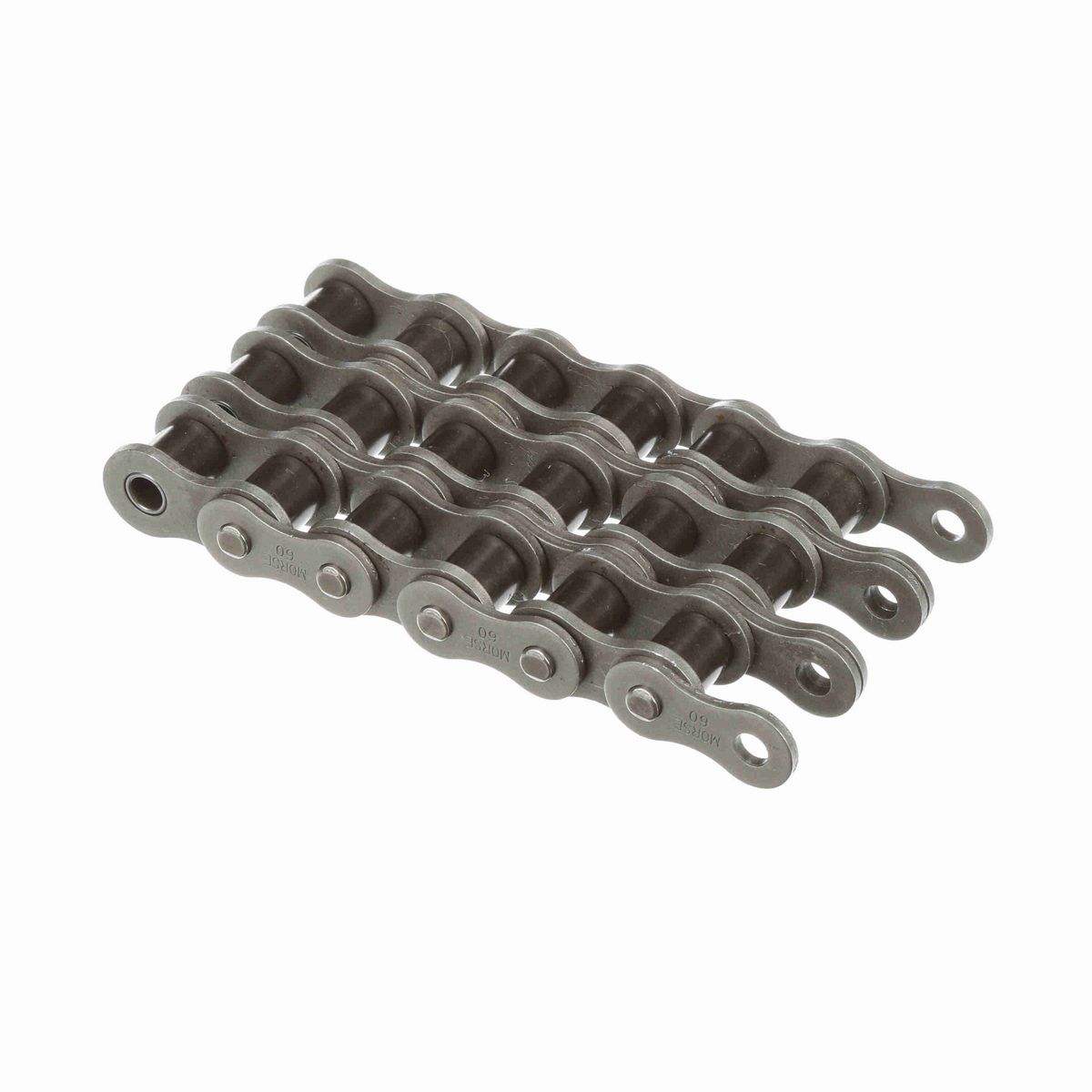

• Unmatched Quality and Performance in Morse Brand Chain
• Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
• Available in package quantities or via quick-turnaround cut-to-length

Technical Specifications

Material	Steel
Number of Connecting Links Included	1
Roller Diameter (in)	0.468 in
Number of Strands/Width	3
Roller Width (in)	0.5 in
Pin Diameter (in)	0.234 in
Chain Family	60
Chain Construction	Riveted
Product Type	Roller Chain
Chain Type	Standard
Chain Pitch (in)	0.75 in
Coating	Uncoated
Measurement System	Imperial
Standard Met	ANSI B29.1
Plate Thickness (in)	0.094 in
Inside Plate Height (in)	0.7 in
Side Plate Configuration	Hourglass
Total Length (ft)	10 ft
Minimum Tensile Strength (lbs)	21,090 lb
Transverse Pitch (in)	0.897 in
Pin Length (in)	2.79 in
Base Catalog No	60-3
Width Over Pins/Total Width (in)	2.79 in

General Specifications

UPC	662288455349
Weight	2.97 LB
Packaged Length	9.70 IN
Packaged Width	9.60 IN
Packaged Height	3.00 IN
HTC	7315.11.0060
Country of Origin	Taiwan, Republic of China
