• Unmatched Quality and Performance in Morse Brand Chain

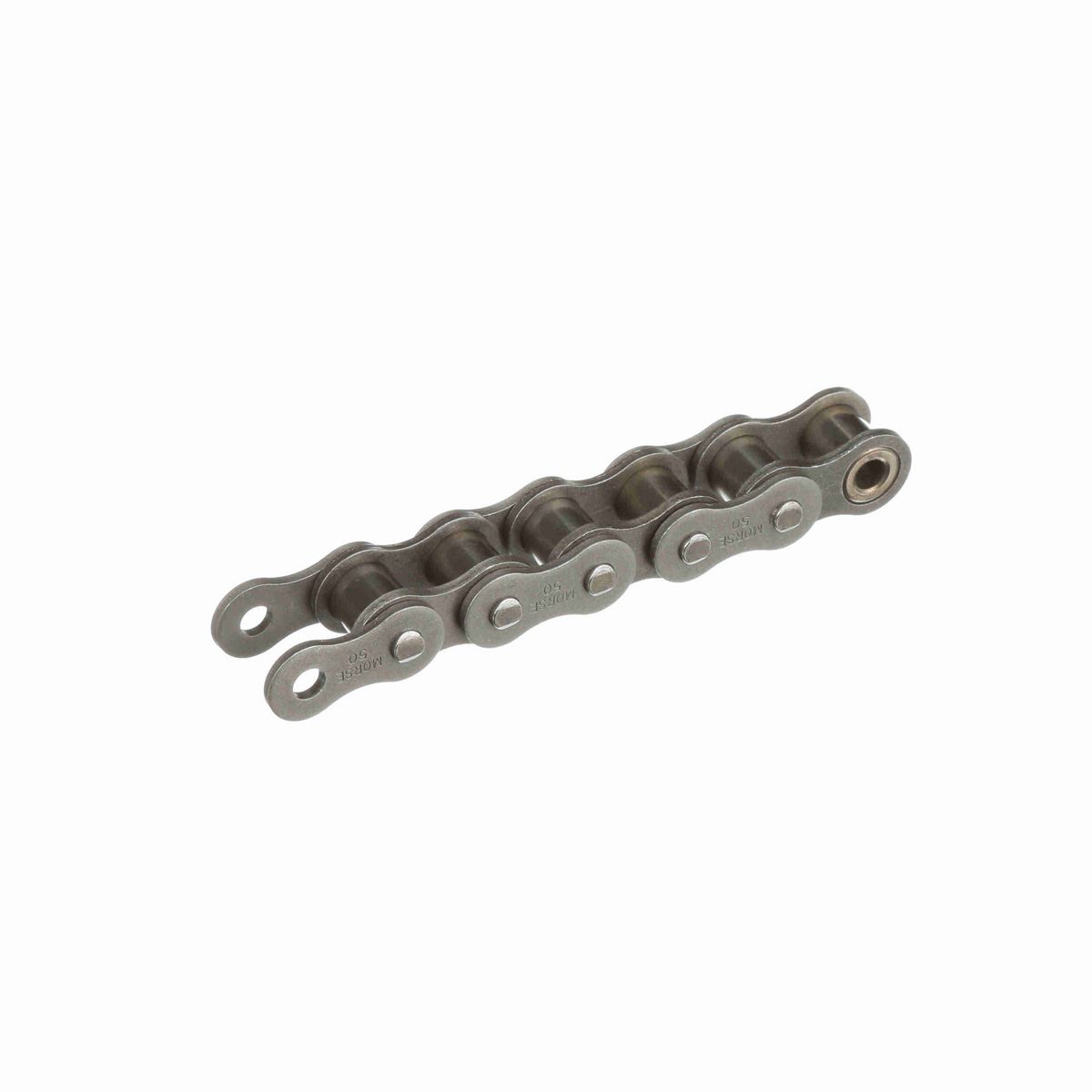

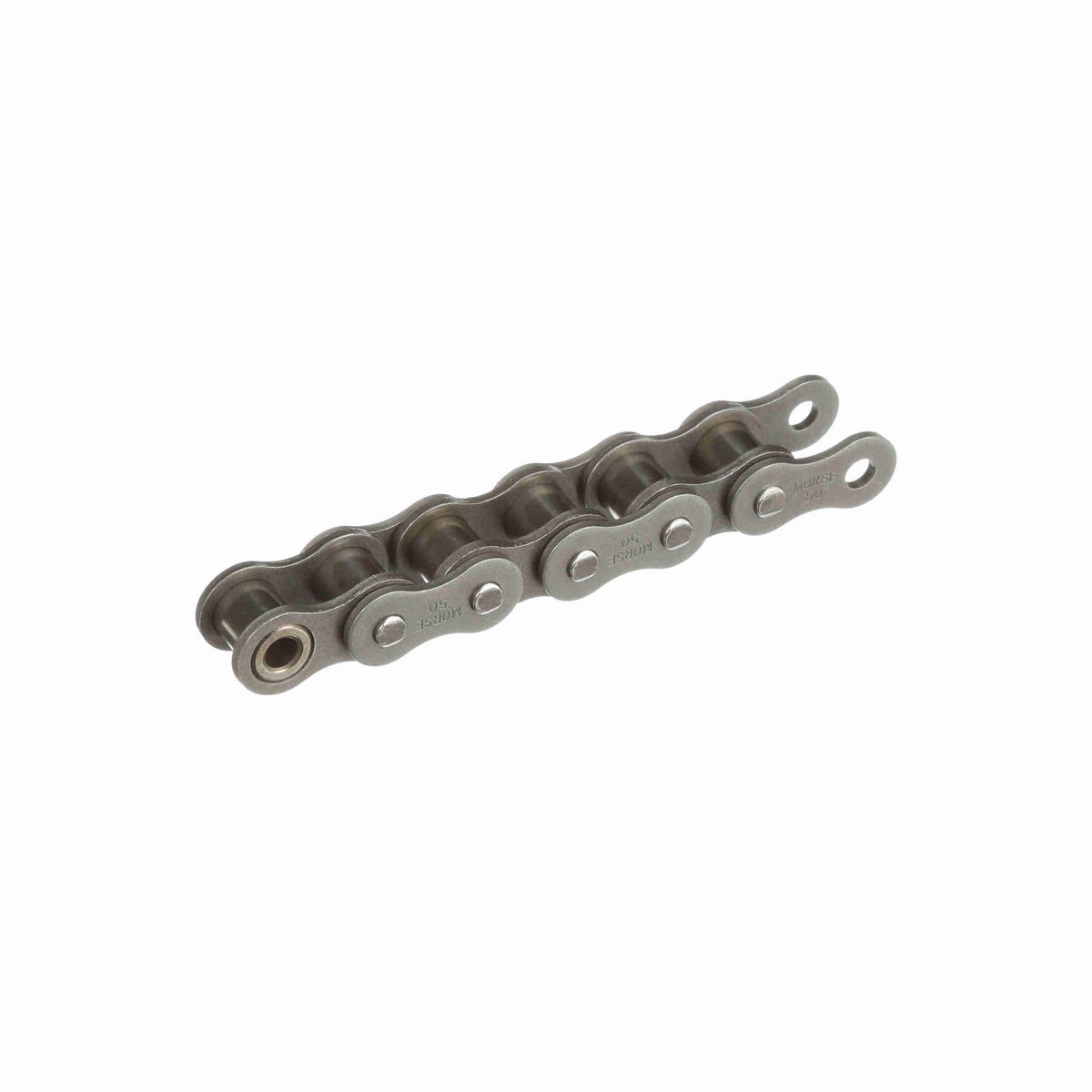

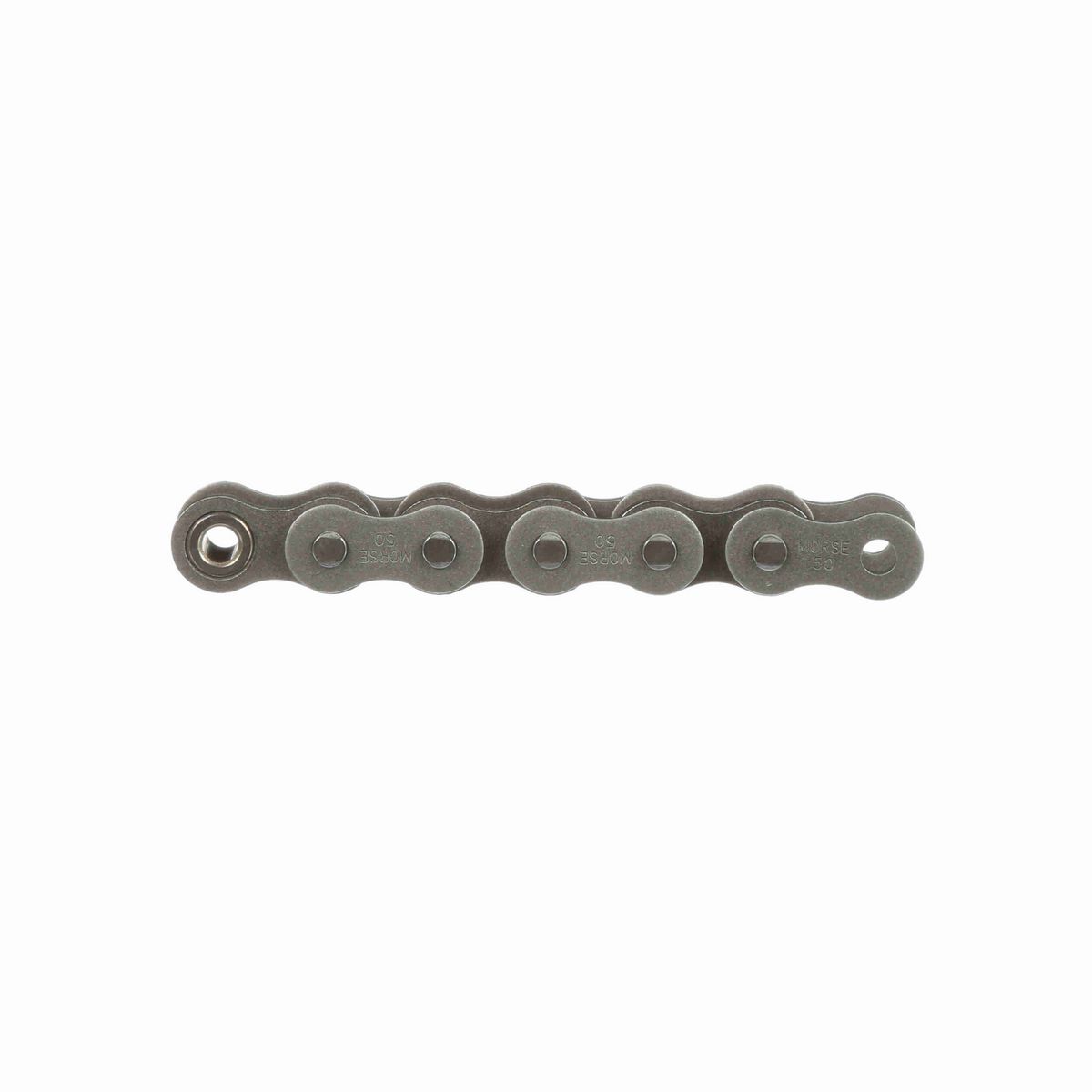

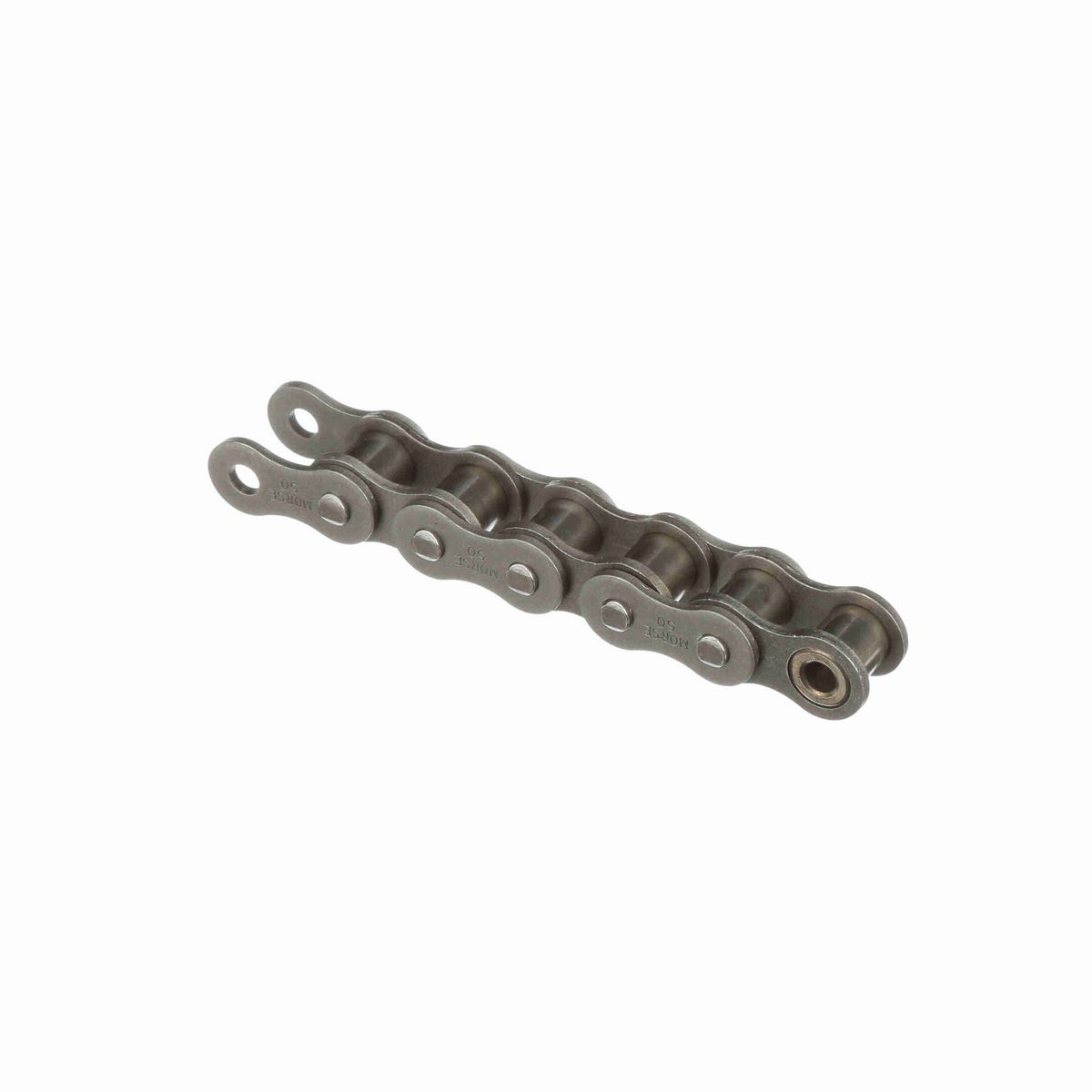

• Roller chain with the self-lubricating properties of oil impregnated, sintered metal bushings to assure longer, more reliable chain service where external lubrication is prohibited or severely limited.
• Available in package quantities or via quick-turnaround cut-to-length
• Rigid manufacturing processes result in a fully-featured chain.

Technical Specifications

Number of Connecting Links Included	1
Chain Family	50
Chain Construction	Riveted
Roller Diameter (in)	0.4 in
Material	Steel
Roller Width (in)	0.375 in
Pin Diameter (in)	0.2 in
Number of Strands/Width	1
Chain Type	Sintered Bushing
Chain Pitch (in)	0.625 in
Product Type	Roller Chain
Coating	Uncoated
Measurement System	Imperial
Standard Met	ANSI B29.1
Plate Thickness (in)	0.08 in
Base Catalog No	50LL
Pin Length (in)	0.79 in
Side Plate Configuration	Hourglass
Width Over Pins/Total Width (in)	0.79 in
Inside Plate Height (in)	0.584 in
Total Length (ft)	10 ft

General Specifications

UPC	662288400448
Weight	0.69 LB
Packaged Length	9.30 IN
Packaged Width	9.20 IN
Packaged Height	1.30 IN
HTC	7315.11.0060
Country of Origin	Taiwan, Republic of China
