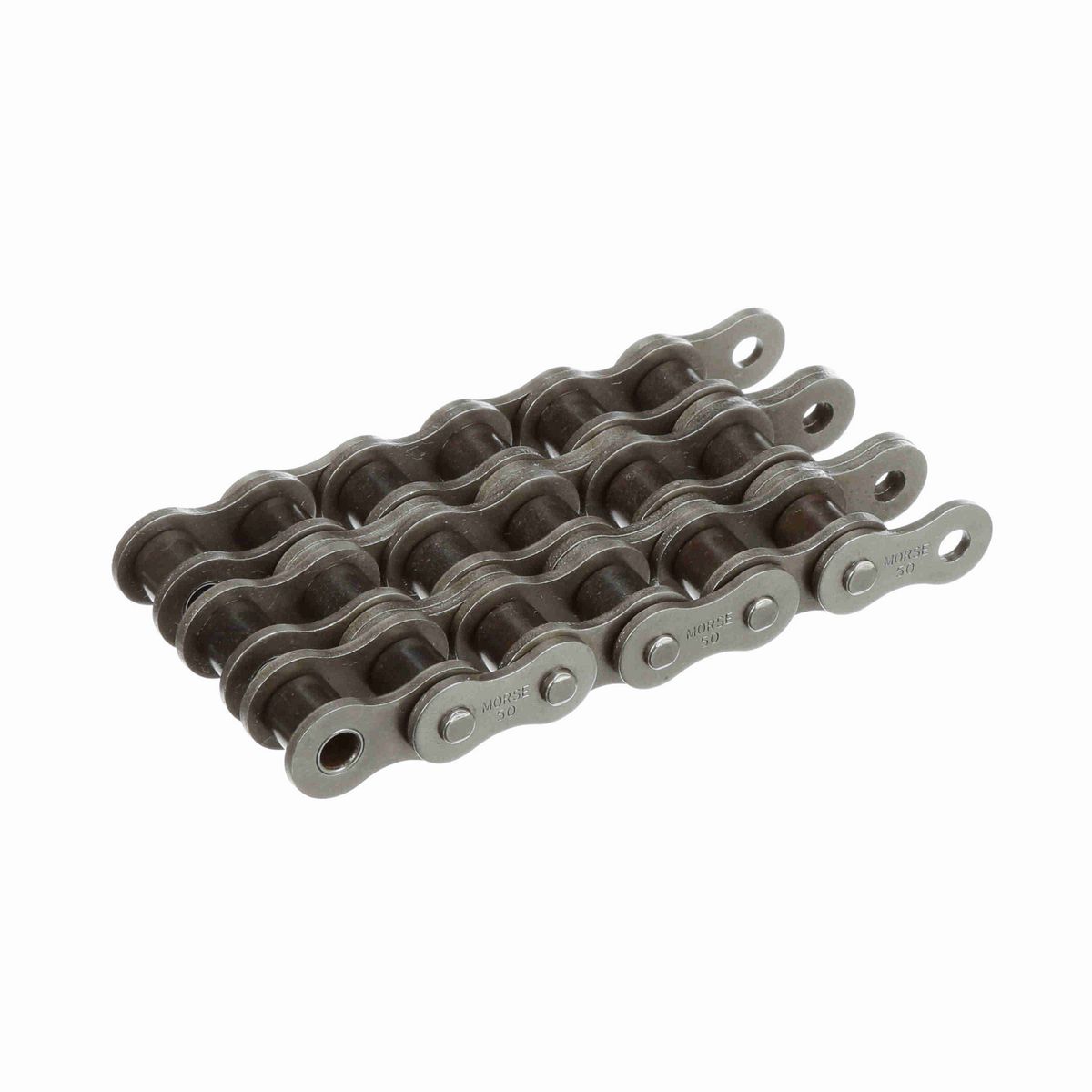

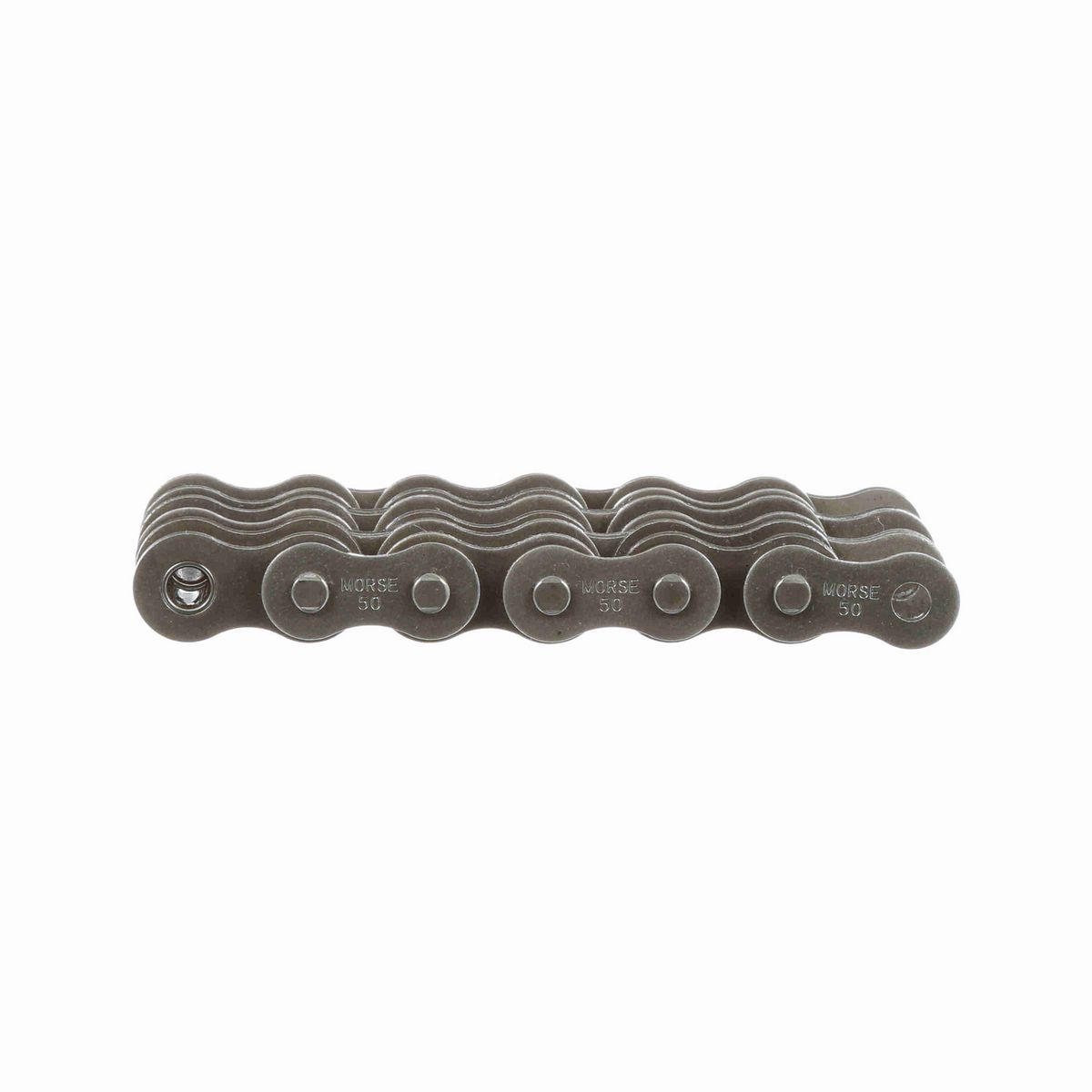

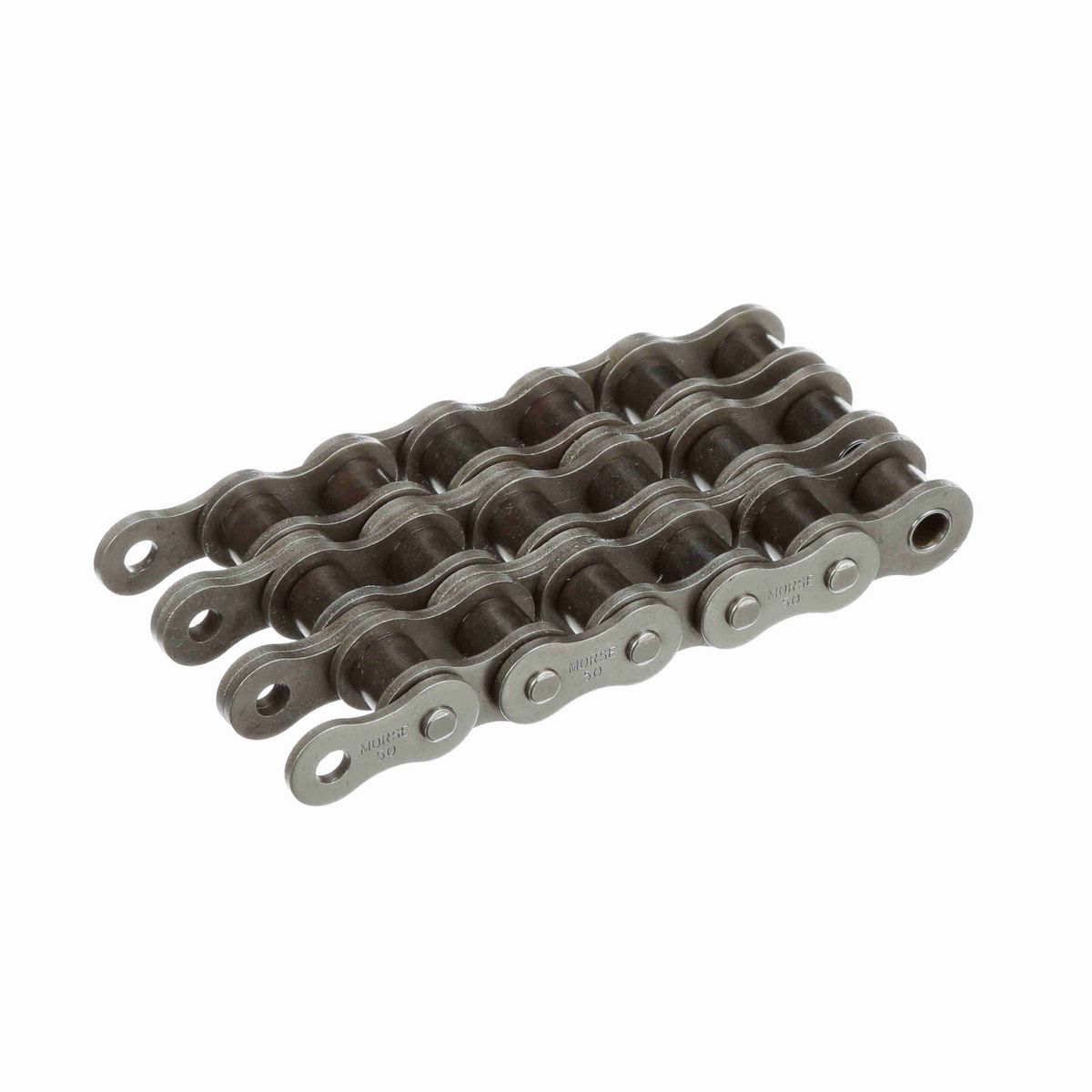

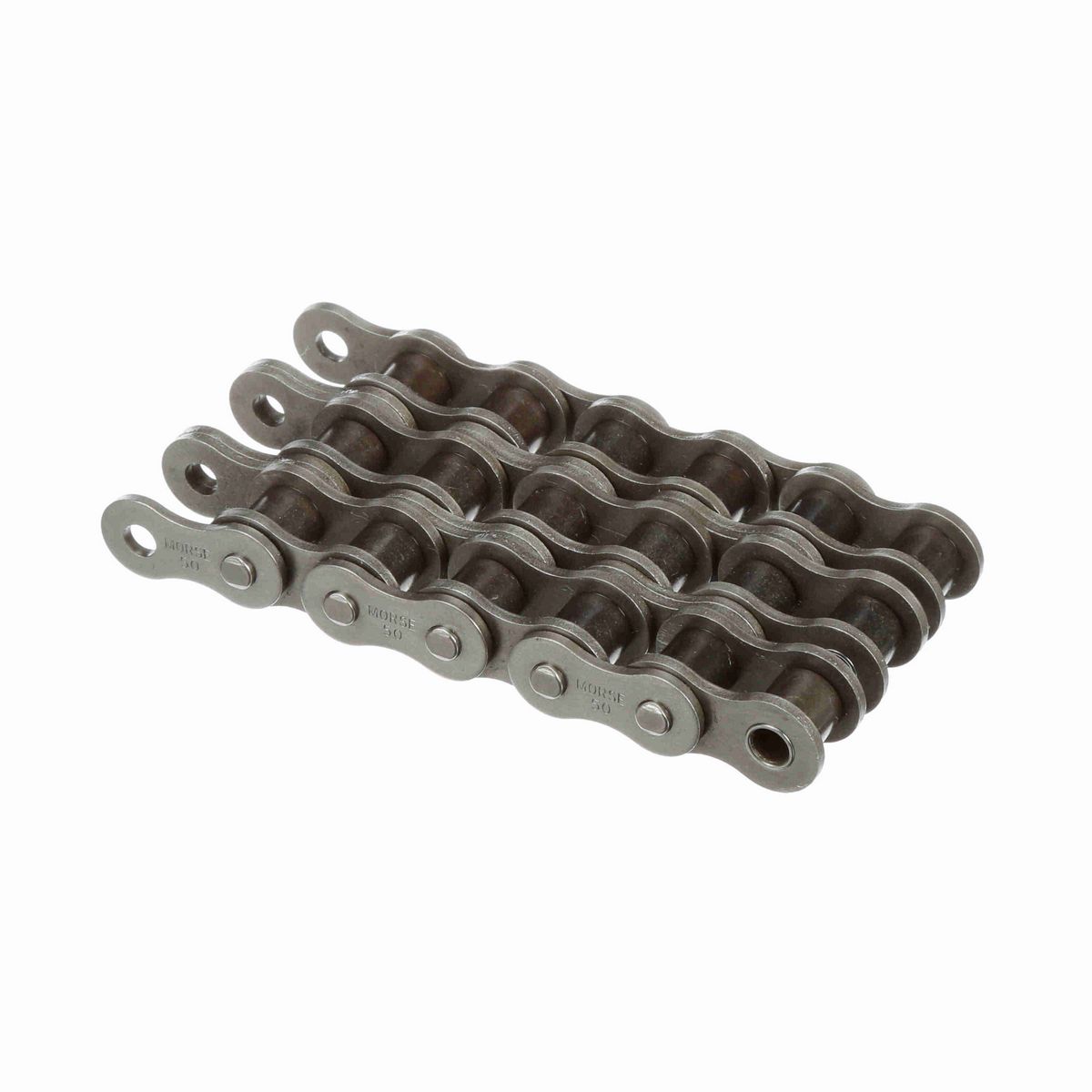

• Unmatched Quality and Performance in Morse Brand Chain
• Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
• Available in package quantities or via quick-turnaround cut-to-length

Technical Specifications

Pin Diameter (in)	0.2 in
Number of Connecting Links Included	1
Roller Diameter (in)	0.4 in
Material	Steel
Number of Strands/Width	3
Chain Family	50
Chain Construction	Riveted
Roller Width (in)	0.375 in
Chain Pitch (in)	0.625 in
Product Type	Roller Chain
Chain Type	Standard
Coating	Uncoated
Standard Met	ANSI B29.1
Measurement System	Imperial
Base Catalog No	50-3
Side Plate Configuration	Hourglass
Pin Length (in)	2.22 in
Plate Thickness (in)	0.08 in
Width Over Pins/Total Width (in)	2.22 in
Minimum Tensile Strength (lbs)	14,646 lb
Inside Plate Height (in)	0.584 in
Transverse Pitch (in)	0.713 in
Total Length (ft)	10 ft

General Specifications

UPC	662288455325
Weight	2.22 LB
Packaged Length	15.40 IN
Packaged Width	11.70 IN
Packaged Height	3.80 IN
HTC	7315.11.0060
Country of Origin	Taiwan, Republic of China
