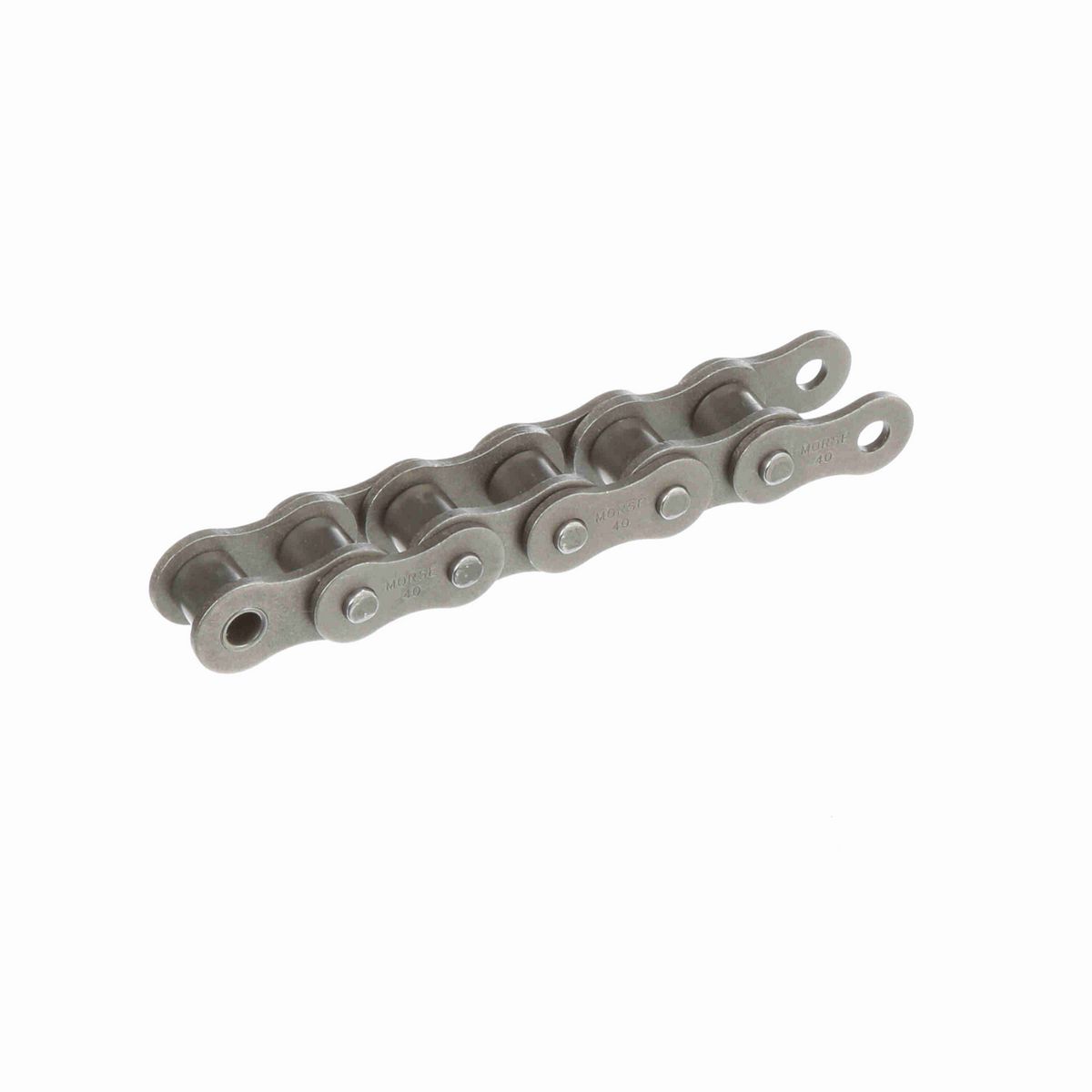

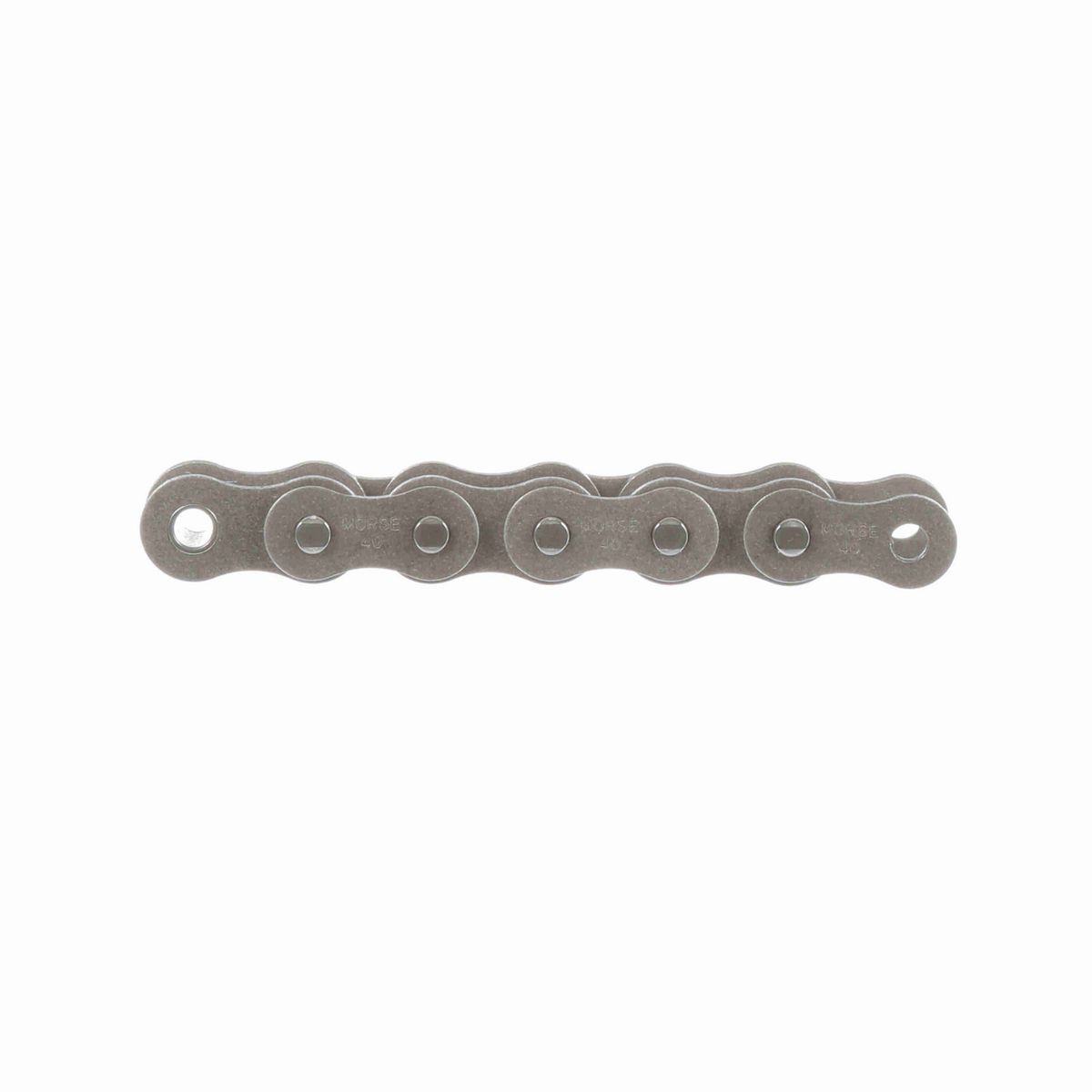

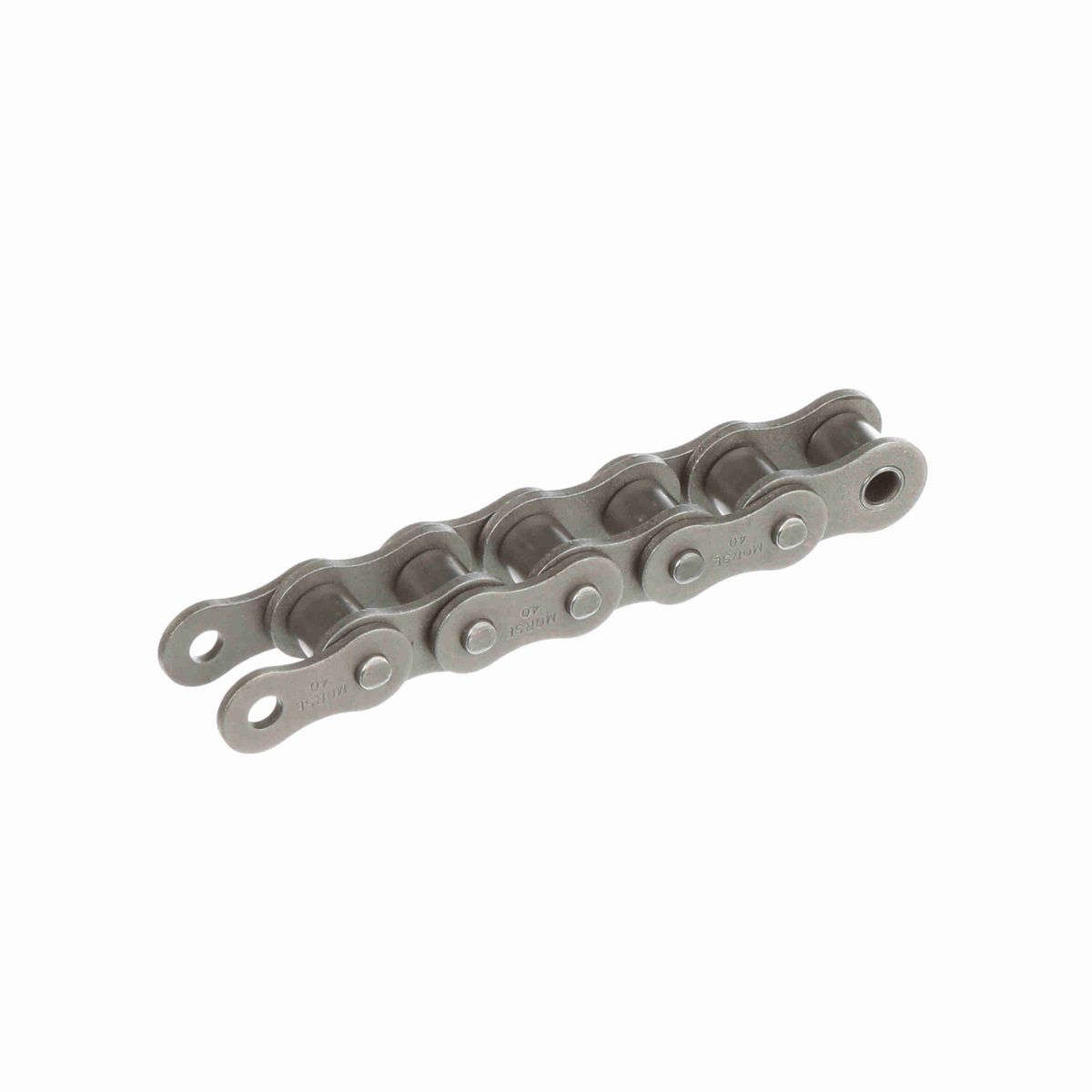

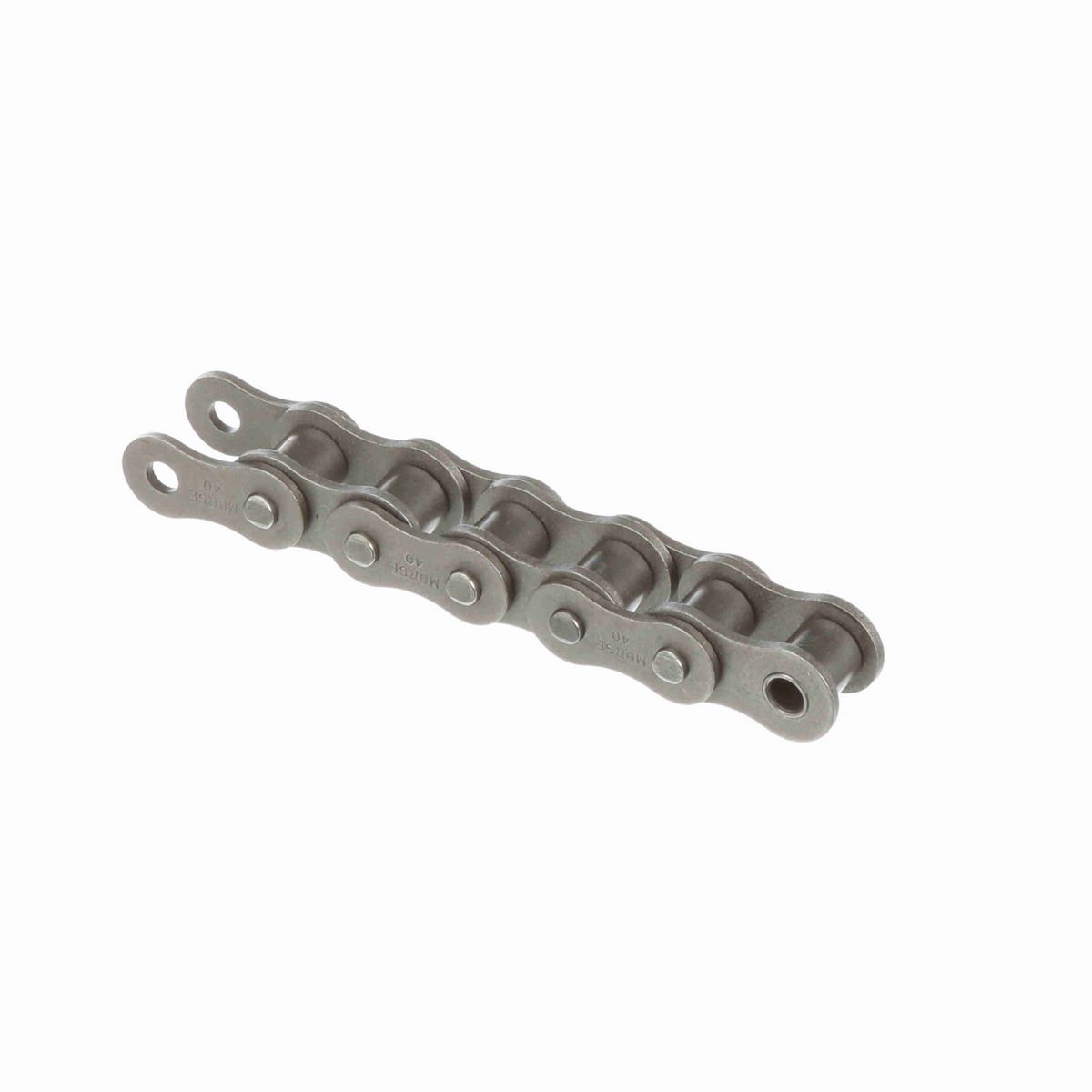

• Unmatched Quality and Performance in Morse Brand Chain
• Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
• Available in package quantities or via quick-turnaround cut-to-length

Technical Specifications

Roller Width (in)	0.3125 in
Pin Diameter (in)	0.156 in
Roller Diameter (in)	0.312 in
Number of Connecting Links Included	1
Chain Family	40
Material	Steel
Number of Strands/Width	1
Chain Construction	Riveted
Chain Pitch (in)	0.5 in
Product Type	Roller Chain
Chain Type	Standard
Coating	Uncoated
Standard Met	ANSI B29.1
Measurement System	Imperial
Total Length (ft)	10 ft
Width Over Pins/Total Width (in)	0.63 in
Pin Length (in)	0.63 in
Plate Thickness (in)	0.06 in
Minimum Tensile Strength (lbs)	3,125 lb
Inside Plate Height (in)	0.466 in
Base Catalog No	40
Side Plate Configuration	Hourglass

General Specifications

UPC	662288395058
Weight	0.44 LB
Packaged Length	9.20 IN
Packaged Width	9.30 IN
Packaged Height	1.20 IN
HTC	7315.11.0060
Country of Origin	Taiwan, Republic of China
