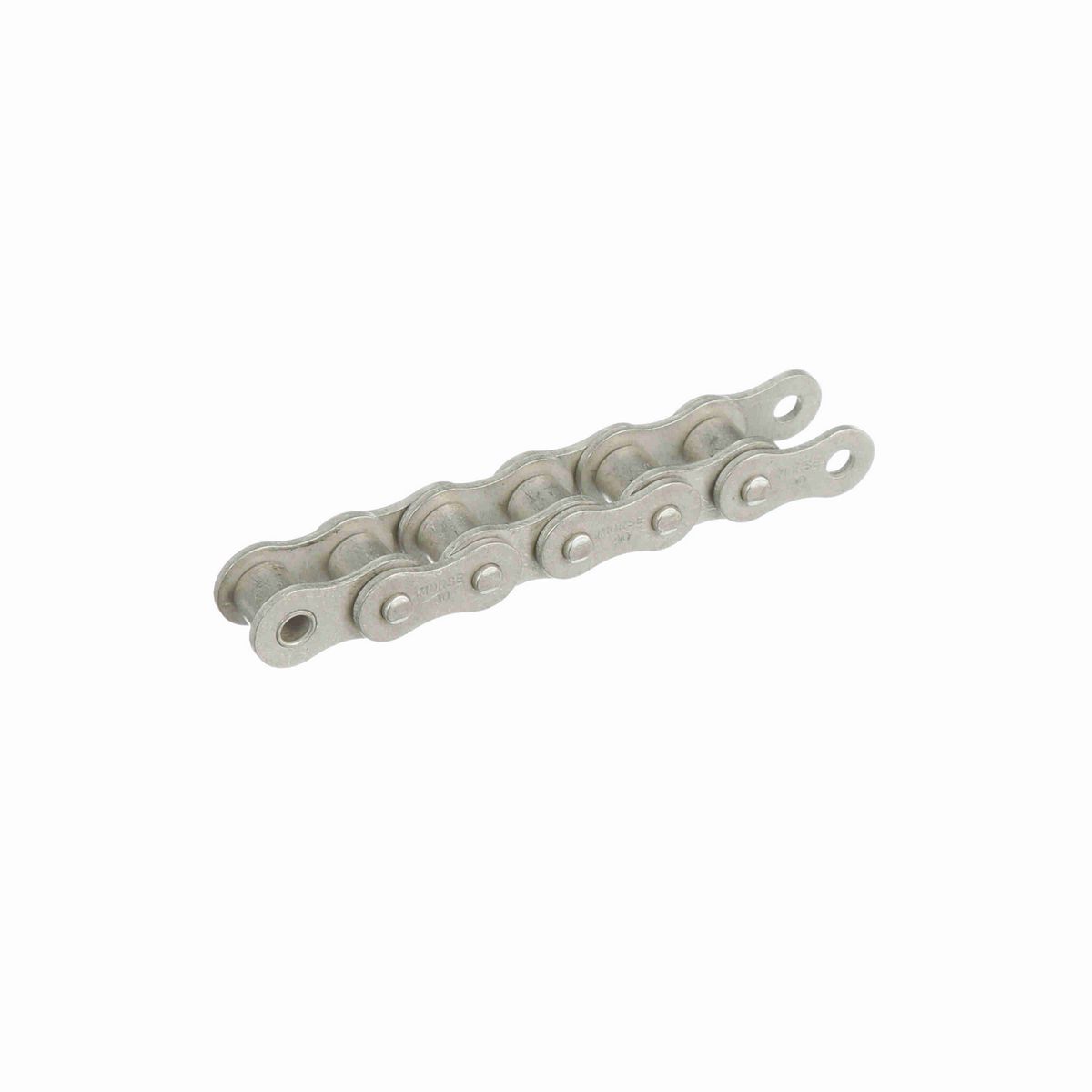

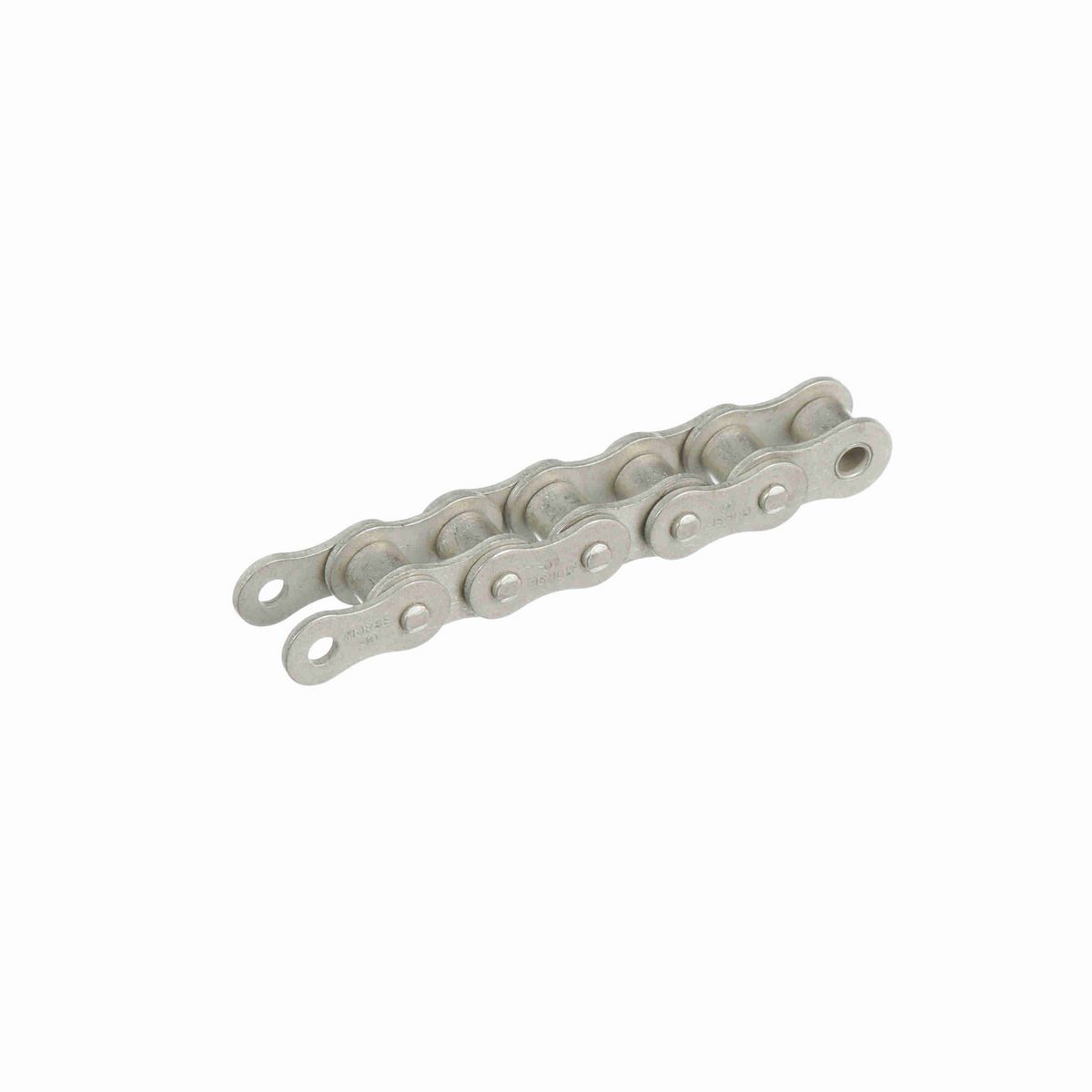

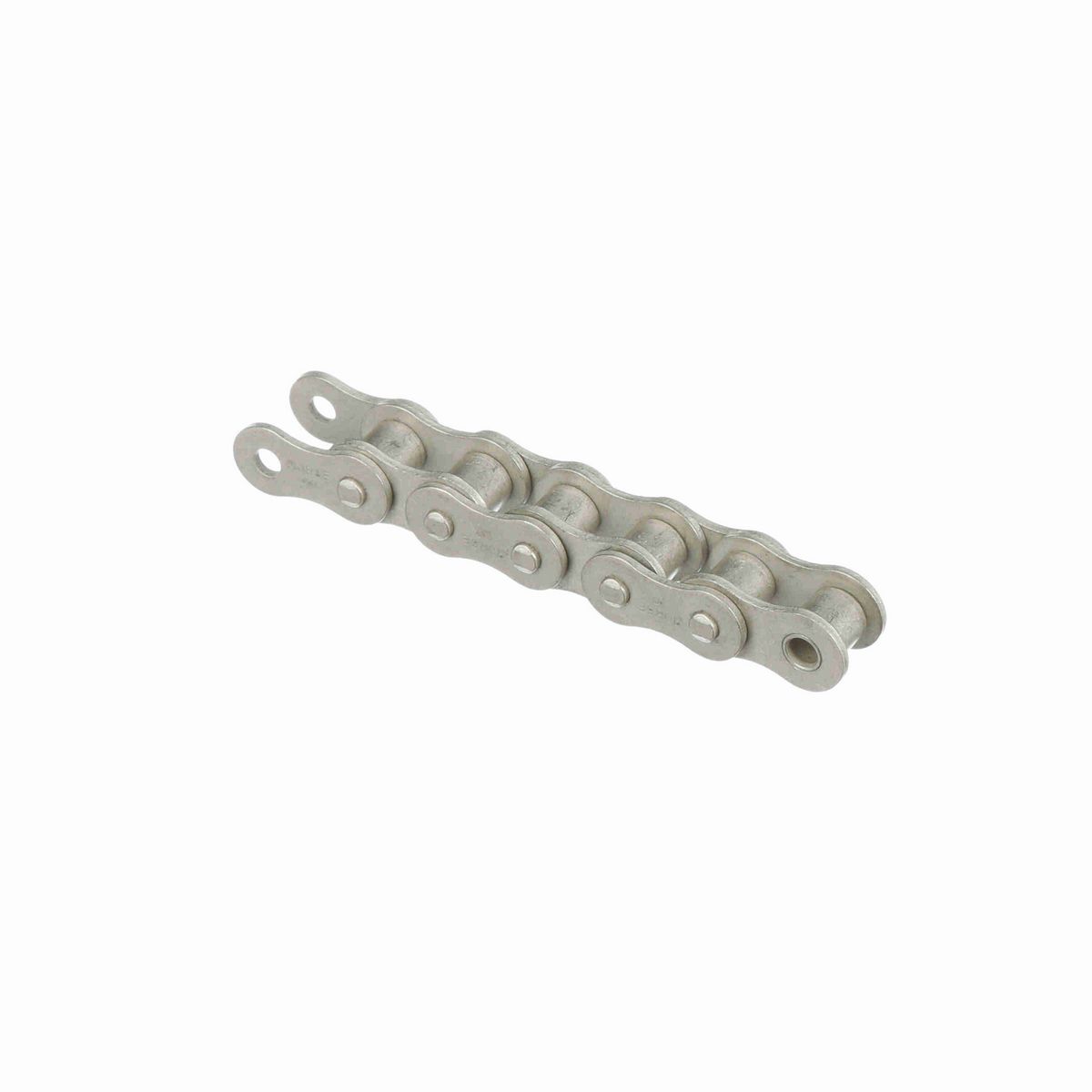

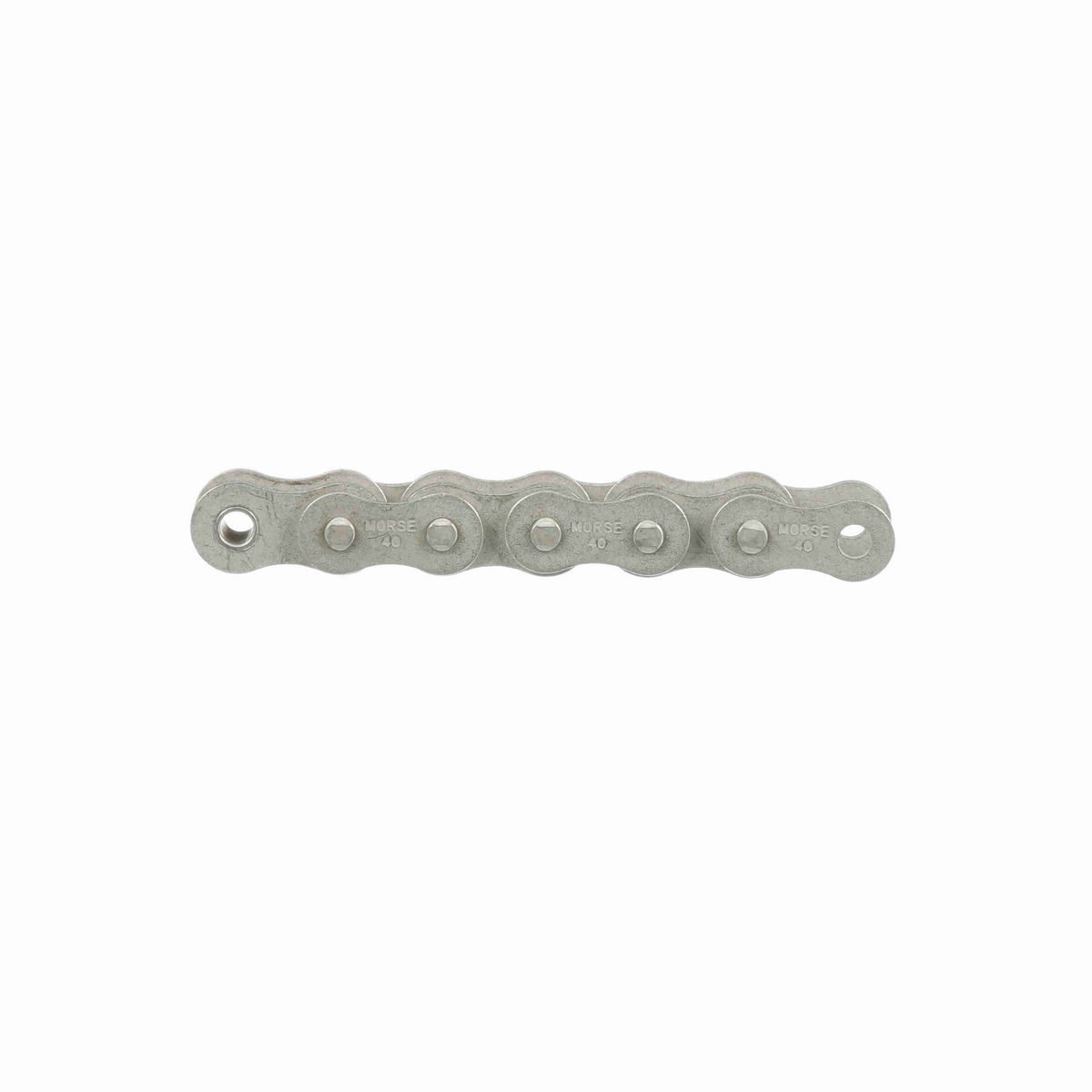

• Unmatched Quality and Performance in Morse Brand Chain
• All components are plated before assembly
• Available in package quantities or via quick-turnaround cut-to-length
• The strength of carbon steel with corrosion protection

Technical Specifications

Chain Construction	Riveted
Chain Family	40
Pin Diameter (in)	0.156 in
Roller Diameter (in)	0.312 in
Material	Steel
Coating	Moisture Guard
Roller Width (in)	0.3125 in
Number of Strands/Width	1
Number of Connecting Links Included	1
Product Type	Roller Chain
Chain Pitch (in)	0.5 in
Chain Type	Moisture Guard
Standard Met	ANSI B29.1
Measurement System	Imperial
Inside Plate Height (in)	0.466 in
Plate Thickness (in)	0.06 in
Side Plate Configuration	Hourglass
Base Catalog No	40MG
Width Over Pins/Total Width (in)	0.63 in
Total Length (ft)	10 ft
Pin Length (in)	0.63 in

General Specifications

UPC	662288805670
Weight	0.49 LB
Packaged Length	9.30 IN
Packaged Width	9.20 IN
Packaged Height	1.30 IN
HTC	7315.11.0060
Country of Origin	Taiwan, Republic of China
